EX-04 — Exterior & Facade

Glass Railing Systems

Frameless aluminium and glass balustrades for balconies, staircases and terraces, in top-mount, side-mount and in-floor configurations.

Laminated glass: 5+5→ 12+12 mm
Standards compliance: CE
Section types: 39

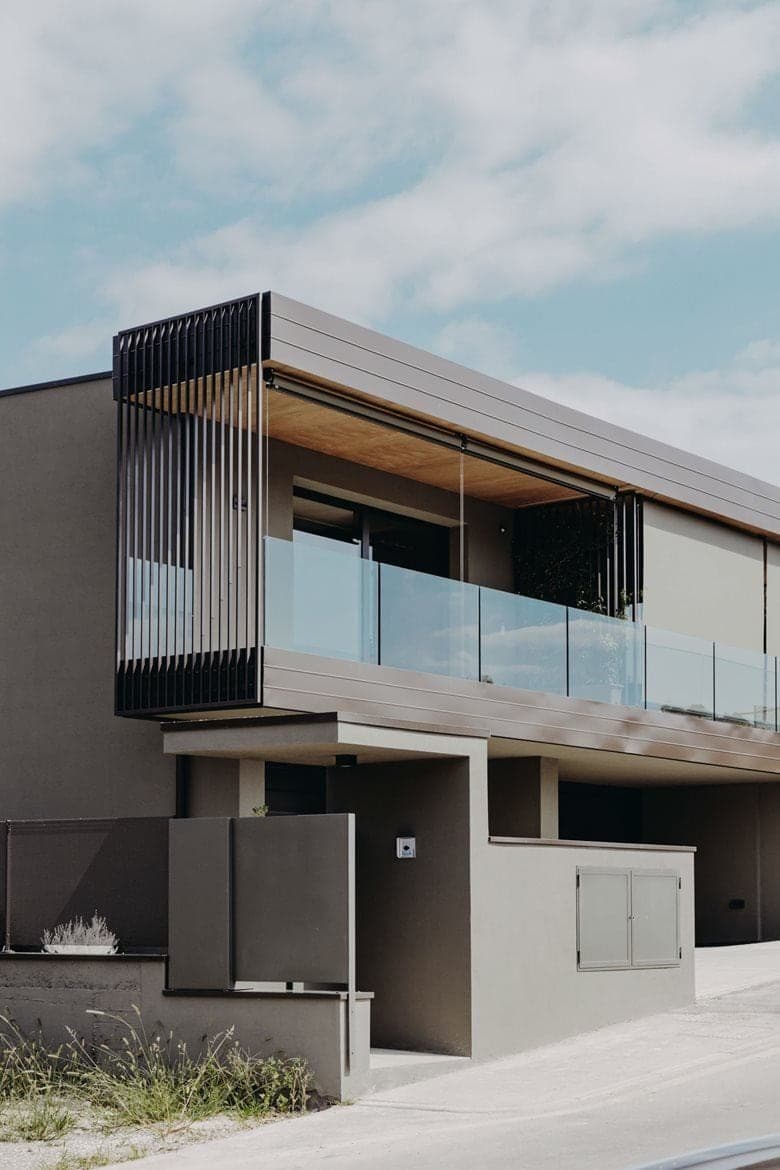

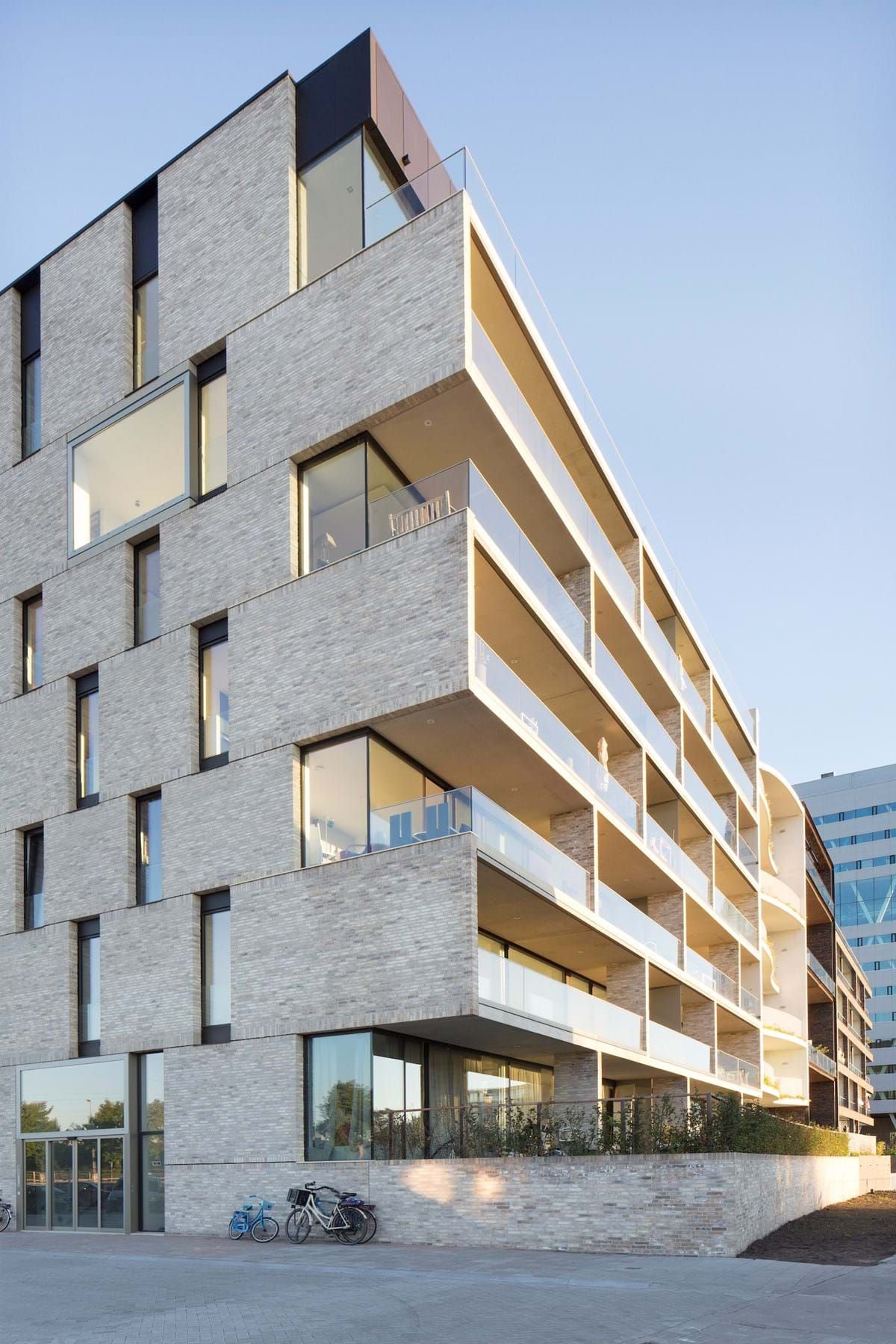

Glass Railing Systems — project view — Exterior & Facade — Glass Railing Systems

01 — Overview

Shiprade Aluminium glass railing systems bring together aesthetics and safety in contemporary buildings. Designed for balconies, staircases and terraces, they offer high durability and a long service life, and their clean lines give a structure a calm, open edge.

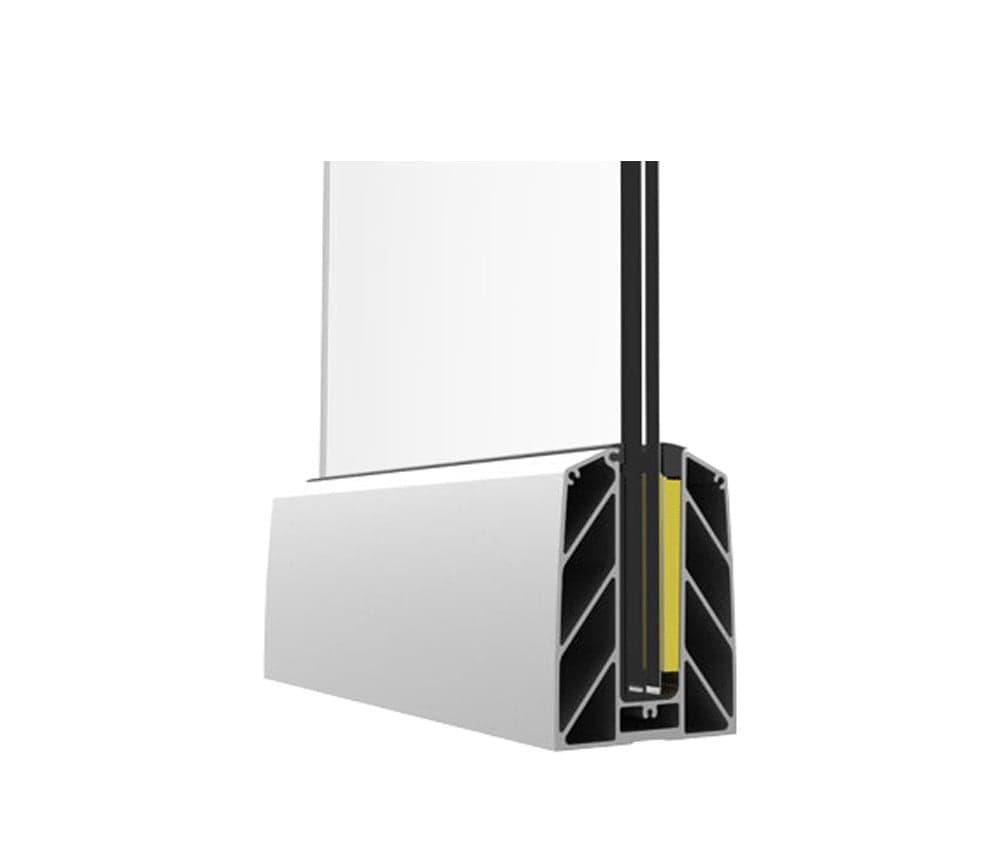

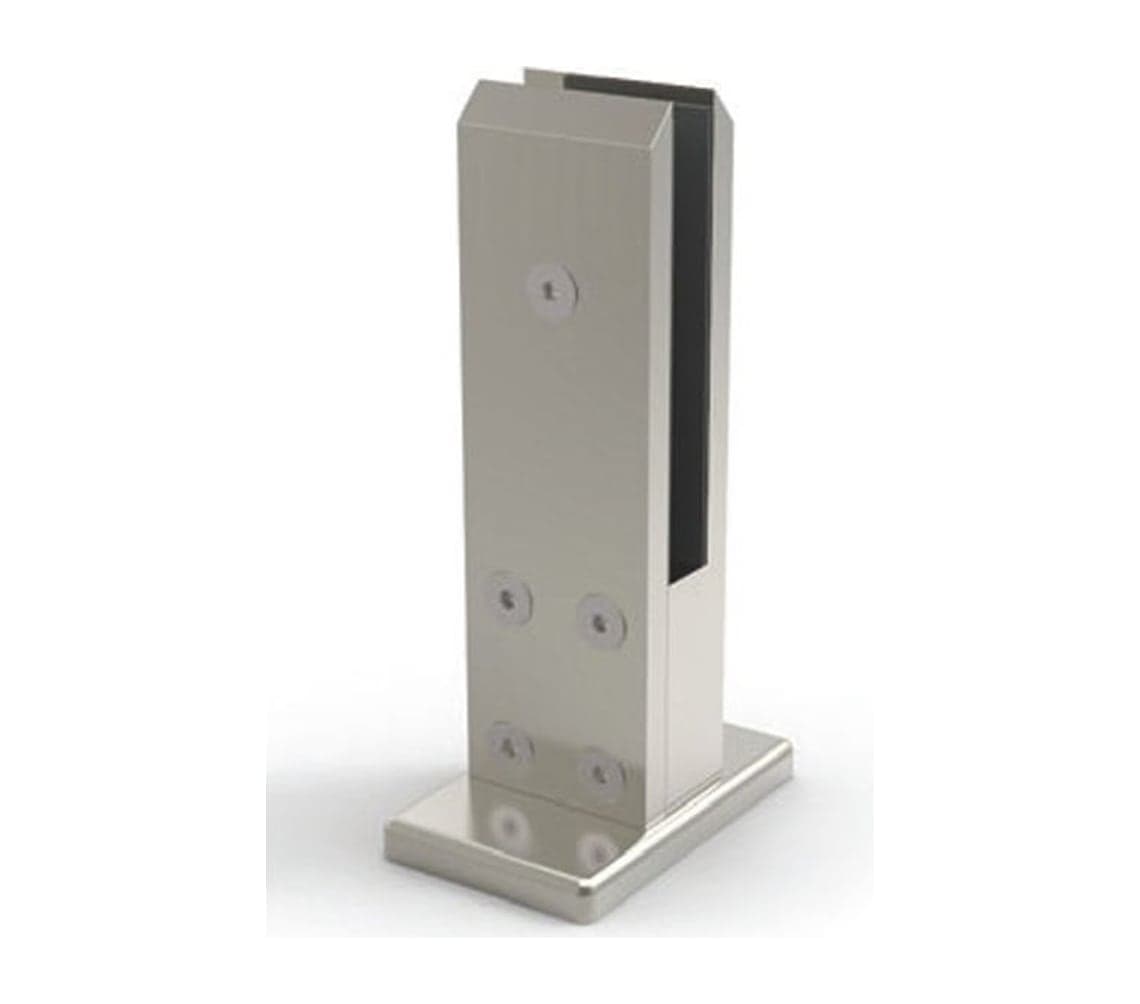

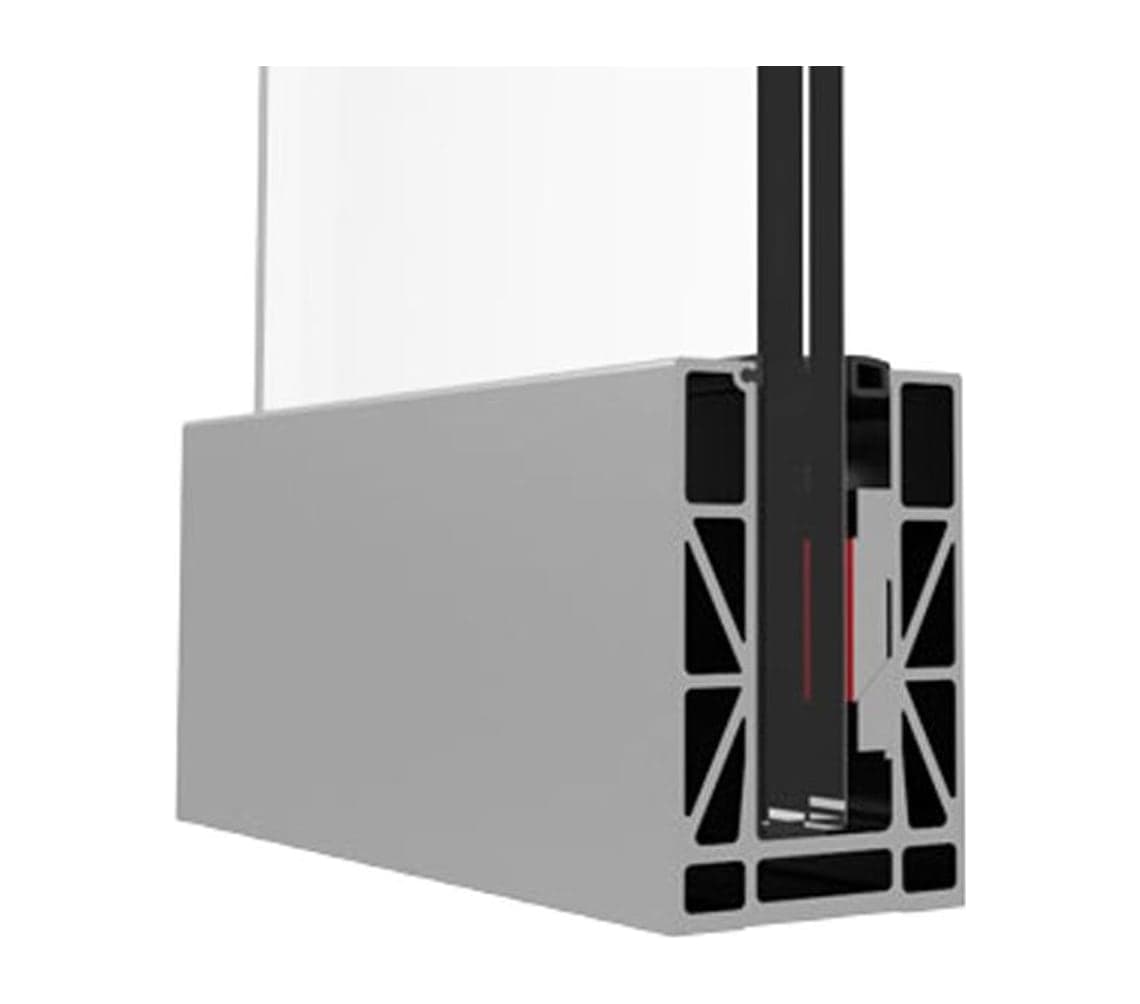

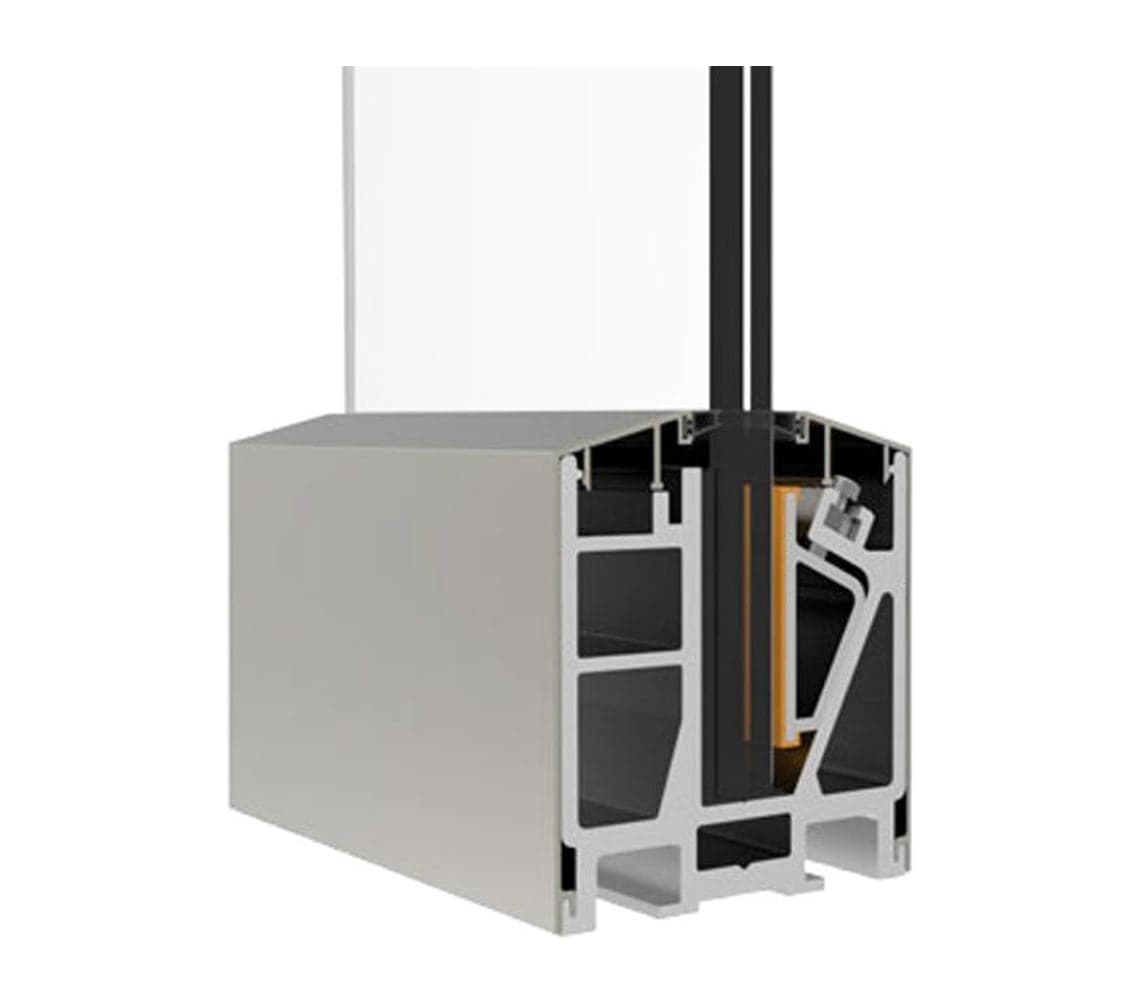

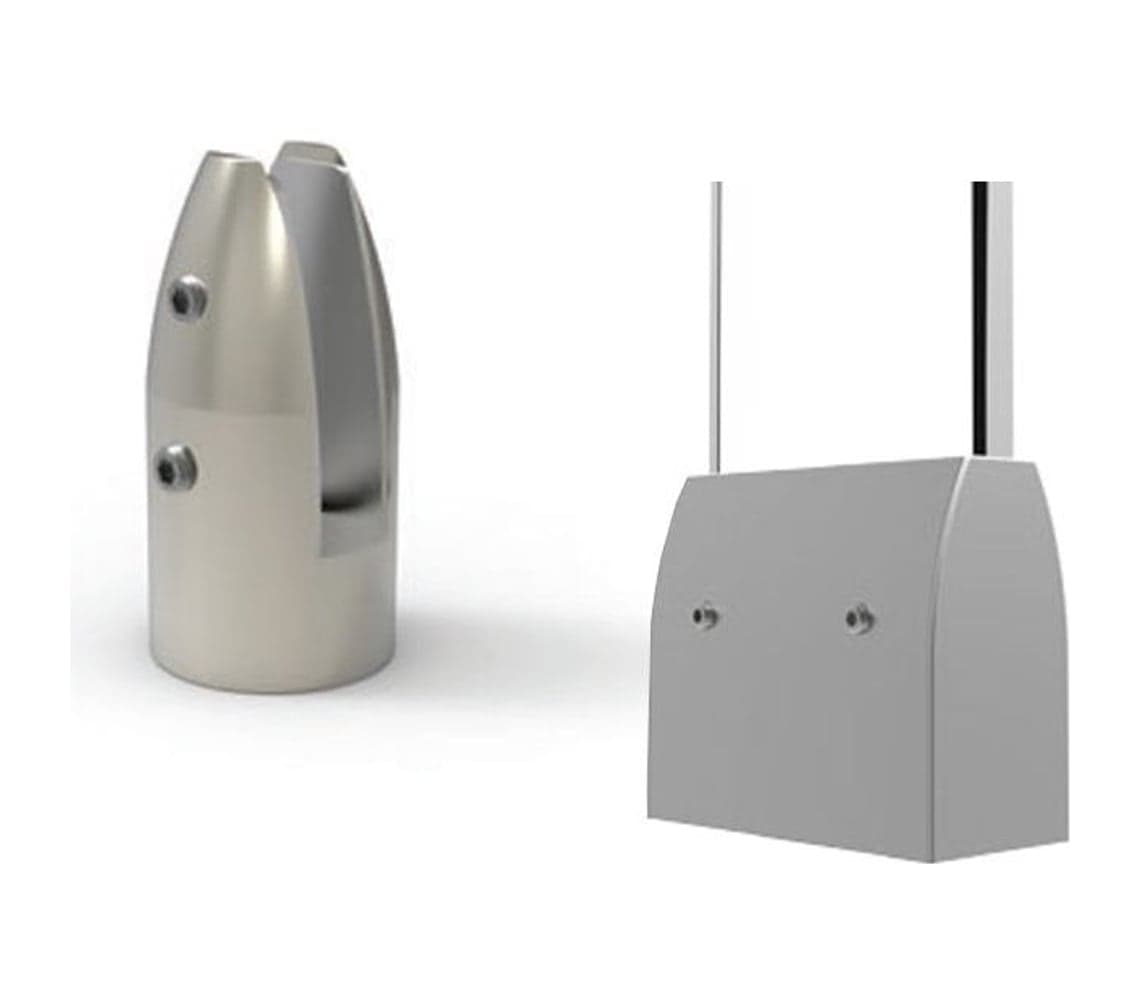

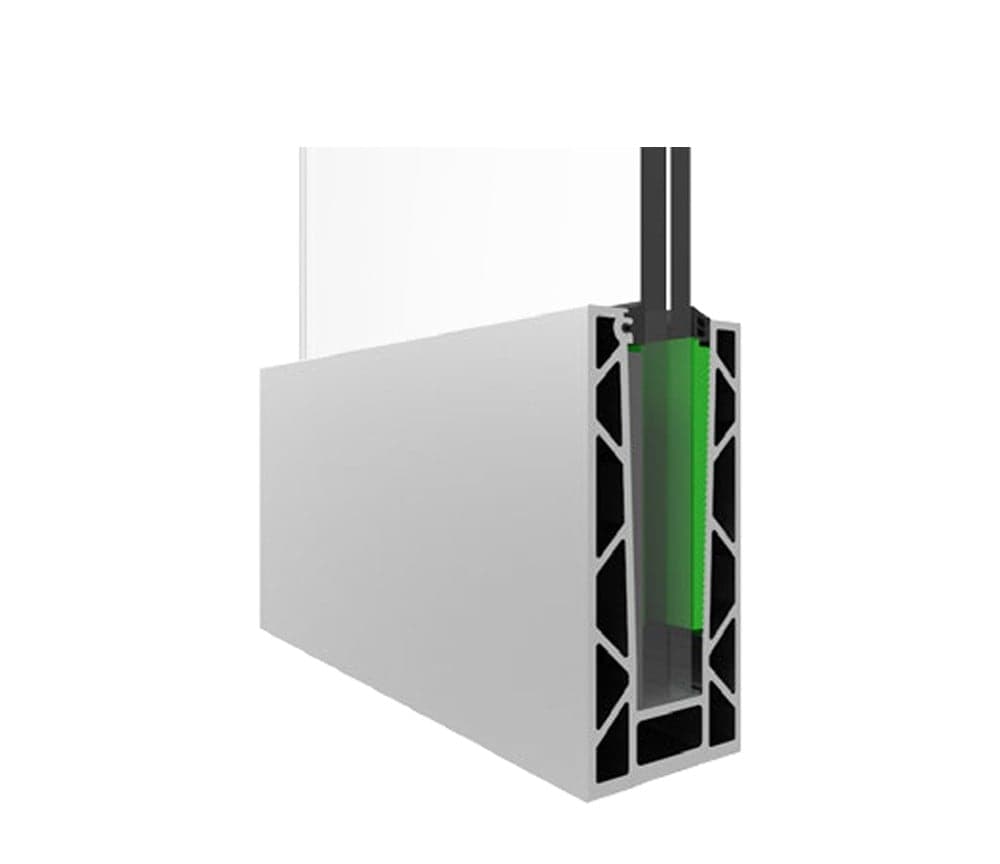

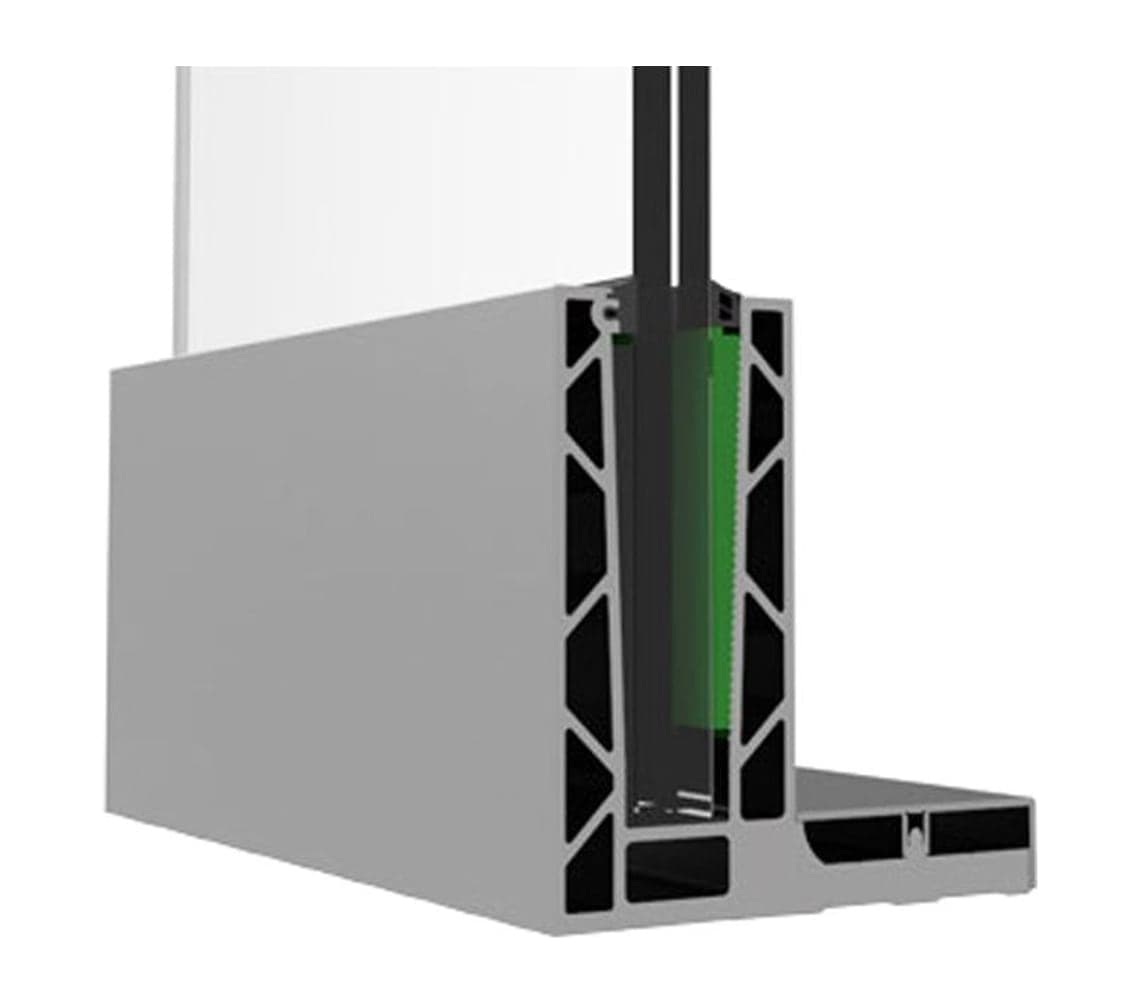

The range covers top-mount base shoes, side-mounted (fascia) profiles and in-floor types, together with angle-adjustable systems, standoff adapters, spigots and Juliet balconies. Systems accept laminated glass from 5+5 mm up to 12+12 mm and comply with CE standards. Aluminium base connections give a sturdy structure, and capping profiles conceal every fixing for a seamless finish.

A smart, practical mounting design saves time for architects and installers. Profiles are extruded in full lengths or supplied as 15 cm and 30 cm base blocks, can be pre-drilled on request and are finished in natural anodising or RAL powder coating to suit each project.

Systems

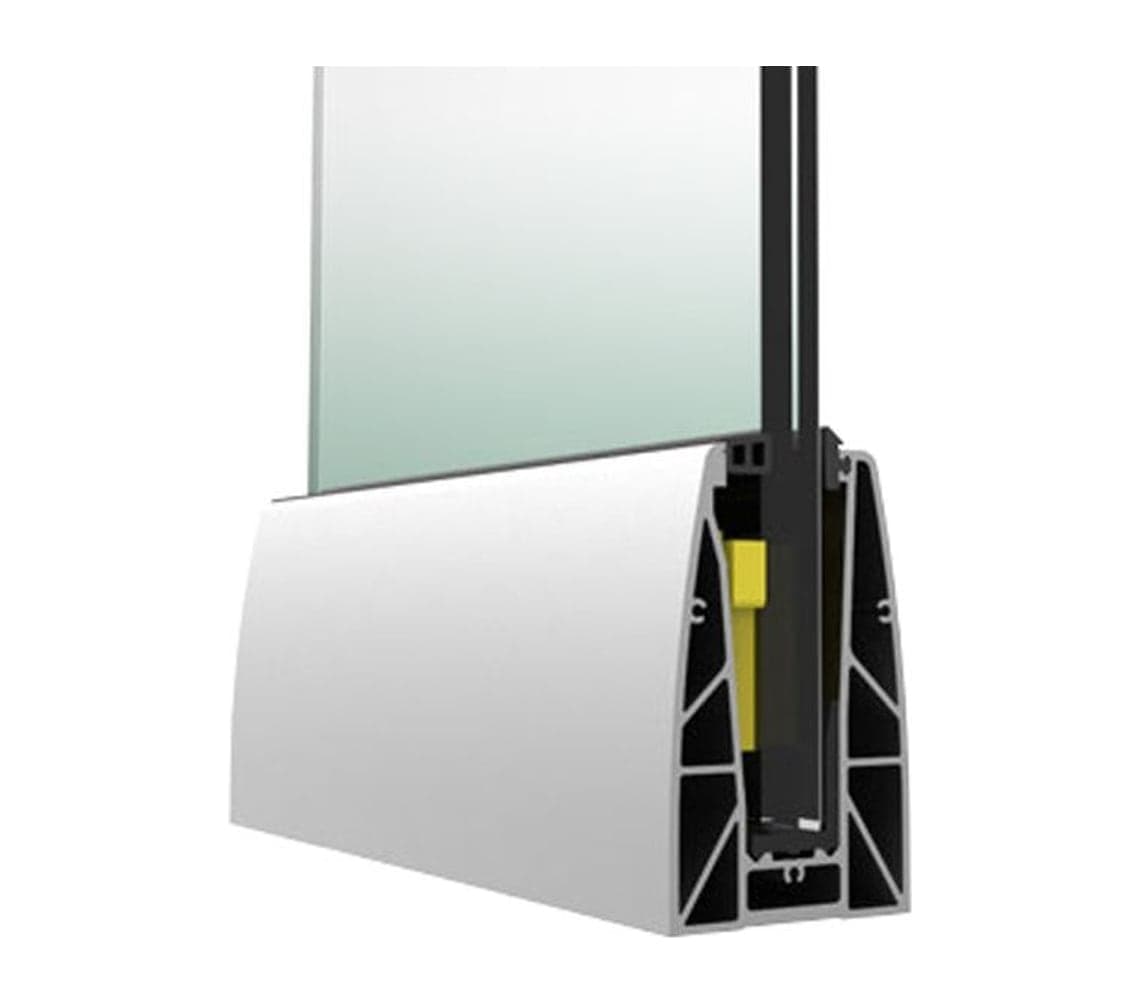

Ten system families, from segmental base shoes and full-length channels to angle-adjustable, side-mount, spigot and Juliet balcony solutions.

Performance

01
Sturdy structure
Aluminium base connection elements give a long-lasting, rigid build.
02
Concealed fixings
Capping and cover profiles hide anchors and holes for a sleek line.
03
Quick installation
Practical wedge and pressing systems allow fast, trouble-free fitting.
04
Secure glass fixing
A strong connection between glass and base gives maximum safety.
05

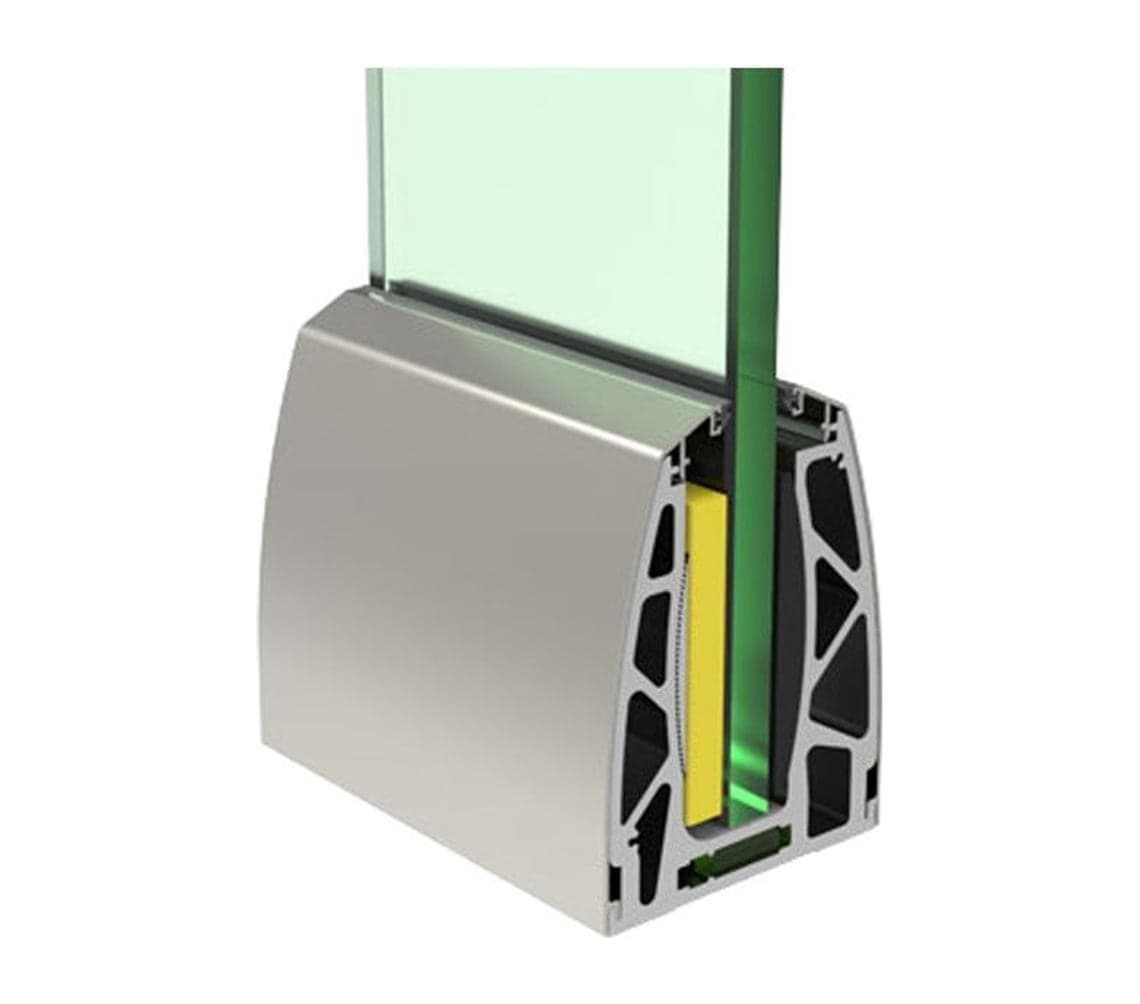

Angle adjustment
Adjustable systems correct the glass on uneven floors, even after installation.
06

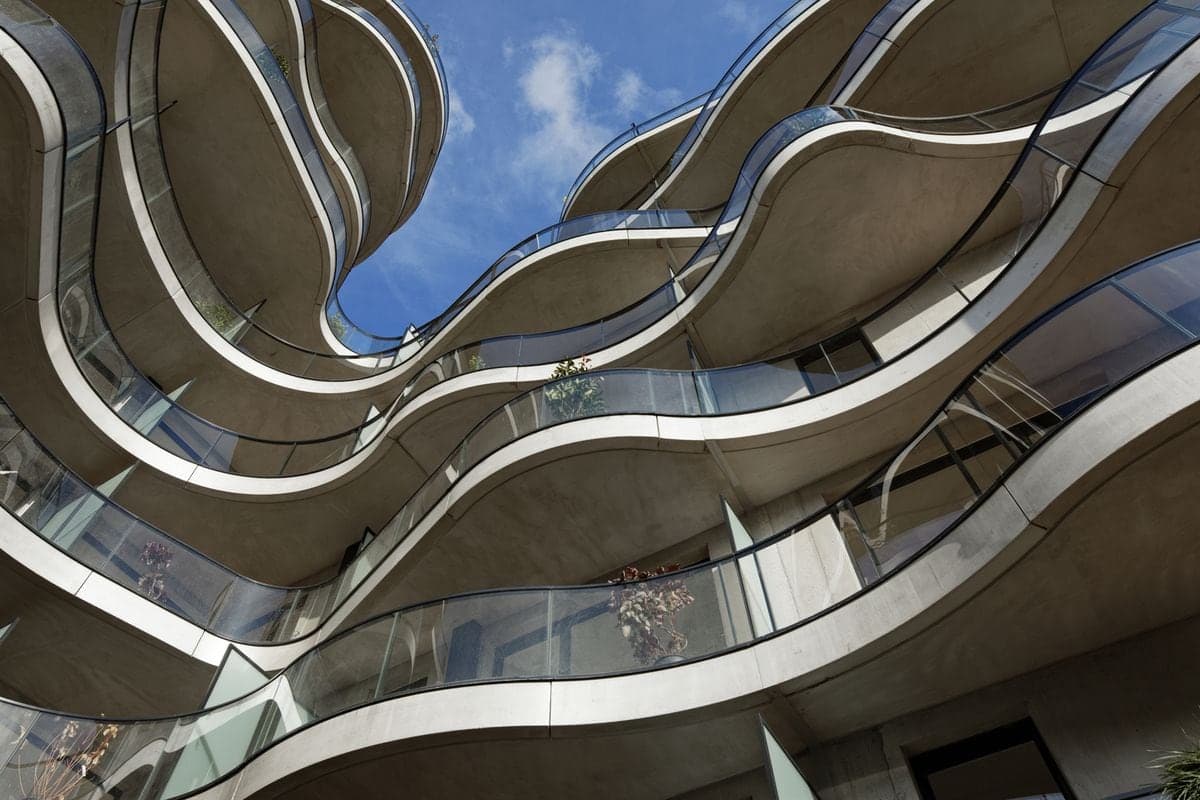

Curved projects

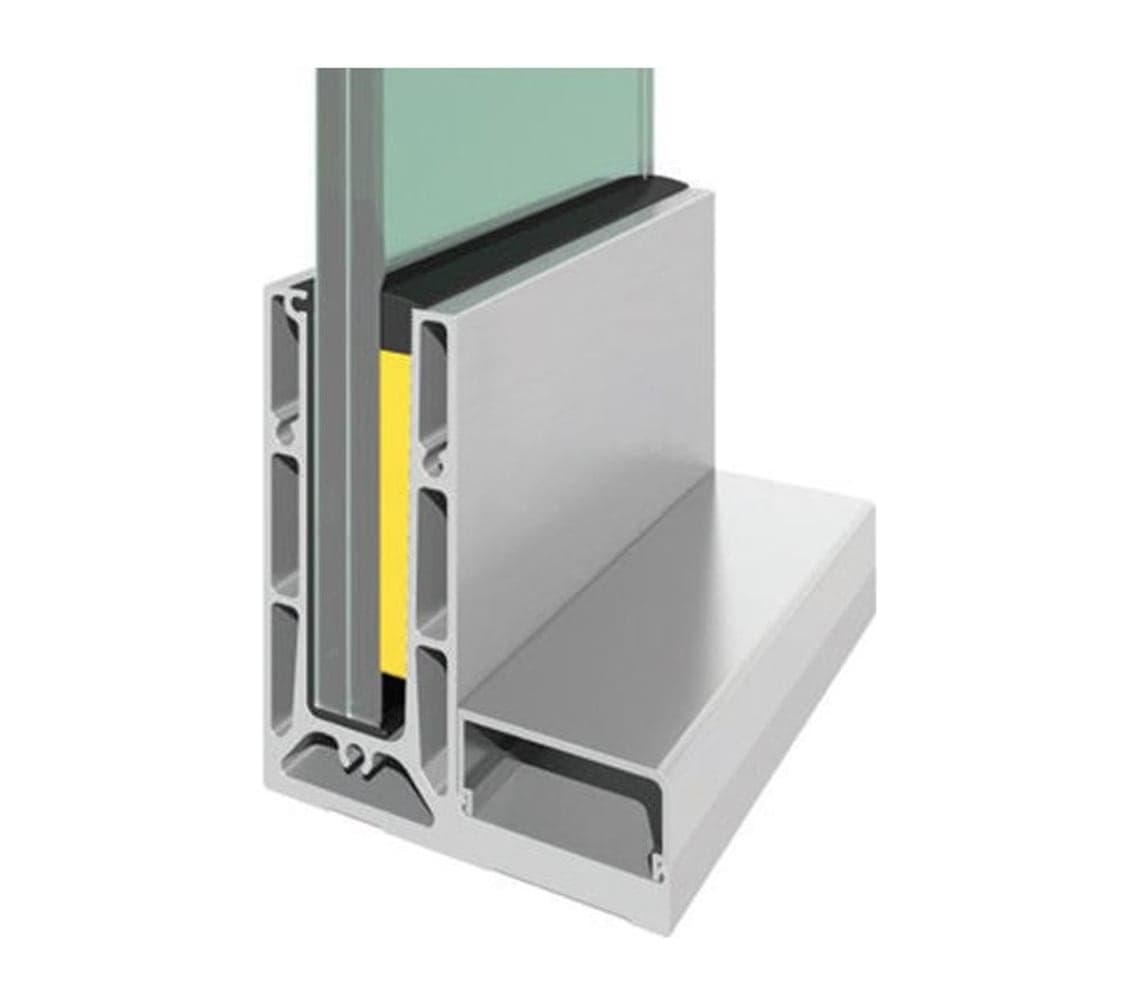

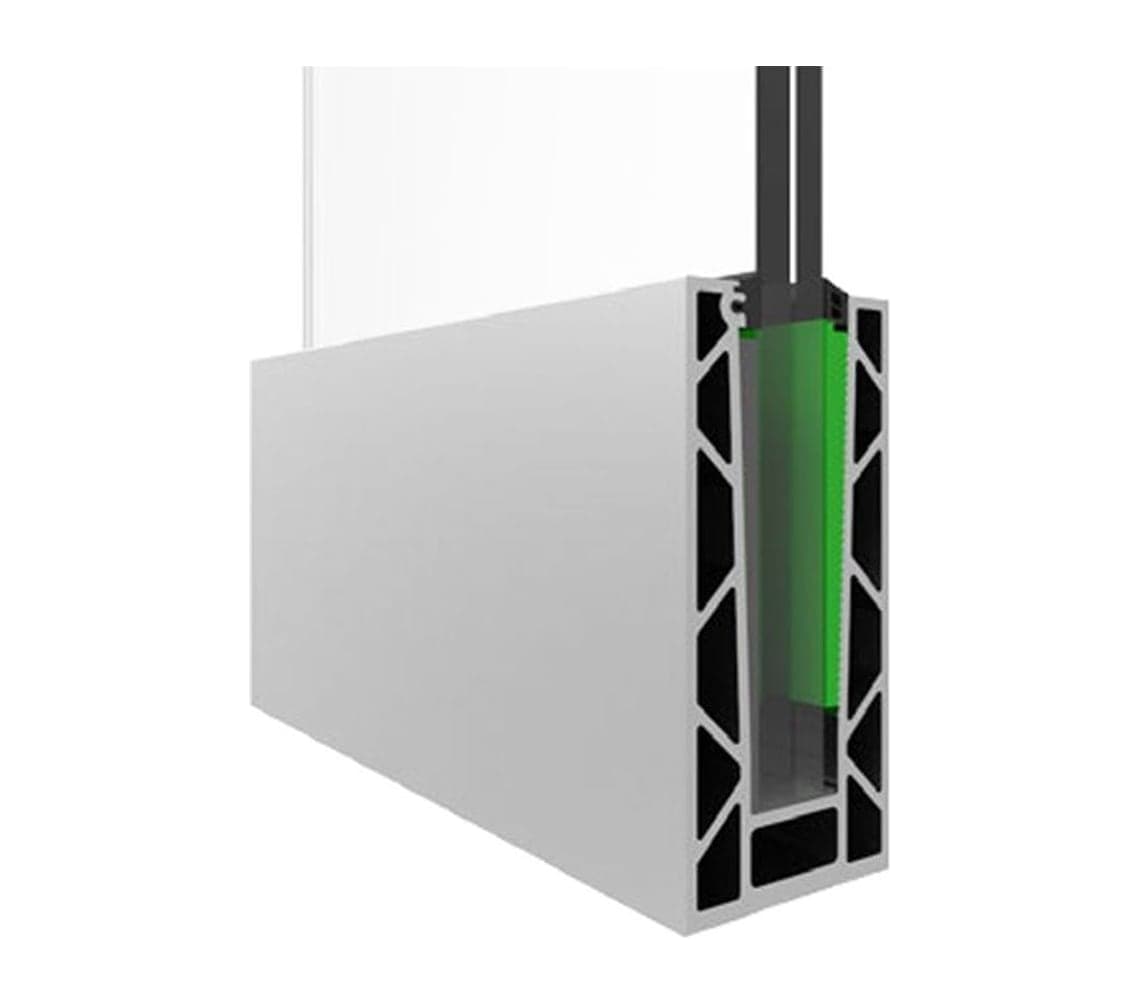

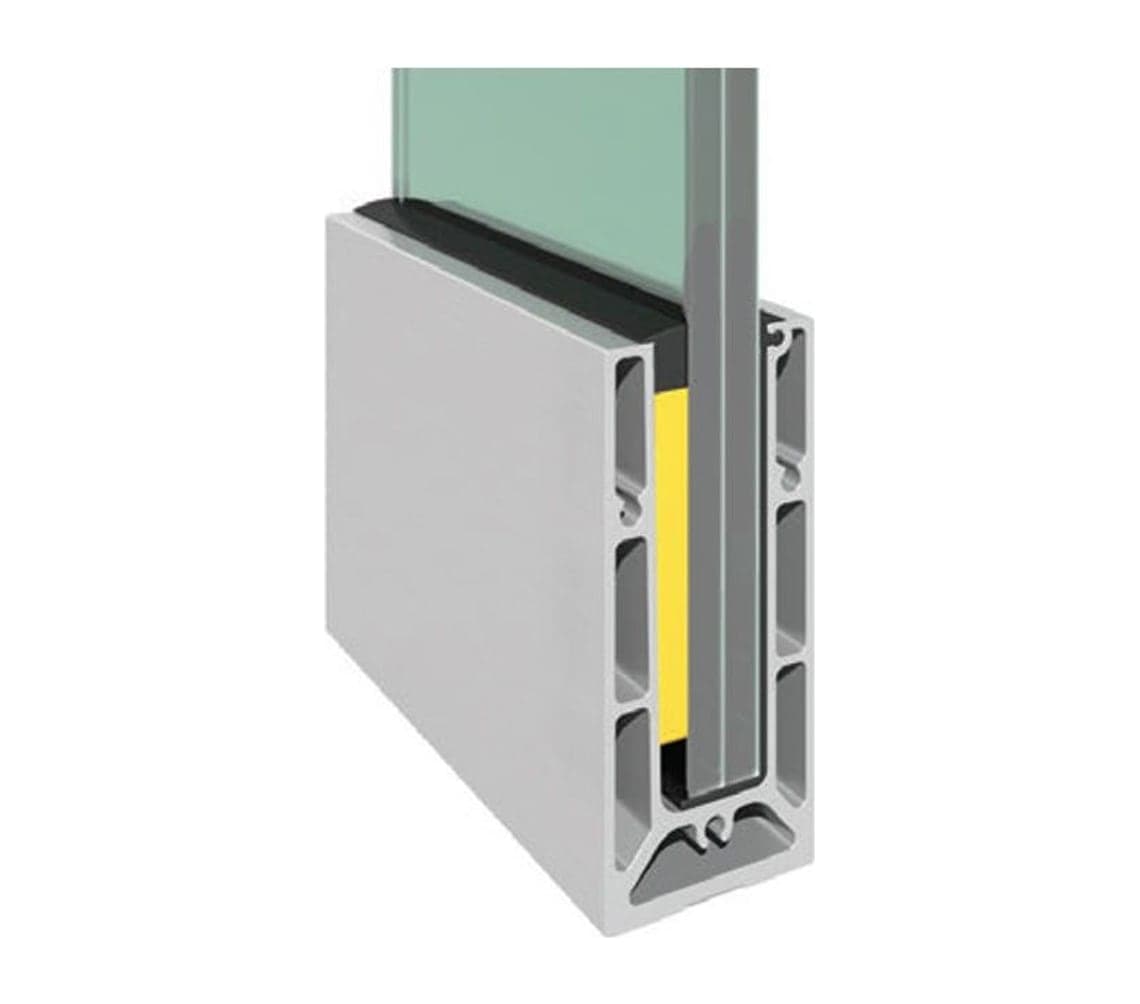

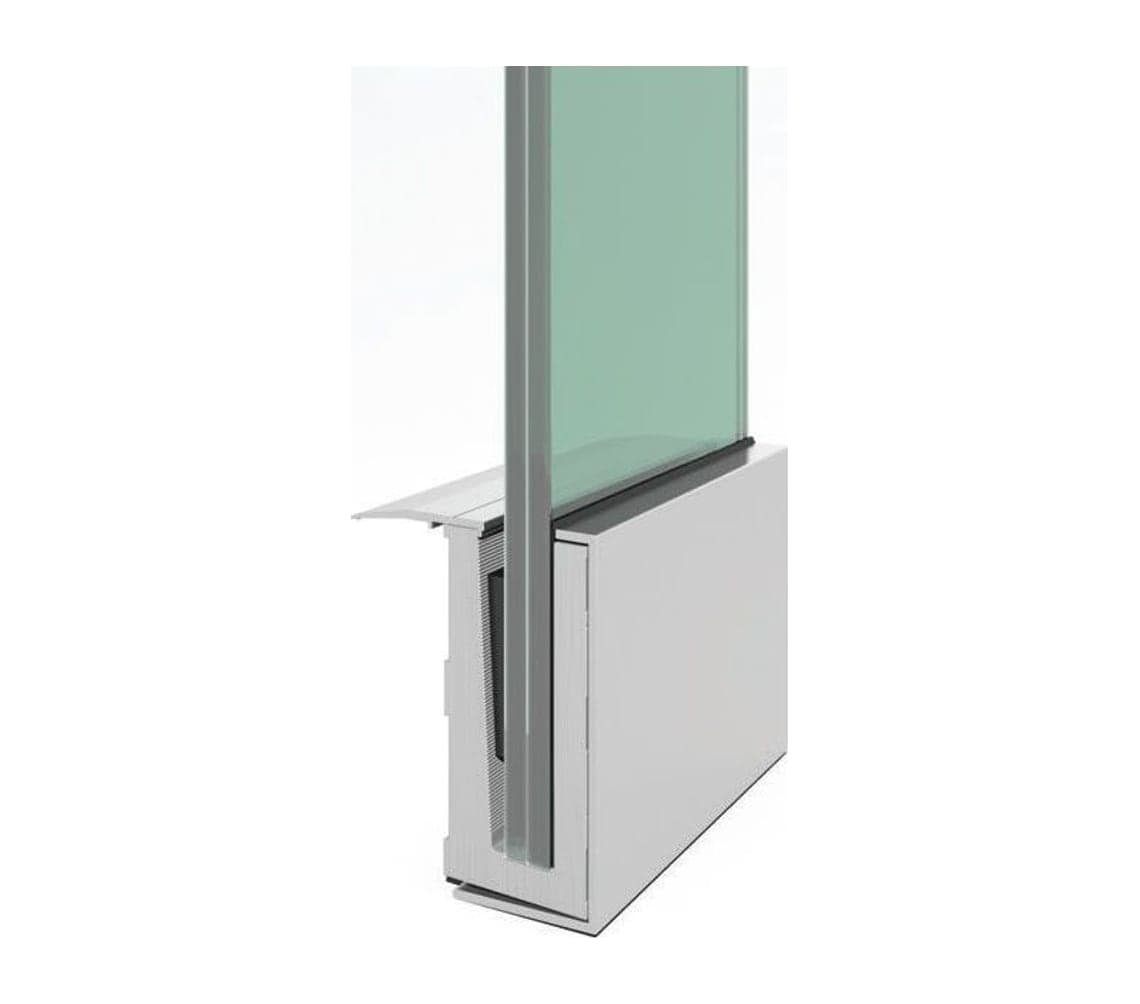

N50, U50 Max and D55 profiles can be supplied bent to the project radius.
07
Colour options
Natural or inox anodising and the full RAL powder-coat palette.
08
Weather resistant
Impact- and weather-resistant, stainless and long-lasting.

Applications

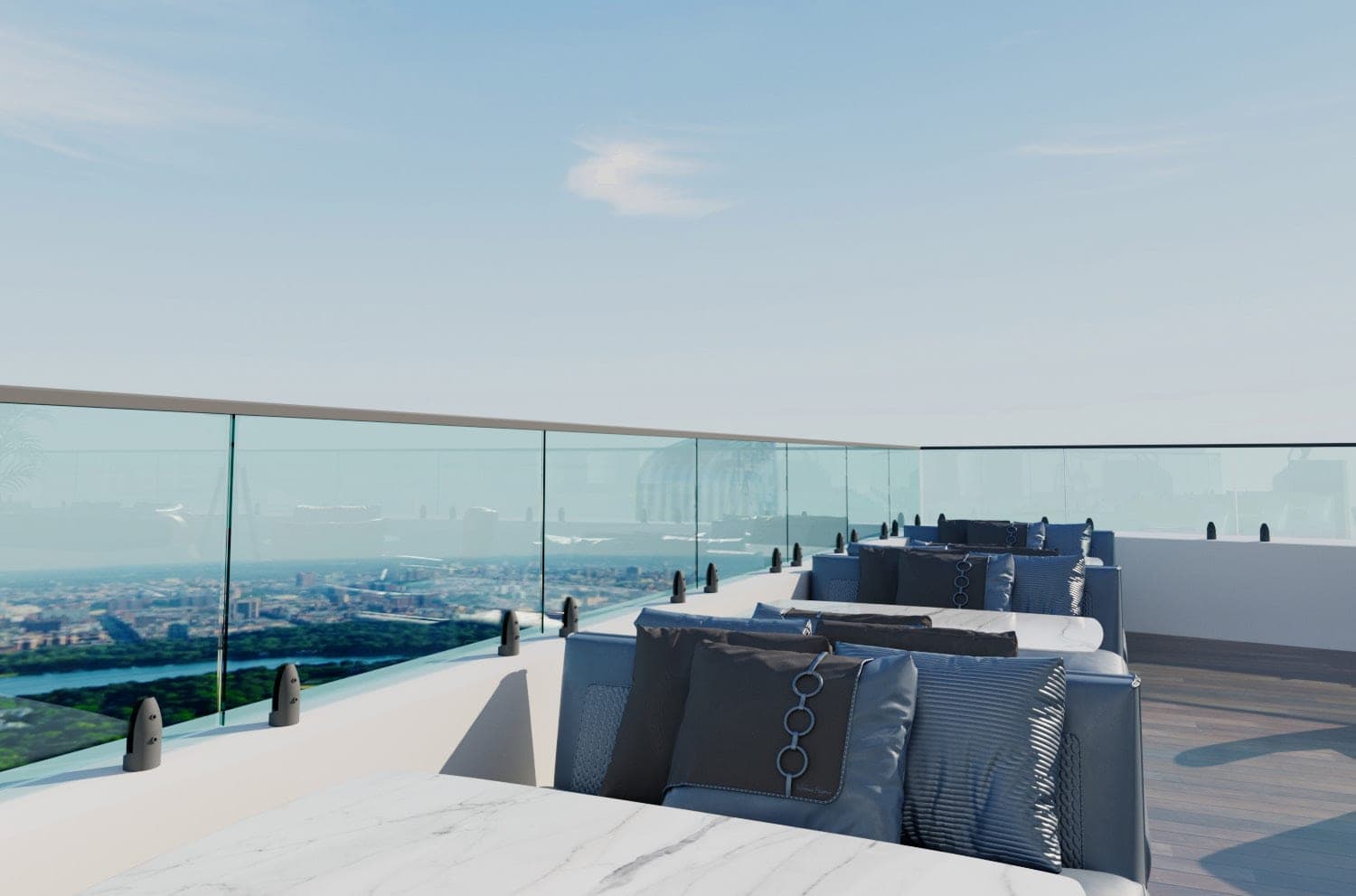

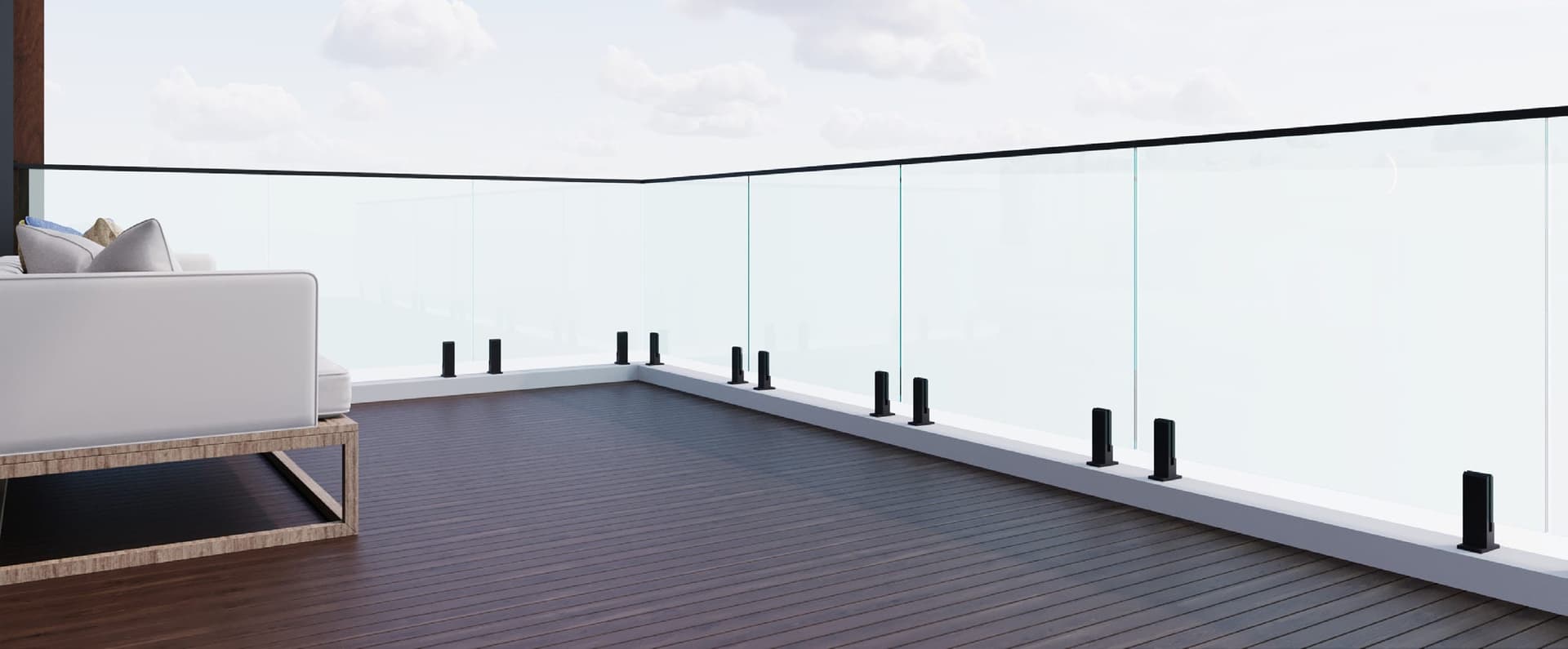

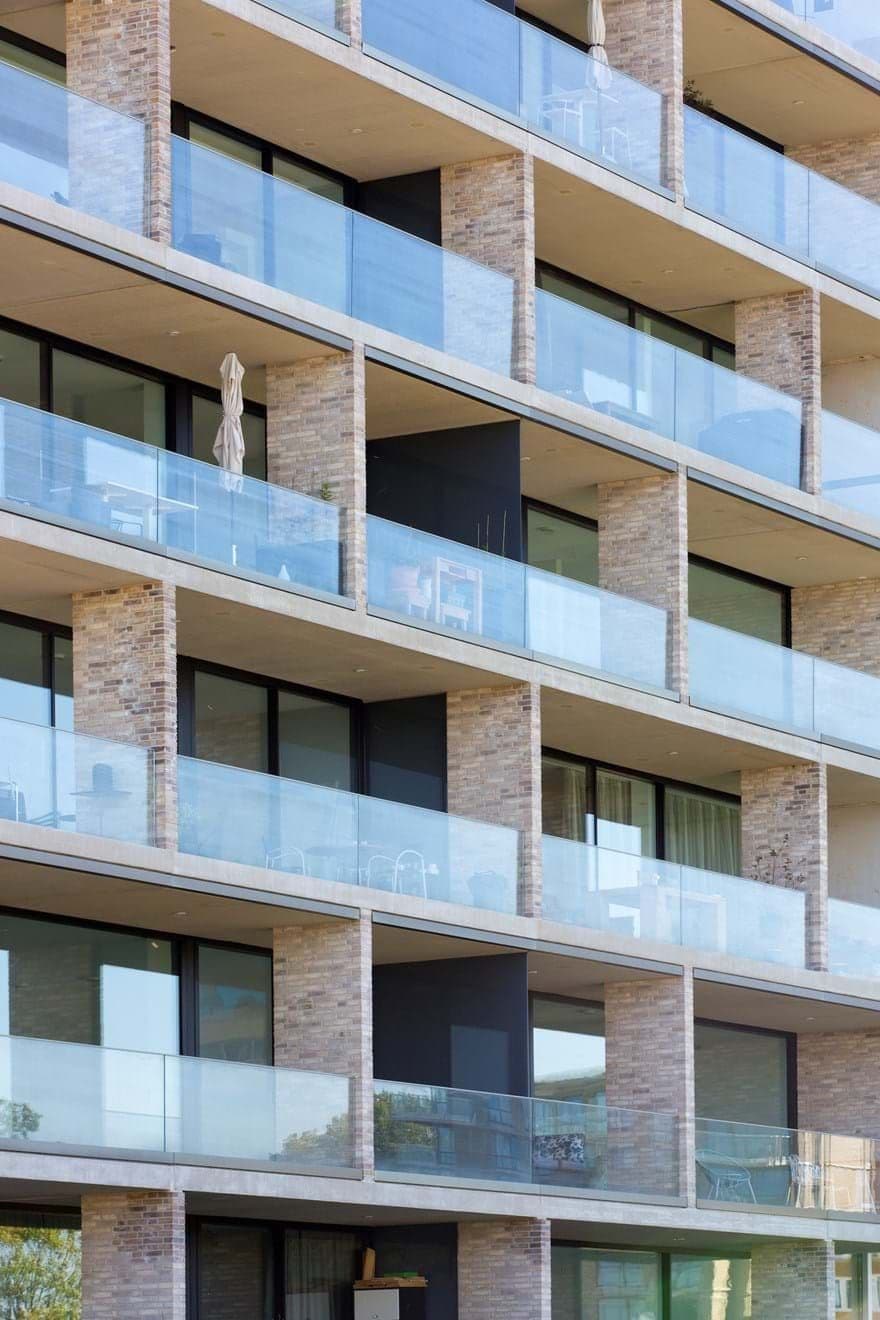

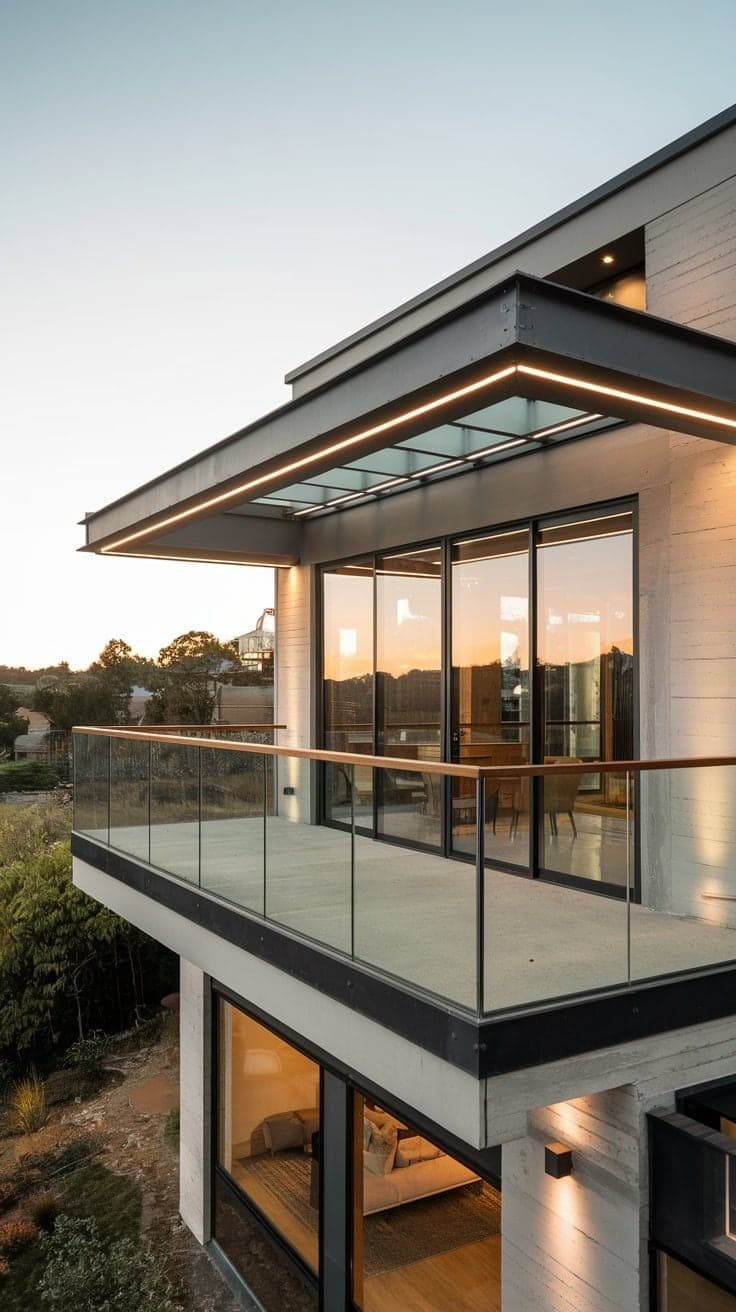

A1Balconies and terraces
A2Staircases and galleries
A3Pool surrounds

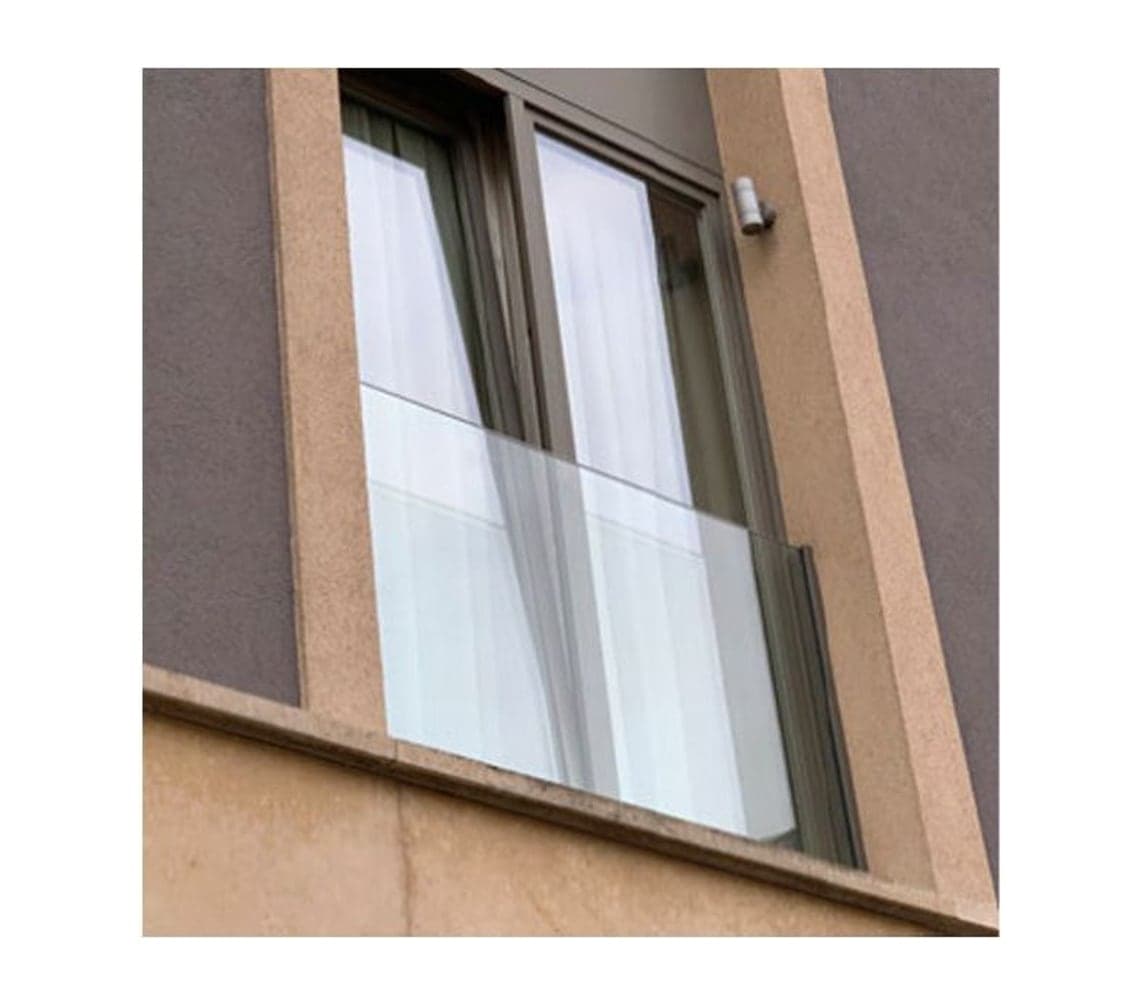

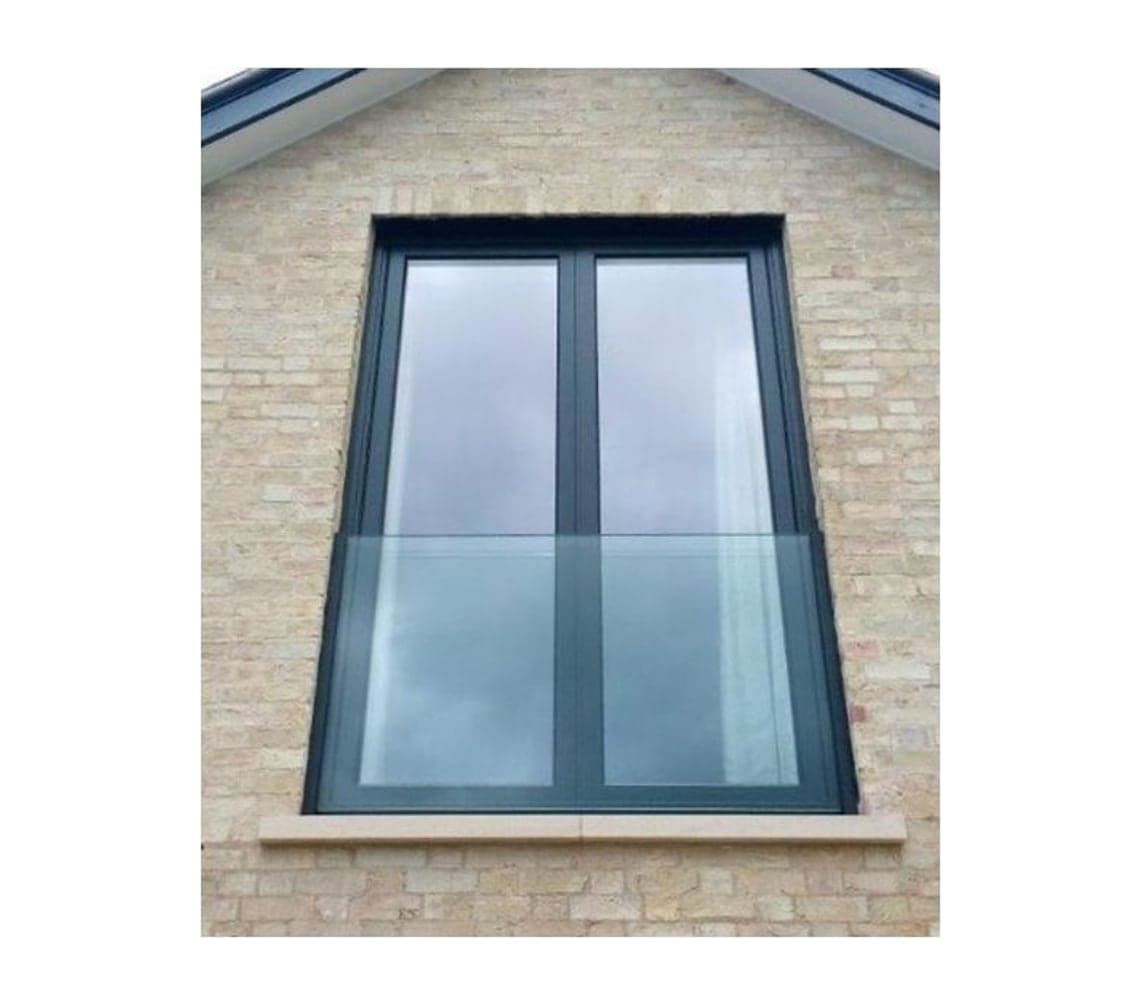

A4Juliet balconies and French windows
A5Residential, commercial and hospitality projects
A6Indoor and outdoor applications

Specifications

System

EX-04.01

Construction: Extruded aluminium
Glass: Laminated, 5+5 mm to 12+12 mm (10.76 – 25.52 mm)
Compliance: CE standards

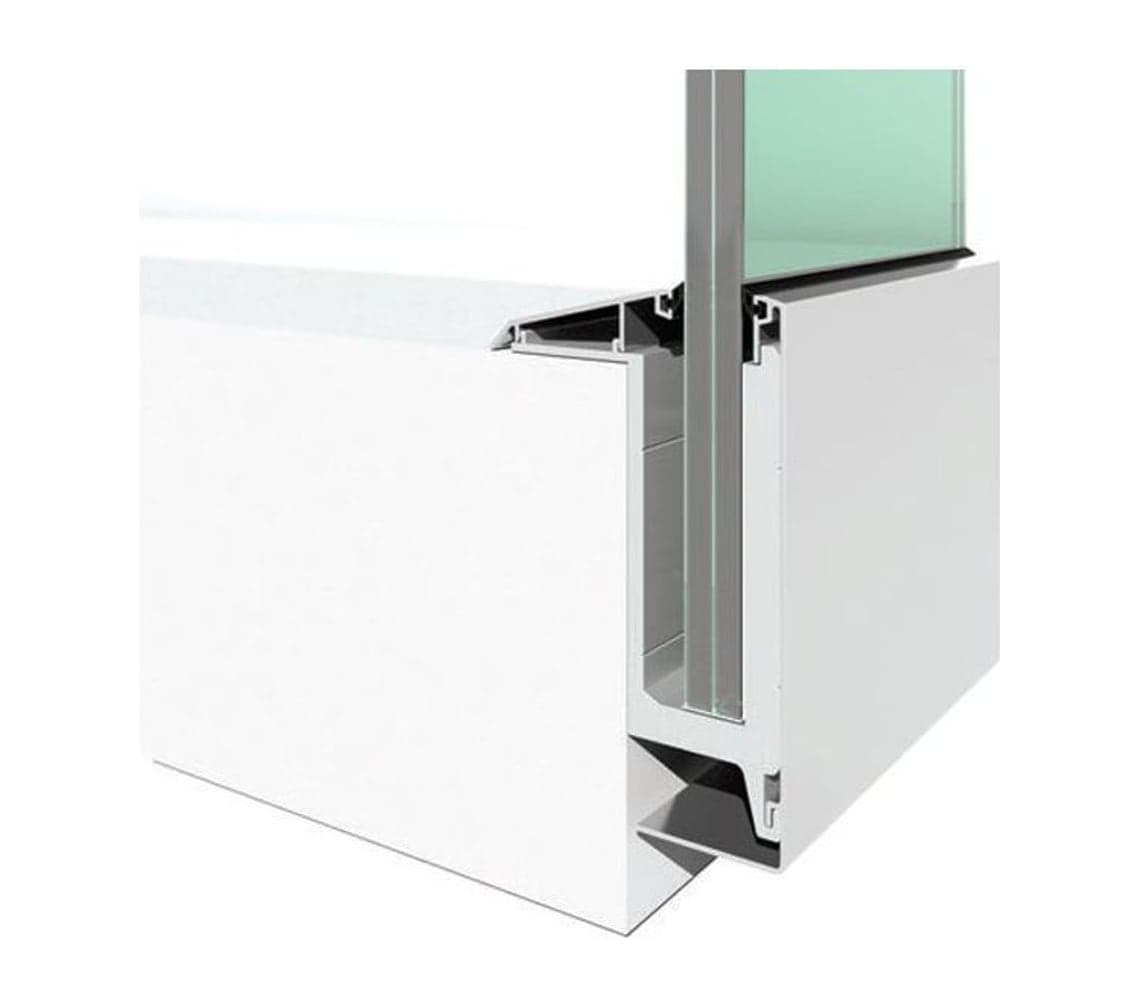

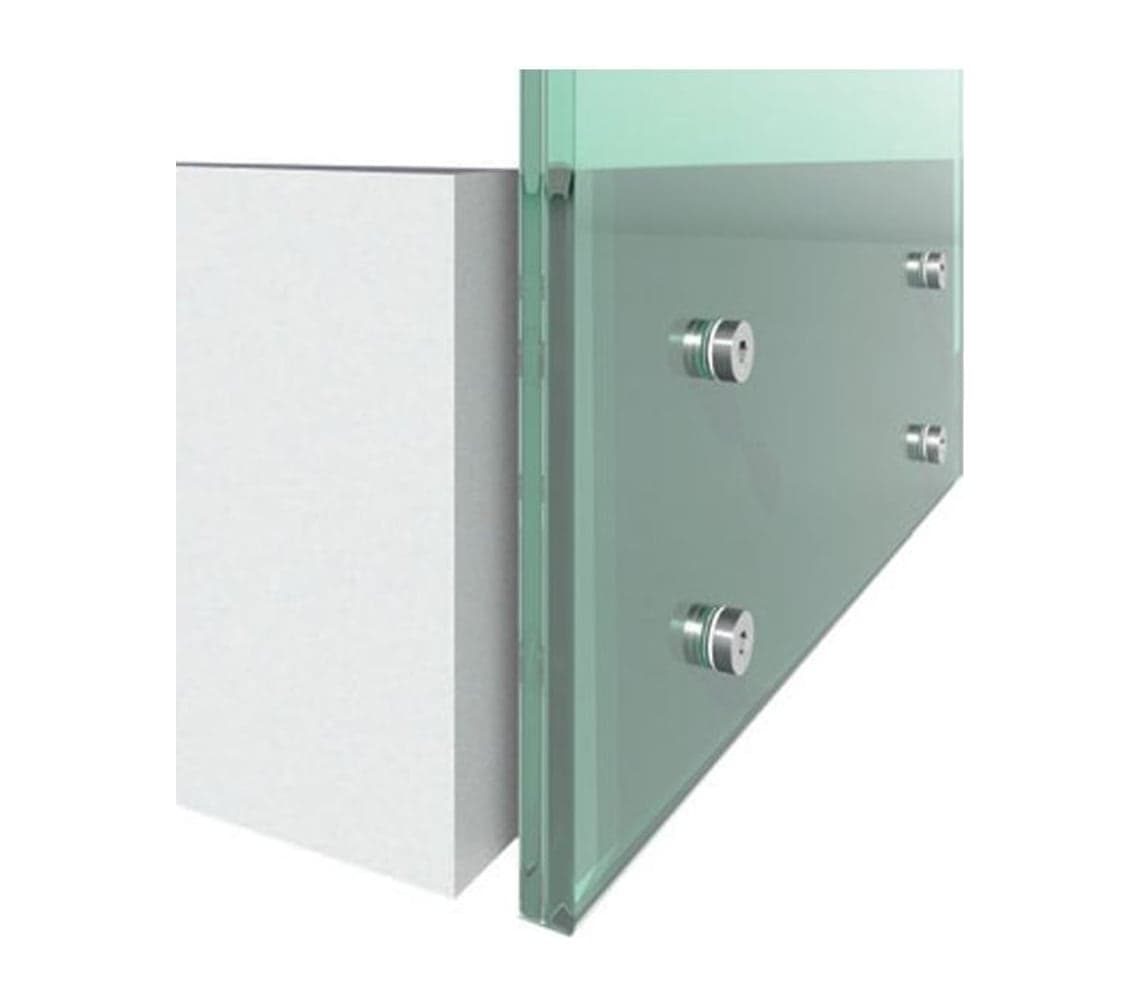

Mounting: Top mount, side mount (fascia), in-floor, spigot, standoff
Use: Indoor and outdoor

Profiles

EX-04.02

Full-length profiles: 200, 300, 400, 500 or 600 cm, depending on system
Base blocks: 15 cm and 30 cm segments
Pre-drilling: On request
Glass fixing: Plastic or aluminium wedges, magic packs, pressing profiles
Gaskets: EPDM interior and outer gaskets, supplied by the box

Finish

EX-04.03

Anodising: Natural (matt) and inox anodised
Powder coating: RAL 7016, 7021, 7034, 7044, 9001, 9005, 9006, 9010, 9016 and others

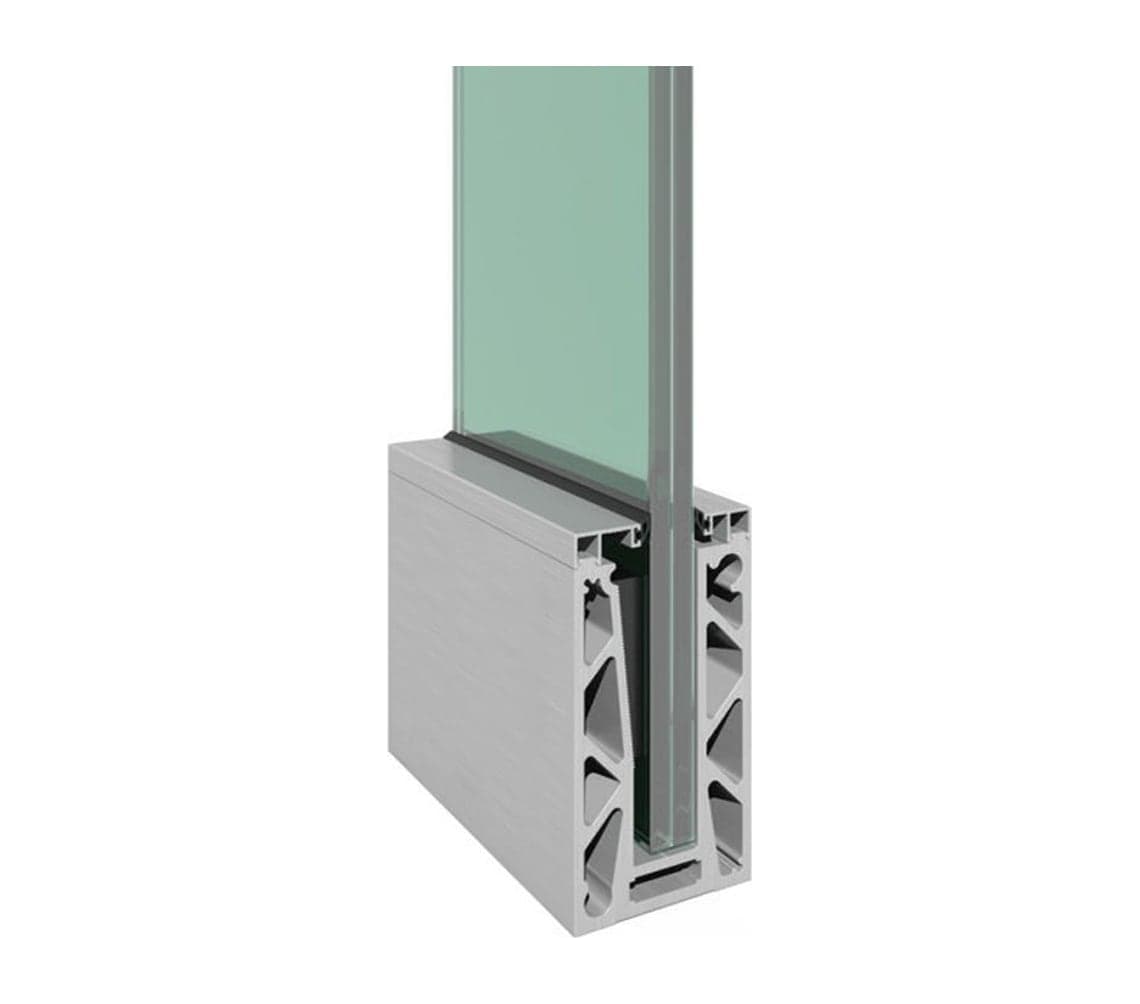

Brushed: Satin brushed surface (NX50)
