Design Systems
NX50, RX50, R50 Neo, M50, CL50 and CL40
- Max. glass (R50 Neo)
- 25.52mm
- M50 test load on 1 m
- 500kg
- Systems
- 6
01 — Overview
Overview

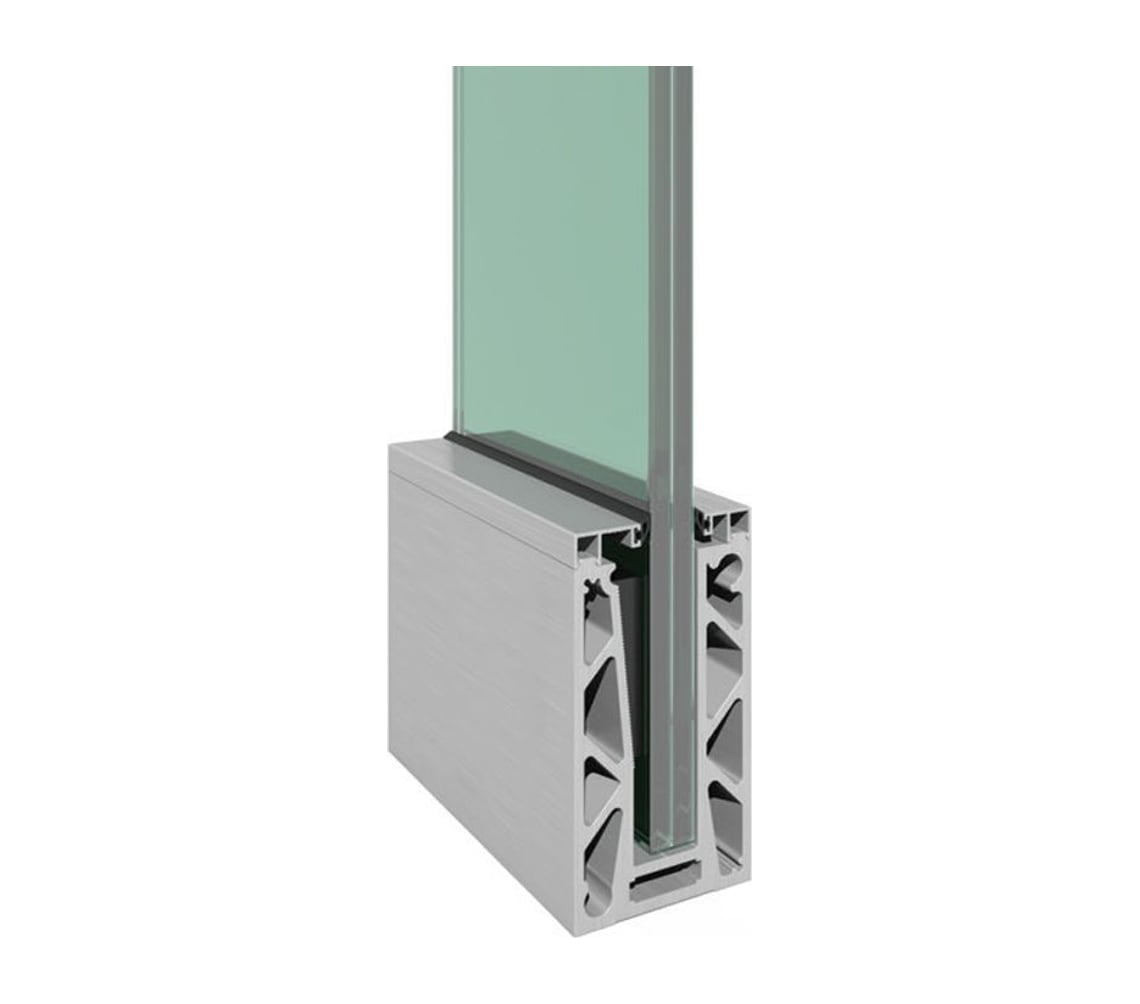

NX50 is set apart by its satin brushed surface on continuous profiles or 15 cm blocks. RX50 is a design base shoe for statement projects. R50 Neo is a capless, high-load channel with aluminium glass fixing for 21.52 and 25.52 mm glass. M50 works both in-floor, beneath the screed, and on-floor with covers.
CL50 introduces a pressing-stick glass support with two cover options, and CL40 is a compact base shoe for short glass mounted on a parapet, alone or with a handrail.
02
Specifications
Systems
EX-04.01- NX50
- P-1010, 7.23 kg/m or 15 cm blocks; satin brushed covers; 12 – 21.52 mm glass
- RX50
- P-1221, 8.70 kg/m or 15 / 30 cm blocks; 8+8 and 10+10 mm glass
- R50 Neo
- P-1517, 500 cm, 8.23 kg/m; 21.52 / 25.52 mm glass
- M50
- P-1027, 200 cm, 9.63 kg/m; 16.4 / 17.52 / 21.52 mm glass
- CL50
- 15 / 30 cm base shoes; 6+6 and 8+8 mm glass
- CL40
- 15 / 30 cm base shoes; 12.4 / 13.52 and 16.4 / 17.52 mm glass
Testing
EX-04.02- M50
- Stress results on 1 m base profile under 500 kg horizontal load, alloy EN AW 6063
03
Documents
Gallery

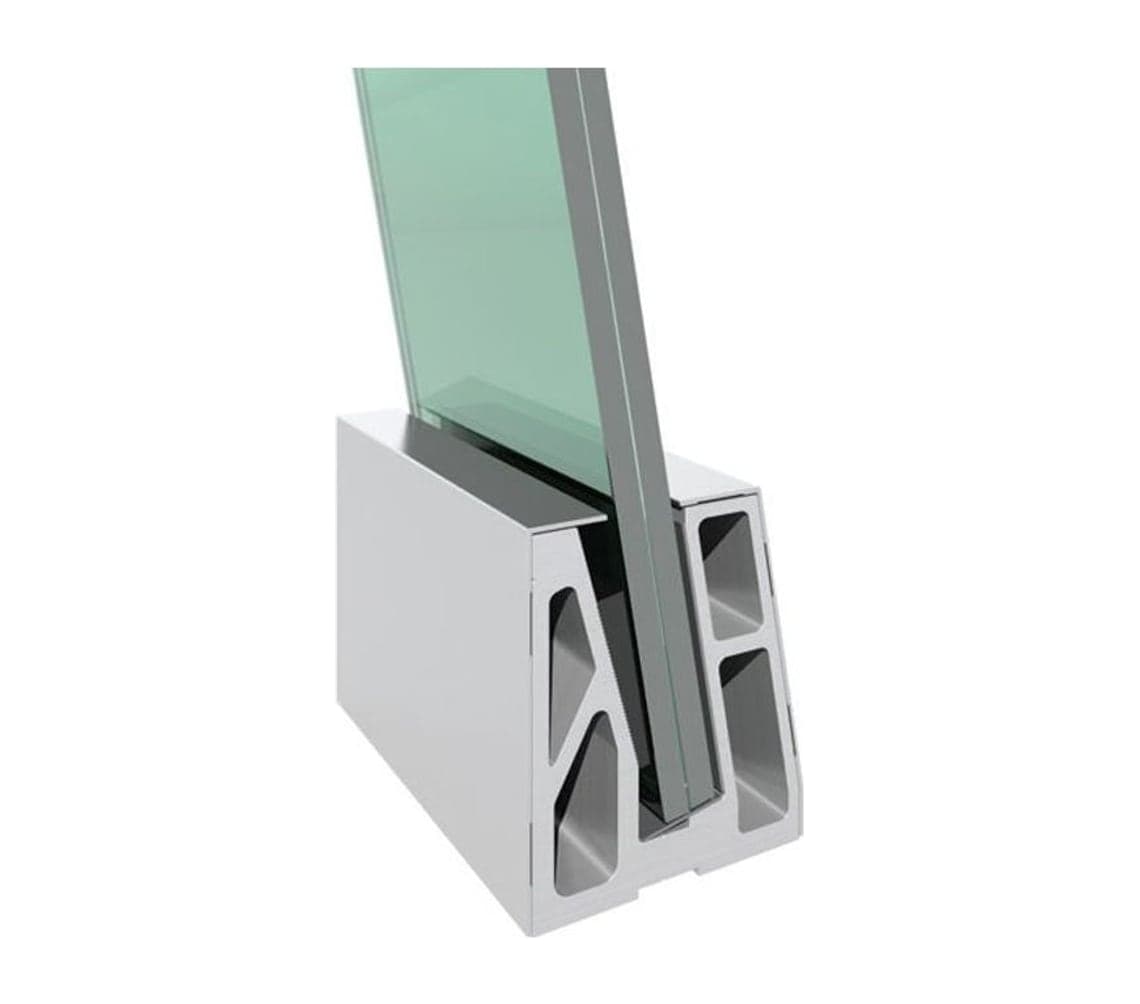

01 / 05

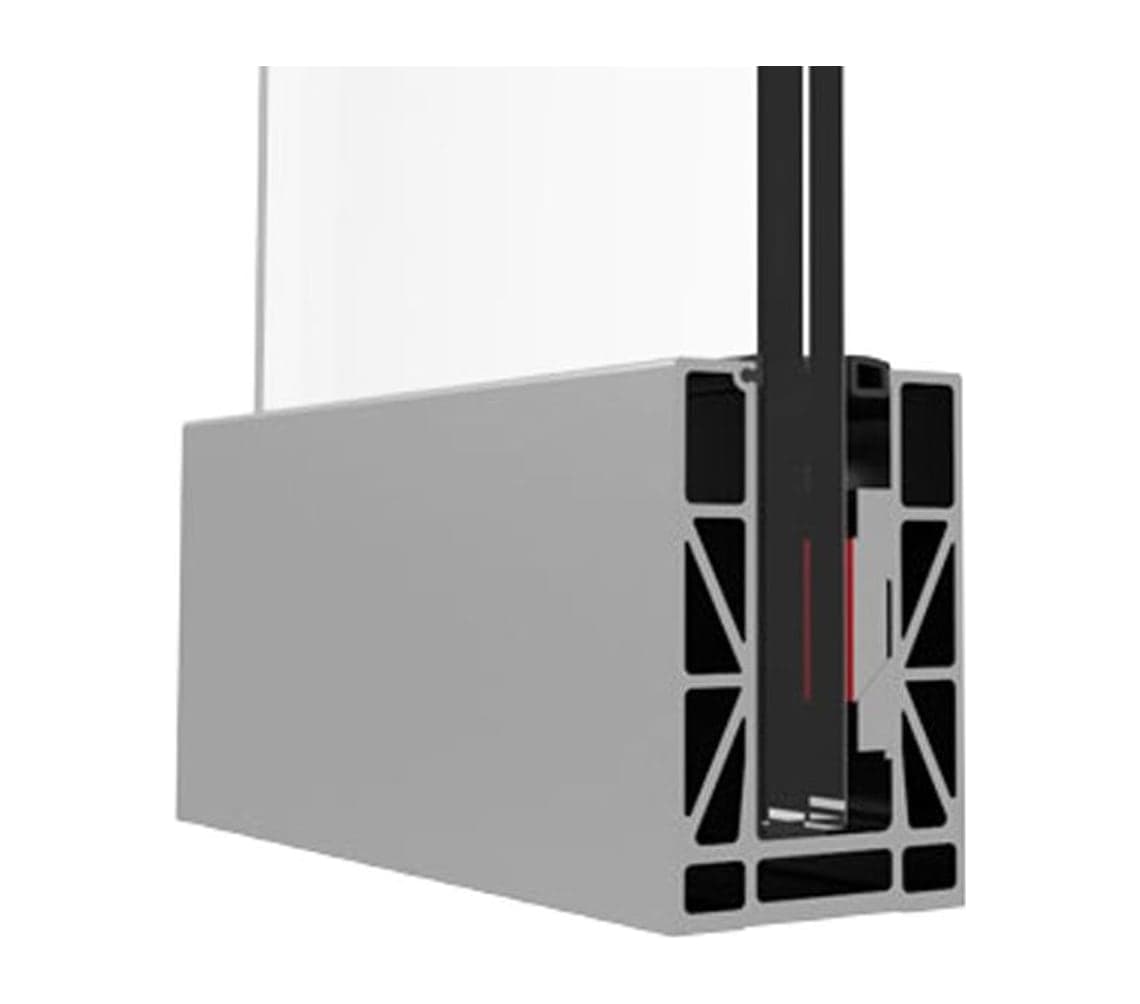

02 / 05

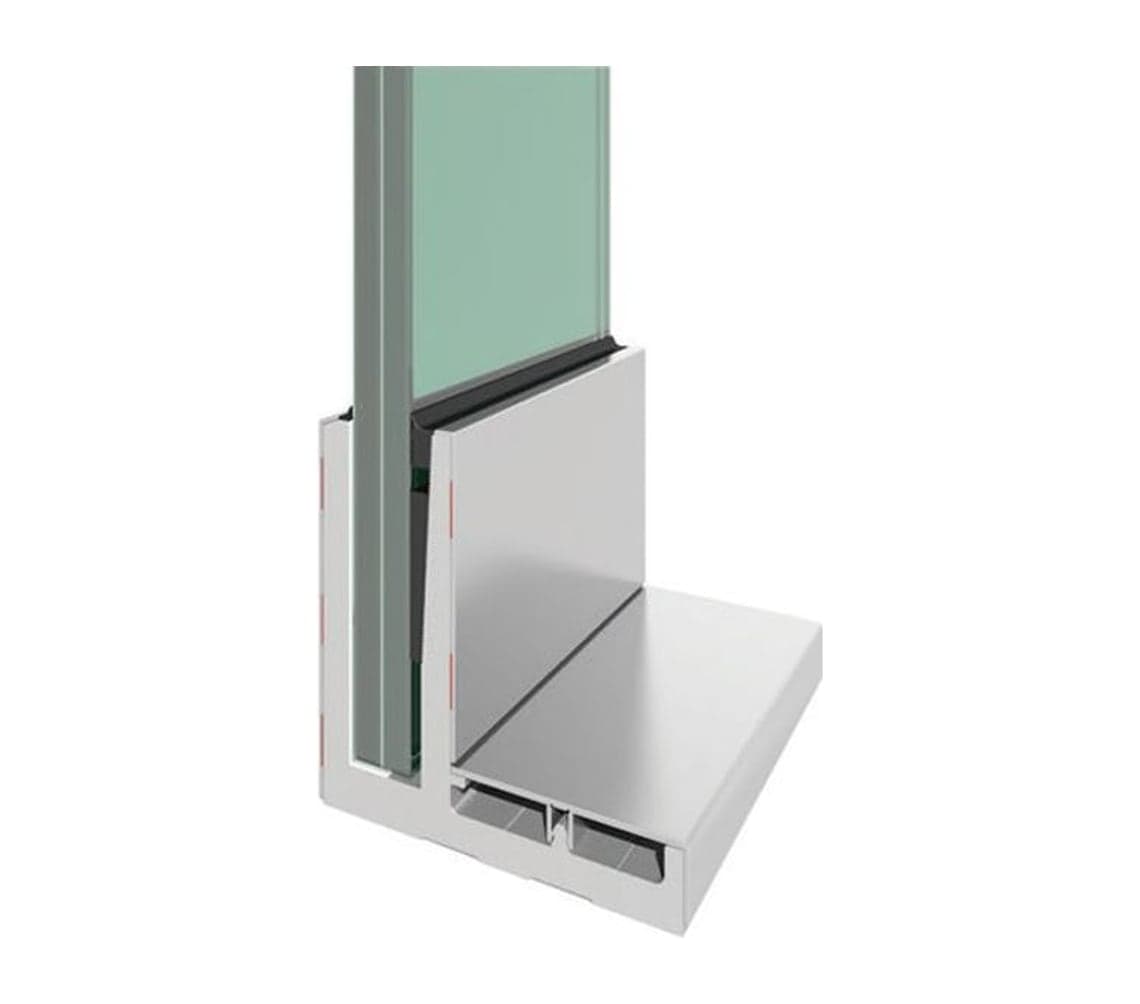

03 / 05

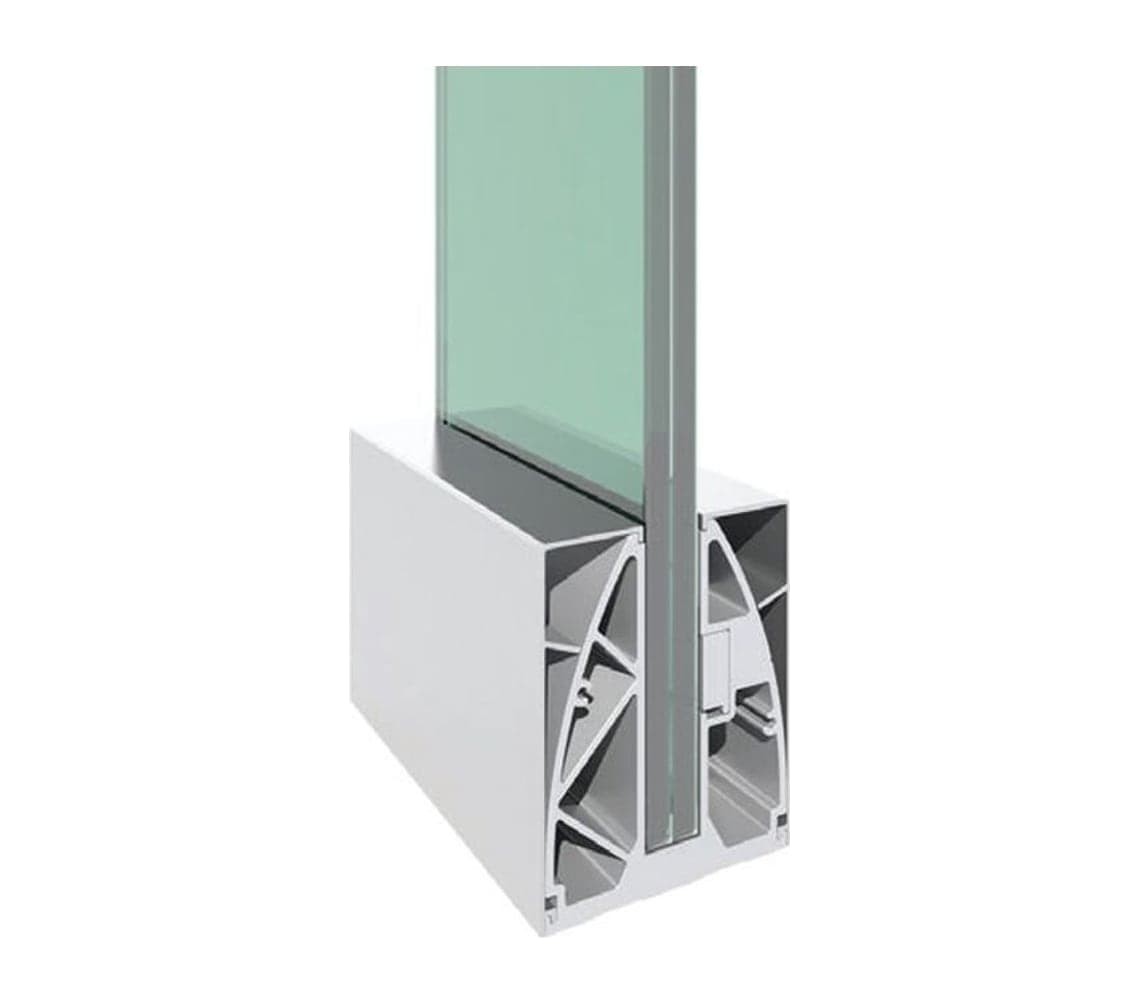

04 / 05

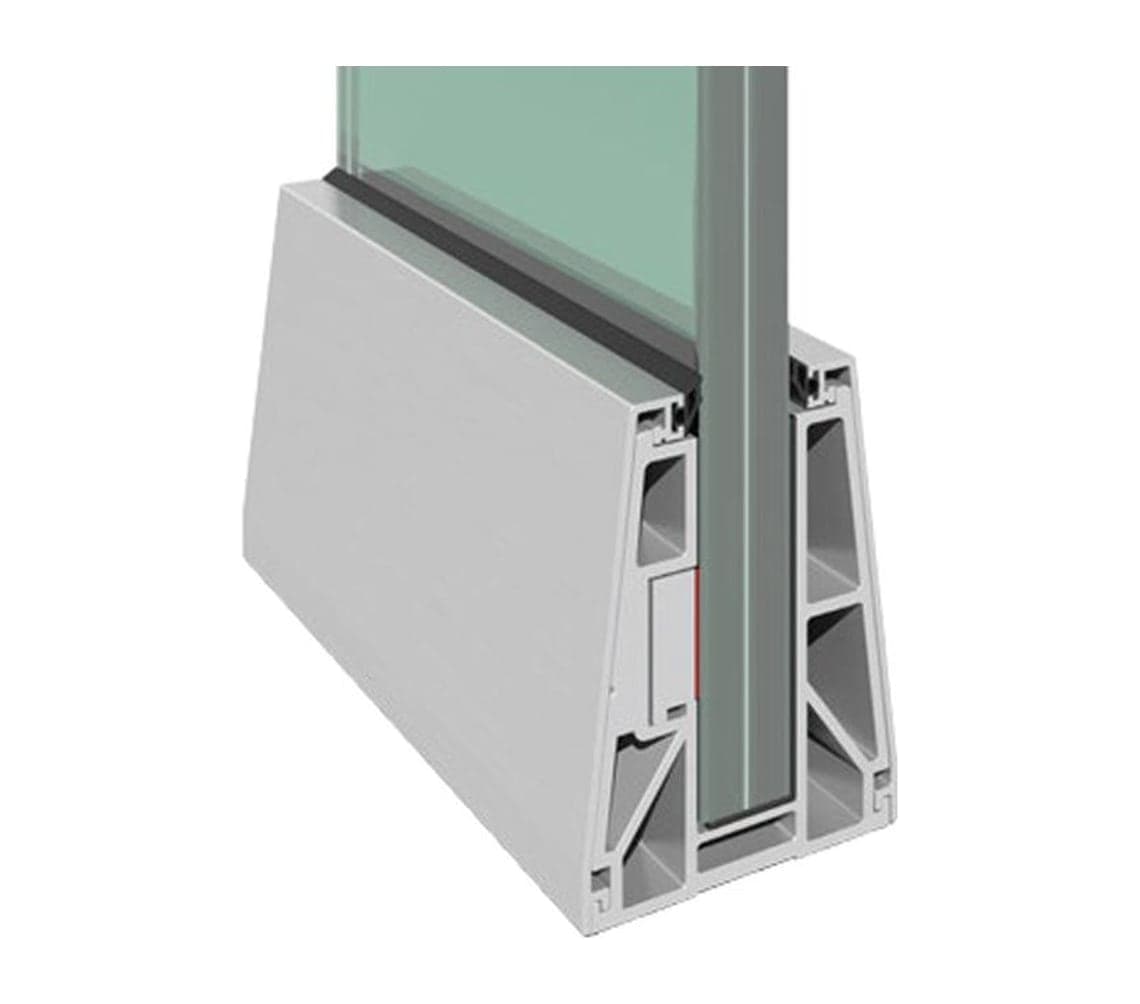

05 / 05
Other lines
Glass Railing Systems range
Sheet 09 — Enquiry
Specify Design Systems.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
