Aluminium Railing Systems
Modular aluminium balustrades built from square and round profiles and matching accessories, with optional glass infill.
- Powder coating thickness
- 60–80µm
- Anodising, up to
- 20µm
- Wall thickness, up to
- 2.5mm
Overview
01 — OverviewShiprade Aluminium railing systems combine modern aluminium profile designs with aluminium accessories, so an almost unlimited number of balustrade models can be produced. Accessories made for square and round profiles create an elegant, considered appearance, and glass can be added as infill for a lighter line.
All profiles and connection accessories are designed and manufactured in-house, which ensures complete system integrity, a precise fit between profiles and accessories and a perfect colour match. Every profile and accessory is inspected for dimensional accuracy, surface quality and installation compatibility before delivery.
The systems offer maximum resistance and corrosion protection, even by the sea, with anodised or powder-coated finishes in any RAL colour. They are fast to produce and install, and suit contemporary buildings indoors and out: balconies, staircases, terraces, gallery voids, swimming pools and public spaces.
Models
Railing models grouped by profile family, each shown with its profiles and accessories in the catalogue.

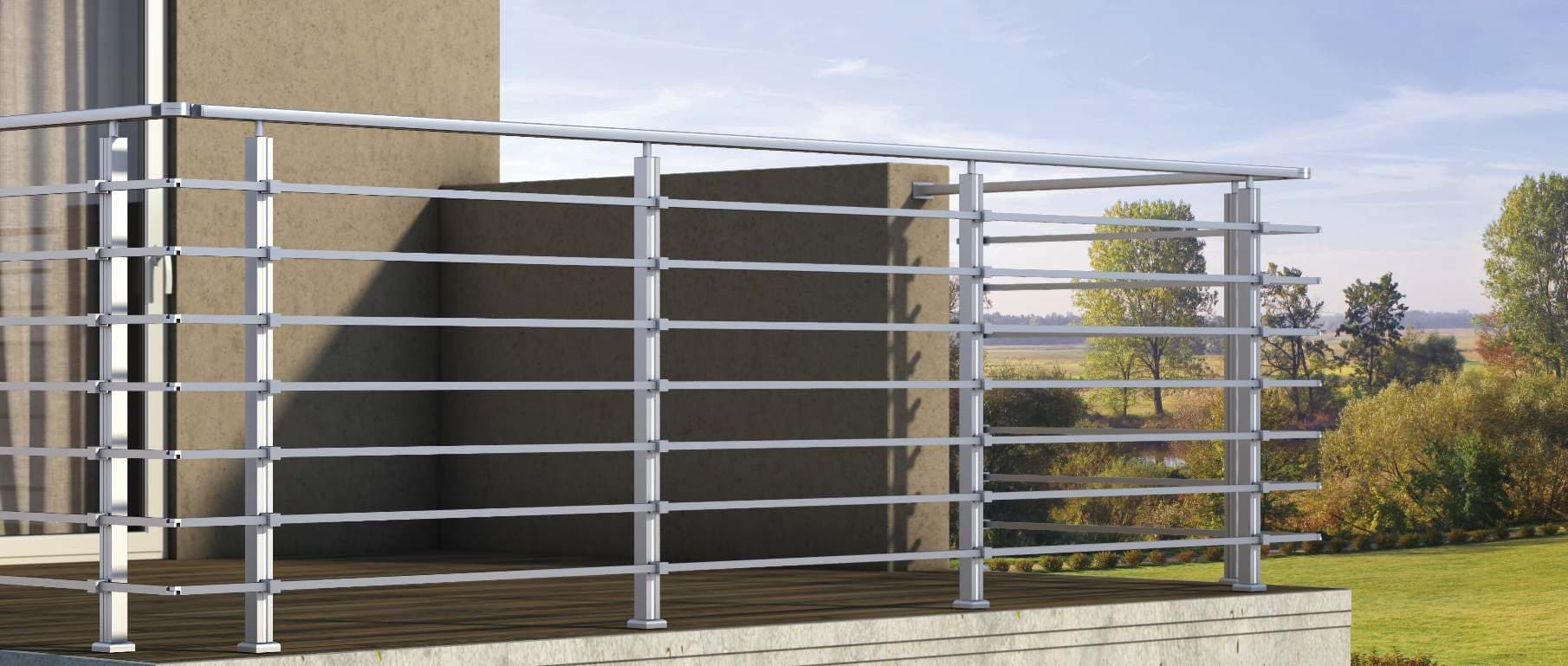

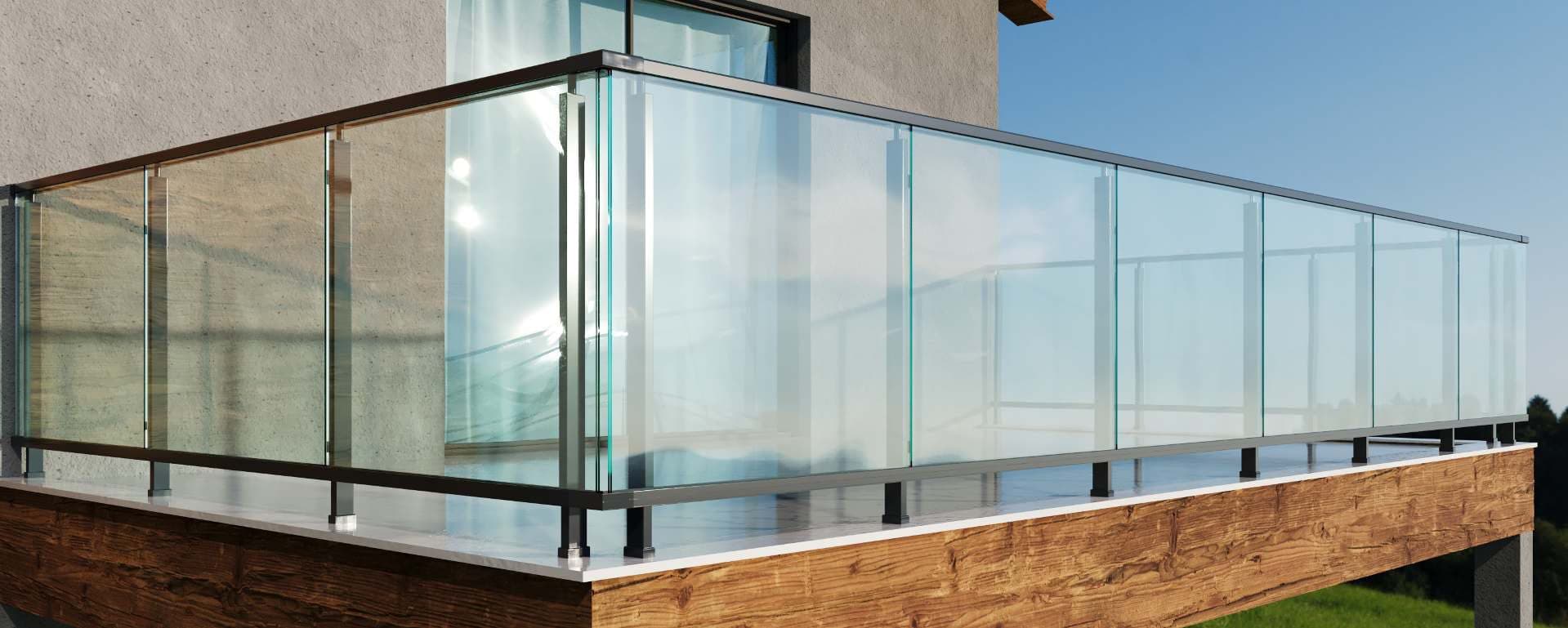

Square profiles
3 lines

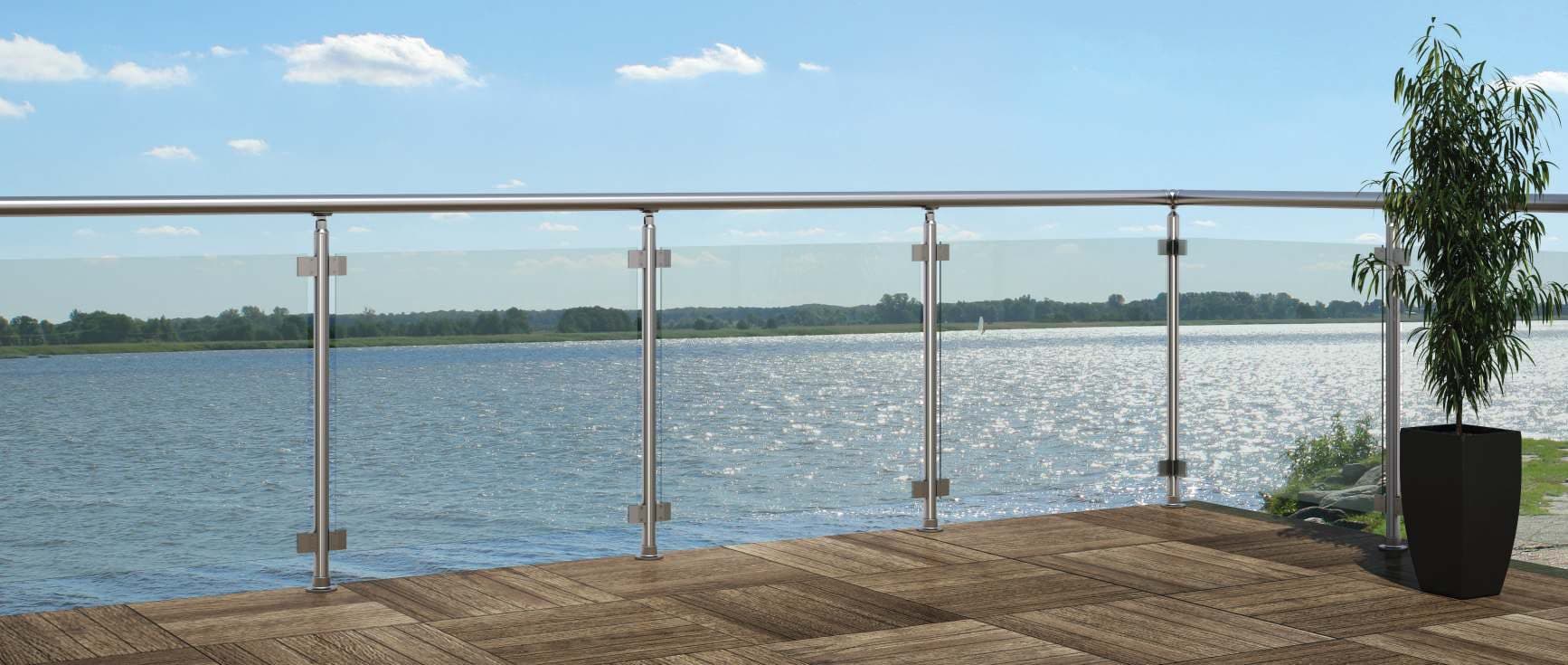

Round profiles
1 lines
Combined profiles
1 lines
Performance
- 01
Unlimited models
Square and round profiles combine with accessories into any balustrade design.
- 02
Corrosion protection
Maximum resistance, even in seaside locations.
- 03
Wide colour range
Anodised finishes and powder coating in all RAL colours.
- 04
Uniform coating
Electrostatic powder coating with high UV resistance and lasting colour.
- 05
System integrity
Profiles and accessories made to fit and colour-match each other.
- 06
Optional glass
Glass infill models for 4+4 to 8+8 mm laminated glass.
- 07
Fast installation
Quick production and simple, anchored installation.
Applications
- A1Balconies and terraces
- A2Staircases and gallery voids
- A3Swimming pools
- A4Residential projects and villas
- A5Hotels, residences and commercial buildings
- A6Public spaces
Specifications
System
EX-05.01- Material
- Extruded aluminium profiles and aluminium accessories
- Profile sections
- Square and round
- Wall thickness
- Up to 2.5 mm
- Glass

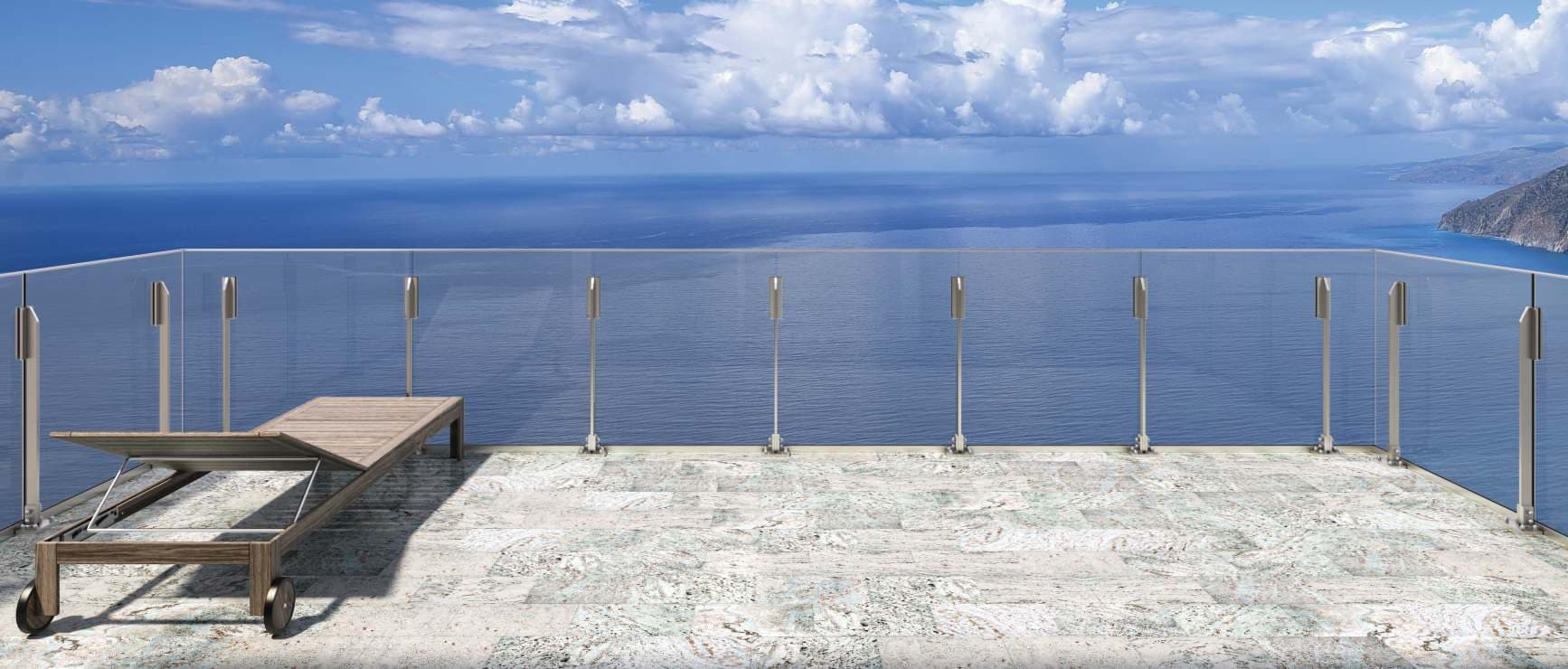

- 4+4 mm or 5+5 mm (up to 8+8 mm on LX models)
- Railing height
- 95, 100 or 110 cm, depending on model
- Fixing
- Anchorage irons and chemical anchor
Finish
EX-05.02- Anodising
- Natural or inox anodised, up to 20 microns
- Powder coating
- All RAL colours, 60 – 80 microns
- Standard colours
- RAL 9005, 7016, 7032, 9001, 9016, natural and inox anodised
Profiles
EX-05.03- Railing pipes
- Ø50, Ø40 and Ø30 mm, 1.2 – 2.5 mm wall
- Square handrails
- 80 × 30, 60 × 25 and 65 mm profiles
- Pillars
- Ø40 round and 40 × 40 / 25 × 50 mm square
- Balusters
- Ø60.3 mm round and 70 × 70 mm square
- Monoblock bases
- 44 mm wide, 1.525 and 1.741 kg/m
Profile families

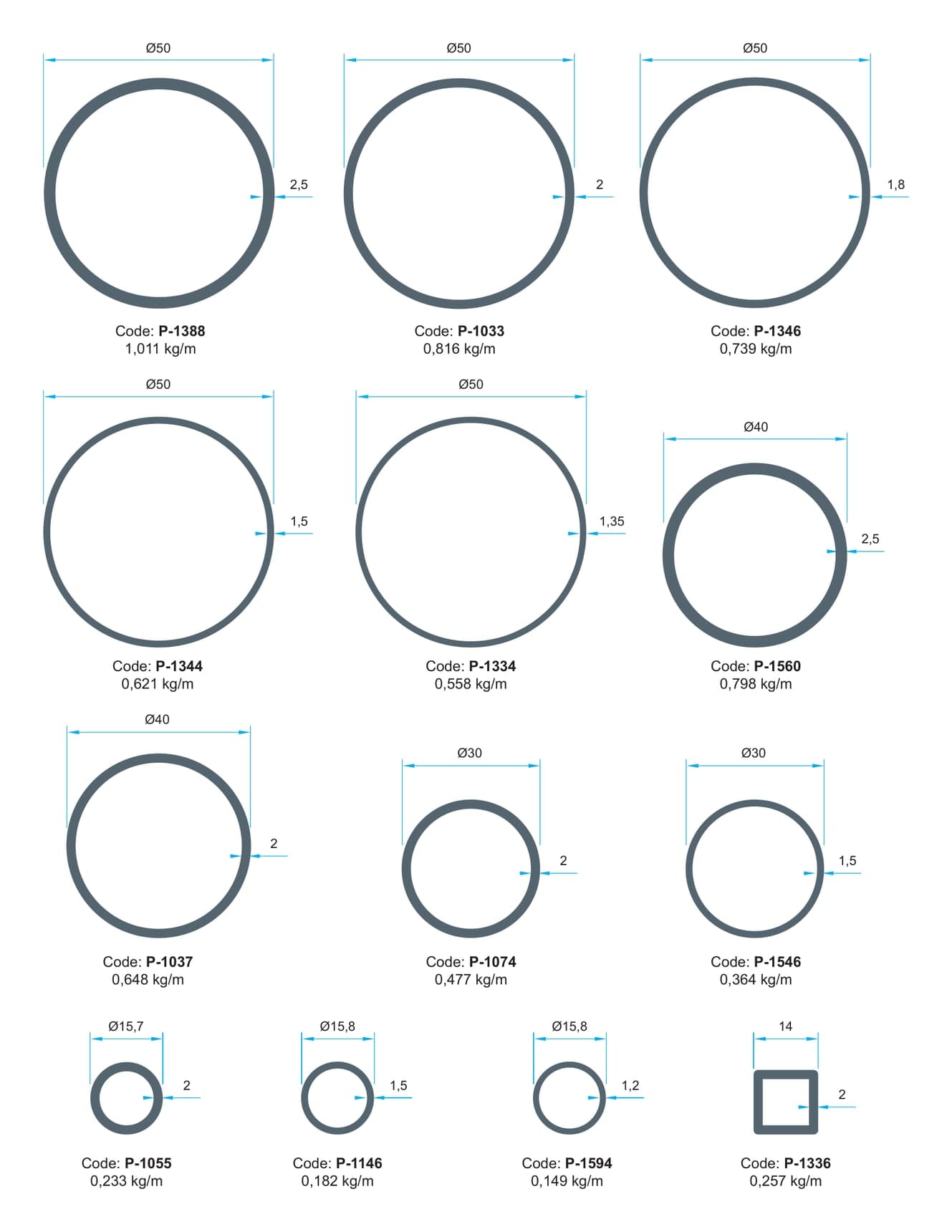

01Railing pipesØ50, Ø40 and Ø30 mm tubes

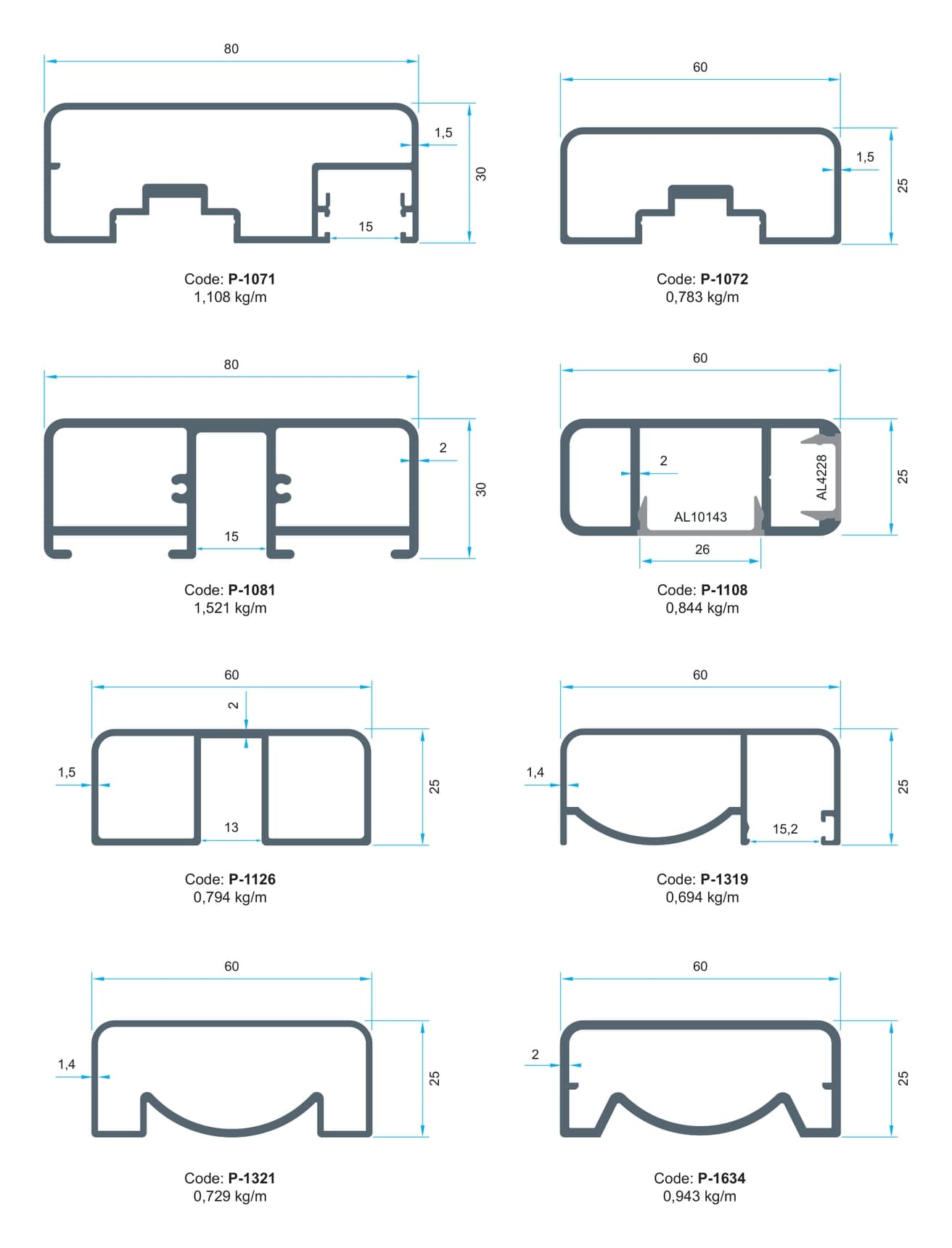

02Square handrails80 × 30, 60 × 25 and 65 mm

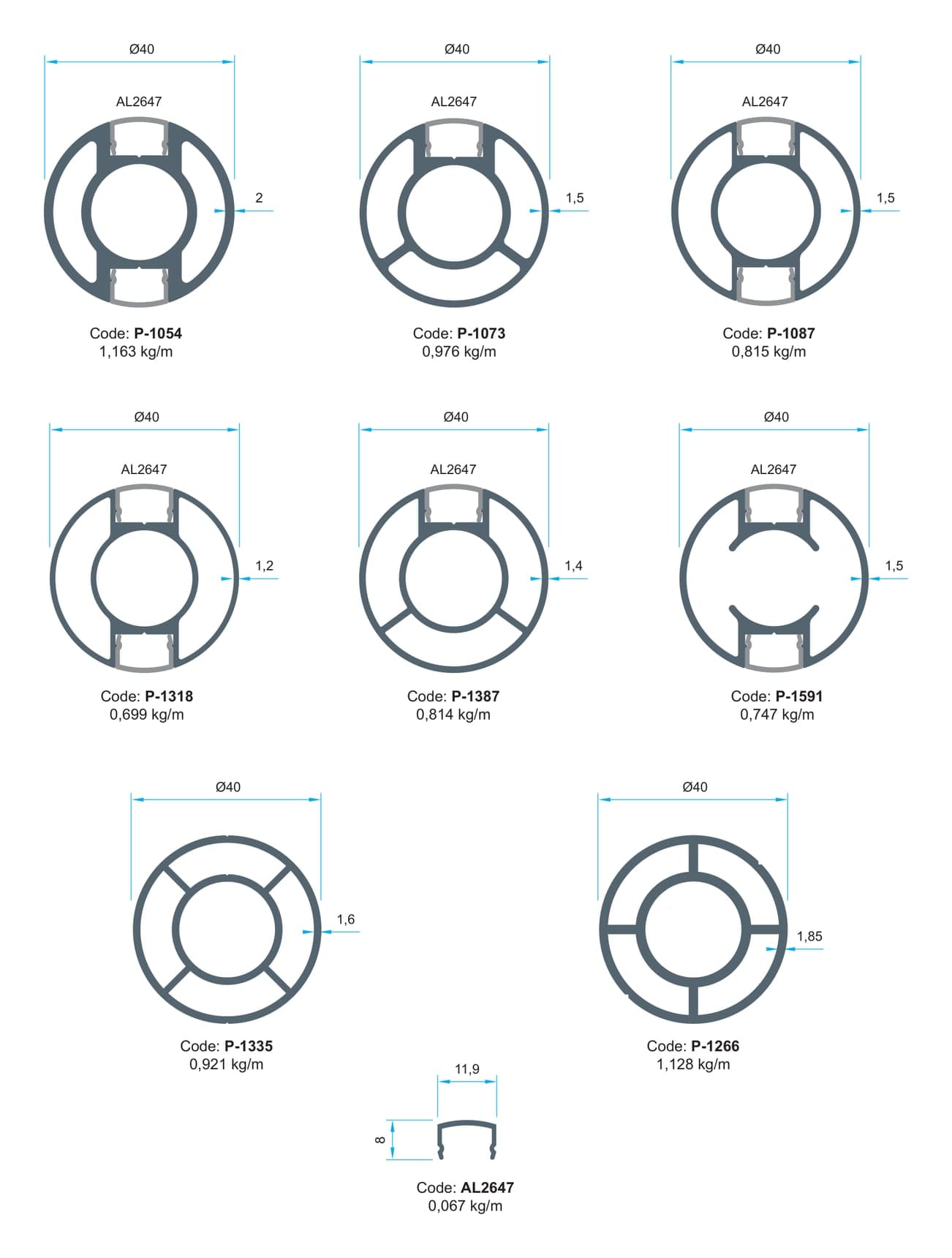

03Round pillars & coversØ40 mm

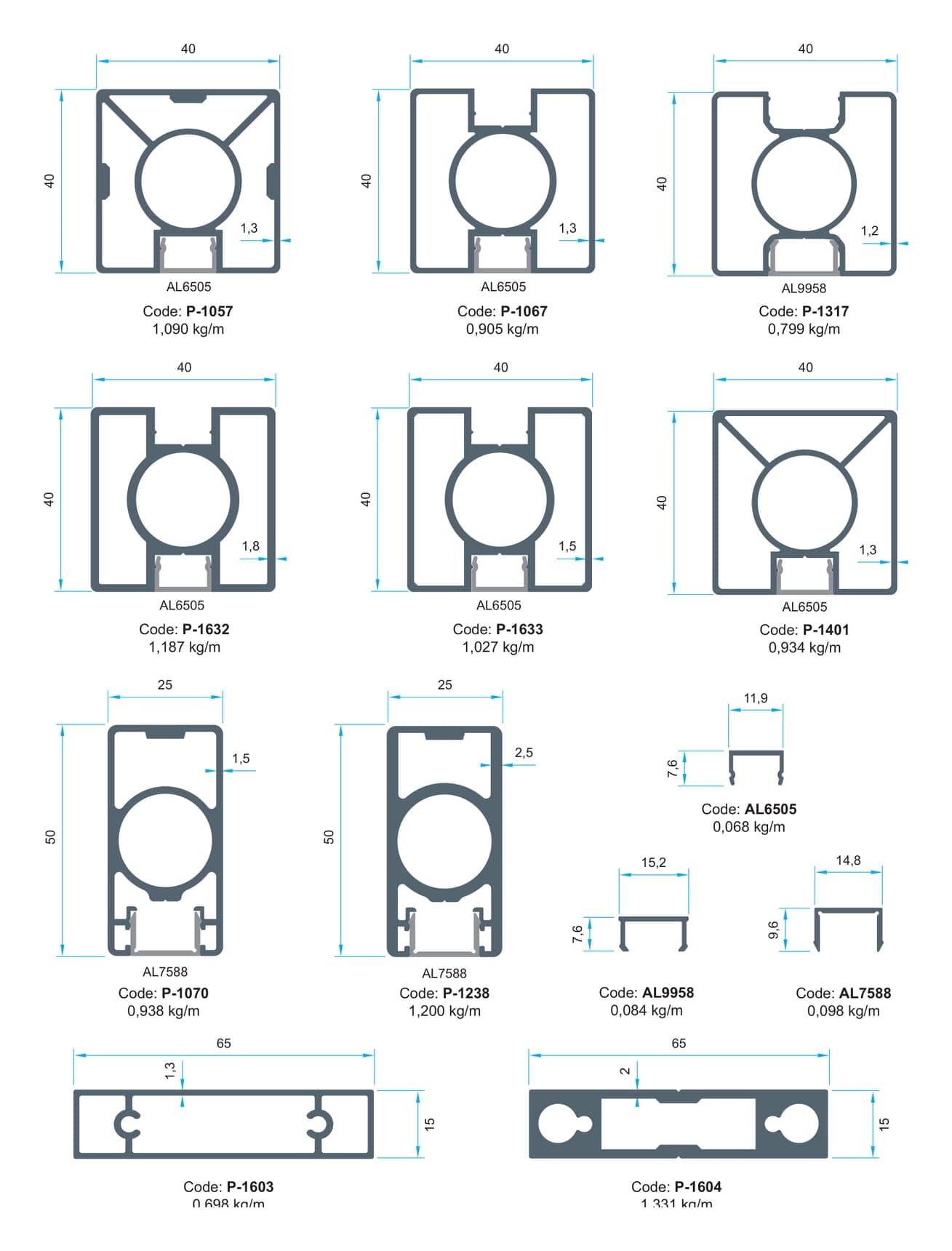

04Square pillars & covers40 × 40 and 25 × 50 mm

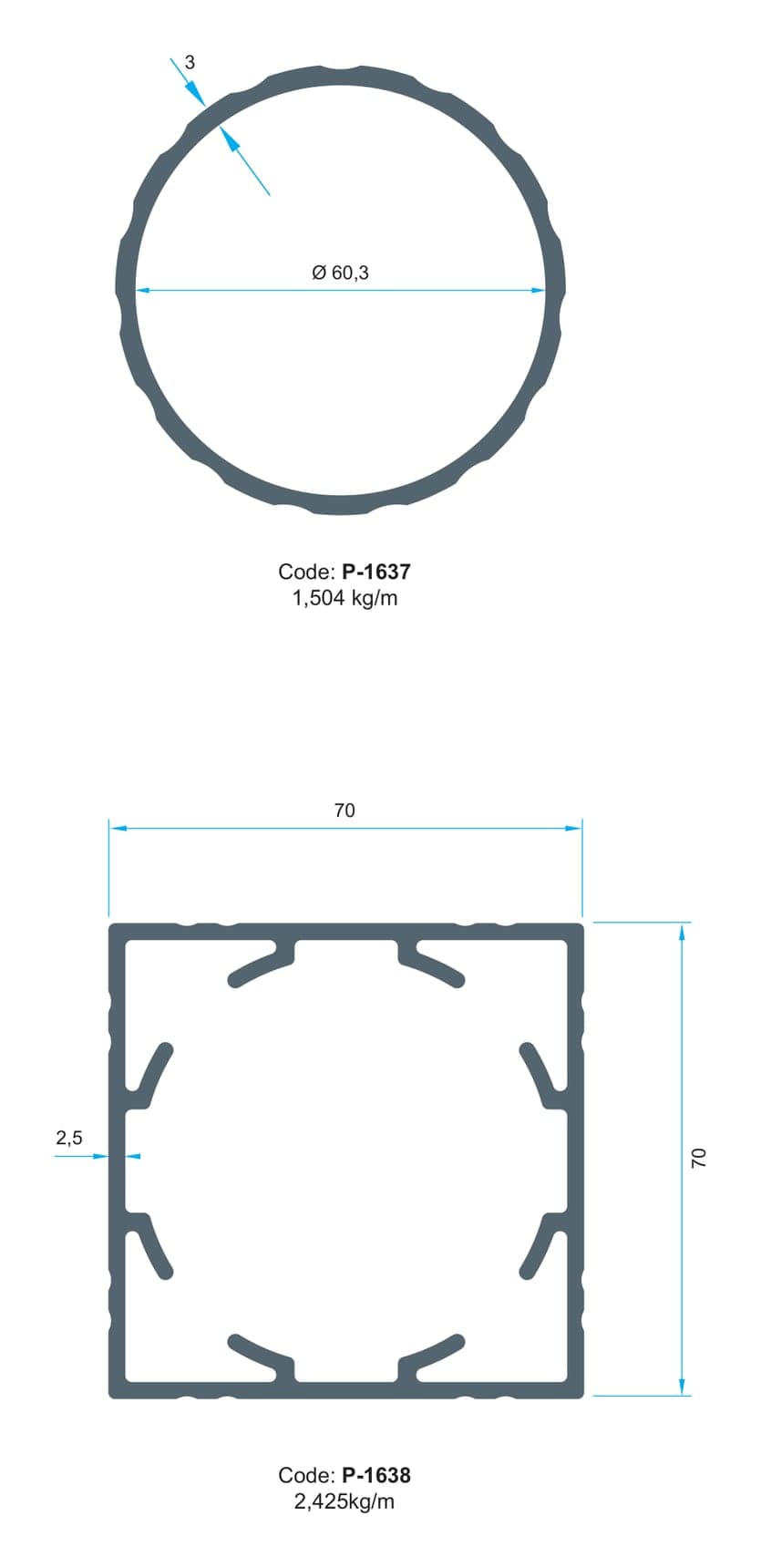

05BalustersØ60.3 mm and 70 × 70 mm

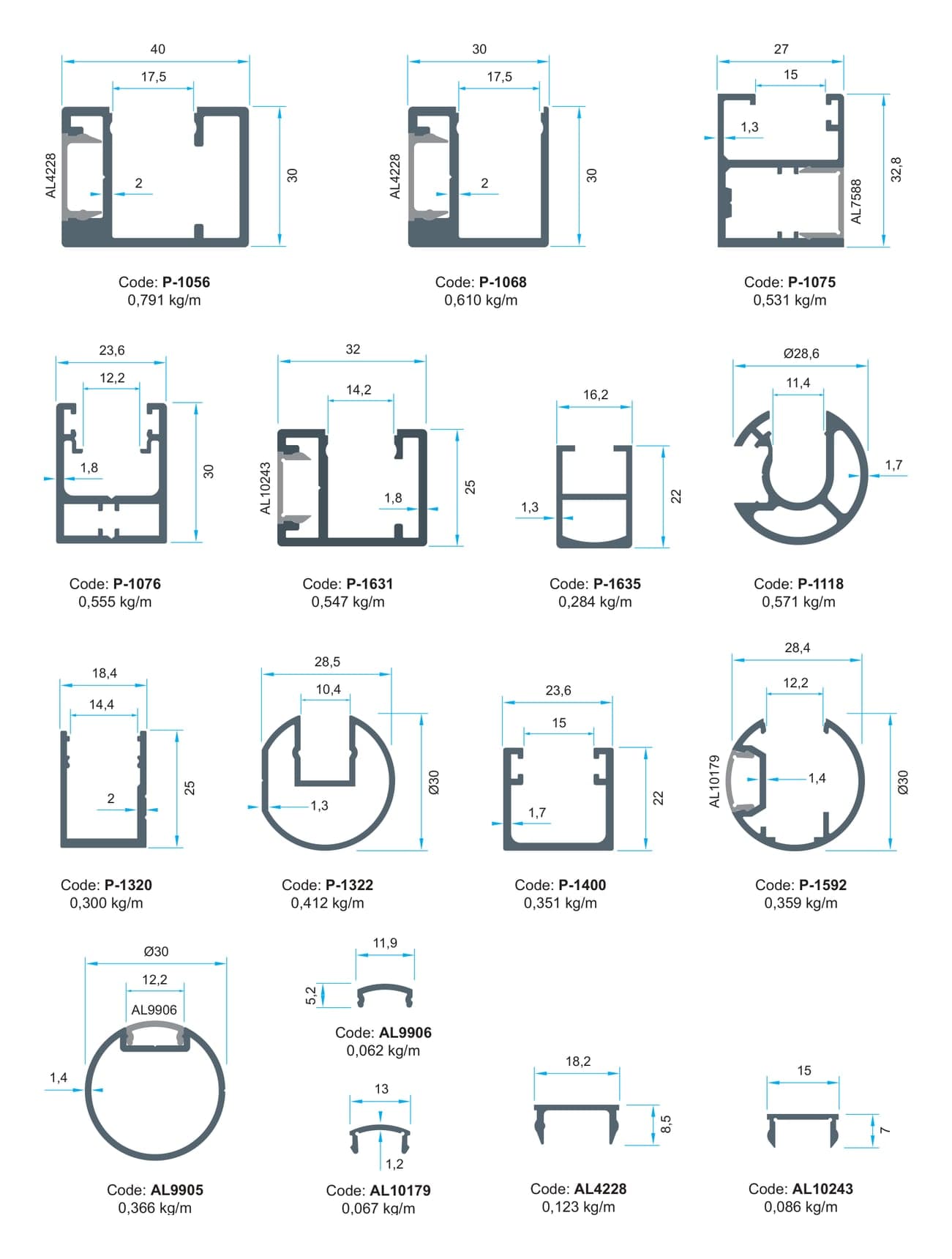

06TransomsHorizontal carrier profiles

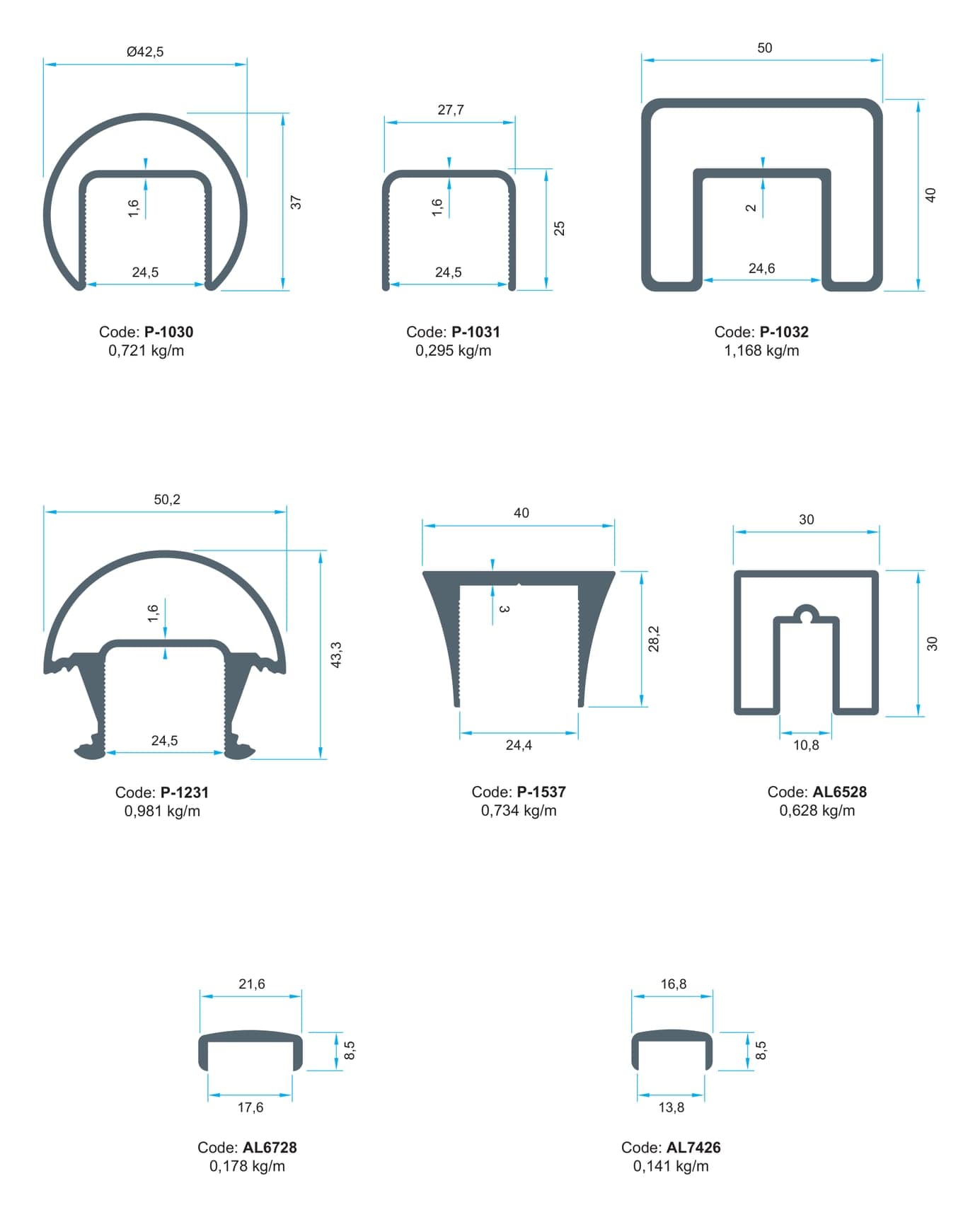

07Top railsOn-glass handrail profiles

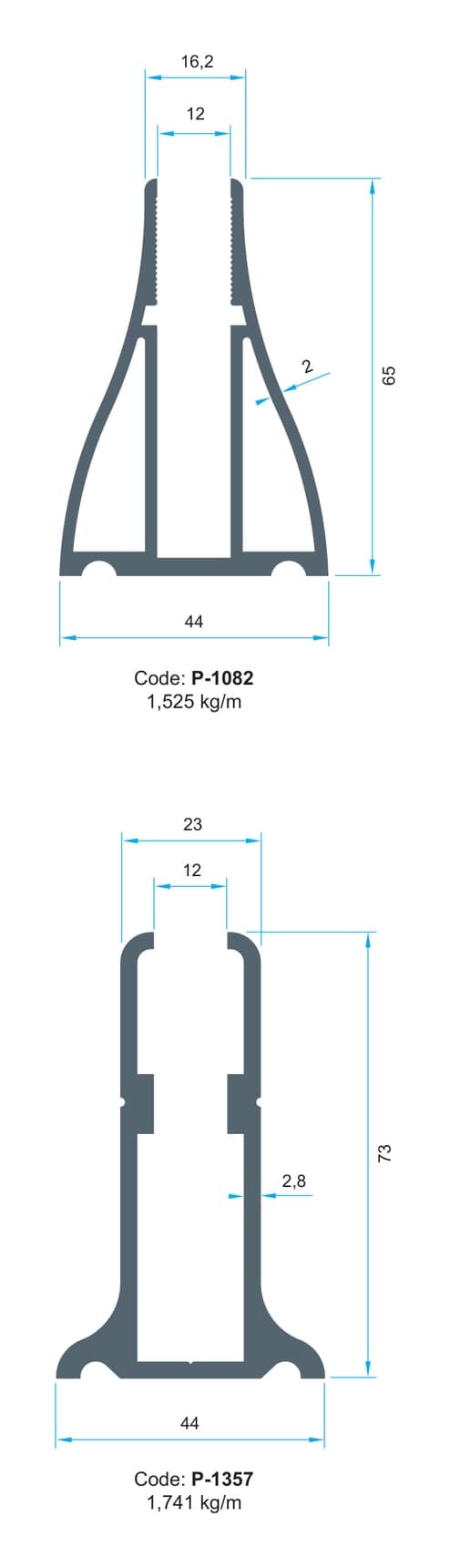

08Monoblock basesBase profiles for glass, 44 mm
