EX-04 — Glass Railing Systems
← Back to Glass Railing Systems
Juliet Balconies
J100 and J120 pre-sized kits
- Max. height
- 1100mm
- Max. glass width
- 2800mm
- Finishes
- 4
01 — Overview
Overview

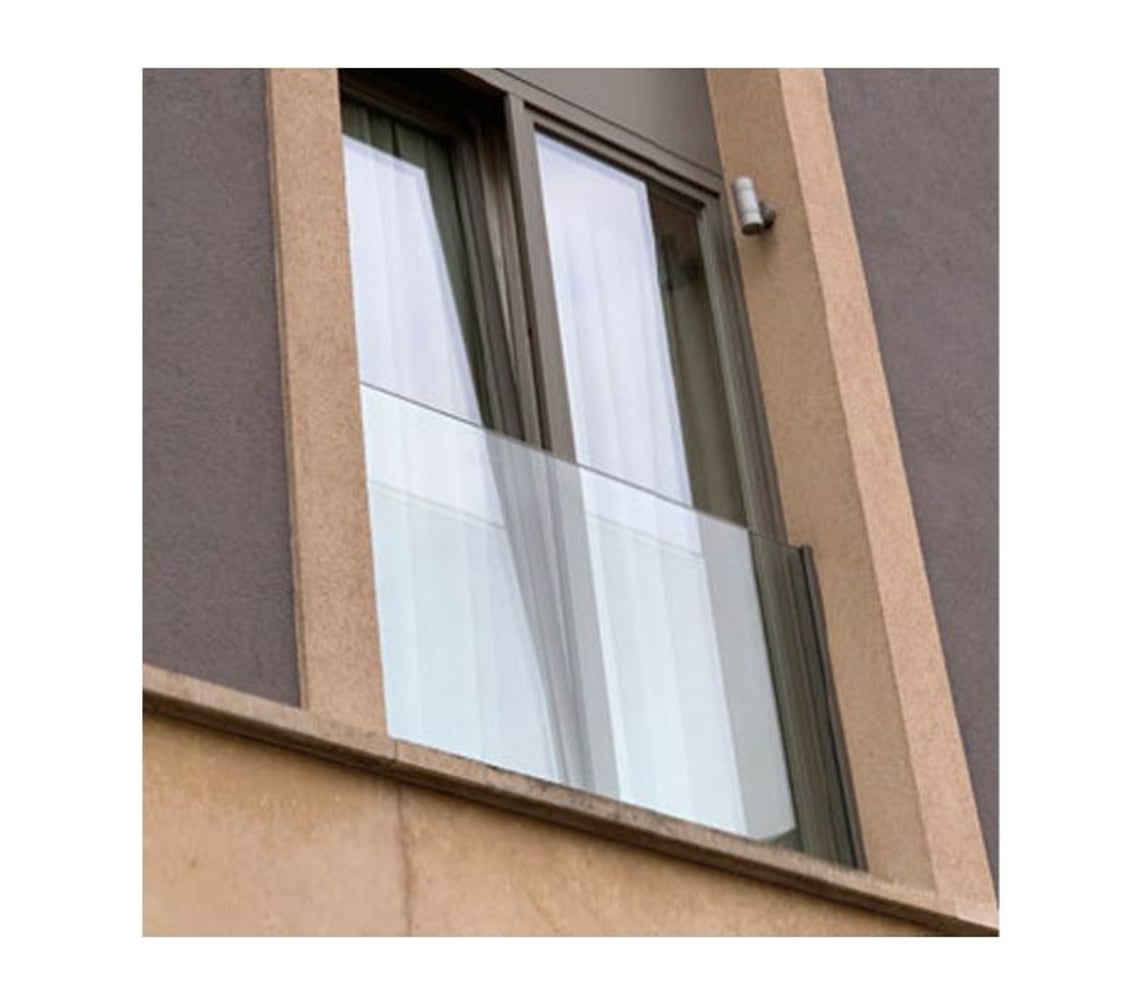

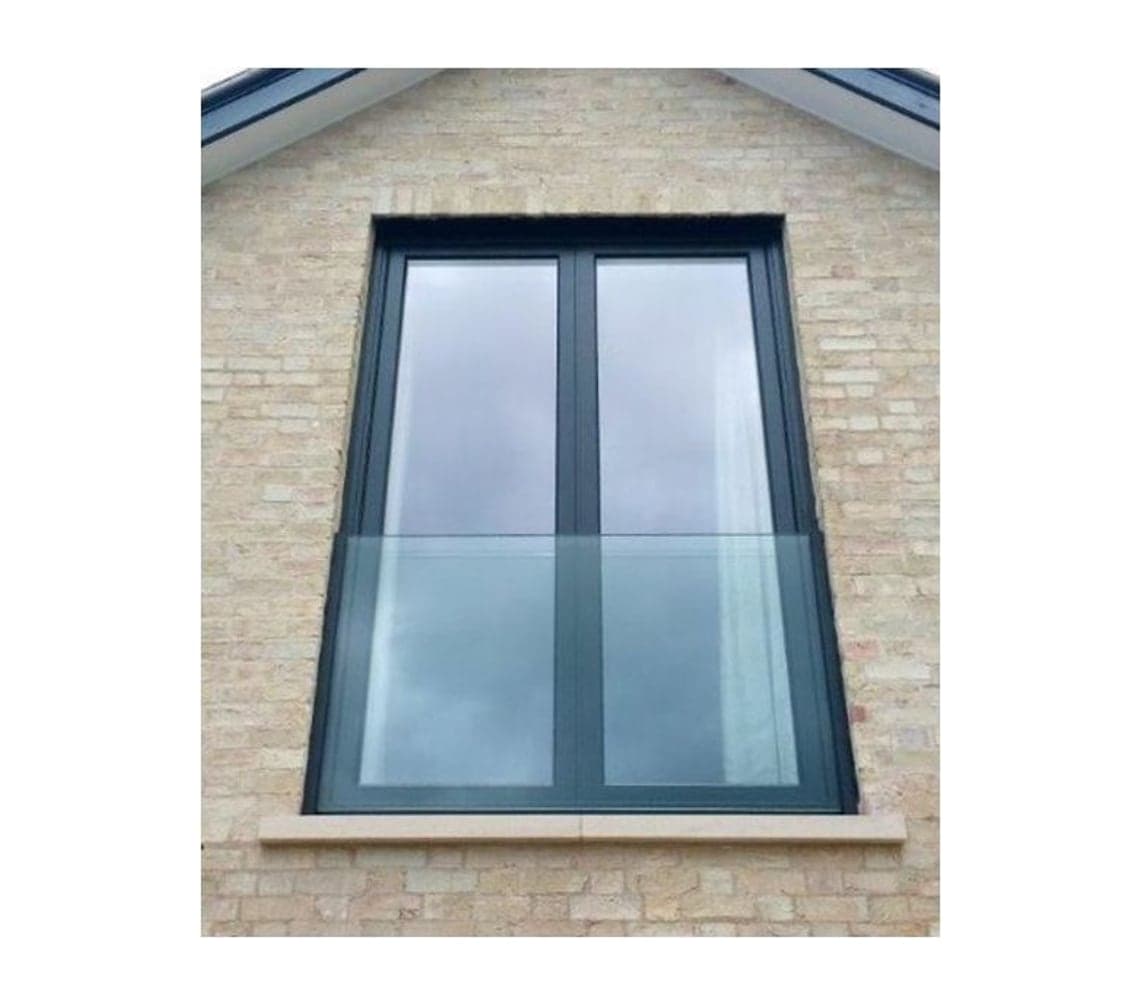

A frameless glass Juliet balcony opens a room to the view while keeping the opening safe. Slim vertical aluminium profiles hold the glass and span up to 2800 mm, depending on glass thickness.
J100 is the side-mount version and J120 mounts to the window frame. Both are supplied as pre-sized kits in three heights and four finishes, with rubber sets matched to the glass.
02
Specifications
Kits
EX-04.01- Heights
- 900, 1000 and 1100 mm
- Finishes
- Matt natural anodised, RAL anthracite grey, RAL white, mill finish
- Rubber sets
- 10.7 – 13.5 mm, 16.7 – 17.5 mm, 20 – 21.5 mm glass
- Mounting
- Side mount (J100) or window-frame mount (J120)
Glass width
EX-04.02- Up to 1200 mm
- Min. 10.76 mm glass
- Up to 1400 mm
- Min. 12.76 mm glass
- Up to 1700 mm
- Min. 16.76 mm glass
- Up to 2800 mm
- Min. 21.52 mm glass
03
Documents
Gallery
01 / 01
Other lines
Glass Railing Systems range
Sheet 09 — Enquiry
Specify Juliet Balconies.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
