U50 Series
Slim and high-load base channels
- Glass thickness
- 12–21.52mm
- Profile length
- 600cm
- Profile versions
- 5
Overview
U50 Max channels offer the best balance of performance and weight: their shape resists heavy loads, which makes them suited to high-rise buildings and premium projects, and they can be bent for complex curved designs. U50F Max can be fixed 83 mm in from the slab edge with a cover profile hiding the anchors, and U50R Max is the side-mount version with external and internal cover claddings.
U50 is a slim channel that takes up little space on the application area; U50F is its F-type version for use beneath screed or on the floor with a cover. All are extruded in long lengths and can be pre-drilled on request.
Performance
- 01
High load resistance
U50 Max sections are engineered for heavy loads.
- 02
Bendable
U50 Max for curved, high-load projects.
- 03
Concealed anchors
Cover claddings hide holes on F-type and side-mount versions.
Specifications
Profiles

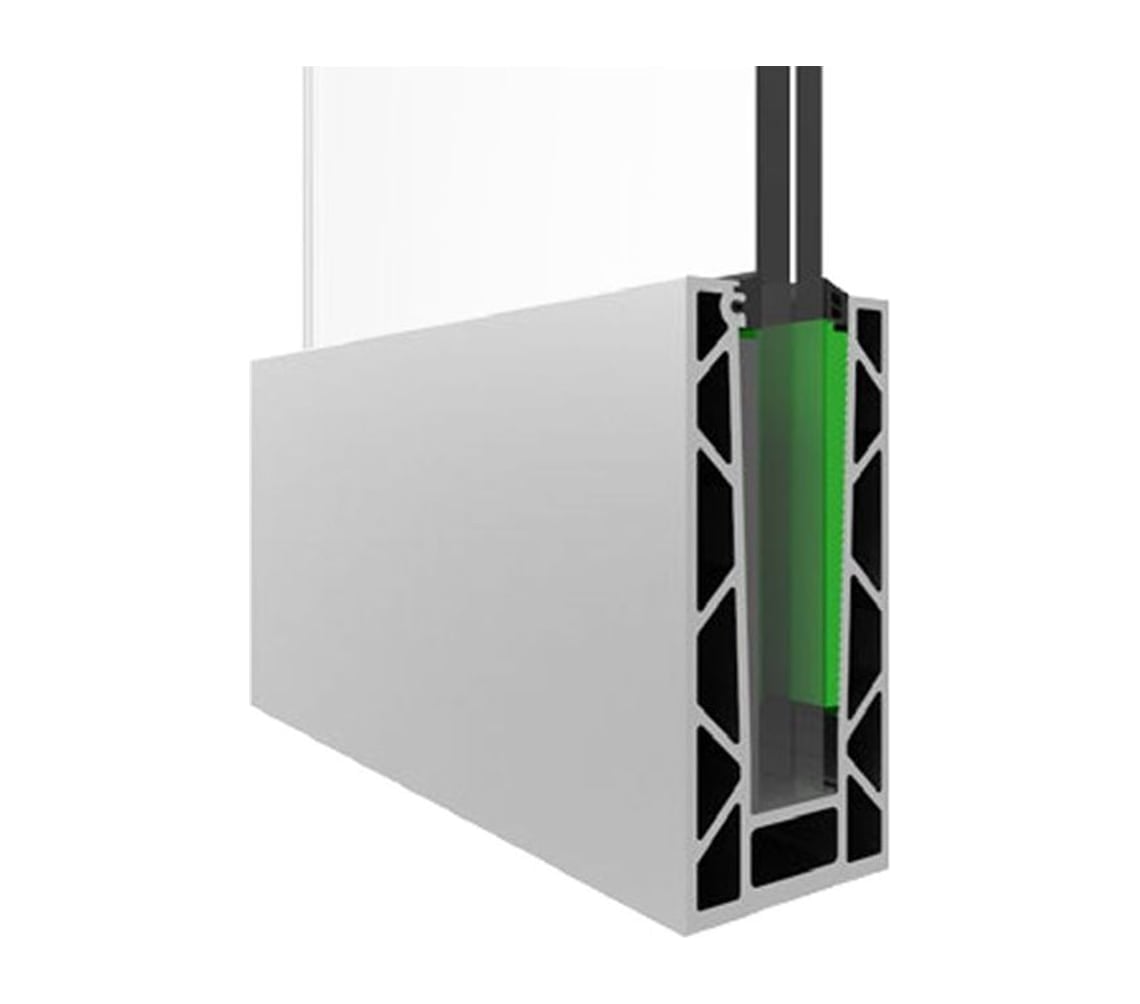

EX-04.01- U50 Max
- P-1518, 600 cm, 7.10 kg/m

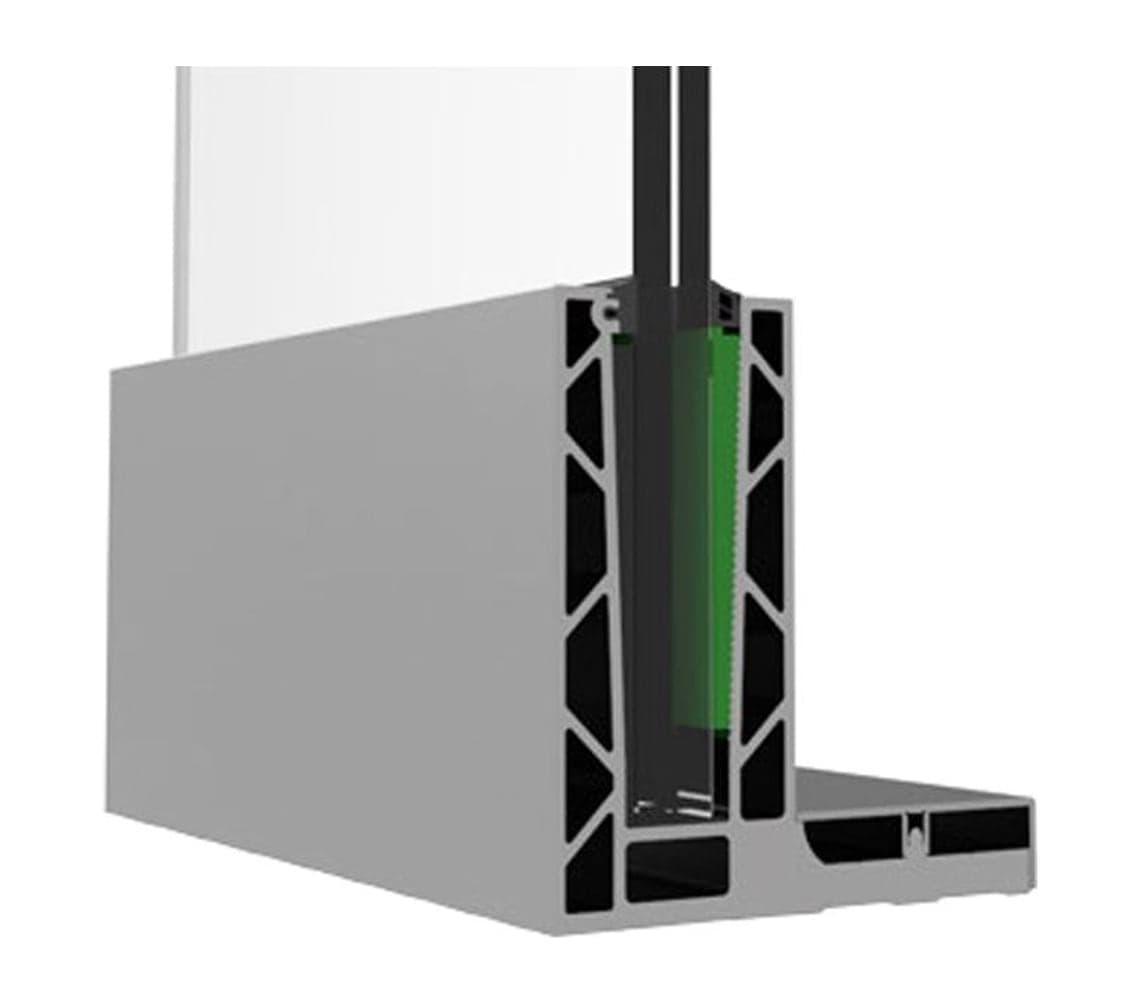

- U50F Max
- P-1522, 400 cm, 9.84 kg/m; cover P-AL7405

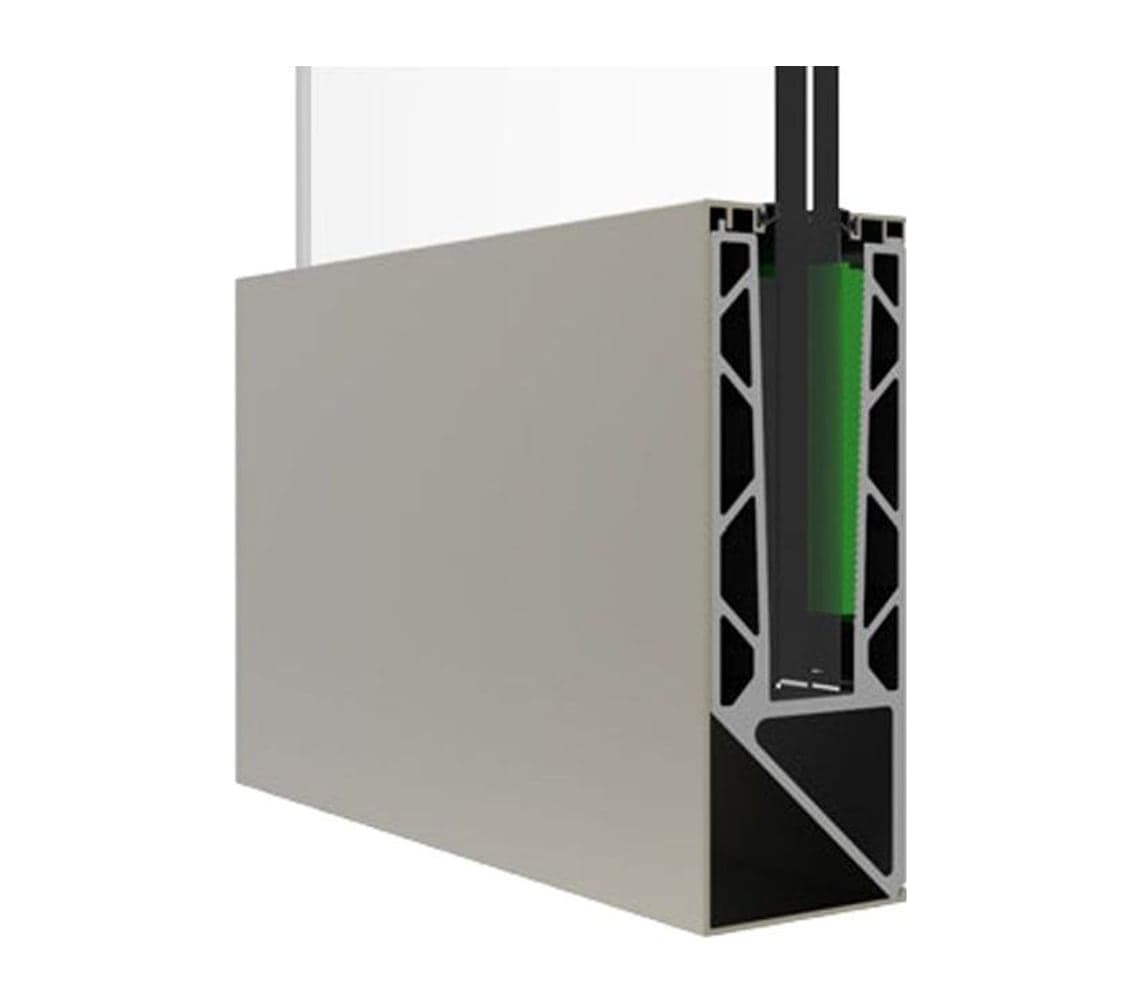

- U50R Max
- P-1521, 600 cm, 7.25 kg/m, mill finish; covers P-1520, P-AL9205

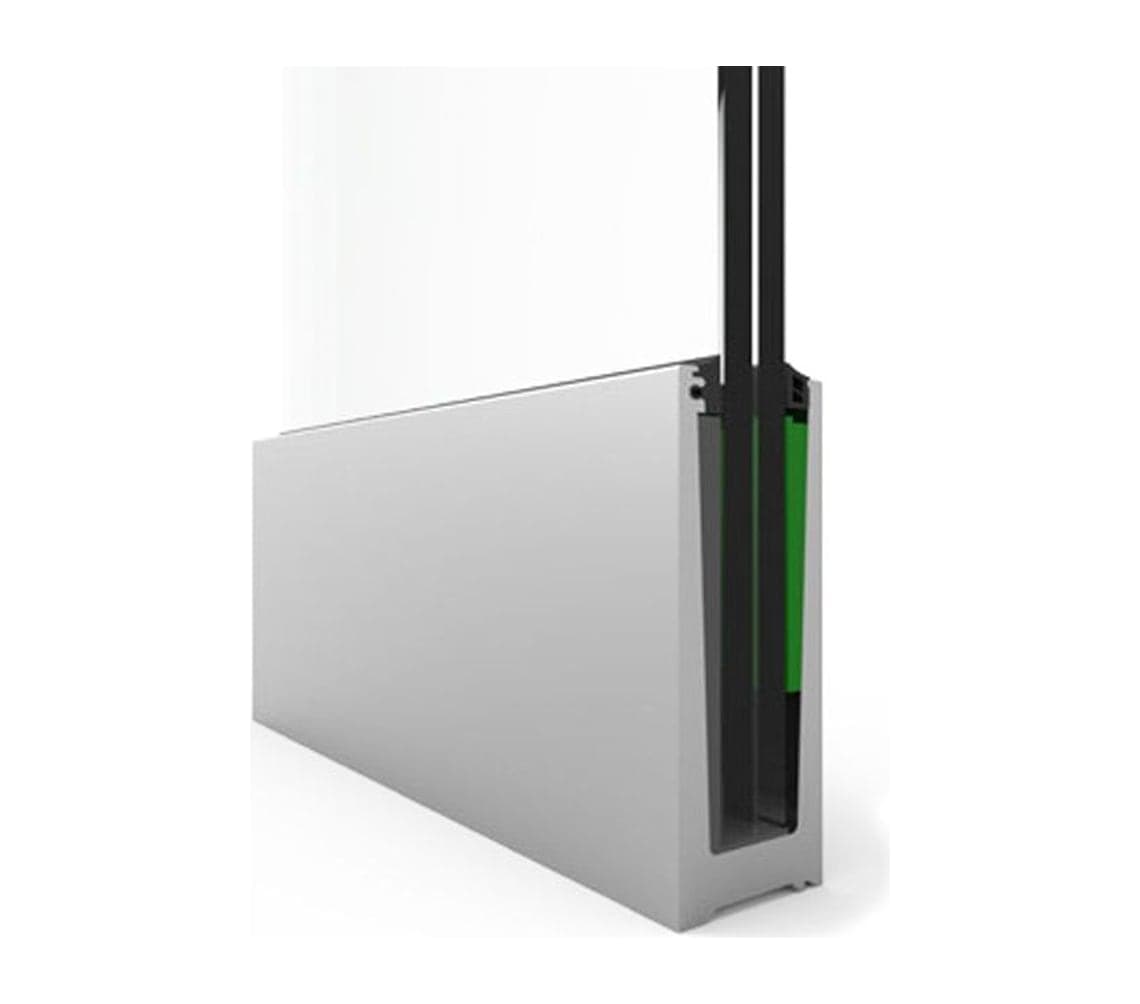

- U50
- P-1358, 600 cm, 5.83 kg/m

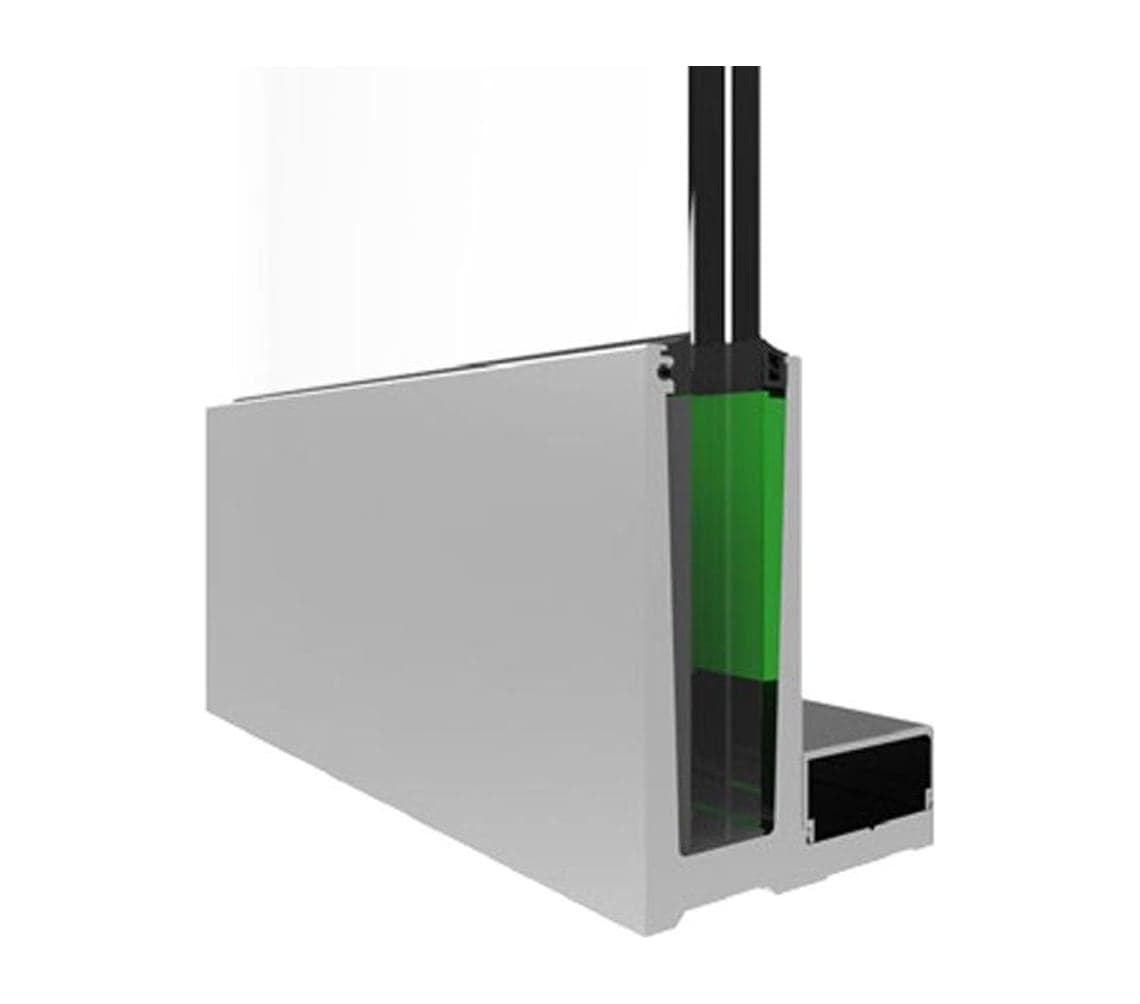

- U50F
- P-1519, 600 cm, 7.14 kg/m; cover P-1345
Glass and fixing
EX-04.02- Glass
- 12 / 12.76 / 17.52 / 21.52 mm
- Wedge sets
- 6+6, 8+8 and 10+10 mm glass
- Pre-drilling
- On request
- Gaskets
- EPDM interior and outer gaskets, supplied by the box
Documents
Gallery
01 / 04
02 / 04
03 / 04
04 / 04
Other lines
Glass Railing Systems range
Specify U50 Series.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
