N50 Series
Full-length base channels, bendable
- N50 profile length
- 500cm
- Glass
- 5+5–10+10mm
- N50 weight
- 4.50kg/m
Overview

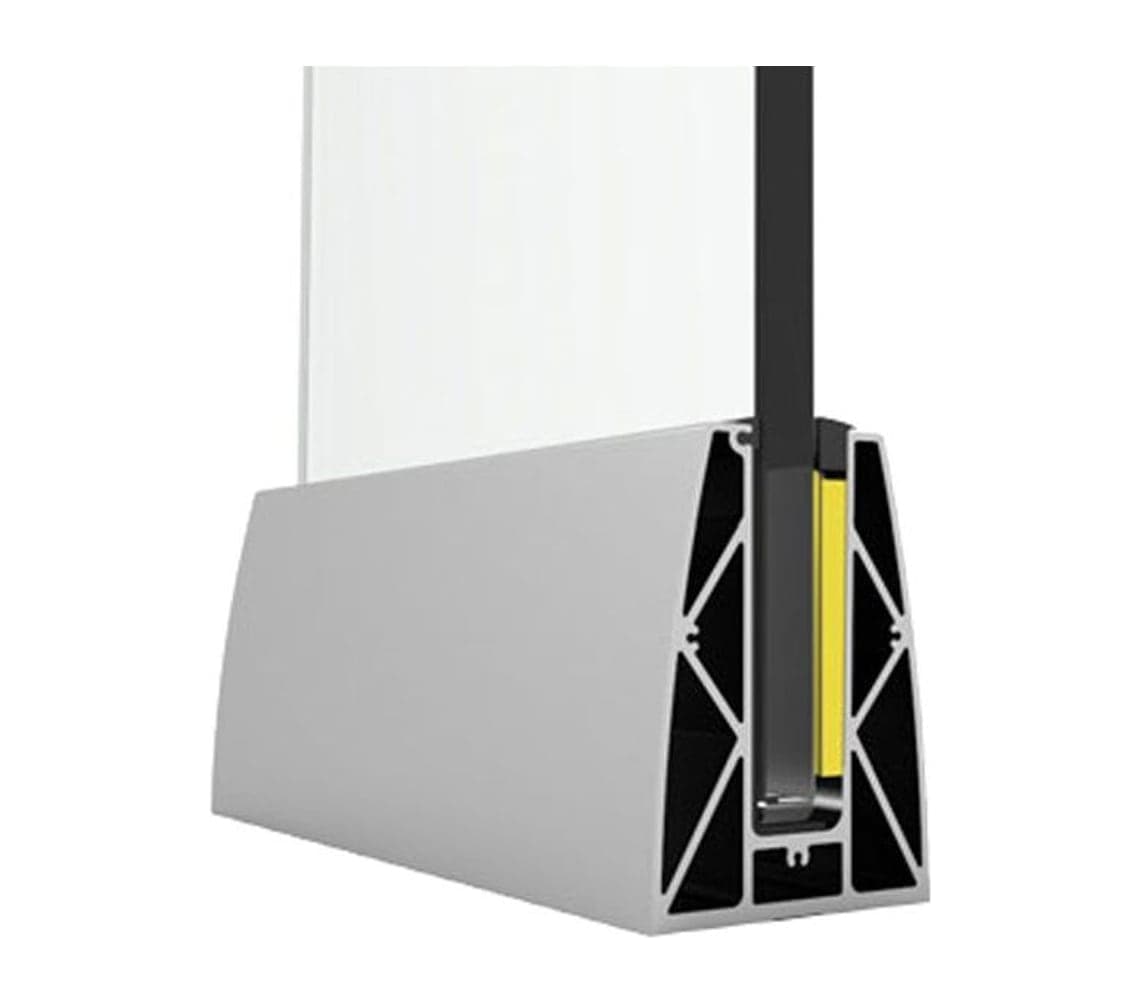

N50 is a linear, full-length base channel for interior and exterior frameless balustrades. It is anchored to the floor before the glass is set and locked with wedges, and it accepts 5+5, 6+6, 8+8 and 10+10 mm laminated glass. Its streamlined section bends readily, making it the standard choice for curved residential, commercial and public projects.
N50F is the F-shaped version for installation beneath screed or on the floor with a cover; N50R is the pre-drilled fascia-mount channel with cladding covers; N50S has soft contours and is extruded in 6 m lengths.
Performance
- 01
Bendable
Adapts to the required radius without losing stability.
- 02
Drainage
Optional pre-fabricated drainage channels, nine per 5 m.
- 03
Four mounting types
Top mount, F-type, fascia and soft-contour.
Specifications
Profiles
EX-04.01- N50
- P-1024, 500 cm, 4.50 kg/m
- N50F
- P-1025, 500 cm, 5.70 kg/m; cover P-1345
- N50R
- P-1026, 500 cm, 4.73 kg/m, pre-drilled, mill finish; cover P-1040
- N50S
- P-1516, 600 cm, 5.45 kg/m
Glass and fixing
EX-04.02- Glass
- 10.76 / 12.76 / 16.76 / 17.52 / 21.52 mm
- Wedge sets
- N50-KM10, KM12, KM16, KM20 (5+5 to 10+10 mm)
- Pre-drilling
- On request (N50R pre-drilled)
- Gaskets
- EPDM interior and outer gaskets, supplied by the box
- Fixing
- Chemical anchor with threaded rod, washer and nut
Documents
Gallery
01 / 03
02 / 03
03 / 03
