Adjustable Systems
C90, C70 and C60 with glass angle adjustment
- Adjustable systems
- 3
- C90 glass
- 17.52–21.52mm
- C90 profile weight
- 6.28kg/m
Overview

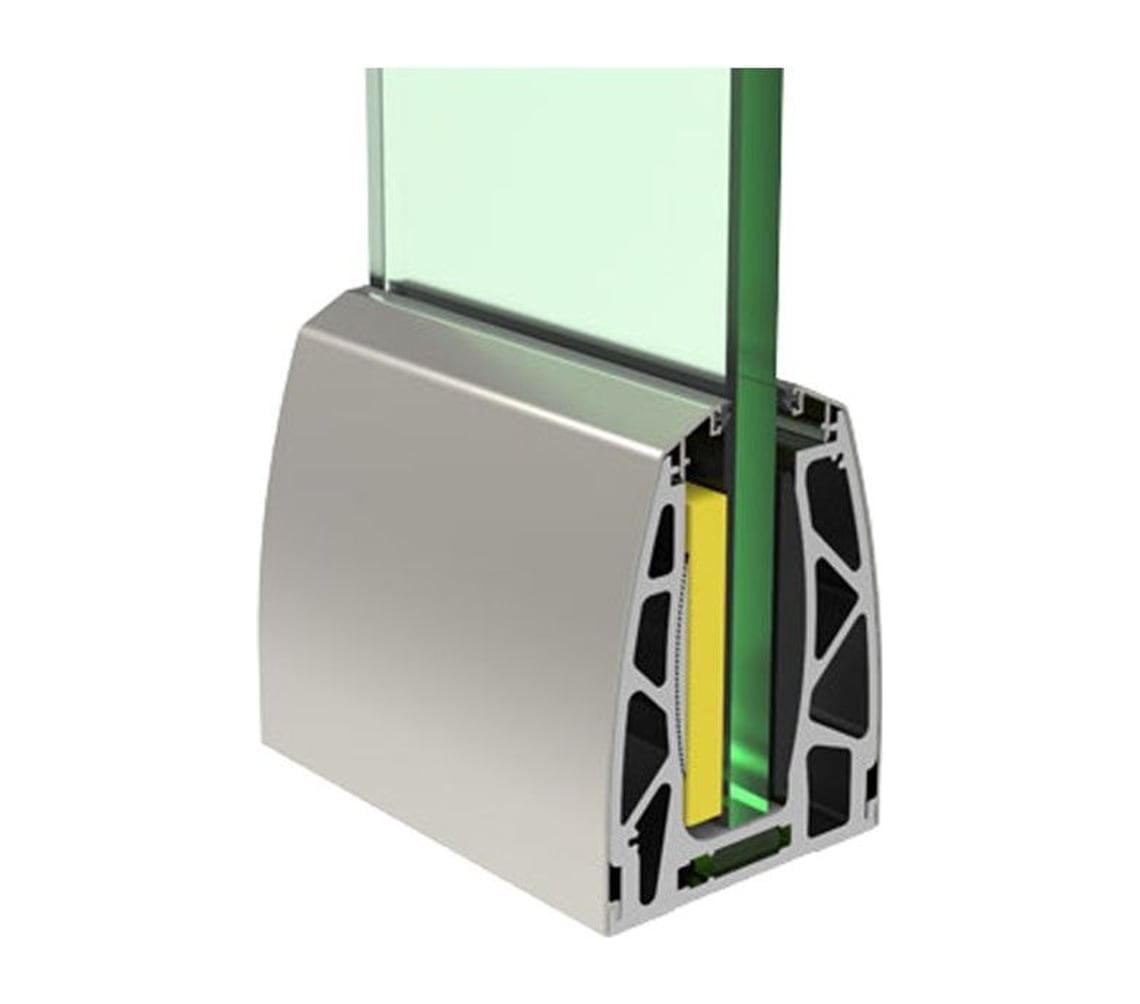

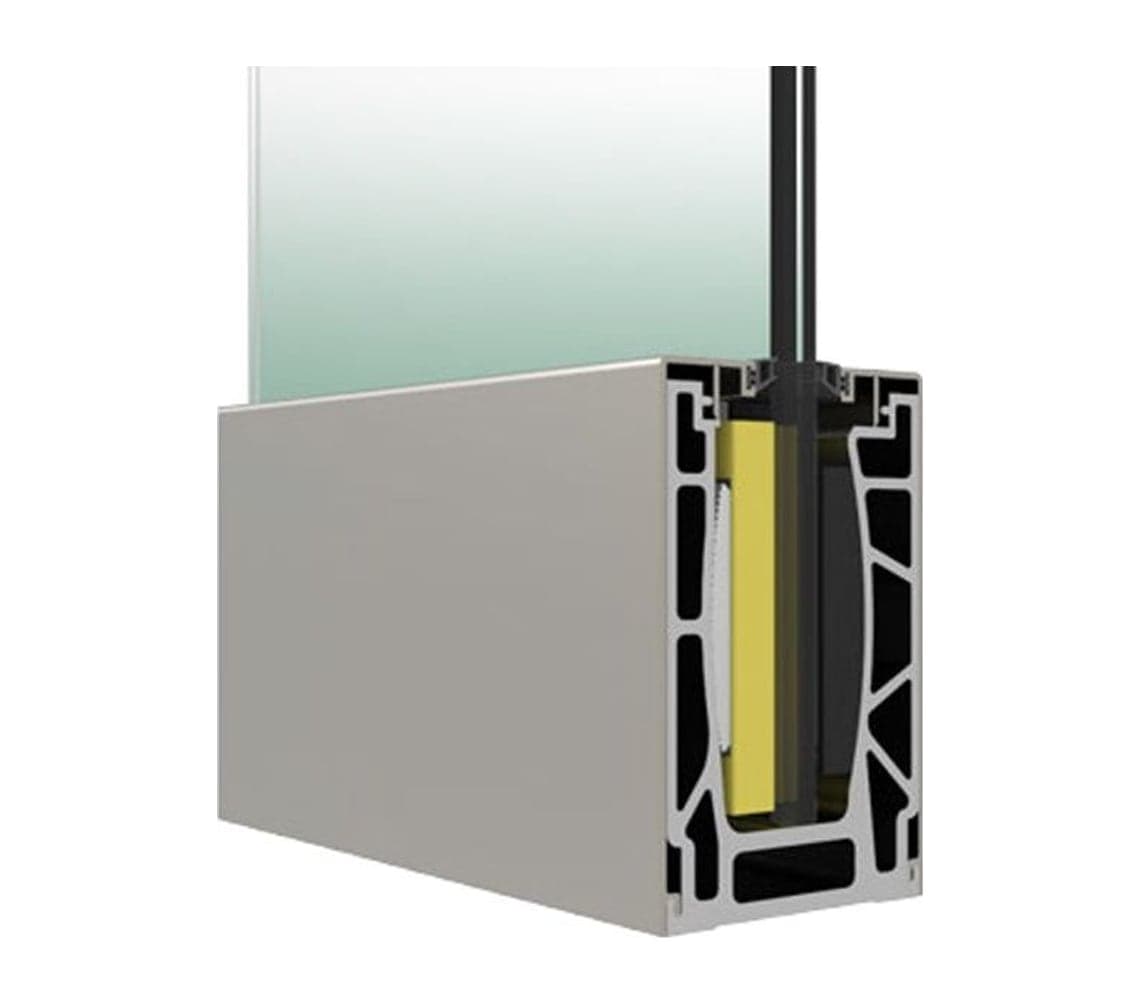

Floors are not always flat. In C70 and C60 the glass is placed, its angle set with a moving wedge and then locked with a magic pack inside the aluminium base shoe. C90 is a capless monoblock profile with an internal adjustment and clamping mechanism: the glass is aligned and fixed from inside the profile, with millimetric correction possible even after installation and no visible fasteners.
These systems shorten installation time and keep the glass perfectly vertical in premium residential, commercial and hospitality projects.
Performance
- 01
Angle adjustment
Corrects the glass on uneven ground.
- 02
Capless design
C90 needs no external covers or visible fasteners.
- 03
Smart and easy
Magic-pack wedge sets lock the glass in place.
Specifications
Systems
EX-04.01- C90
- P-1749, 300 / 600 cm, 6.28 kg/m, monoblock; 17.52 / 21.52 mm glass
- C70
- 15 cm and 30 cm base shoes; magic pack for 8+8 mm glass; full-length P-1007 on request
- C60
- 15 cm and 30 cm base shoes; 12 / 13.52 mm glass; full-length P-1008, 5.852 kg/m
- Finish
- Natural anodised or RAL powder coated
- Fixing
- Chemical anchor with threaded rod, washer and nut
