Economic Systems
S40 and S40E
- S40 profile length
- 600cm
- S40 glass
- 8.76–12.76mm
- Systems
- 2
01 — Overview
Overview

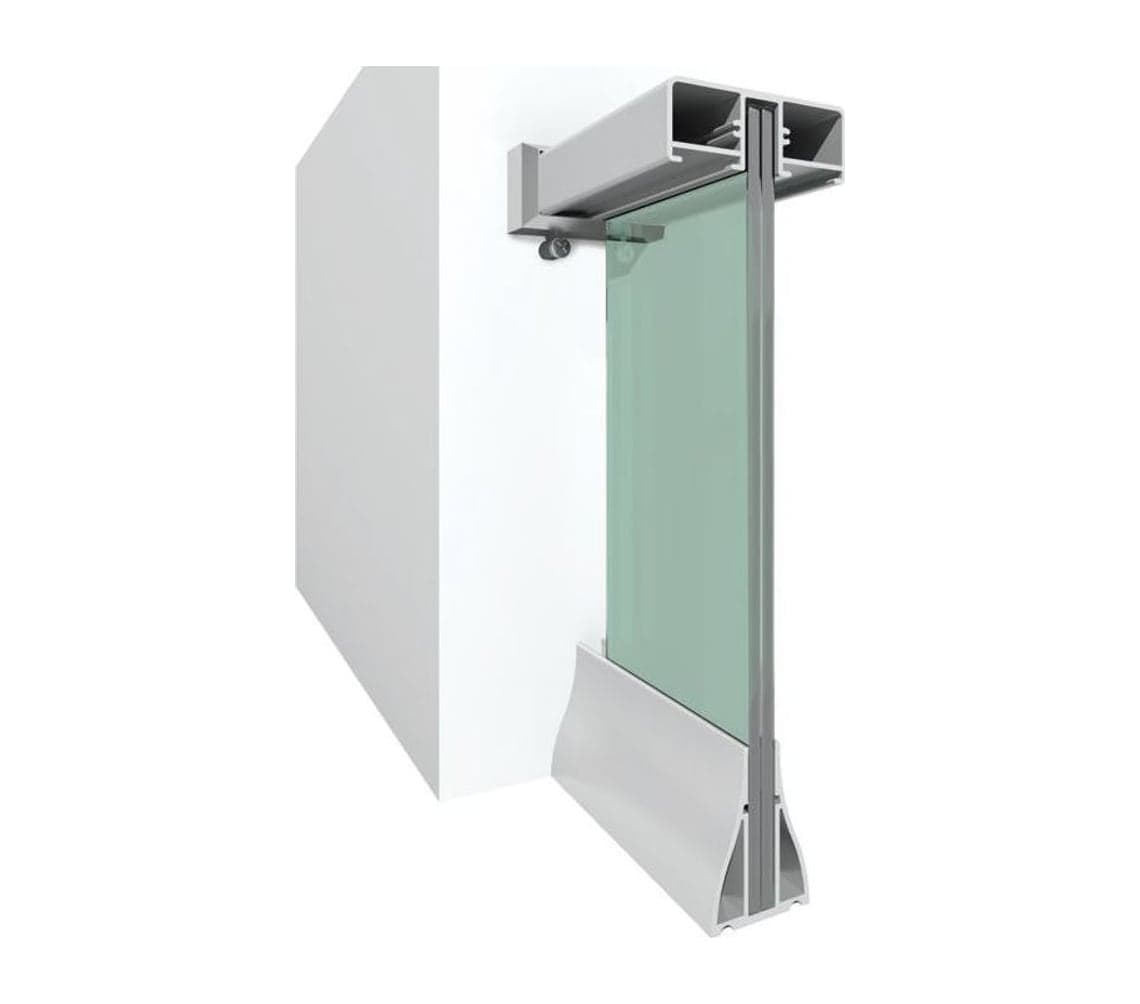

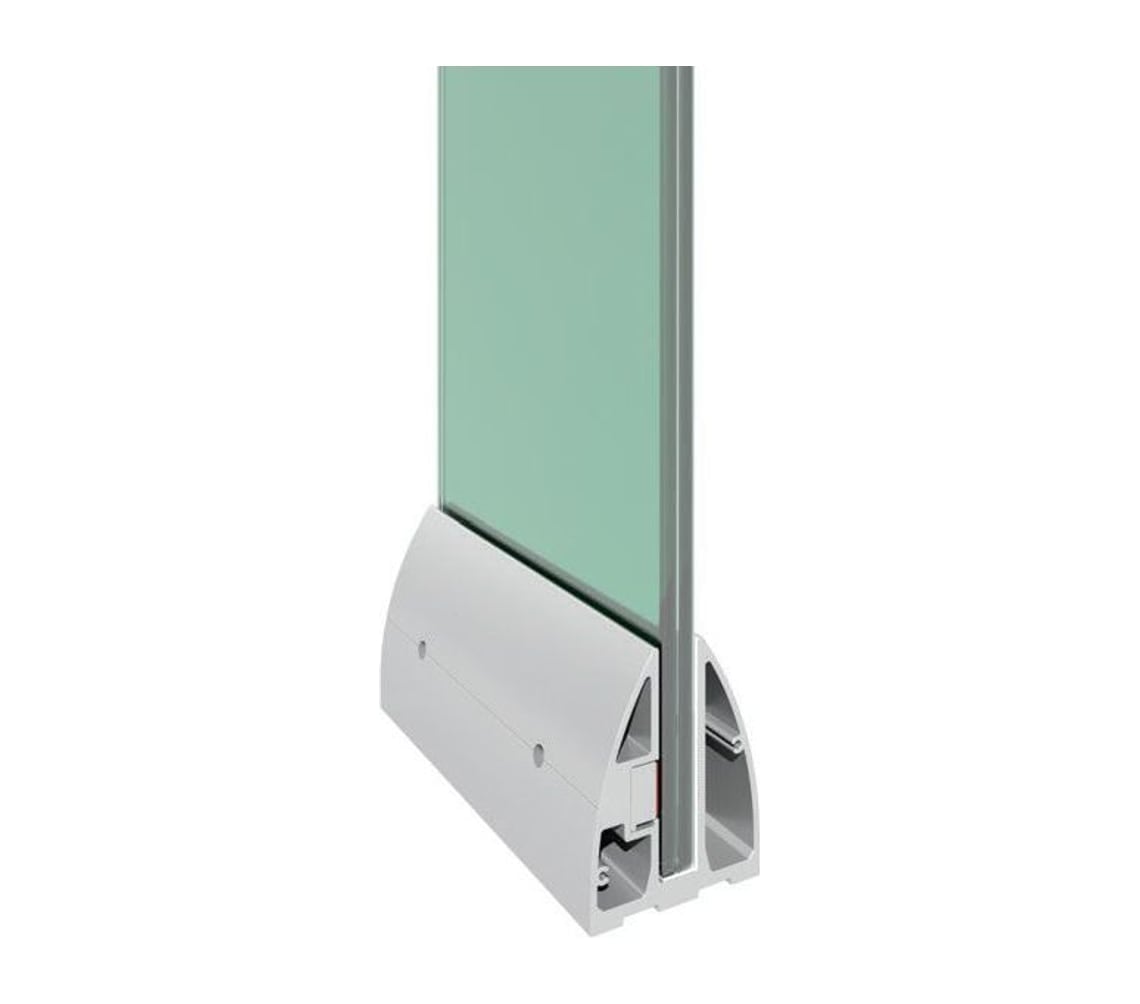

S40 fixes the glass with a pressing profile and set screws inside the main profile, and suits 8.76, 10.76 and 12.76 mm glass. S40E is an alternative for 10 mm glass. Both give a sturdy, attractive result when combined with an on-glass top rail connected to the wall.
02
Specifications
Systems
EX-04.01- S40
- S40-6981, 600 / 580 cm; anodised or RAL powder coated
- S40E
- P-1082, 1.526 kg/m, or P-AL8735, 1.626 kg/m; 10 mm glass
- Top rail
- Glass-adapter top rail P-AL5148
03
