Compact Channels
EX50, X50, A50 and EC50
- EX50 / X50 length
- 500cm
- EC50 weight
- 3.16kg/m
- Glass range
- 10–21.52mm
01 — Overview
Overview

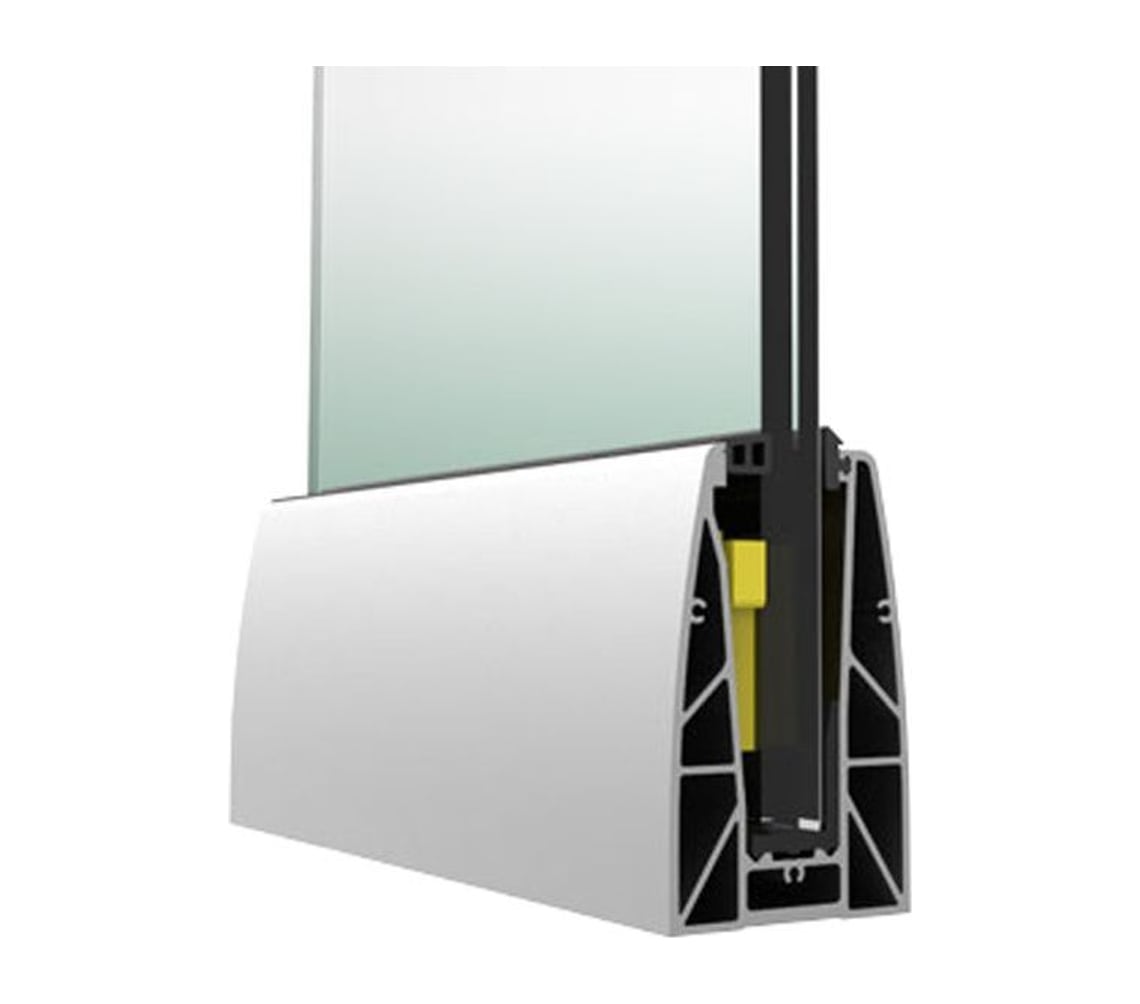

EX50 is a slim, softly shaped full-length profile extruded in 5 m lengths, with simple glass-fixing wedges for 6+6, 8+8 and 10+10 mm glass. X50 brings design, easy installation and cost efficiency together, in powder coating, natural anodising or inox anodising.
EC50 is an economical monoblock channel for low-height glass, ideal for balconies, terraces, staircases and interior partitions where a sleek but economical railing is needed.
02
Specifications
Profiles
EX-04.01- EX50
- P-1354, 500 cm, 4.50 kg/m; 12 / 12.76 / 17.52 / 21.52 mm glass
- X50
- X50-1210, 500 cm, 4.22 kg/m; 10 / 12 / 12.76 / 17.52 mm glass
- EC50
- P-1629, 600 cm, 3.16 kg/m; 10.76 / 12.76 / 16.76 / 17.52 mm glass
- Finish
- Powder coating, natural or inox anodising
- Pre-drilling
- On request
03
Documents
Gallery

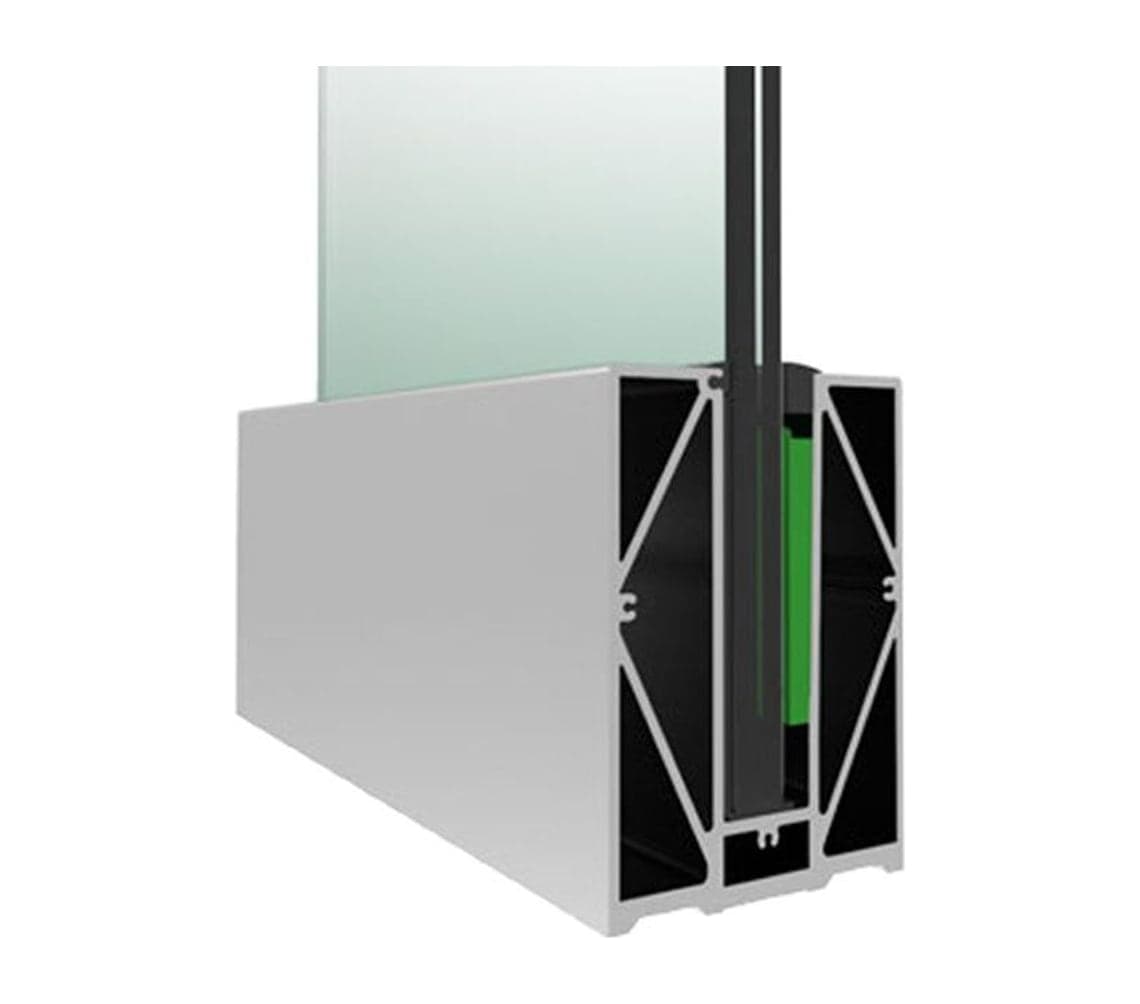

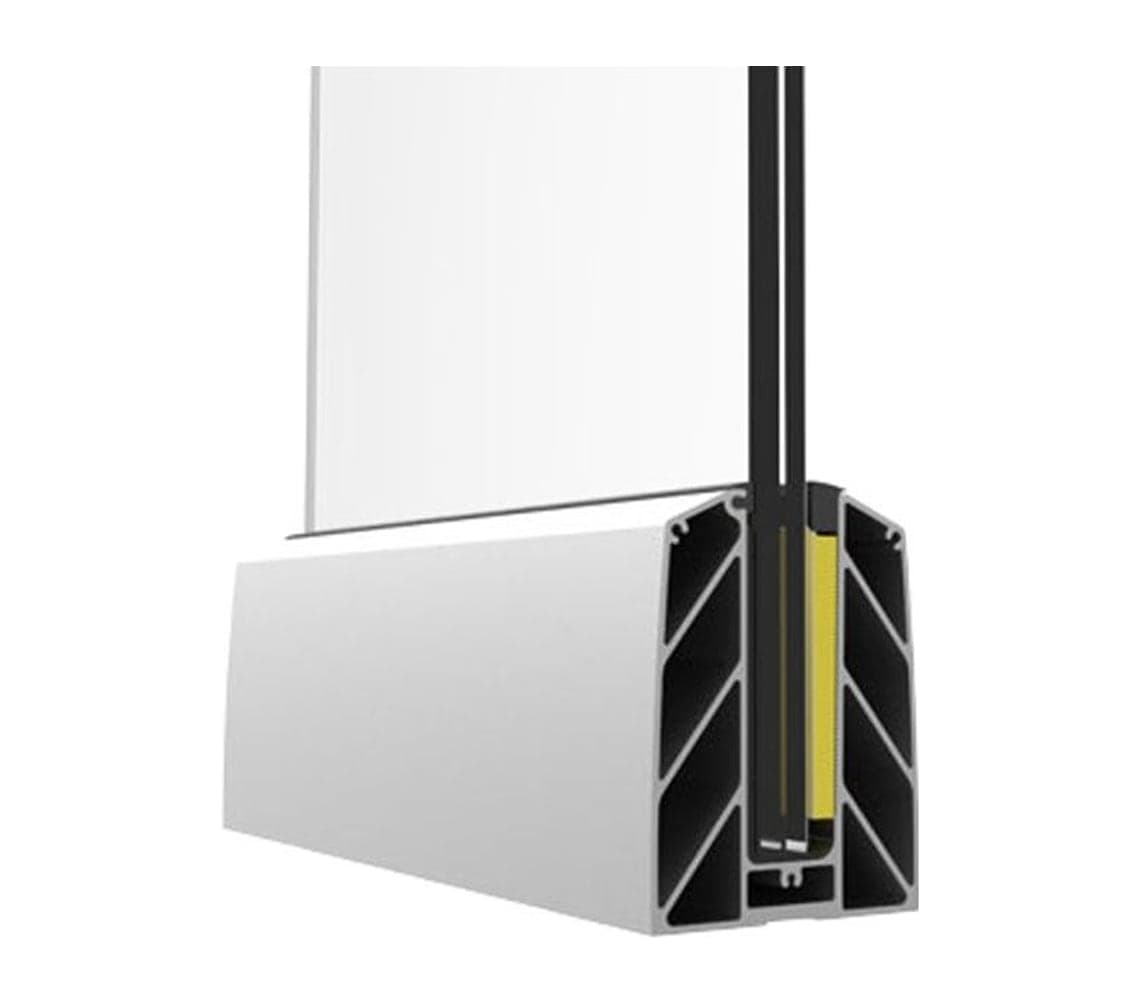

01 / 02
02 / 02
