C50 Series
Segmental base shoes with cover profiles
- Base shoe lengths
- 15 / 30cm
- Glass thickness
- 12–21.52mm
- P-1001 full-length profile
- 9.50kg/m
Overview
The C50 family fixes the glass in short aluminium base shoes anchored to the floor; cap profiles then close the fixings and give the railing its finished look, in a choice of cover colours. A built-in spirit level and adjustable blocks help to align the system on uneven floors.

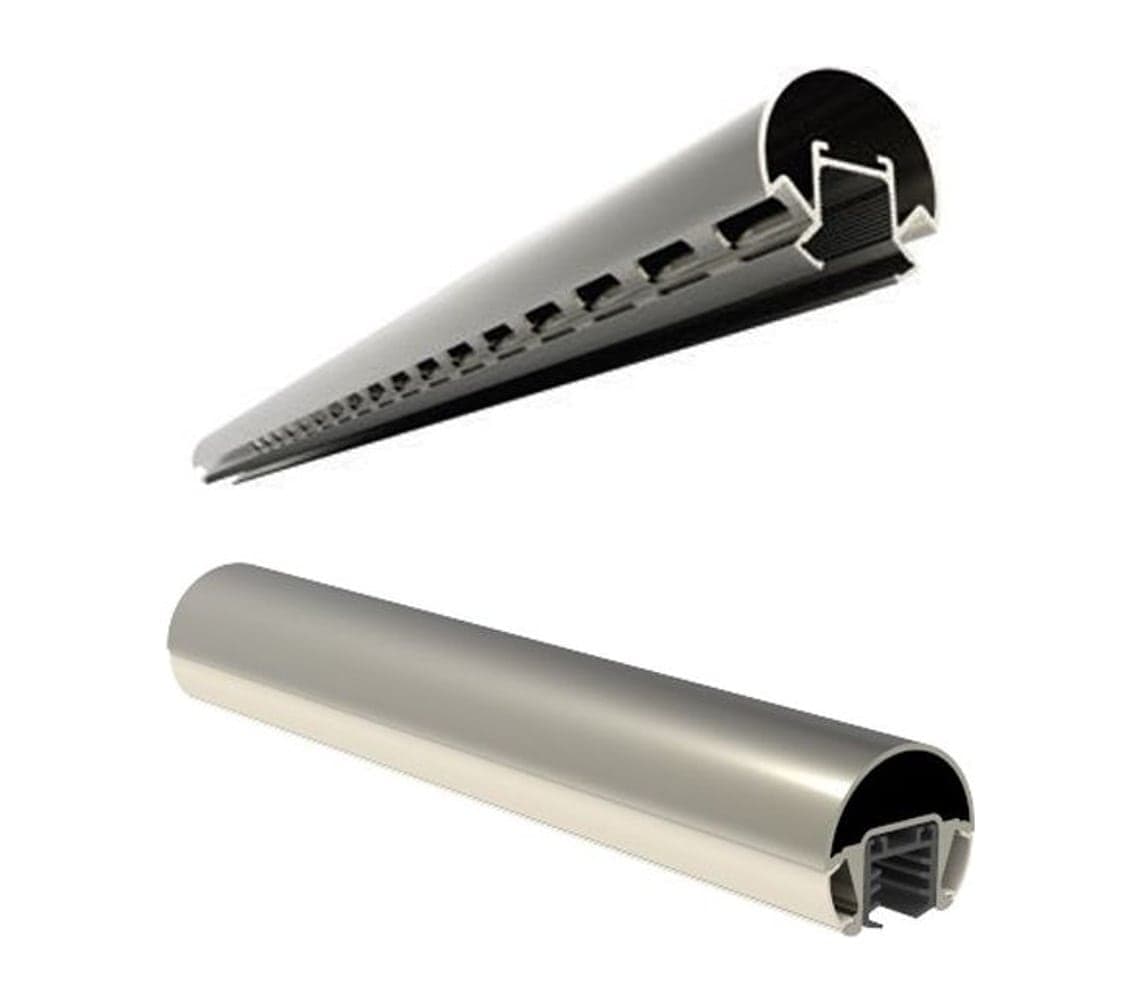

C50+ uses an aluminium glass-fixing wedge, CA50 is the in-floor version for a fully open view, C50 LED adds an LED channel top rail, and AS55 combines segmental or 3 m full-length bases with serrated wedges for high loads.
Performance
- 01
Integrated spirit level
Aligns each base shoe during installation.
- 02

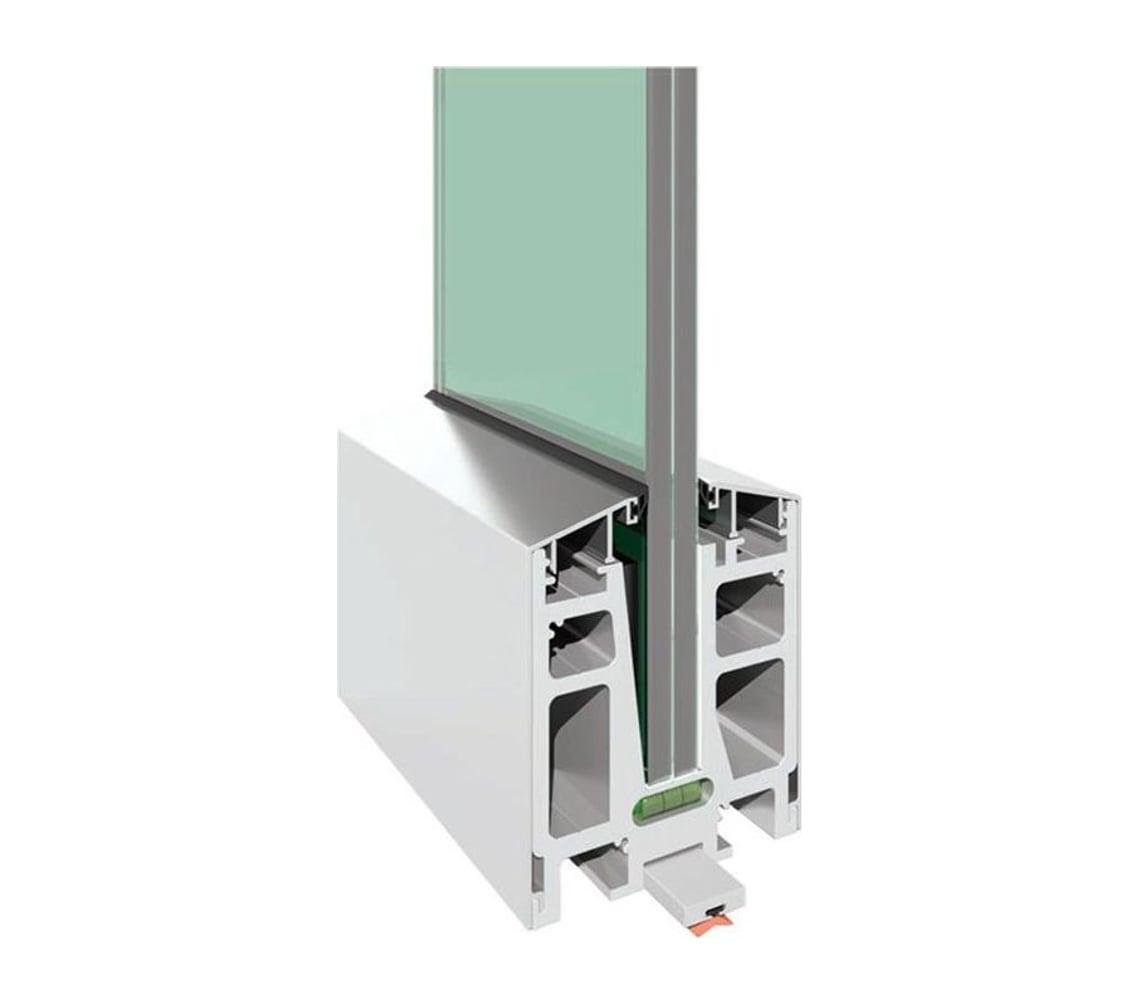

Adjustable blocks
Option for floors that are not flat.
- 03
Interchangeable covers
Cap profiles in different colours.
Specifications
C50 / CA50
EX-04.01- Base shoes
- 15 cm and 30 cm
- Glass
- 12.4 / 13.52 mm, 16.4 / 17.52 mm, 20.4 / 21.52 mm
- Wedge sets
- 6+6, 8+8 and 10+10 mm glass
- Full-length profile
- P-1001, 200 cm, 9.50 kg/m
- Mounting

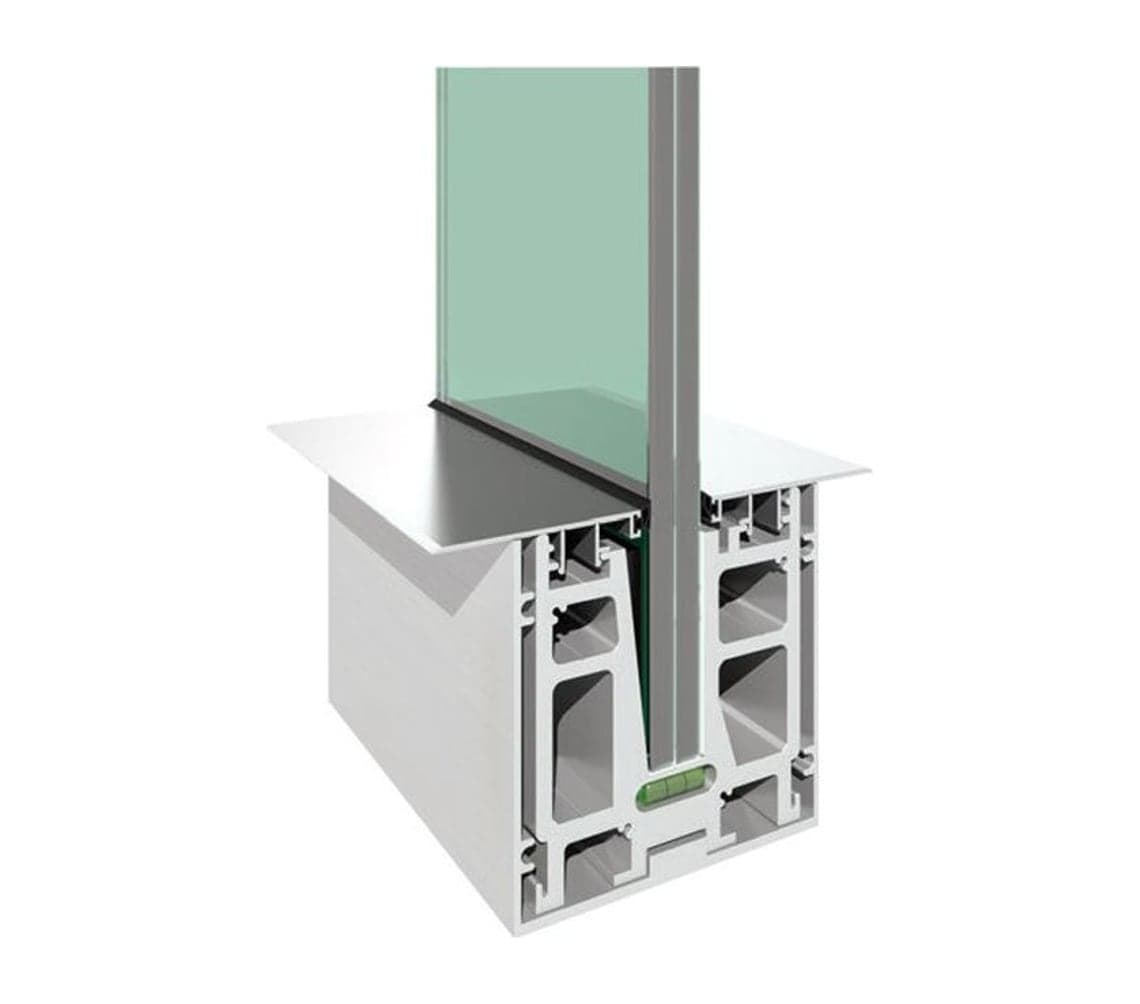

- On-floor (C50) or in-floor (CA50)
C50+ / AS55
EX-04.02- C50+ profile

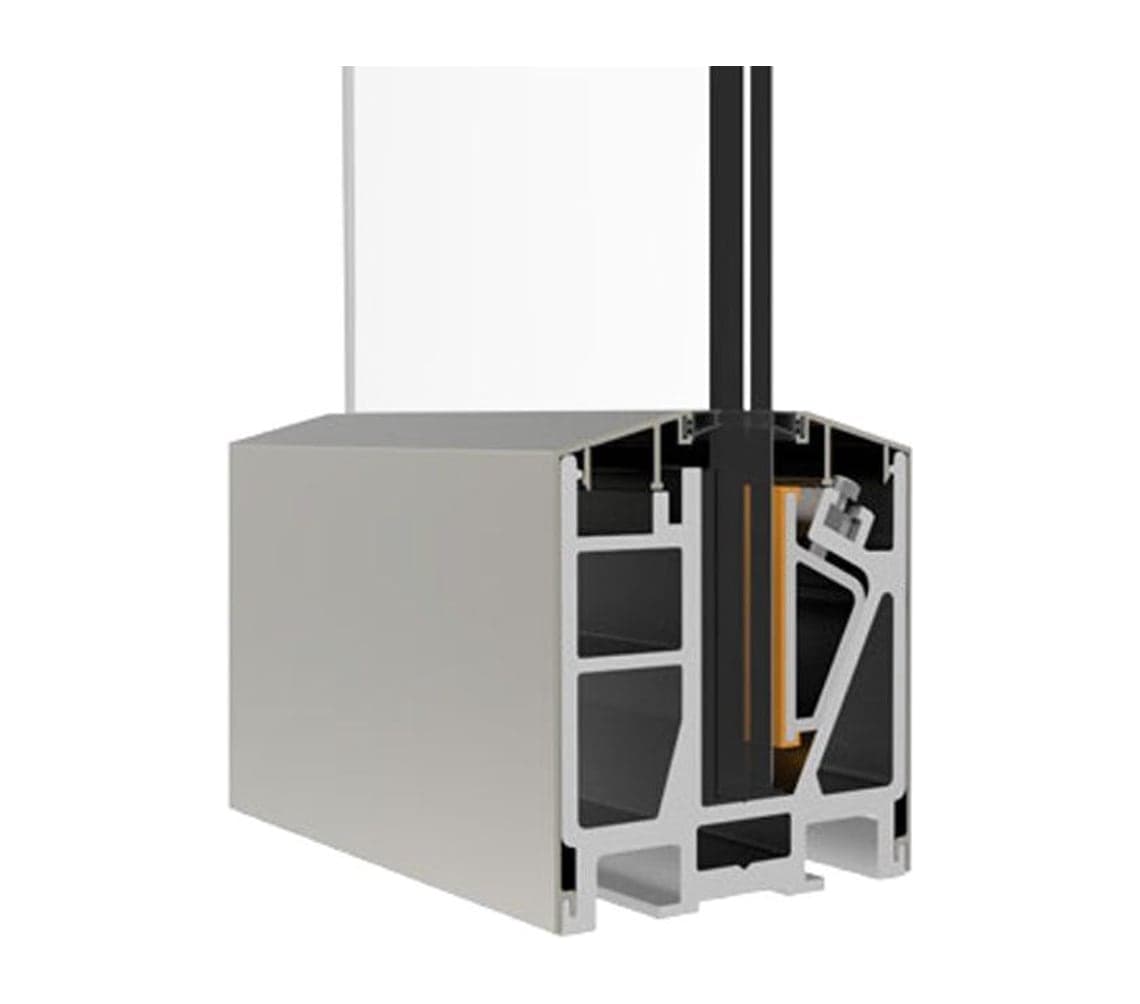

- P-1515, 7.584 kg/m; aluminium wedge; 12 – 21.52 mm glass

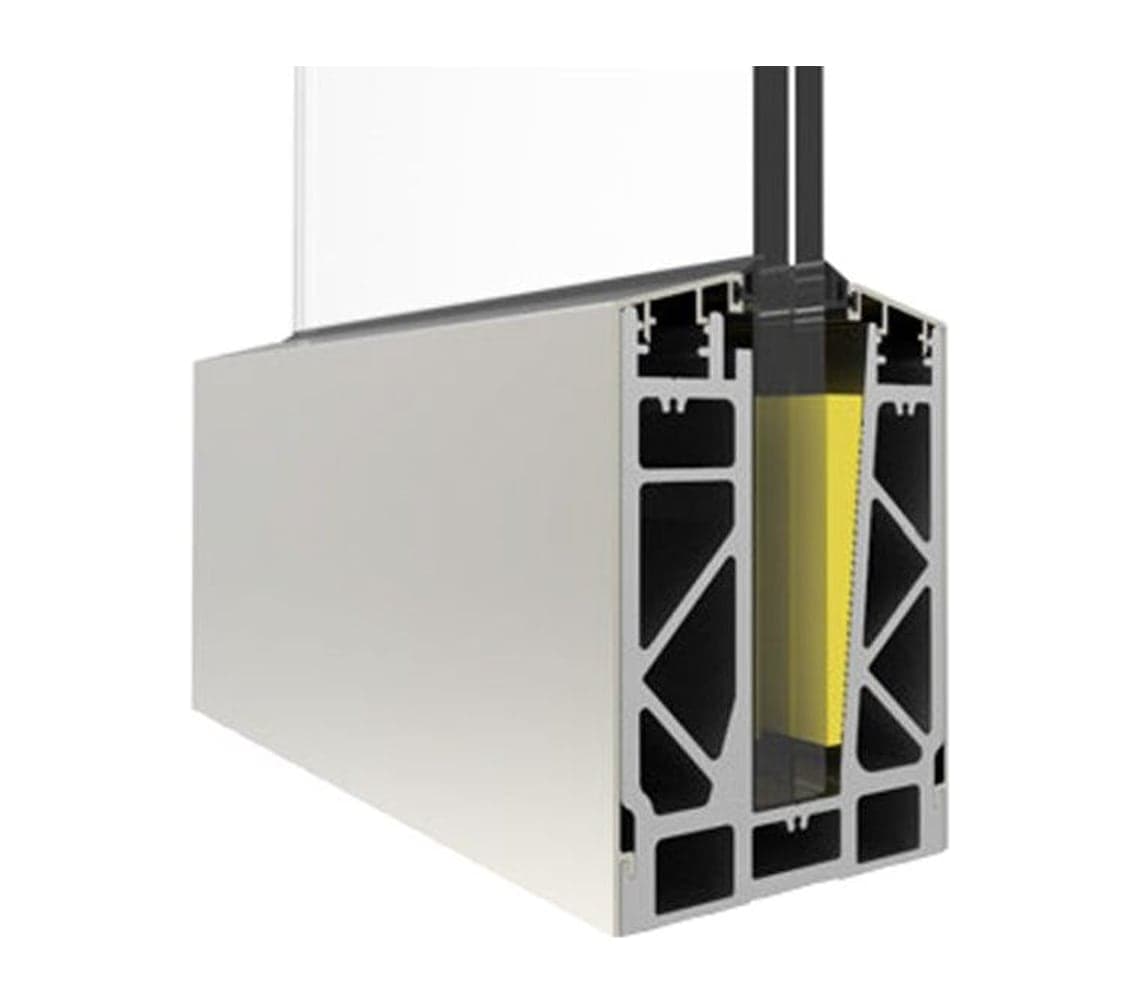

- AS55 profile
- P-1494, 300 cm, 10.98 kg/m; 17.52 / 21.52 mm glass
- AS55 bases
- 15 cm and 30 cm segments or full length
- Gaskets
- EPDM interior and outer gaskets, supplied by the box
- Fixing
- Chemical anchor with threaded rod, washer and nut
