Side-Mount Systems
FX50, D55, D50 and AL50
- Glass
- 8+8 / 10+10mm
- Support profile length
- 200cm
- Systems
- 4
01 — Overview
Overview

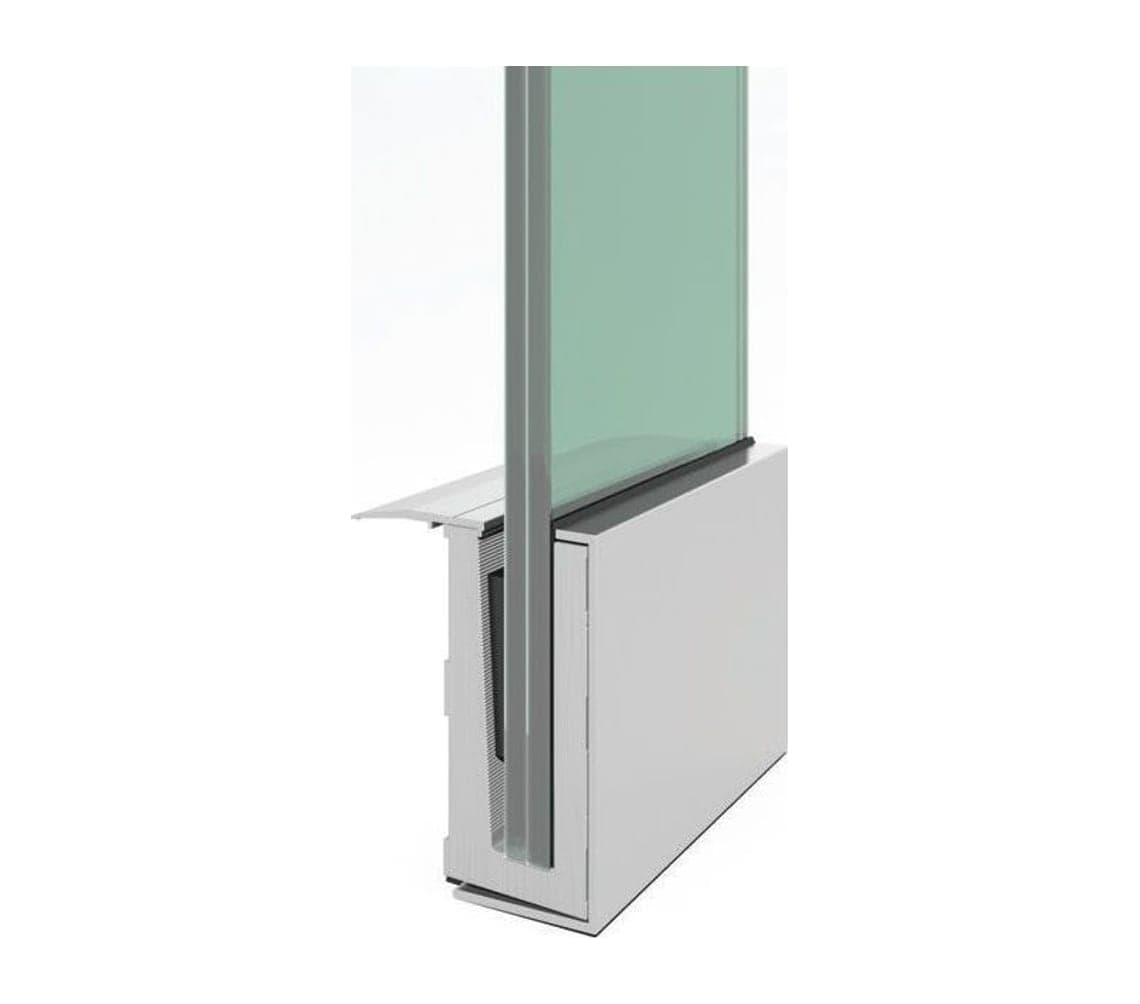

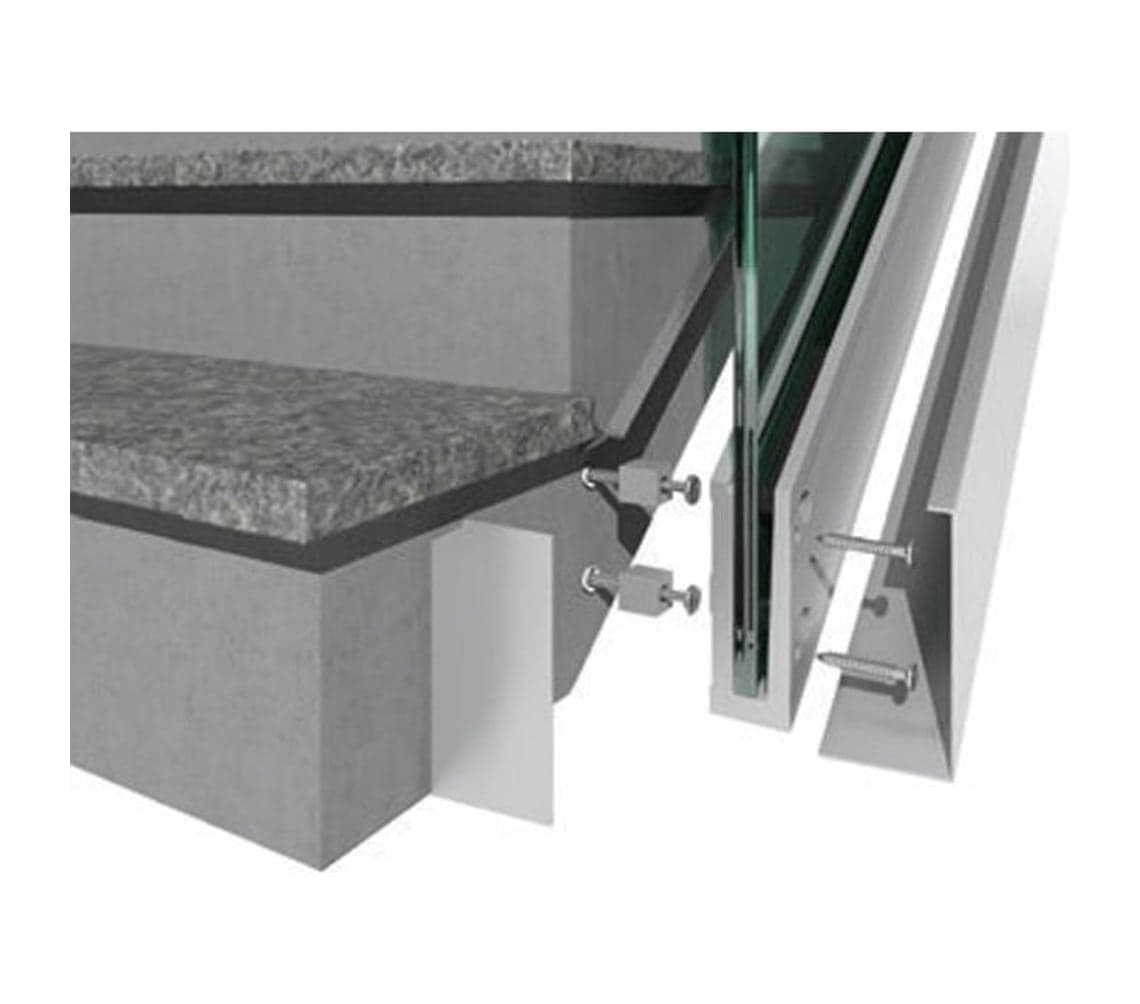

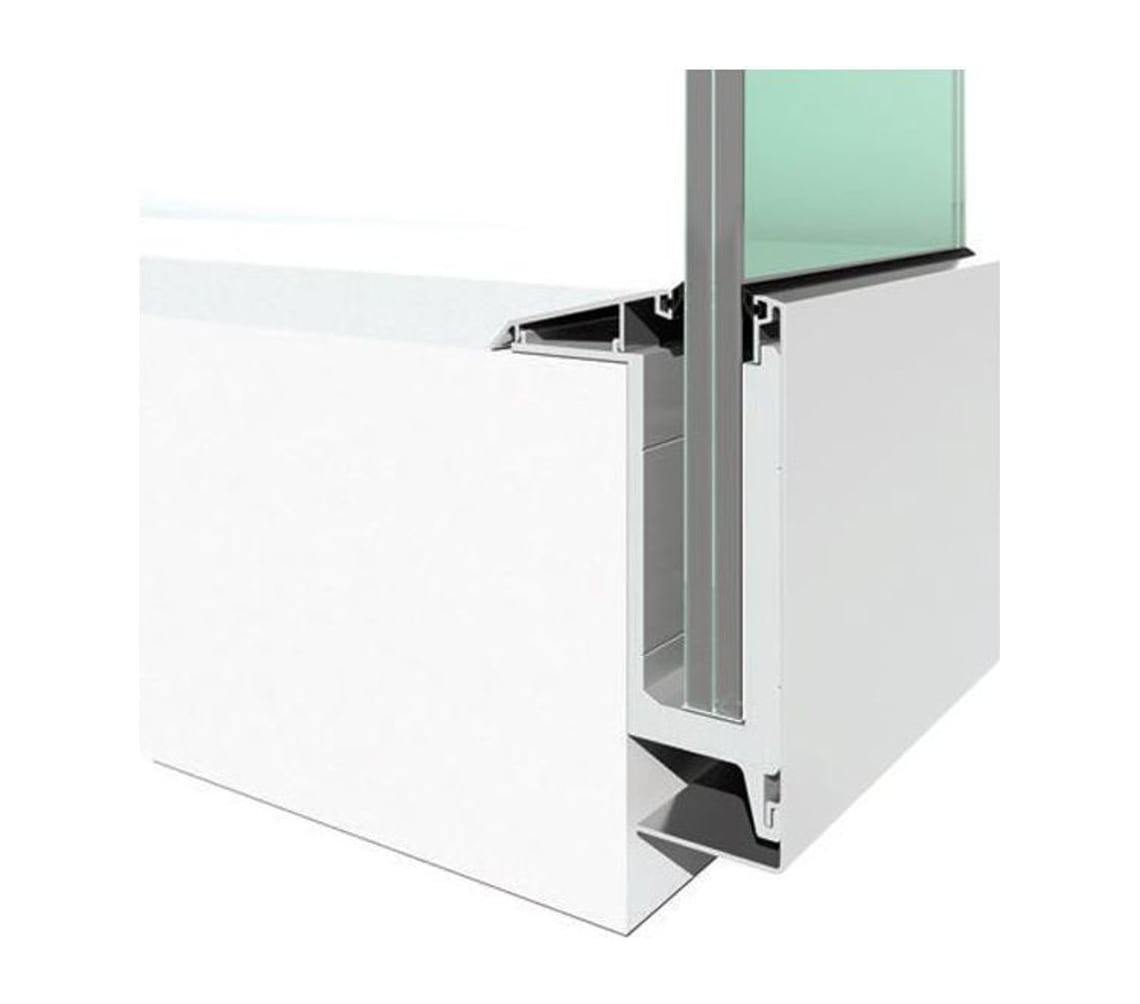

FX50 is fixed to the external edge of the slab and closes every fixing behind its covers, freeing space on the balcony. D55 is a bendable side-fix system supplied pre-bent to the project radius, with part-by-part or continuous support. D50 is the side-mount staircase system with adjustable blocks for alignment.

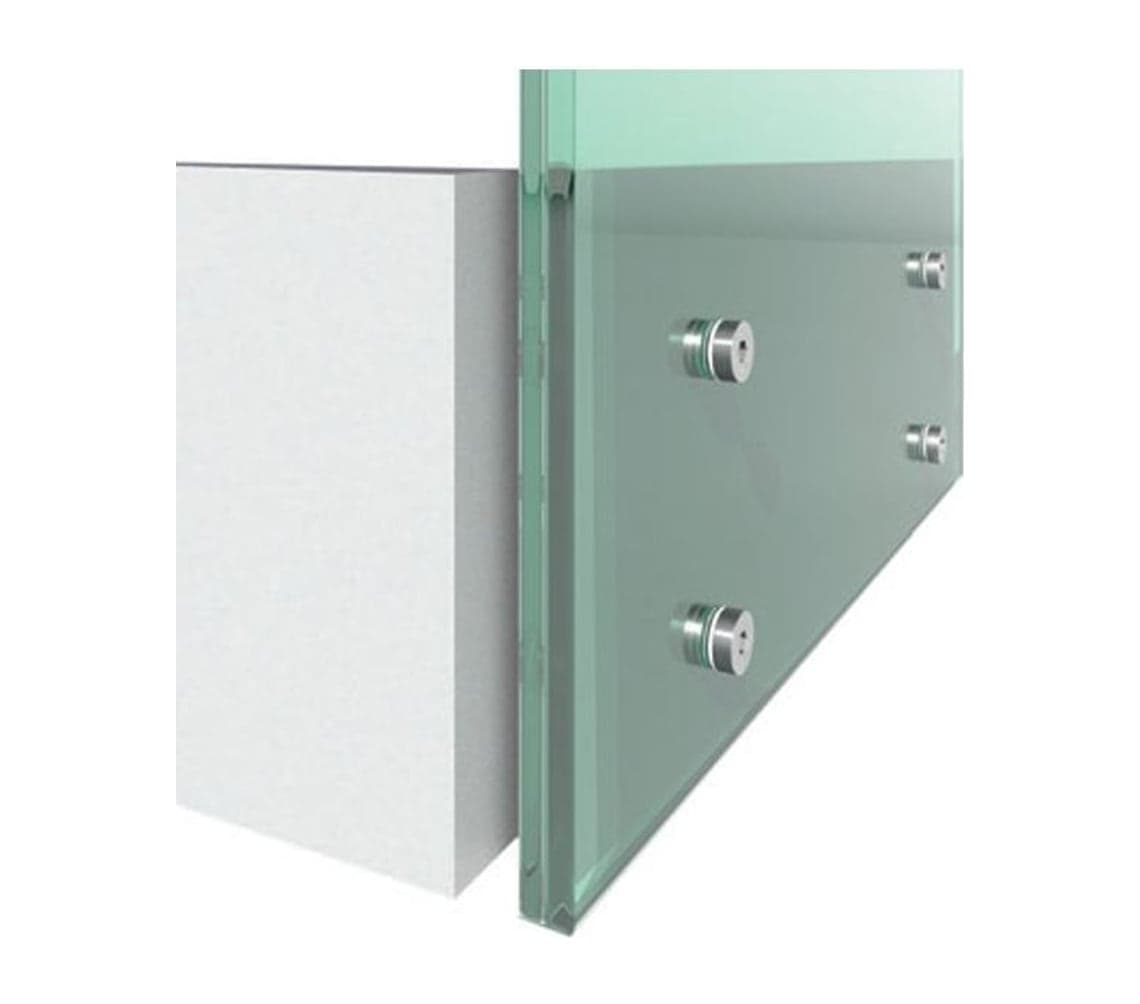

AL50 standoff glass adapters let the glass float off the fascia without posts, for 8+8 and 10+10 mm glass.
02
Specifications
Systems
EX-04.01- FX50
- FX50-6770, 200 cm; covers P-1279 and P-1023, 600 cm; 12 – 20 mm glass
- D55
- 15 cm blocks or 2 m profile, 9.20 kg/m; bendable
- D50
- 15 cm standard or adjustable blocks, 2 m profile 10.30 kg/m
- AL50
- Round and square standoff adapters, fixed or adjustable
03
Documents
Gallery
01 / 03
02 / 03
03 / 03
