EX-07 — Exterior & Facade

PVC Windows & Doors

VEKA PVC profile systems for windows, entrance doors and sliding doors, made to Class A profile quality under DIN EN 12608.

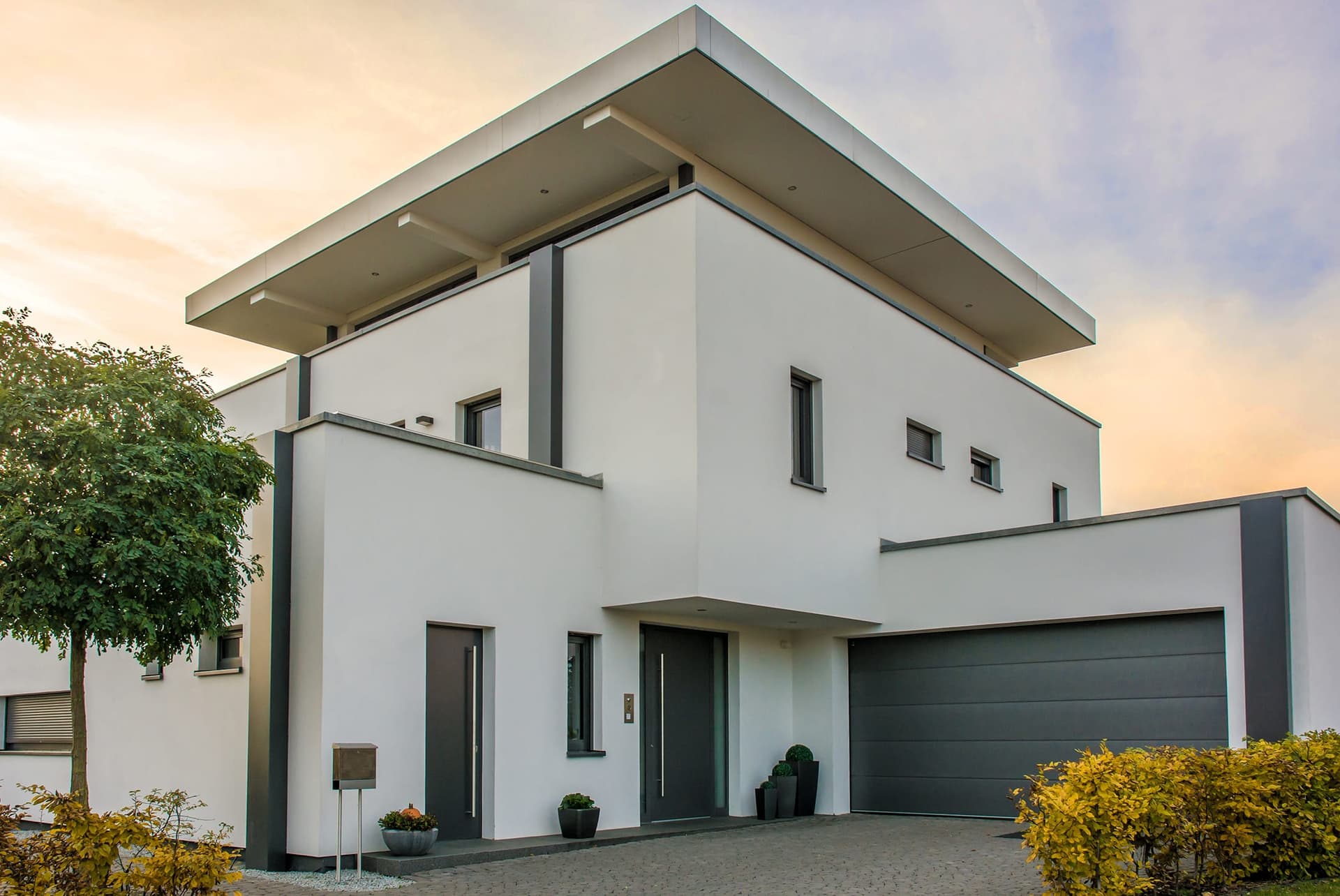

Best Uw (SOFTLINE 82 MD): 0.74W/m²K
Profile walls to DIN EN 12608: Class A
Max. sliding element width: 6000mm

PVC Windows & Doors — project view — Exterior & Facade — PVC Windows & Doors

01 — Overview

Shiprade supplies the PVC profile systems of VEKA, the system supplier that has developed PVC windows since 1969. The range covers five SOFTLINE window systems, three SOFTLINE entrance-door systems and three sliding-door systems, so windows, doors and large glazed openings can be built from one coordinated family.

All profiles are made to Class A quality under DIN EN 12608: 3 mm outer walls and 2.7 mm walls at the glazing rebate and connection area, each within ±0.2 mm. Multi-chamber geometries in 70, 76 and 82 mm build depths, two-gasket (AD) or three-gasket (MD) sealing and steel reinforcement give values down to Uw 0.74 W/m²K, sound insulation up to Rw 47 dB and burglar resistance up to RC2.

Beyond classic white, the systems are available with more than 60 colour and woodgrain foils, the matt VEKA Feinstruktur foils that resemble powder-coated aluminium, the lacquered, ultra-matt VEKA SPECTRAL surface, and aluminium cover shells that can be anodised or powder-coated in any RAL colour. As VEKA presents each system differently for window fabricators, architects and building owners, the information below is organised for each of these readers.

Systems

Eleven VEKA systems, grouped as on the manufacturer's site into windows, entrance doors and sliding doors. Each system is presented for window fabricators, architects and building owners.

Windows

5 lines

Entrance doors

3 lines

Sliding doors

3 lines

Who it is for

A system world built for efficient fabrication

VEKA partners draw on more than 50 years of experience from the system supplier that helped shape the PVC window.

01Profiles produced in Germany to the highest profile quality, Class A to DIN EN 12608, for long-term functional reliability.
02Extensive ancillary-profile programmes and special sash profiles for bonded glazing on SOFTLINE 76 and 82.
03More than 60 colour and woodgrain foils, aluminium cover shells anodised or powder-coated in all RAL colours, VEKA Feinstruktur and the partner-exclusive VEKA SPECTRAL surface.
04Support in marketing, qualified training, production technology and logistics.
05Sustainable recycling of old windows and production waste through VEKA Umwelttechnik.
06WinDoPlan online platform: profile configurator with all connection and ancillary profiles, wind-load calculation and complete documentation, without installing software.

Performance

01
Class A profile quality
3 mm outer walls and 2.7 mm at the glazing rebate and connection area (±0.2 mm), to DIN EN 12608.
02
High thermal insulation
Multi-chamber geometries reach Uw 0.74–0.83 W/m²K with triple glazing (Ug 0.5 W/m²K).
03
Two or three gaskets
AD systems seal on two levels, MD systems on three, keeping out wind, driving rain, noise and draughts.
04
Weather tightness
Windows reach air permeability class 4, driving-rain class 9A and wind-load class B5.
05
Deep glazing rebate
A 28 mm rebate height improves the isothermal flow and helps prevent condensation on the inside.
06
Security
Steel reinforcement and fittings suitable for burglar resistance up to RC2.
07
Surfaces and colours
Over 60 foils, VEKA Feinstruktur, VEKA SPECTRAL ultra-matt and aluminium cover shells in any RAL colour.
08
Recyclable
VEKA profiles, and the VEKA SPECTRAL surface, can be recycled; VEKA Umwelttechnik recycles old windows and production waste.

Applications

A1New-build houses and apartment blocks
A2Window replacement and renovation
A3Low-energy and passive houses

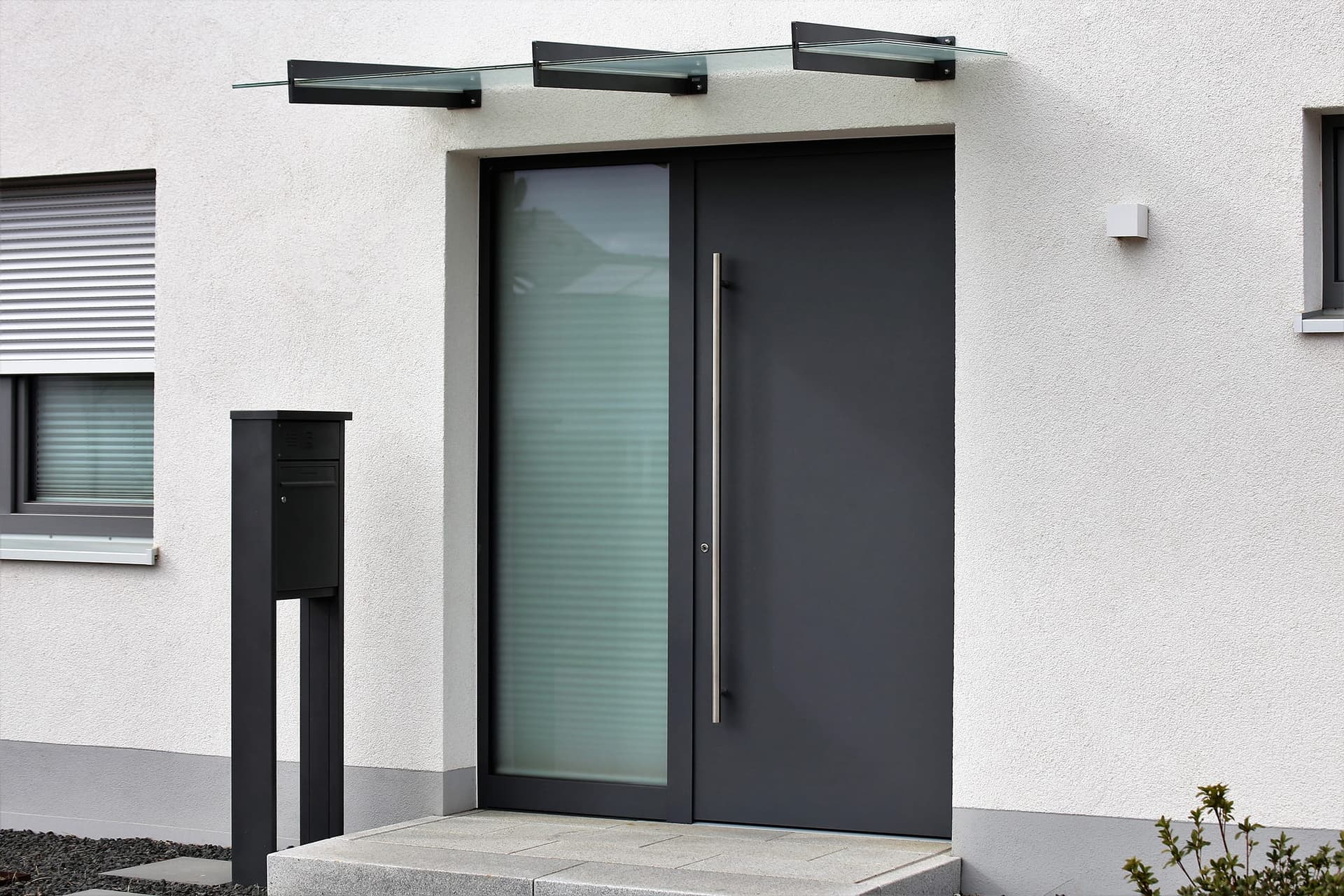

A4Entrance doors with glazed or panel infills
A5Terraces and balconies with lift-and-slide or sliding doors
A6Public and commercial buildings

Specifications

Window systems

EX-07.01

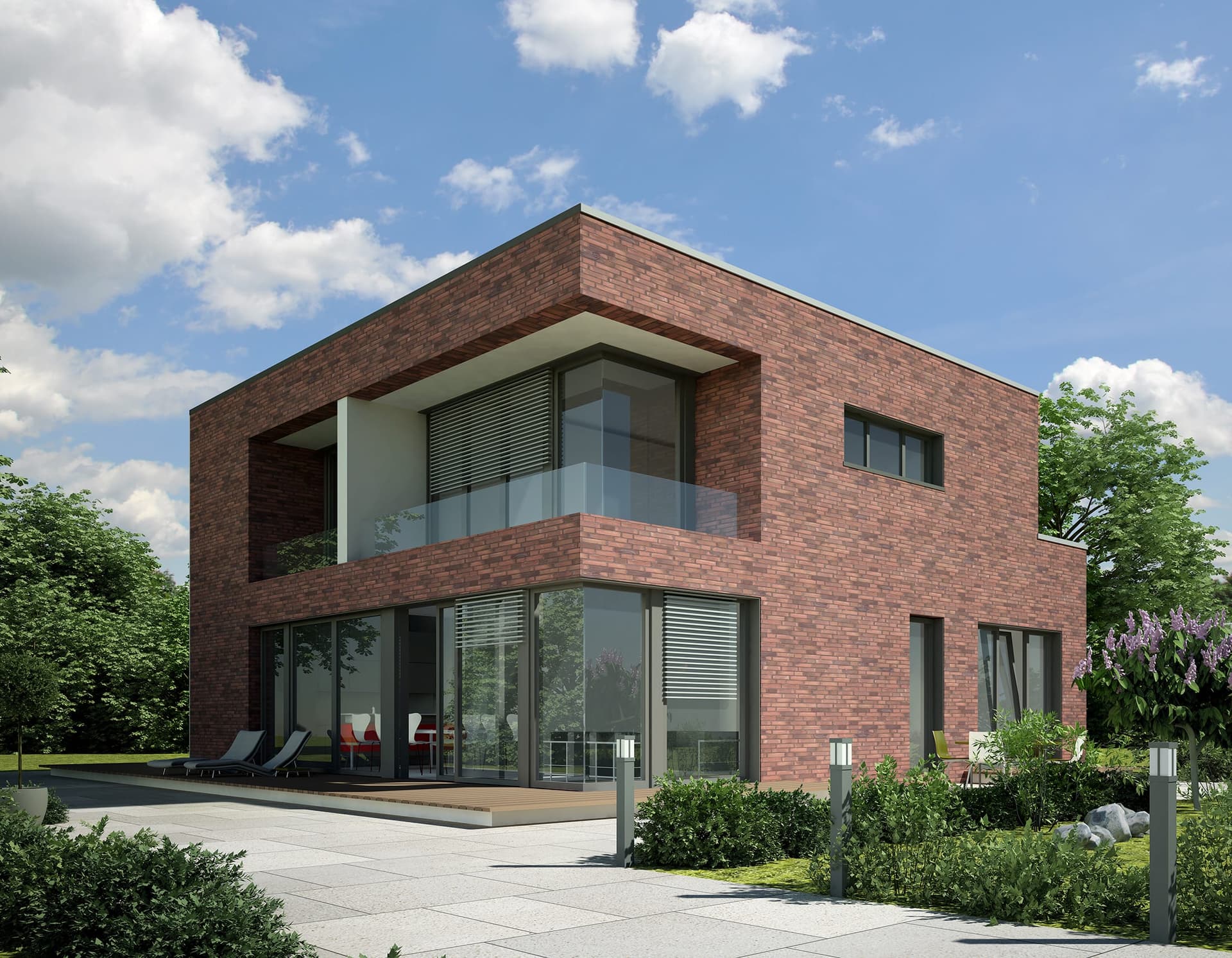

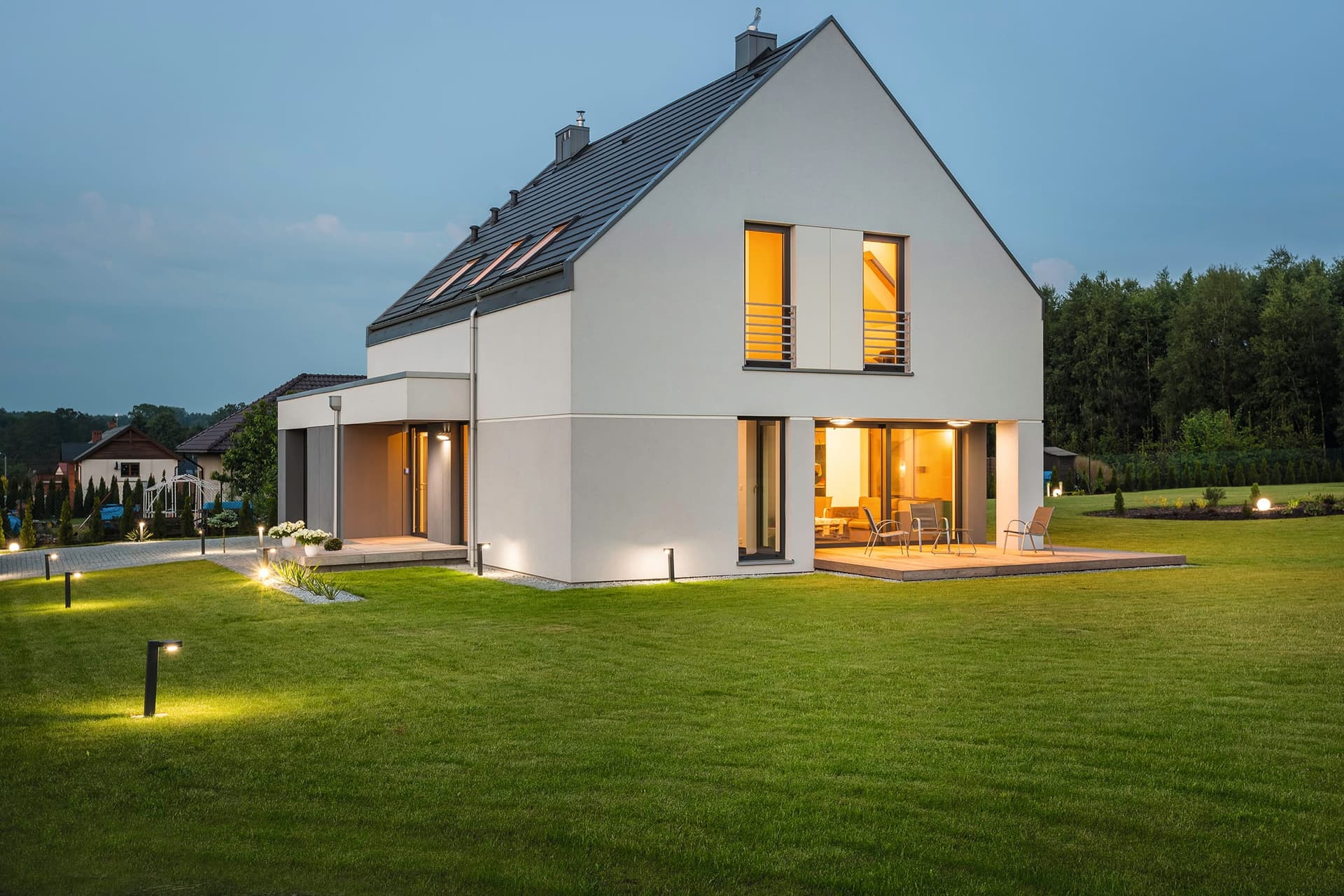

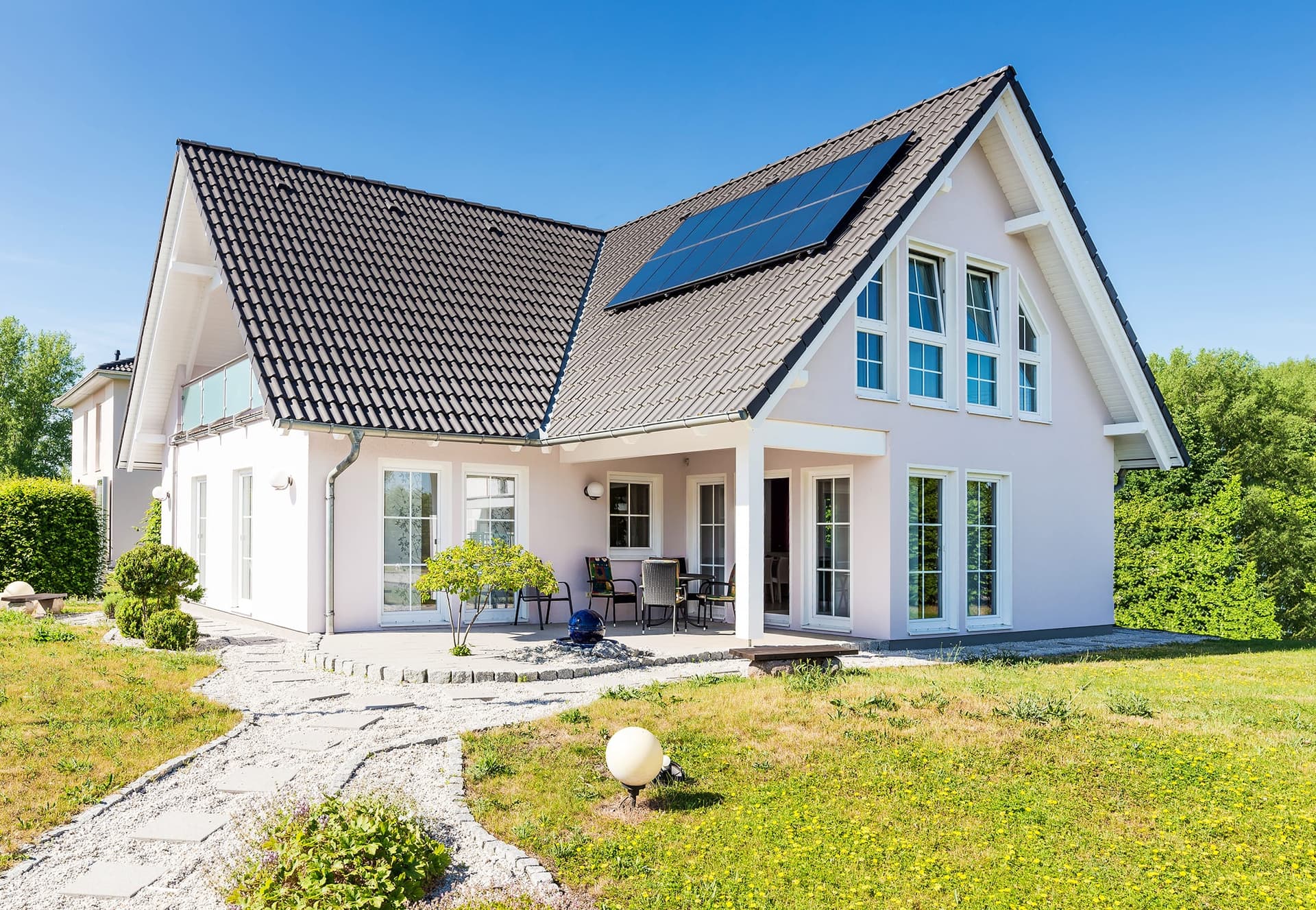

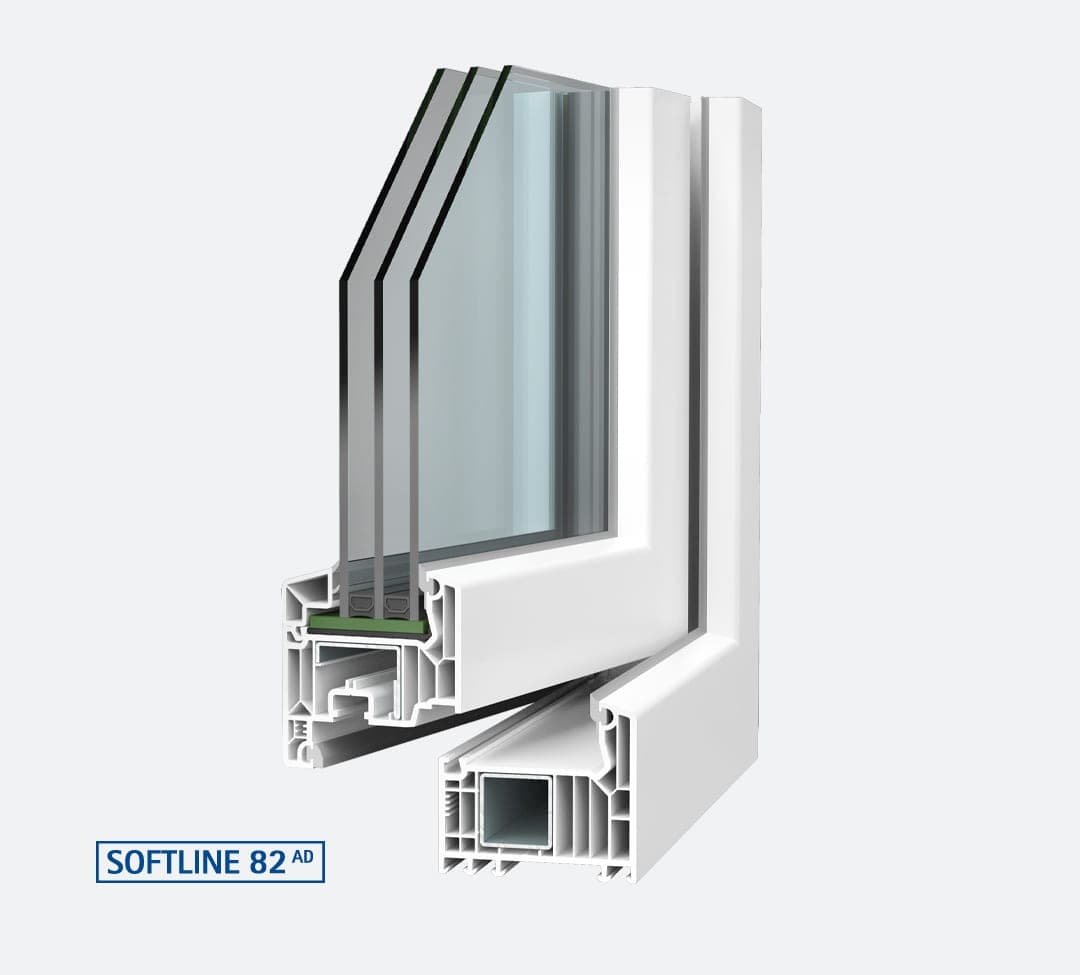

Systems: SOFTLINE 82 MD, 82 AD, 76 MD, 76 AD, 70 AD
Build depth: 70 / 76 / 82 mm
Max. glazing thickness: 42–54 mm
Max. sash size: 1400 × 2500 mm
Uf: From 1.0 W/m²K (0.94 W/m²K with thermally separated reinforcement)
Sound insulation Rw: Up to 47 dB
Air / driving rain / wind: Class 4 / 9A / B5
Burglar resistance: Up to RC2

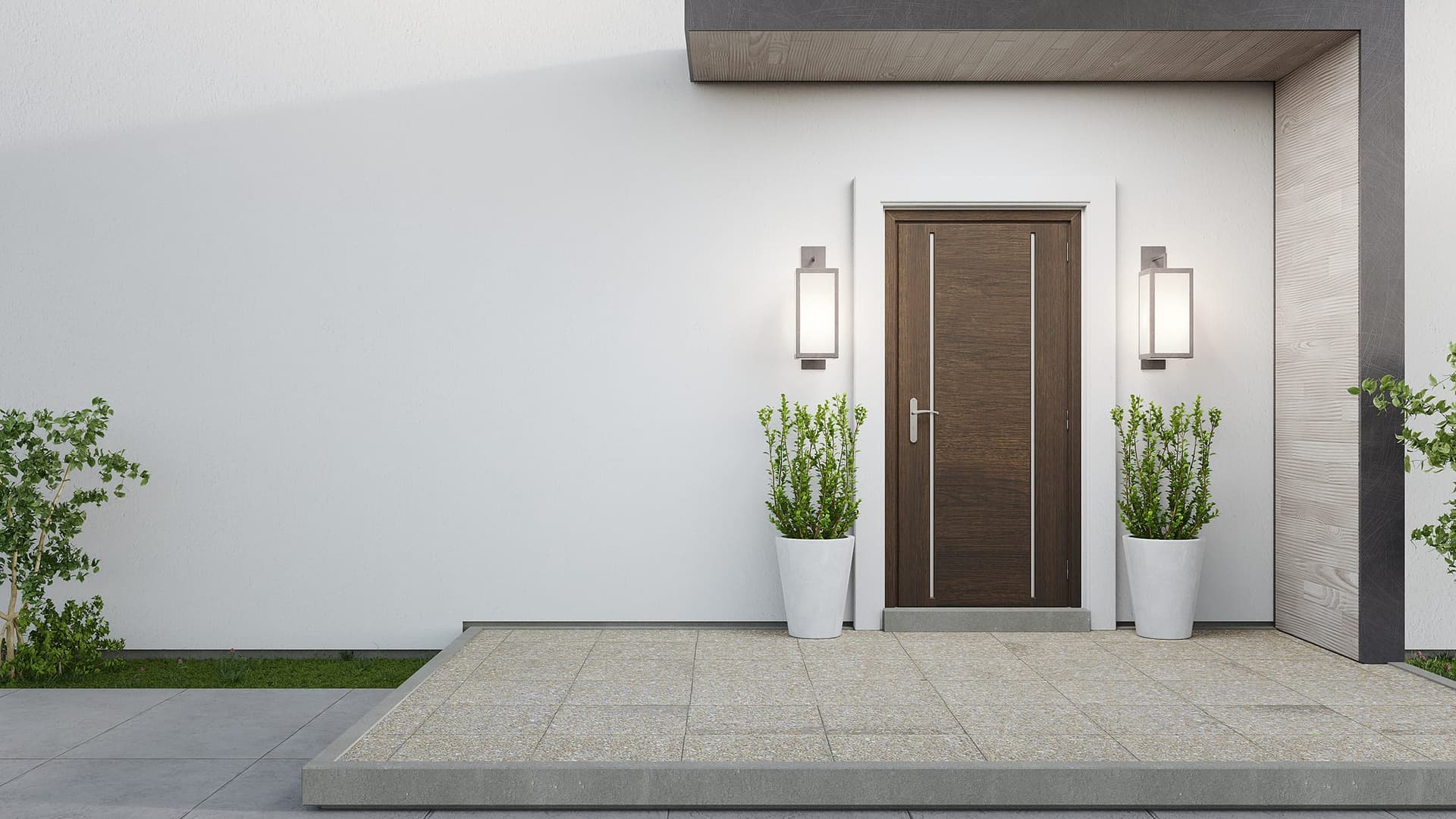

Entrance-door systems

EX-07.02

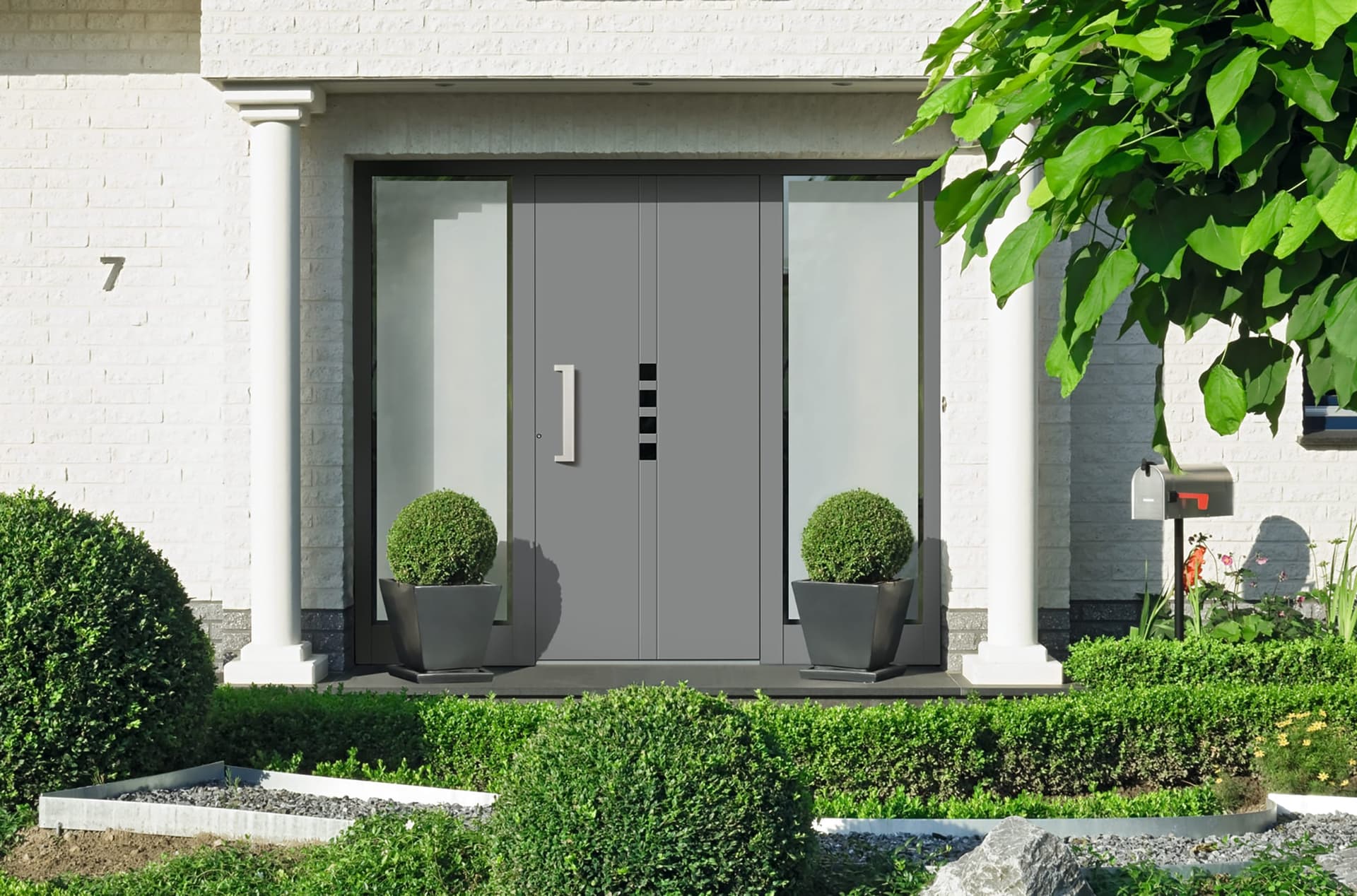

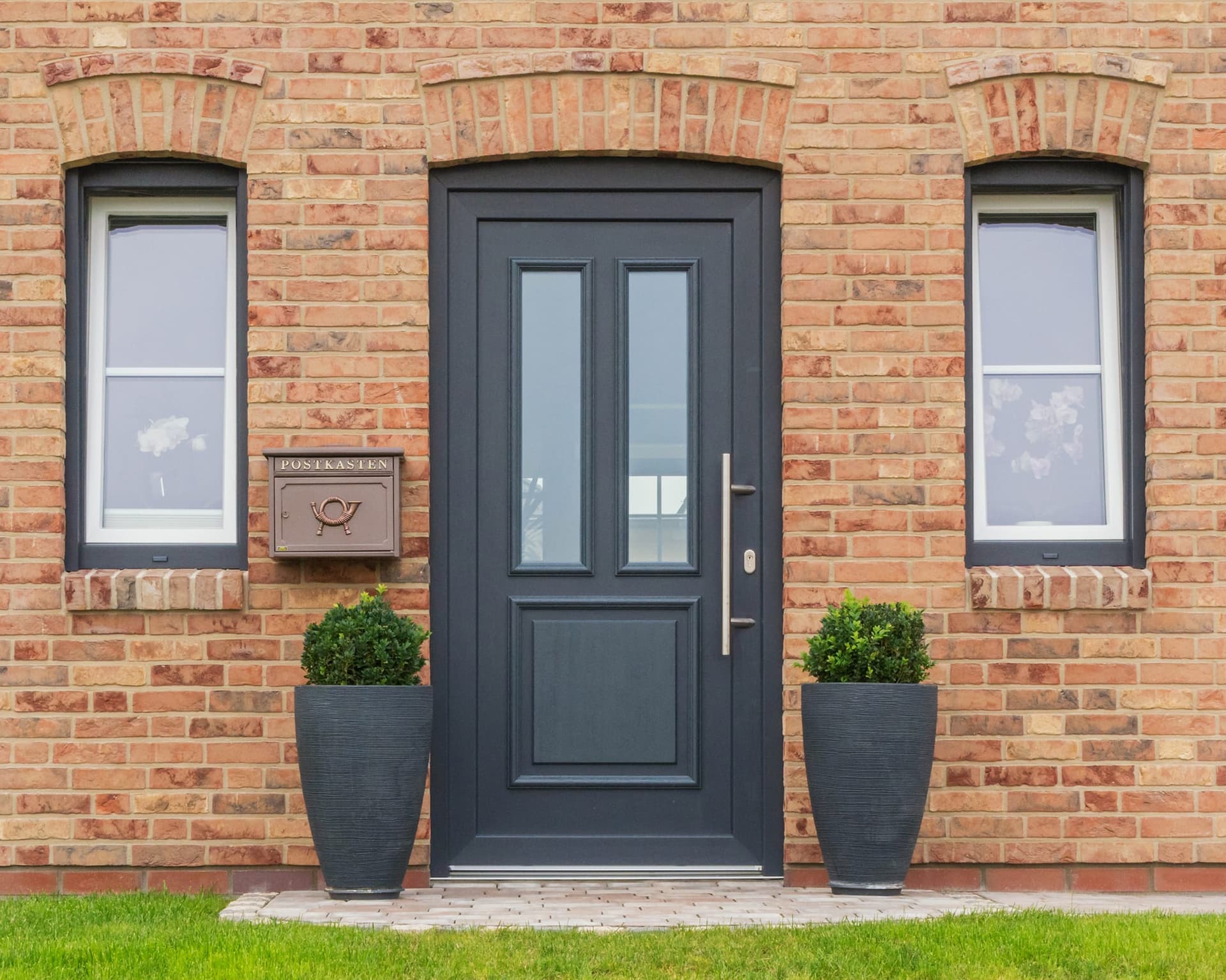

Systems: SOFTLINE 82, 76, 70
Max. sash size: 1150 × 2400 mm
Ud: From 1.2 W/m²K (MD)
Outer wall thickness: Up to 3.5 mm
Threshold: Thermally separated, flat, to DIN 18025

Sliding-door systems

EX-07.03

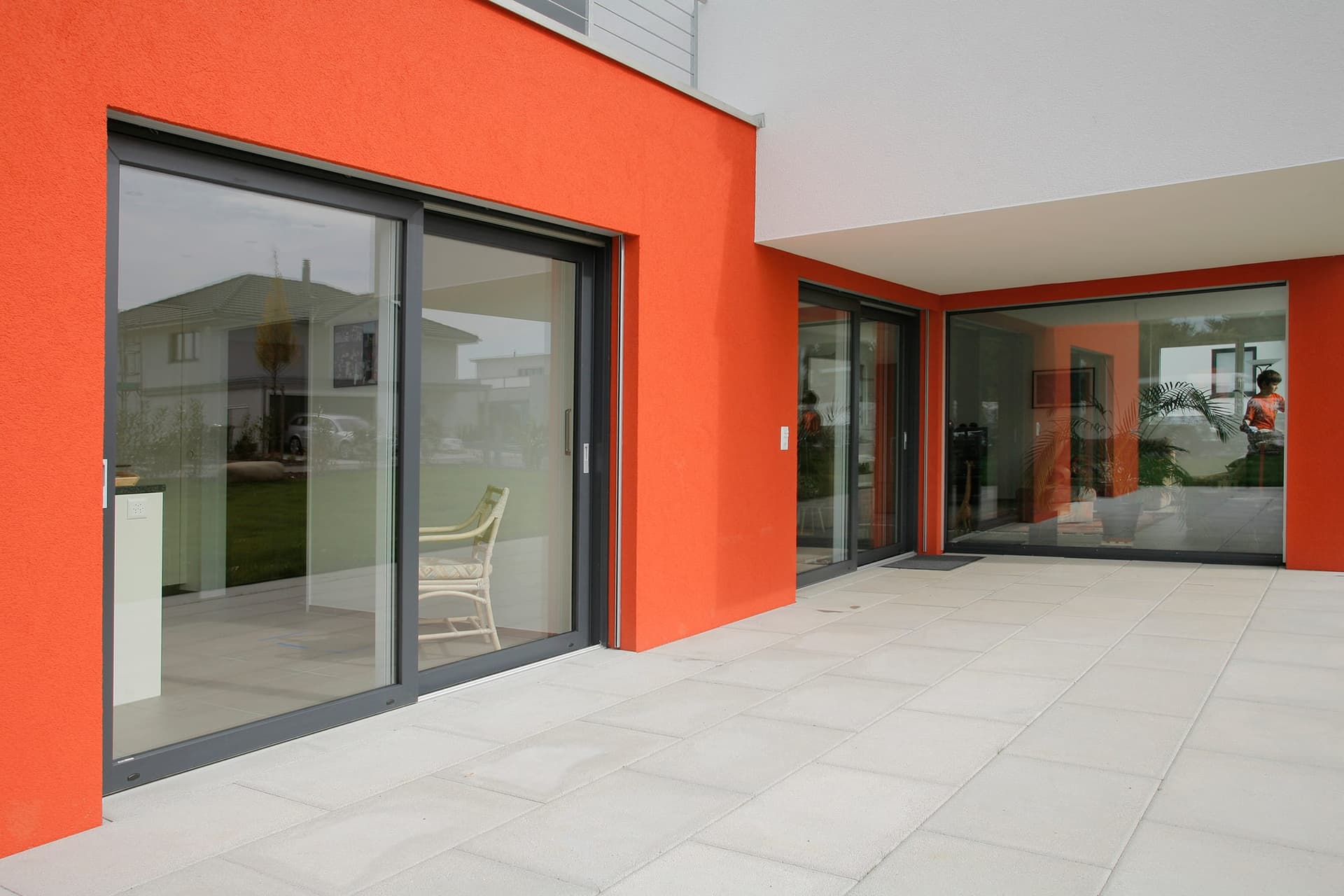

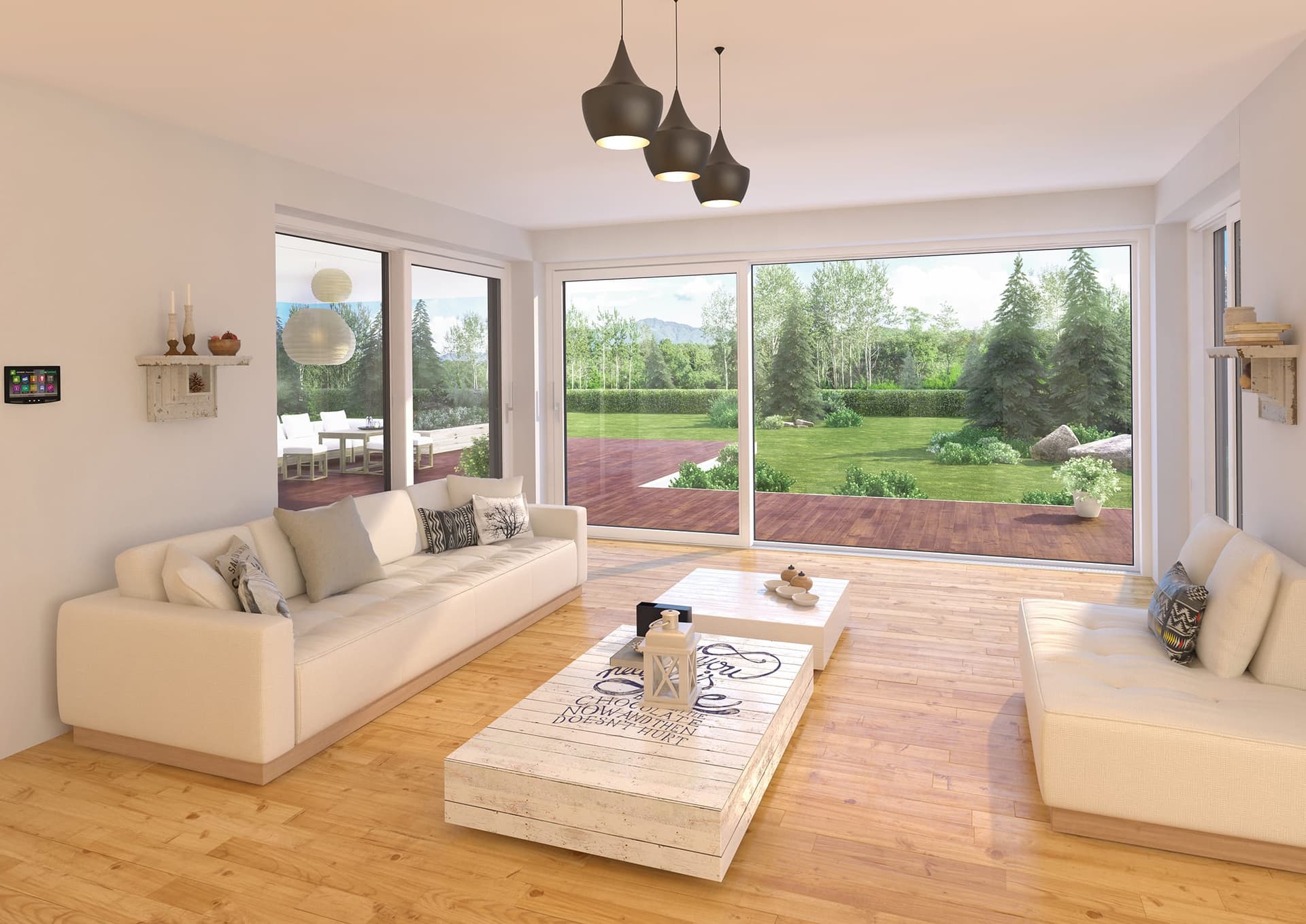

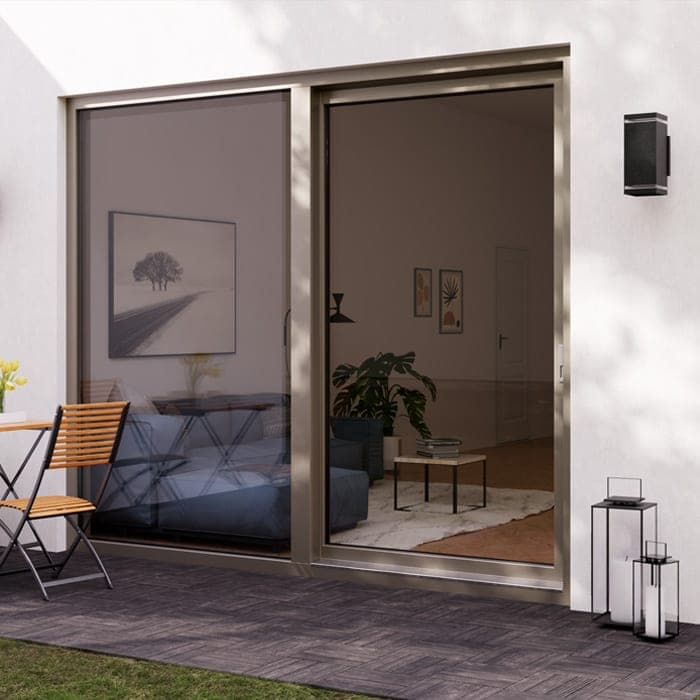

Systems: VEKAMOTION 82 MAX, VEKAMOTION 82, VEKAMOVE 76
Max. element size: 6000 × 2700 mm (VEKAMOTION 82)
Ud: From 0.73 W/m²K (VEKAMOTION 82 MAX, 3.5 × 2.3 m)
Air / driving rain / wind: Class 4 / 9A / B3

Notes

*RAL and other colour references are for comparison only; an exact colour match cannot be guaranteed.
Performance values are manufacturer data and depend on glazing, element size and configuration.
