EX-07 — Sliding doors

VEKAMOTION 82

Lift-and-slide door, completely redeveloped

Ud (3.5 × 2.3 m): 0.78W/m²K
Max. element width: 6000mm
Max. element height: 2700mm

01 — Overview

With VEKAMOTION 82, VEKA has completely redeveloped the lift-and-slide door for economical production and cost-effective installation. A large glass ratio and a reduced sash view allow very large elements, and even the base version lets significantly more light into the living space.

The new PVC threshold makes barrier-free transitions with maximum energy efficiency easy to achieve. VEKAMOTION 82 MAX is available as a design variant with a frame that can be almost fully plastered over.

Who it is for

Redeveloped for economical production

01Lift-and-slide door redeveloped for economical production and cost-effective installation.
02Large glass ratio and reduced sash view allow bigger elements.
03New PVC threshold for barrier-free transitions.
04Design variant VEKAMOTION 82 MAX from the same system.

Specifications

Technical data

EX-07.01

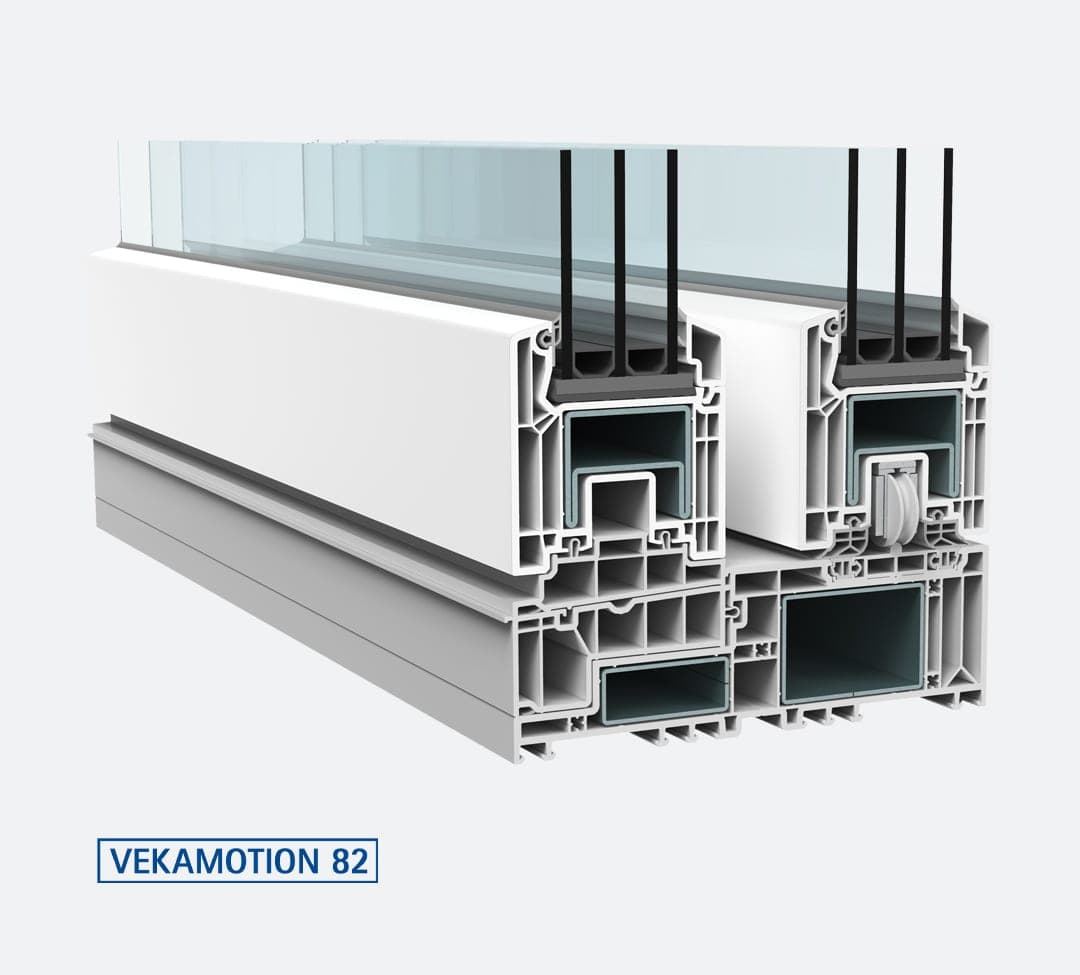

Build depth: Sash: 82 mm; frame: 194 mm
Min. face width: Passage: 163 mm; fixed: 163 mm; centre: 92 mm
Max. glazing thickness: 54 mm
Max. element width / height: 6000 / 2700 mm
U value (data table): Up to 1.4 W/m²K
Ud (whole element): Up to 0.78 W/m²K (Ug 0.5, ψg 0.031, element 3.5 × 2.3 m)
Sound insulation Rw: Up to 42 dB
Wind-load resistance: Up to class B3
Driving-rain tightness: Up to class 9A
Air permeability: Up to class 4
Burglar resistance: Up to RC2
Wall thickness: Class A to DIN EN 12608-1
