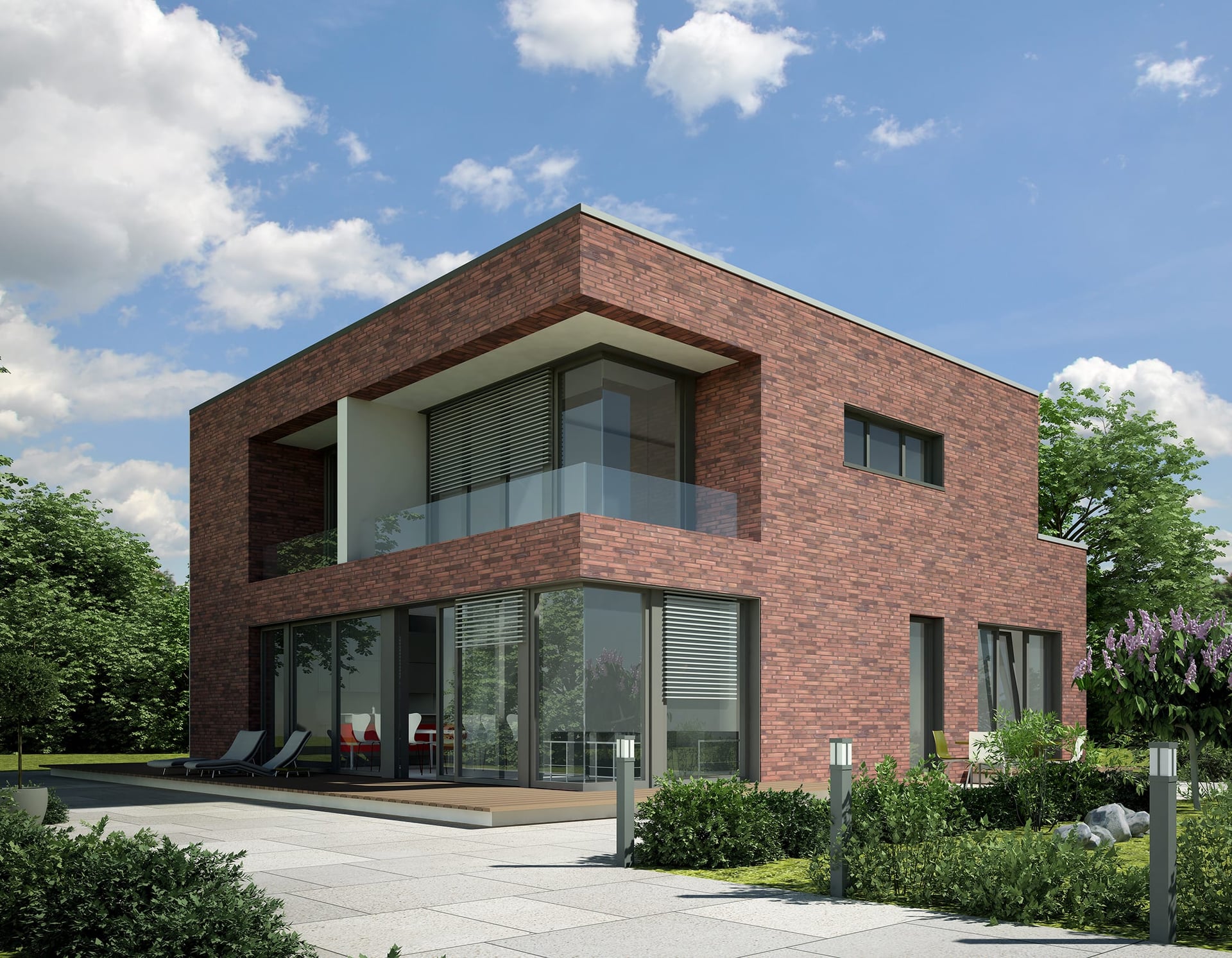

SOFTLINE 76 MD
Three gaskets, economical production
- Uw
- 0.76W/m²K
- Build depth
- 76mm
- Max. glazing thickness
- 48mm
Overview

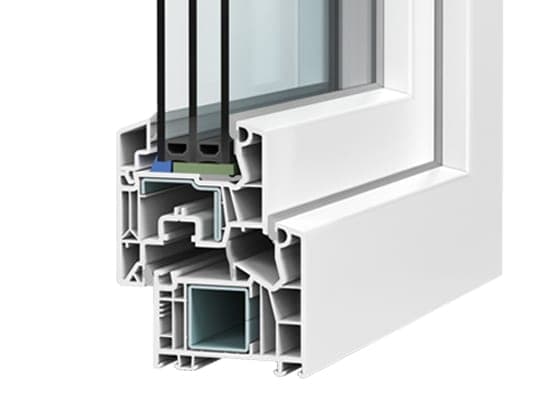

With its three-gasket system, SOFTLINE 76 MD gives effective protection against noise, cold, moisture and draughts. As a multi-chamber system with a 76 mm build depth, it combines the advantages of the 70 and 82 mm system worlds for a balance between energy and cost efficiency.
It suits modern triple glazing and special functional glass for improved sound insulation and burglary protection, and its slim yet economical design makes large glass areas easy to achieve.
Who it is for
High insulation with economical production
- 01Modern three-gasket multi-chamber system in a 76 mm build depth.
- 02Combines high insulation with particularly economical production.
- 03Wide range of ancillary profiles and a special sash frame profile for bonded glazing.
- 04Flush and half-offset sash versions.
Performance
- 01
Three-gasket system
Sound insulation up to class 5.
- 02
Structural reinforcement
Reinforcing plates and well-placed steel for large, statically demanding windows.
- 03
Bonded glazing
Special sash frame profile and a wide range of ancillary profiles.
Specifications
Technical data
EX-07.01- Build depth
- 76 mm
- Min. face width
- Fixed: 71 mm; frame + sash: 112 mm
- Max. glazing thickness
- 48 mm
- Max. sash width / height
- 1400 / 2500 mm
- Uf
- Up to 1.1 W/m²K
- Uw
- Up to 0.76 W/m²K (Uf 1.1, Ug 0.5, ψg 0.03)
- Sound insulation Rw
- Up to 47 dB
- Wind-load resistance
- Up to class B5
- Driving-rain tightness
- Up to class 9A
- Air permeability
- Up to class 4
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
Gallery
01 / 05

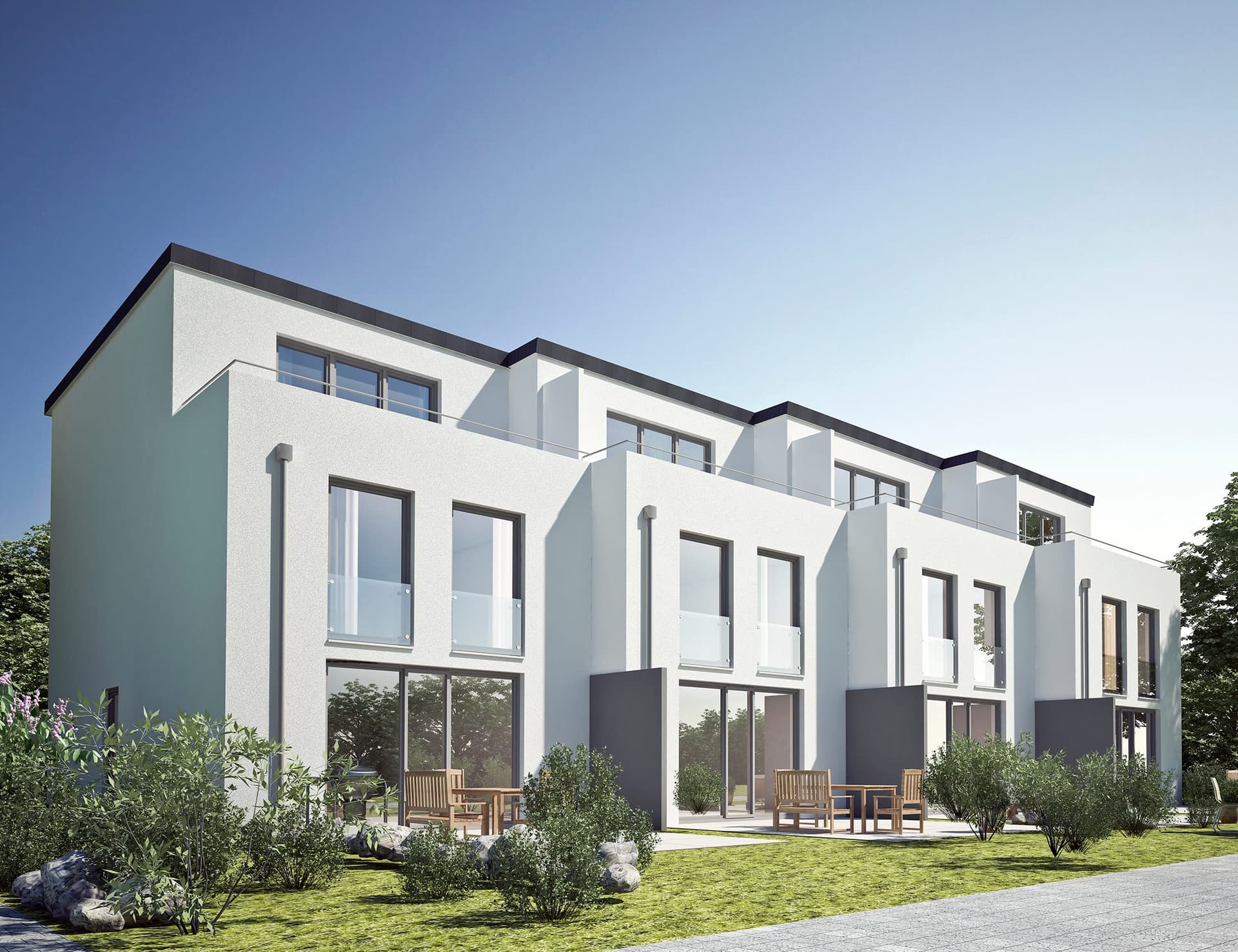

02 / 05
03 / 05

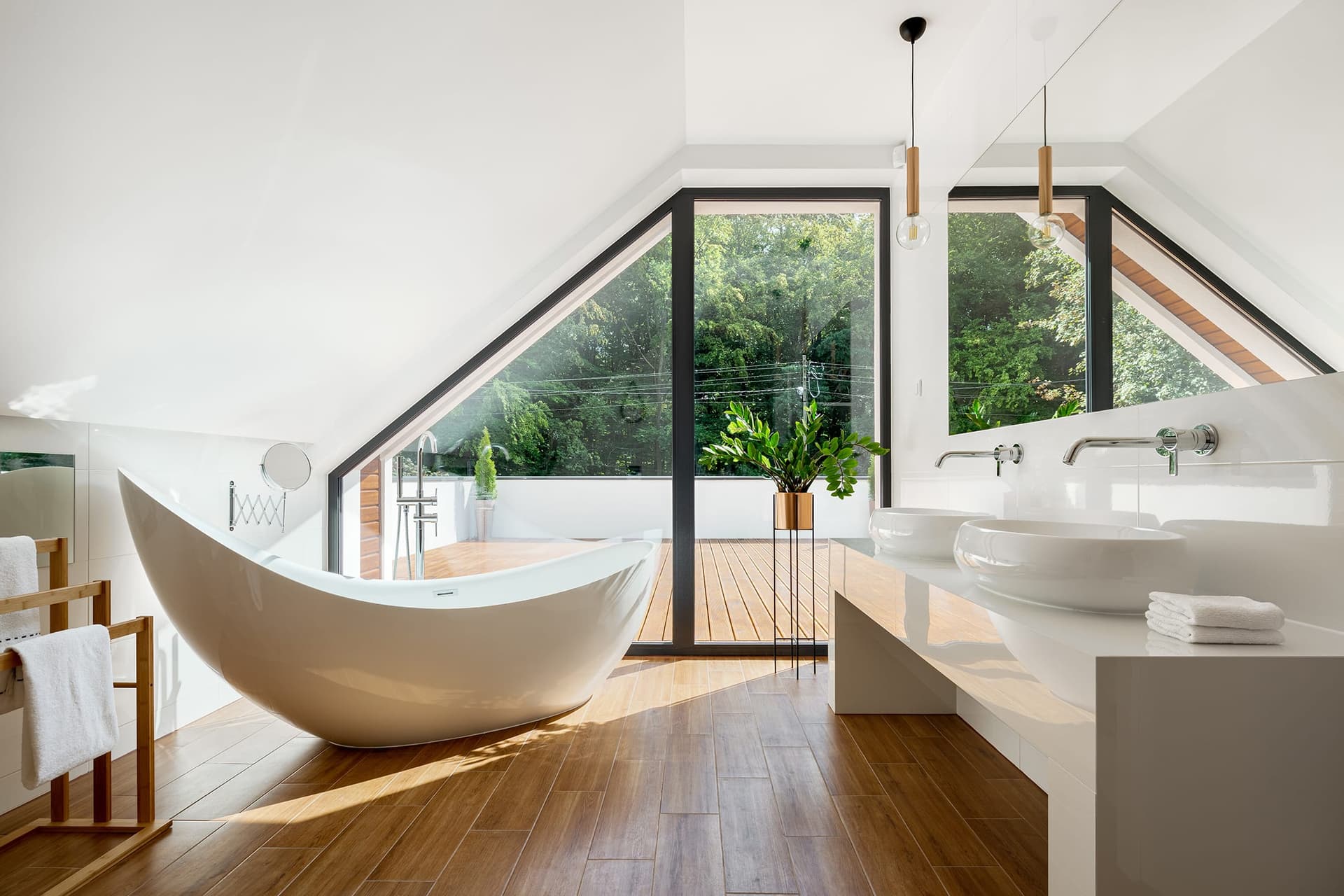

04 / 05
05 / 05
Specify SOFTLINE 76 MD.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
