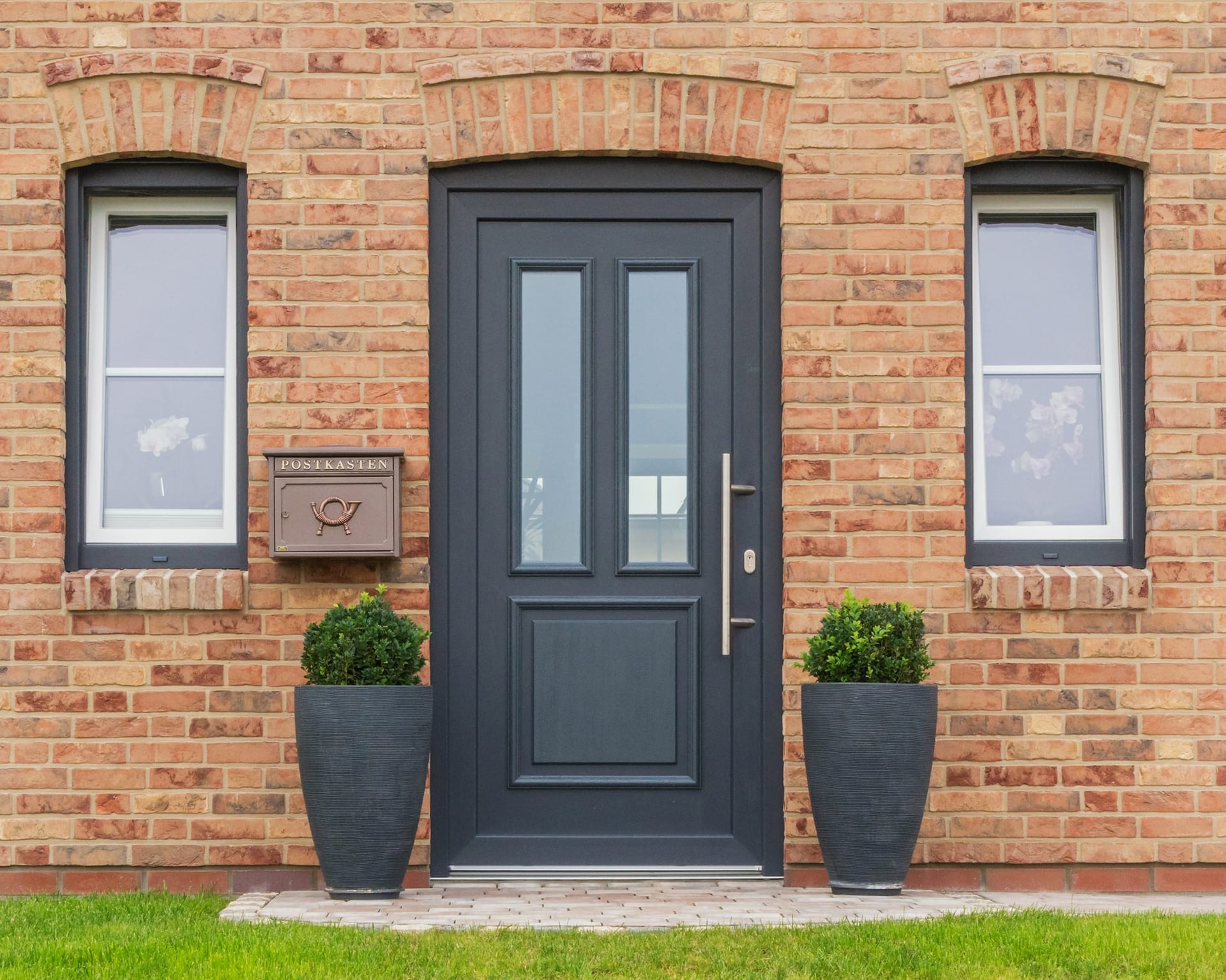

SOFTLINE 70
Robust and versatile
- Ud
- 1.6W/m²K
- Build depth
- 70mm
- Outer wall thickness
- 3mm
Overview

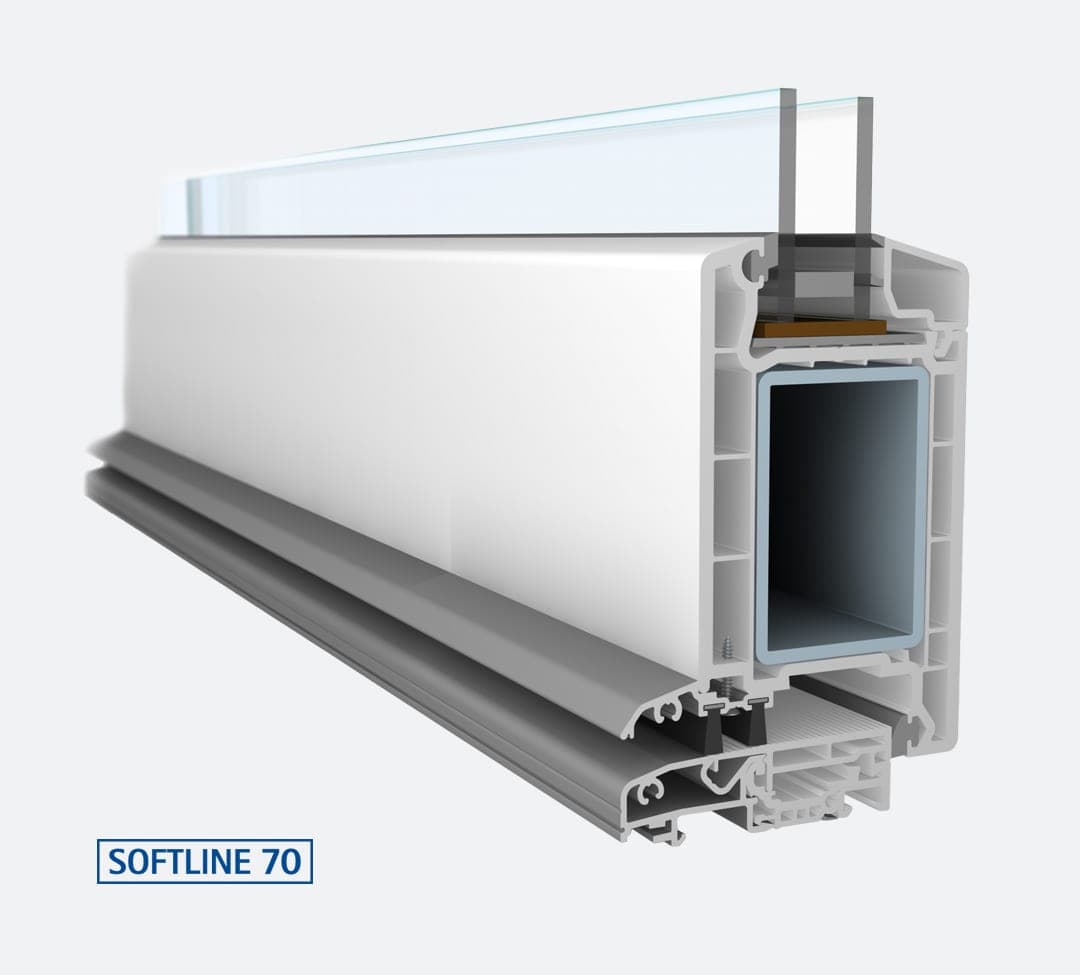

The SOFTLINE 70 entrance-door system, with a 70 mm build depth, is versatile, energy-efficient and especially robust. Large metal reinforcements with integrated corner-weld connectors give optimum stability and security in fabrication and installation.
Its classic design with elegantly rounded edges is the ideal partner for windows made from SOFTLINE 70 profiles. A thermally separated threshold ensures good insulation at the bottom connection, and the doors can take every entrance-door infill on the market.
Who it is for
Stability built into fabrication
- 01Large metal reinforcements with integrated corner-weld connectors.
- 02Optimum stability and security during fabrication and installation.
- 03Accepts all entrance-door infill panels on the market.
Specifications
Technical data
EX-07.01- Build depth
- 70 mm
- Min. face width
- Threshold: 132 mm; frame: 171 mm
- Max. glazing thickness
- 42 mm
- Max. sash width / height
- 1150 / 2400 mm
- Ud
- Up to 1.6 W/m²K
- Sound insulation Rw
- Up to 42 dB
- Wind-load resistance
- Up to class B2
- Driving-rain tightness
- Up to class 3A
- Air permeability
- Up to class 3
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
Gallery

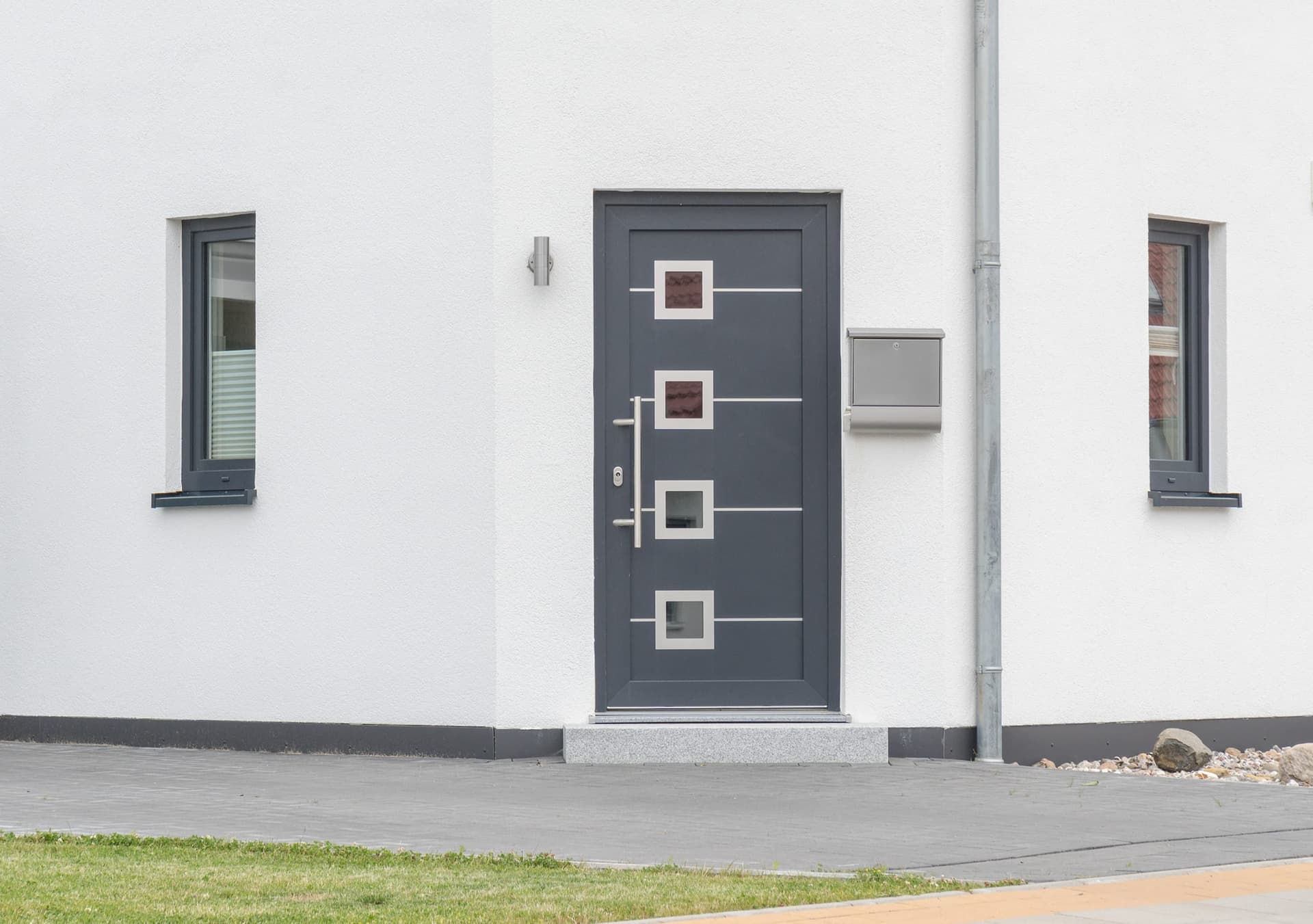

01 / 03

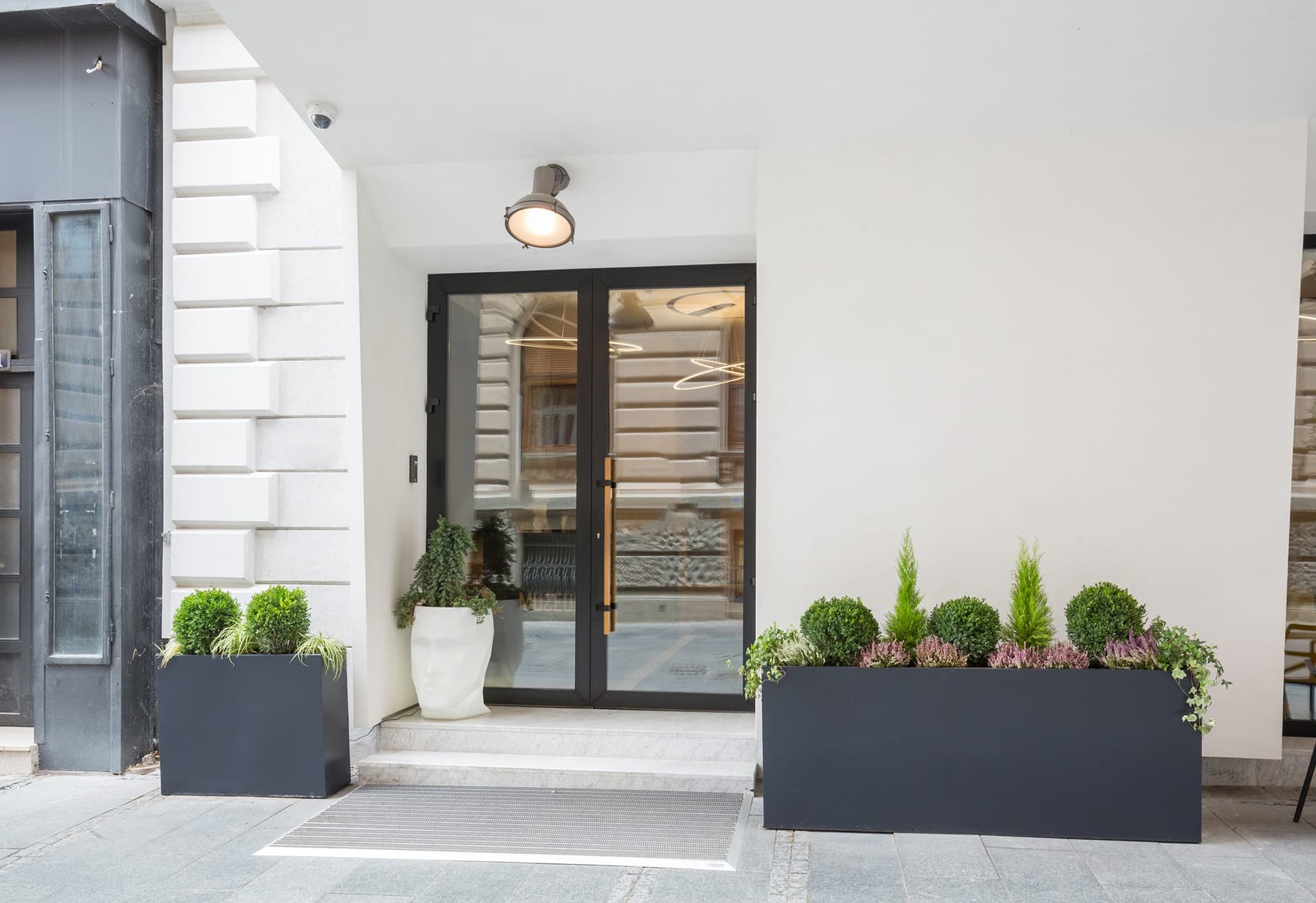

02 / 03
03 / 03
