SOFTLINE 82
High-performance entrance door
- Ud (MD)
- 1.2W/m²K
- Outer wall thickness
- 3.5mm
- Max. glazing / infill
- 54mm
Overview

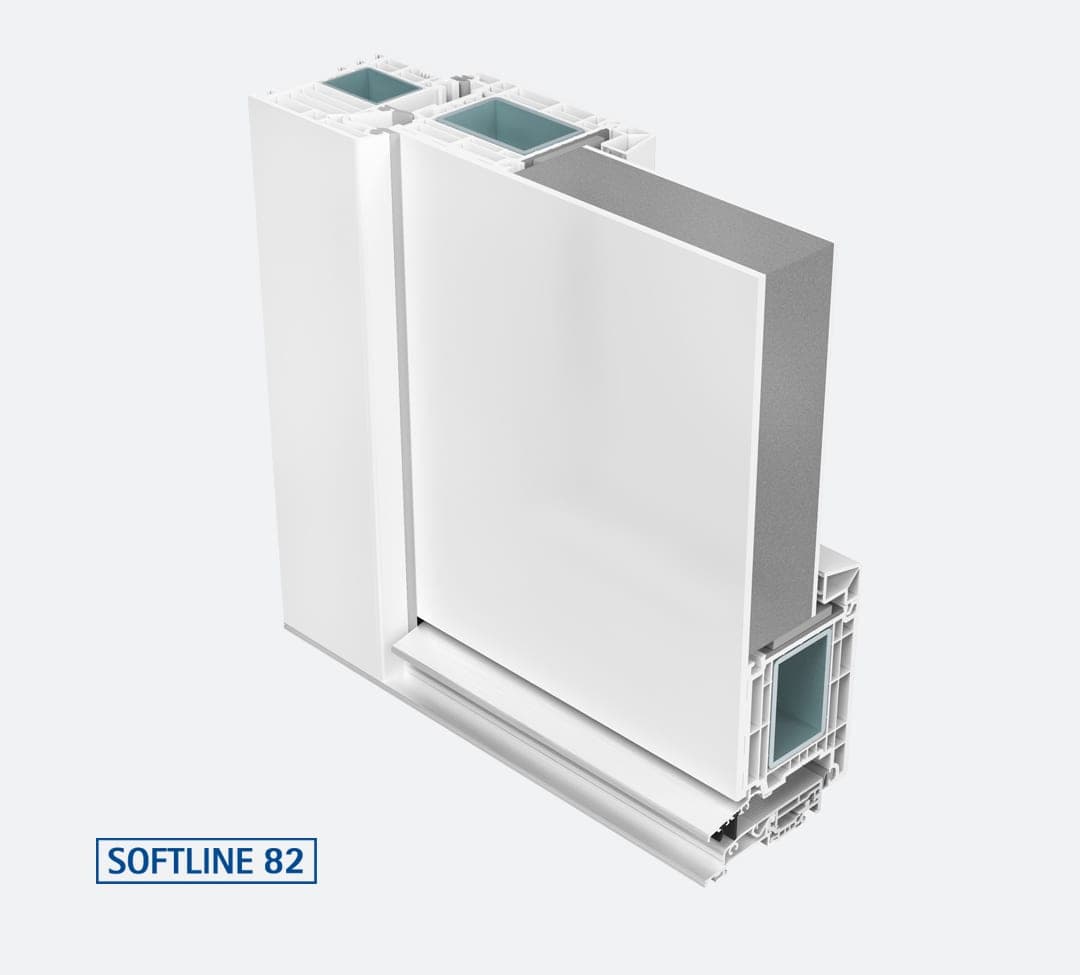

SOFTLINE 82 is VEKA's high-performance system for PVC entrance doors with an 82 mm build depth. A thermally optimised sash geometry and a thermally broken, barrier-free threshold meet the highest standards of living comfort and thermal insulation.
Increased 3.5 mm outer walls give exceptional stability and durability — important, as no other building element faces as much wind, weather and frequent use as the front door. A dedicated sash profile makes doors with leaf-covering infill panels easy to build.
Who it is for
Fewer parts, faster door production
- 01Reduced parts variety brings many advantages in processing.
- 02Thermally optimised sash geometry and thermally broken barrier-free threshold.
- 03Dedicated sash profile for doors with leaf-covering infill panels.
- 04Class A walls to DIN EN 12608-1.
Performance
- 01
Barrier-free threshold
Flat, integrated, drained threshold to DIN 18025.
- 02
Thermally separated threshold
Prevents energy loss and cold-air drafts.
- 03
Leaf-covering panels
Dedicated sash profile for concealed-sash door panels.
Specifications
Technical data
EX-07.01- Build depth
- 82 mm
- Min. face width
- Fixed: 137 mm; frame + sash: 175 mm
- Max. glazing thickness
- 54 mm
- Max. sash width / height
- 1150 / 2400 mm*
- Ud
- AD up to 1.3 W/m²K; MD up to 1.2 W/m²K
- Sound insulation Rw
- Up to 44 dB
- Wind-load resistance
- Up to class B2
- Driving-rain tightness
- Up to class 3A
- Air permeability
- Up to class 3
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
