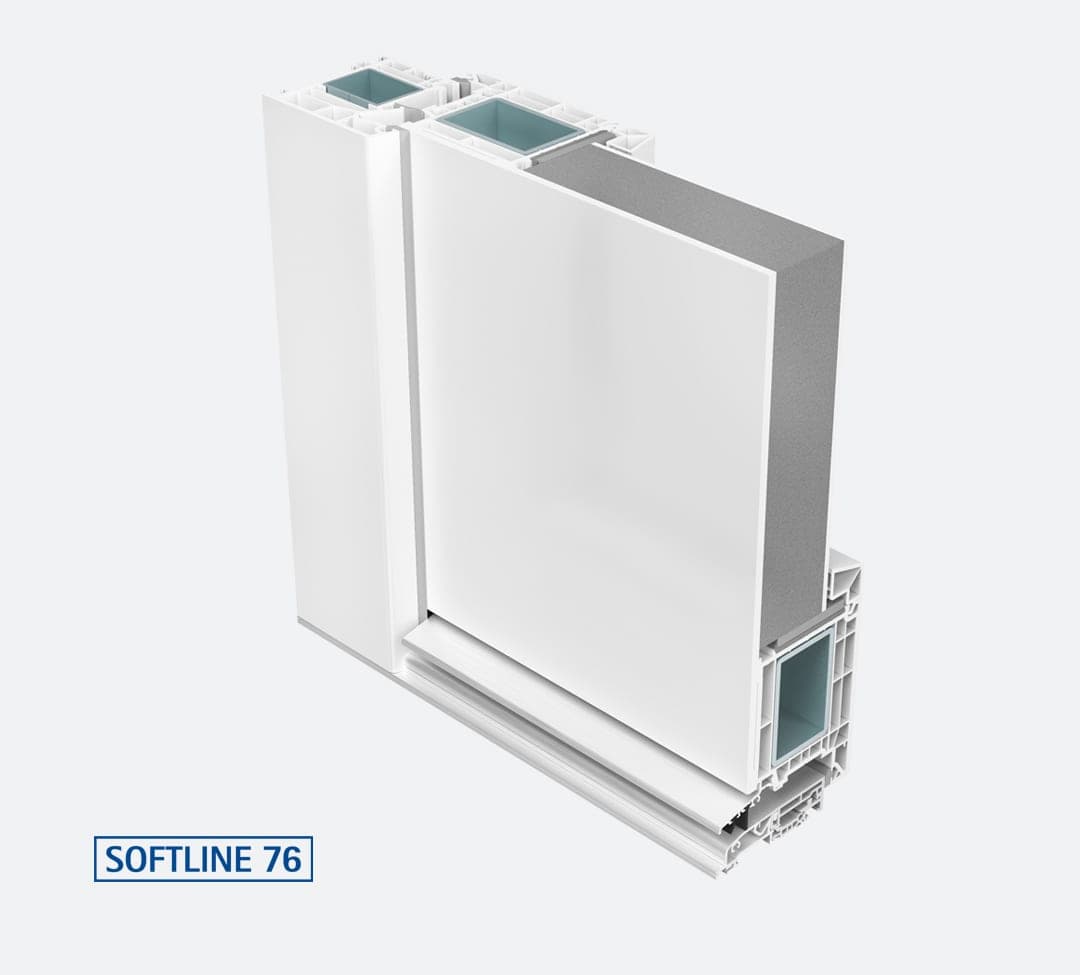

SOFTLINE 76
Energy and cost in balance
- Ud (MD)
- 1.2W/m²K
- Outer wall thickness
- 3.5mm
- Build depth
- 76mm
Overview
Entrance doors face more load from wind, weather and frequent use than any other part of the house, so they must keep both their function and their appearance for many years. SOFTLINE 76 meets these requirements, with increased 3.5 mm outer walls for exceptional stability and long life.
With a 76 mm build depth the system balances energy and cost efficiency. It suits 3–4 mm cover panels in combination with aluminium cover shells, and a dedicated sash profile allows doors with concealed-sash infill panels.
Who it is for
Numerous advantages in door production
- 01Reduced parts variety simplifies entrance-door production.
- 02Increased 3.5 mm outer walls underline high quality standards.
- 03Suitable for 3–4 mm cover panels with aluminium cover shells.
- 04Dedicated sash profile for concealed-sash infill panels.
Specifications
Technical data
EX-07.01- Build depth
- 76 mm
- Min. face width
- Fixed: 137 mm; frame + sash: 175 mm
- Max. glazing thickness
- 54 mm
- Max. sash width / height
- 1150 / 2400 mm*
- Ud
- AD up to 1.3 W/m²K; MD up to 1.2 W/m²K
- Sound insulation Rw
- Up to 44 dB
- Wind-load resistance
- Up to class B2
- Driving-rain tightness
- Up to class 3A
- Air permeability
- Up to class 3
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
Gallery

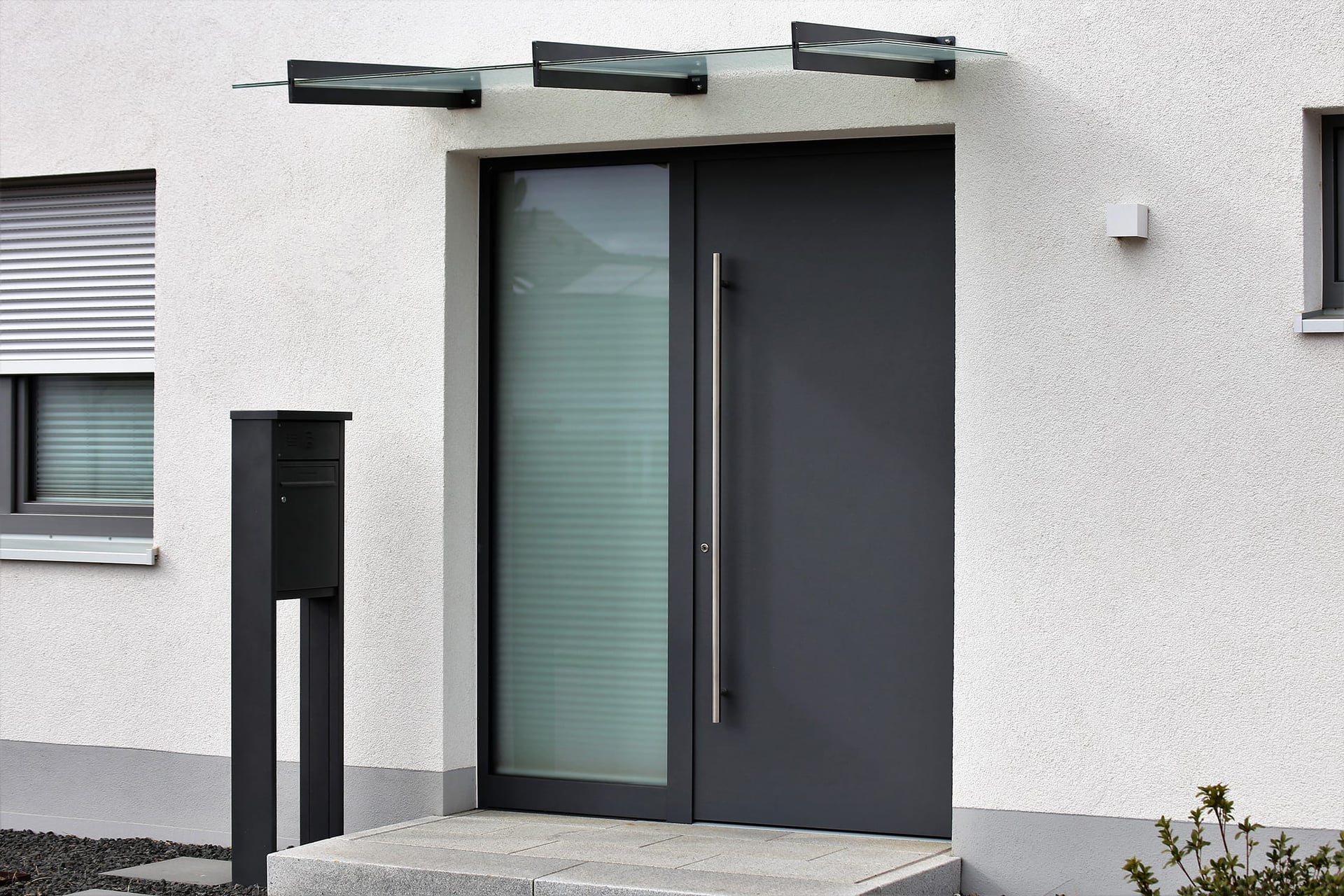

01 / 04

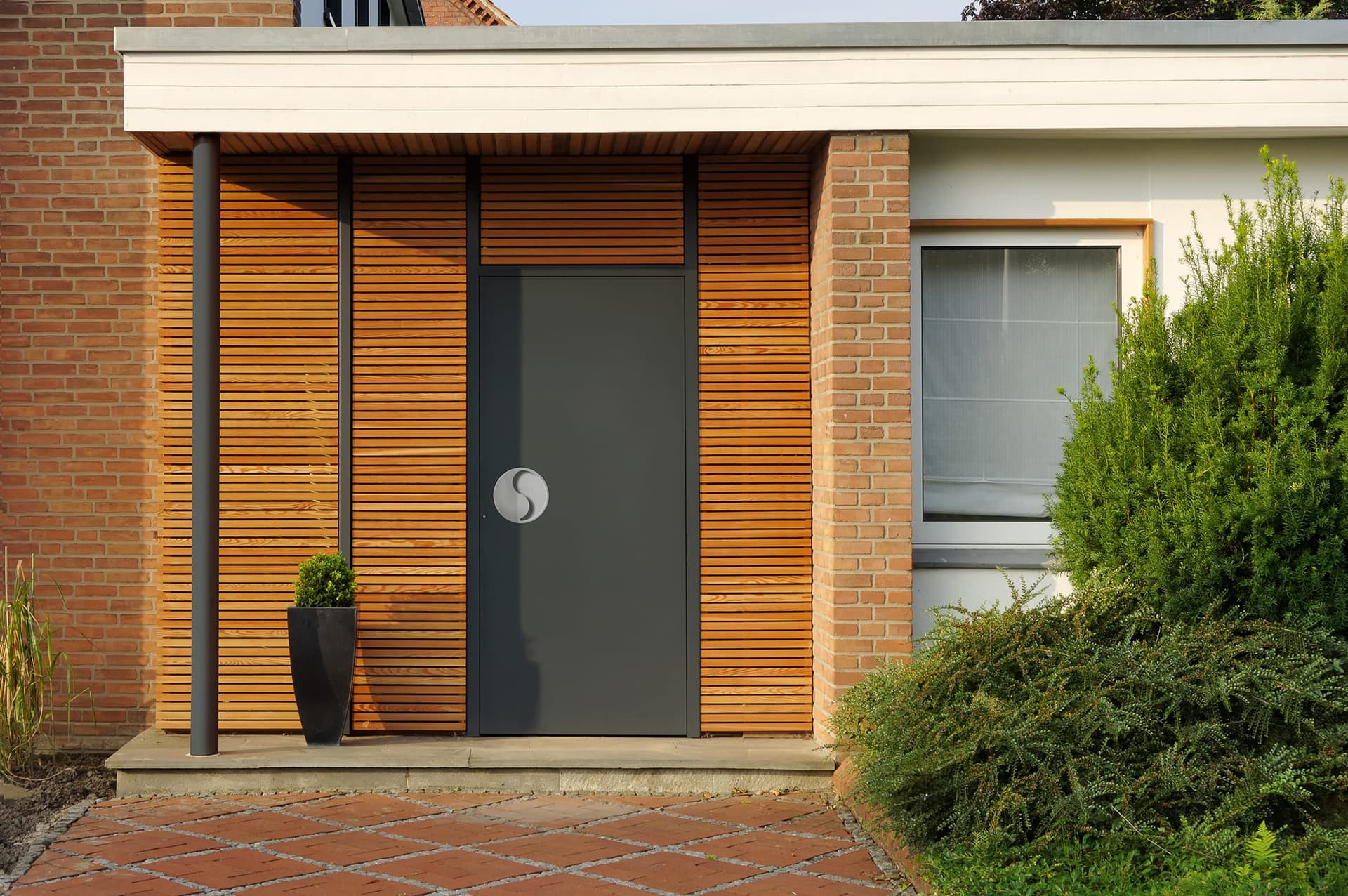

02 / 04

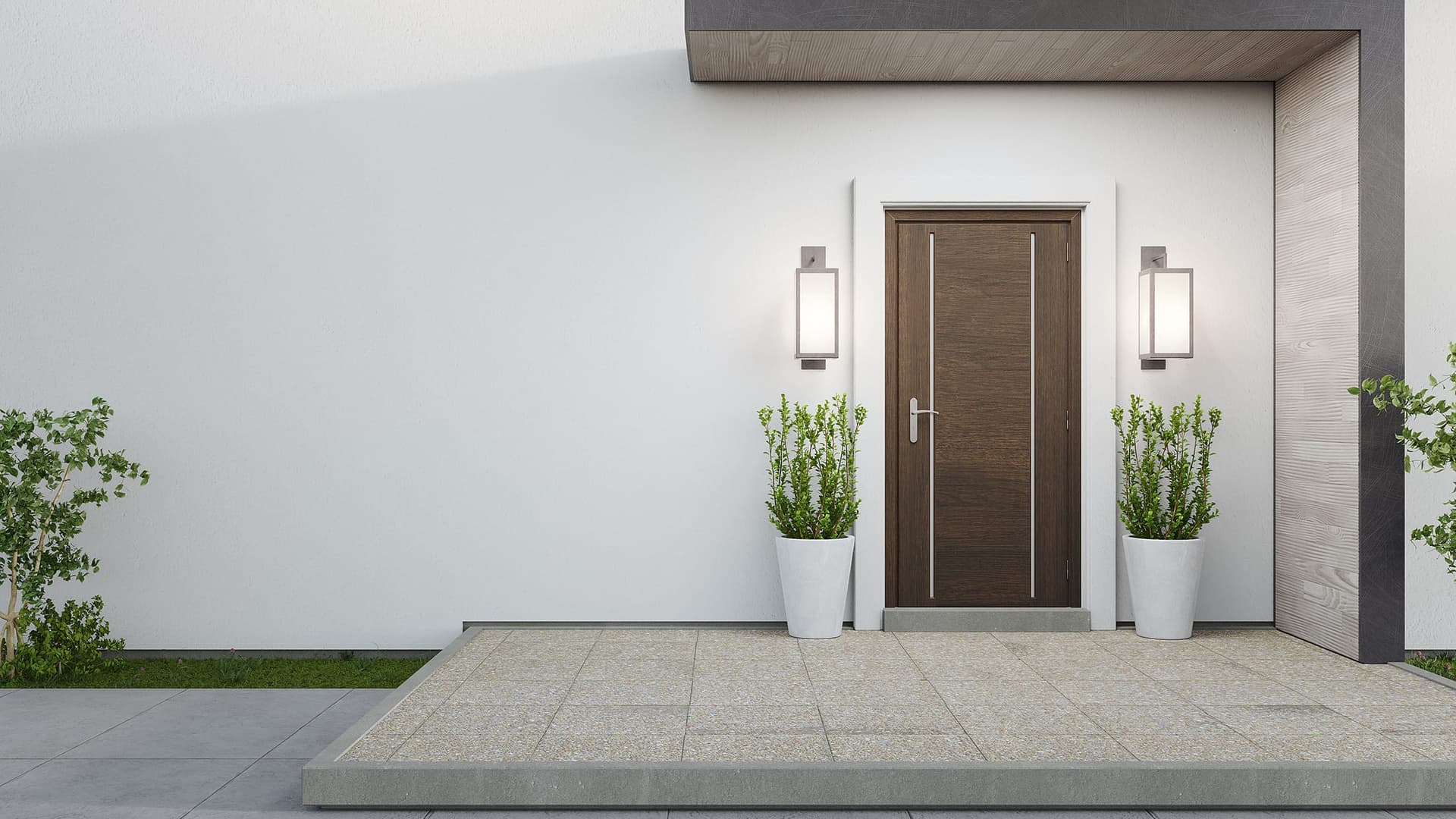

03 / 04

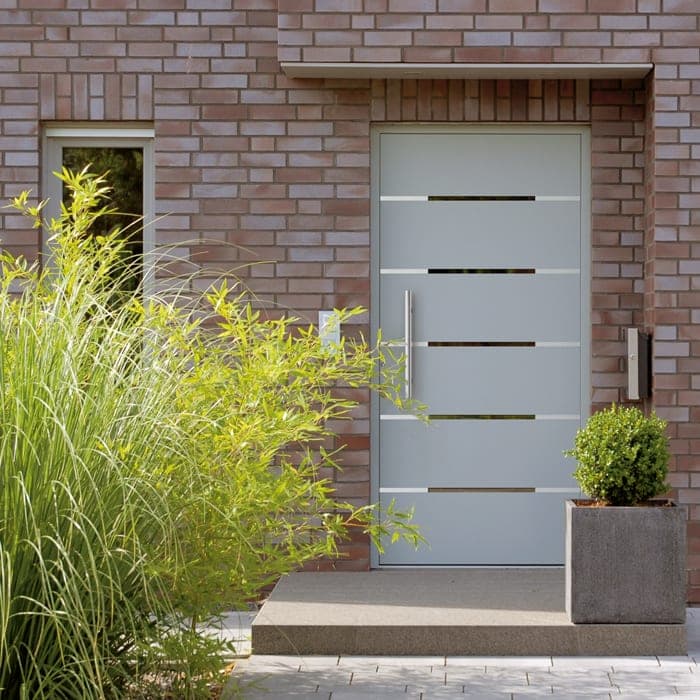

04 / 04
