SOFTLINE 70 AD
The classic of the VEKA range
- Uw
- 0.83W/m²K
- Build depth
- 70mm
- Chambers
- 5
Overview
With a 70 mm build depth, SOFTLINE 70 AD is the classic of the VEKA profile range. Its timeless design with a softly rounded contour and especially narrow face widths has carried through to later profile generations, and suits modern and traditional architecture, new build and renovation alike.
Homogeneous surfaces and drip-edge glazing beads make it very easy to clean, and the 70 mm build depth gives optimum structural properties for lasting function and value. Where sashes are not too large, even highly insulating triple glazing can be used.
Who it is for
A proven classic for efficient production
- 0170 mm build depth with the timeless SOFTLINE contour.
- 02Comprehensive ancillary-profile programme for efficient window production.
- 03Triple glazing possible where sash sizes are moderate.
- 04Flush and half-offset sash versions.
- 05Technical data sheet available from VEKA on request.
Performance
- 01

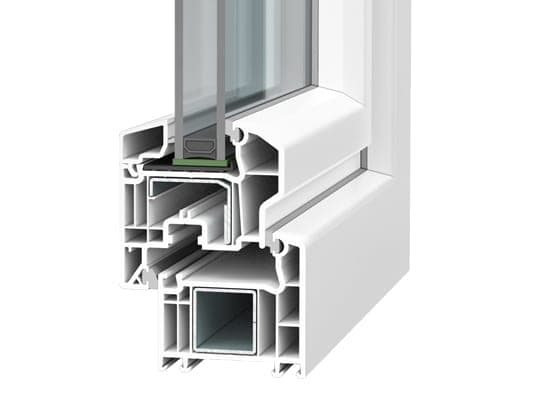

Five-chamber profile
Makes the most of the insulating effect of air.
- 02
Grey or black gaskets
Two-gasket system keeps out cold, draughts and moisture.
- 03
Galvanised reinforcement
Static safety and durable function to VEKA processing guidelines.
Specifications
Technical data
EX-07.01- Build depth
- 70 mm
- Min. face width
- Fixed: 58 mm; frame + sash: 99 mm
- Max. glazing thickness
- 42 mm
- Max. sash width / height
- 1400 / 2400 mm
- Uf
- Up to 1.3 W/m²K
- Uw
- Up to 0.83 W/m²K (Uf 1.3, Ug 0.5, ψ 0.03), depending on glazing
- Sound insulation Rw
- Up to 44 dB
- Wind-load resistance
- Up to class B5
- Driving-rain tightness
- Up to class 9A
- Air permeability
- Up to class 4
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
Documents
Gallery
01 / 04
02 / 04
03 / 04
04 / 04
Specify SOFTLINE 70 AD.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
