VEKAMOTION 82 MAX
Red Dot design version of the lift-and-slide door
- Ud (3.5 × 2.3 m)
- 0.73W/m²K
- Max. element width
- 6000mm
- Min. fixed-sash face width
- 92mm
Overview
VEKAMOTION 82 MAX is the design version of VEKA's innovative lift-and-slide door. Even the base VEKAMOTION 82 enables large elements with a high glass ratio and a reduced sash view; the MAX version adds an extremely slim fixed sash to maximise the glass ratio and the amount of light.

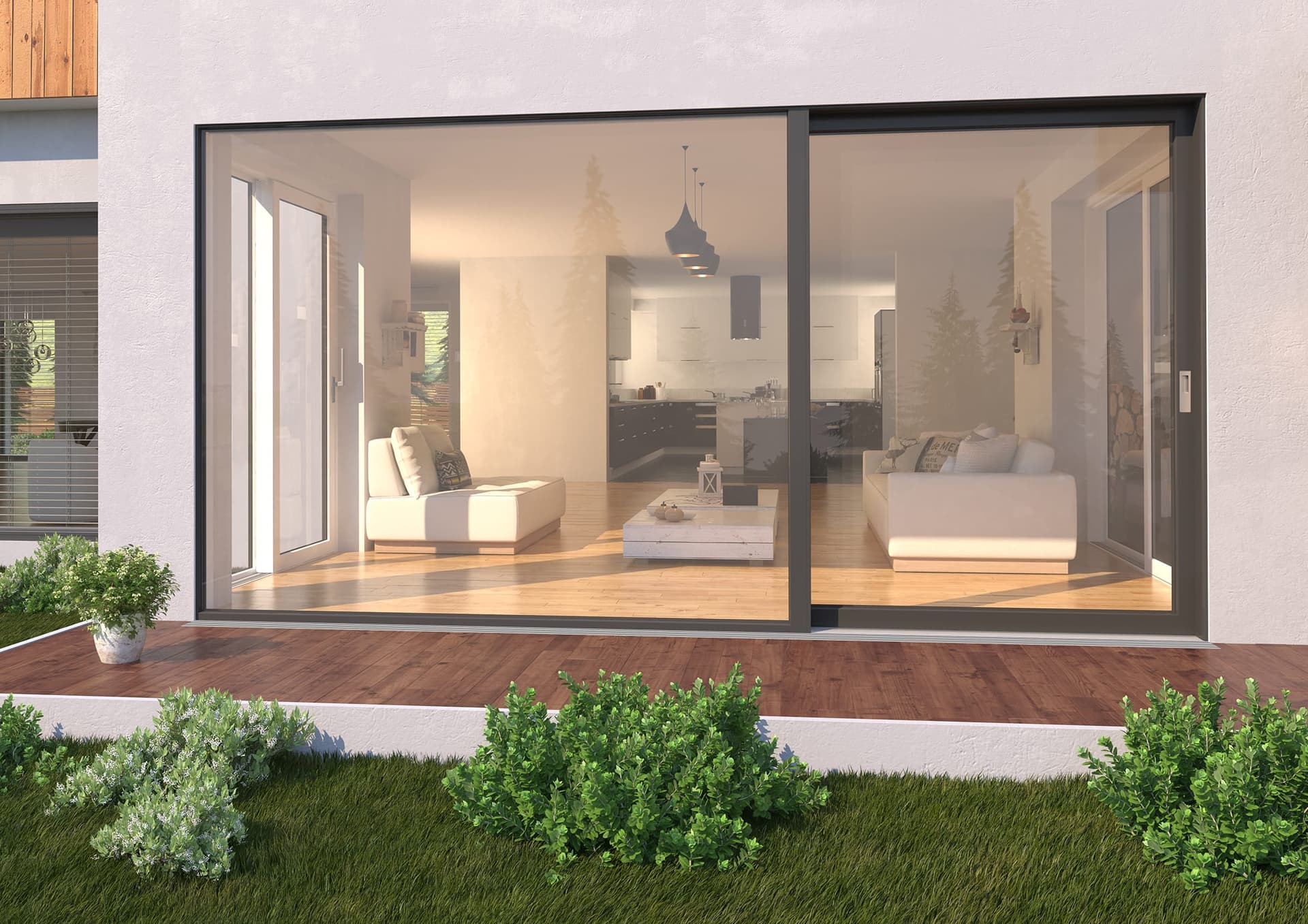

The unique frame construction can be almost fully plastered over, giving a nearly frameless exterior view. VEKAMOTION 82 MAX has received the Red Dot Design Award.
Who it is for
Large elements, efficiently produced
- 01Built on VEKAMOTION 82, which enables especially large units to be produced efficiently.
- 02Extremely slim fixed sash for the maximum glass ratio.
- 03Frame construction that can be almost fully plastered over.
- 04Class A walls to DIN EN 12608-1.
Performance
- 01
Nearly frameless
Fixed sash can be almost fully covered by plaster.
- 02
Two large steel reinforcements
Highest stability, suitable for RC2.
- 03
Barrier-free threshold
Low threshold for easy access.
Specifications
Technical data

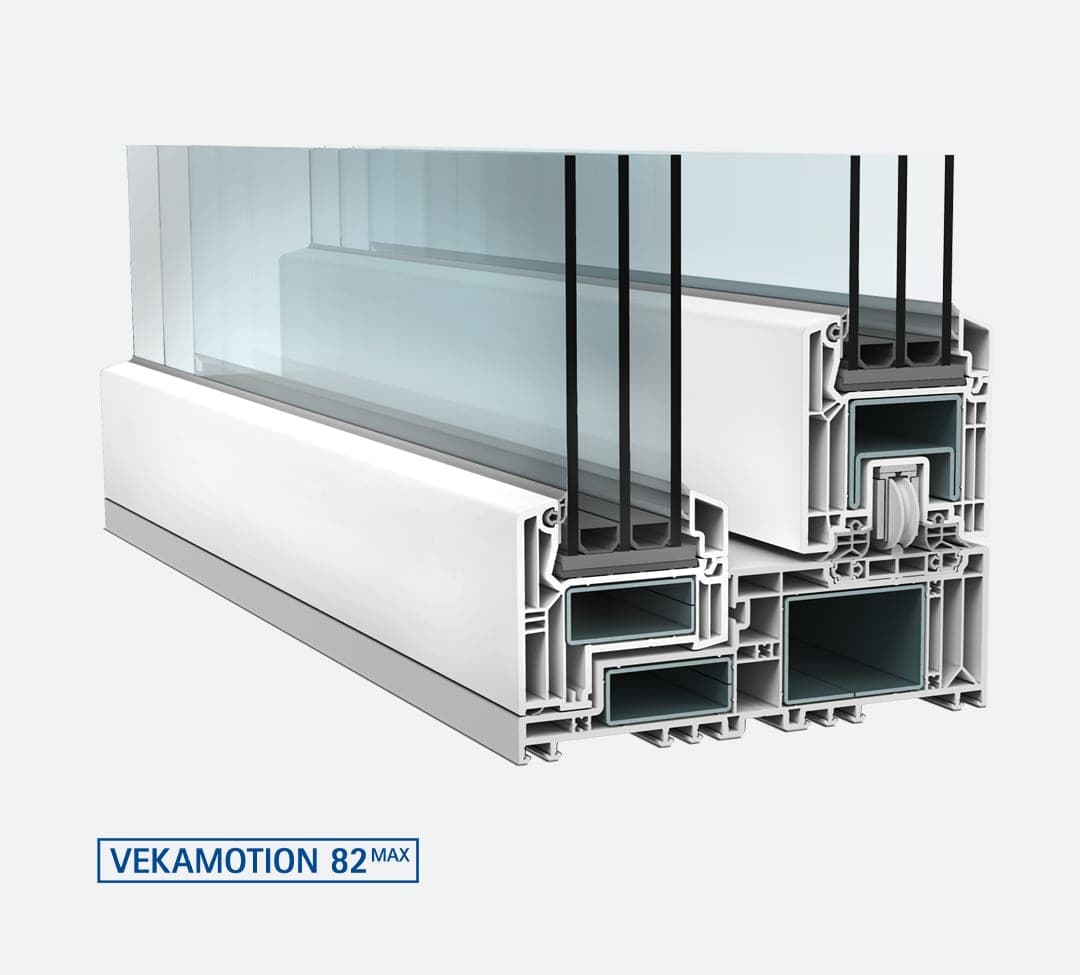

EX-07.01- Build depth
- Sash: 82 mm; frame: 194 mm
- Min. face width
- Passage: 163 mm; fixed: 92 mm; centre: 92 mm
- Max. glazing thickness
- 54 mm
- Max. element width / height
- 6000 / 2700 mm
- Uf,m (frame)
- Up to 1.3 W/m²K
- Ud (whole element)
- Up to 0.73 W/m²K (Ug 0.5, ψ 0.031, element 3.5 × 2.3 m)
- Sound insulation Rw
- Up to 42 dB
- Wind-load resistance
- Up to class B3
- Driving-rain tightness
- Up to class 9A
- Air permeability
- Up to class 4
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
