SOFTLINE 82 AD
Outstanding energy saving, long life, security
- Uw
- 0.77W/m²K
- Build depth
- 82mm
- Max. glazing thickness
- 54mm
Overview
Modern PVC windows made with SOFTLINE 82 AD optimise the energy balance of any building. They combine outstanding energy-saving properties with extreme durability, stability and security, and the elegant design offers slim frames and generous glass areas for modern architecture and stylish renovation alike.
Double gaskets on two sealing levels provide excellent wind tightness, optimum protection against driving rain and high sound insulation. With highly insulating triple glazing (Ug 0.5 W/m²K) the system reaches Uw values down to 0.77 W/m²K.
Who it is for
Efficient to fabricate and install
- 0182 mm build depth and innovative multi-chamber geometry for excellent thermal insulation.
- 02Fabrication and installation are particularly efficient, and the system suits demanding processes.
- 03Special sash profile for bonded glazing technology.
- 04Flush and half-offset sash versions.
- 05Class A walls to DIN EN 12608-1.
Performance
- 01
Two-gasket system
Sound insulation up to class 5.
- 02
28 mm glazing rebate
Optimum isothermal flow, preventing condensation on the inside.
- 03
Half-offset sash and bonded glazing
Additional design and processing options.
Specifications
Technical data
EX-07.01- Build depth
- 82 mm
- Min. face width
- Fixed: 73 mm; frame + sash: 114 mm
- Max. glazing thickness
- 54 mm
- Max. sash width / height
- 1400 / 2500 mm
- Uf
- Up to 1.1 W/m²K
- Uw
- Up to 0.77 W/m²K (Uf 1.1, Ug 0.5, ψg 0.03)
- Sound insulation Rw
- Up to 47 dB
- Wind-load resistance
- Up to class B5
- Driving-rain tightness
- Up to class 9A
- Air permeability
- Up to class 4
- Burglar resistance
- Up to RC2
- Wall thickness
- Class A to DIN EN 12608-1
Gallery
01 / 05
02 / 05
03 / 05

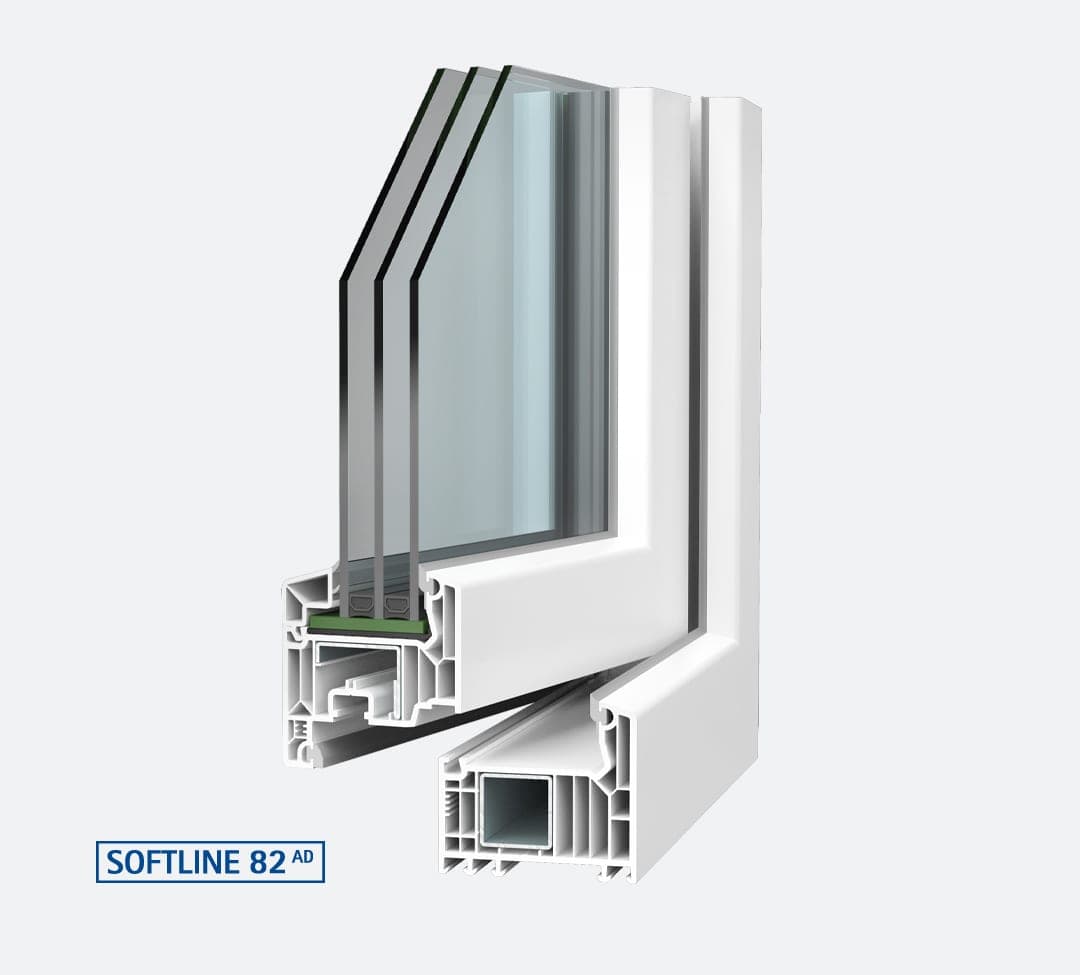

04 / 05
05 / 05
