Switches, Plugs & Sockets
Switches, sockets and frames in thirteen collections, from slim aluminium frames to IP54 weatherproof boxes, so every room of a project can be fitted from one coordinated range.
- Collections
- 13
- Nora & Bella weatherproof series
- IP54
- Modular frame sizes
- 2–7M
Overview

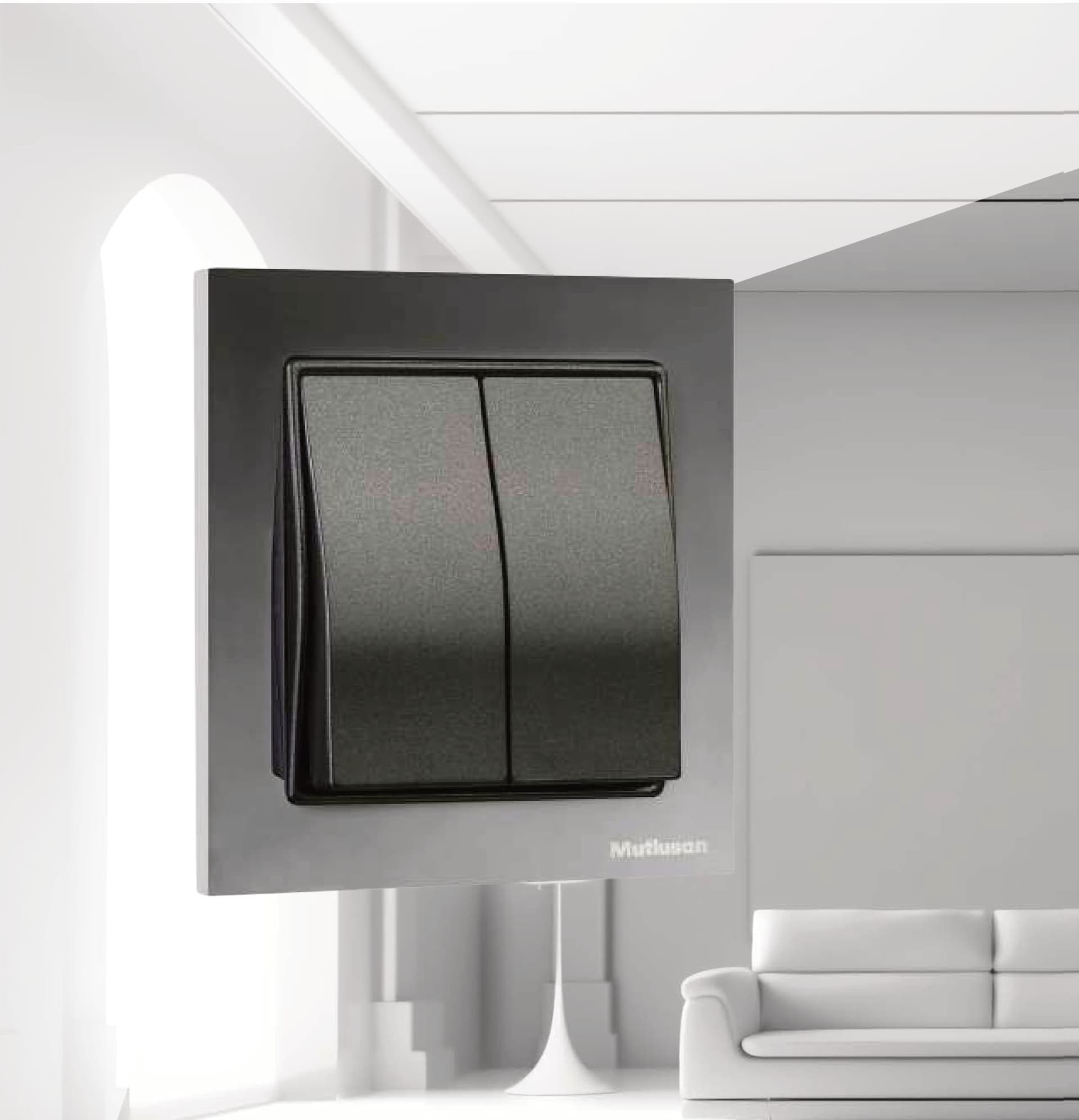

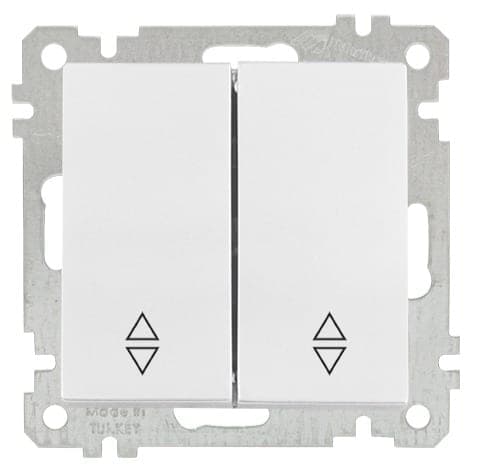

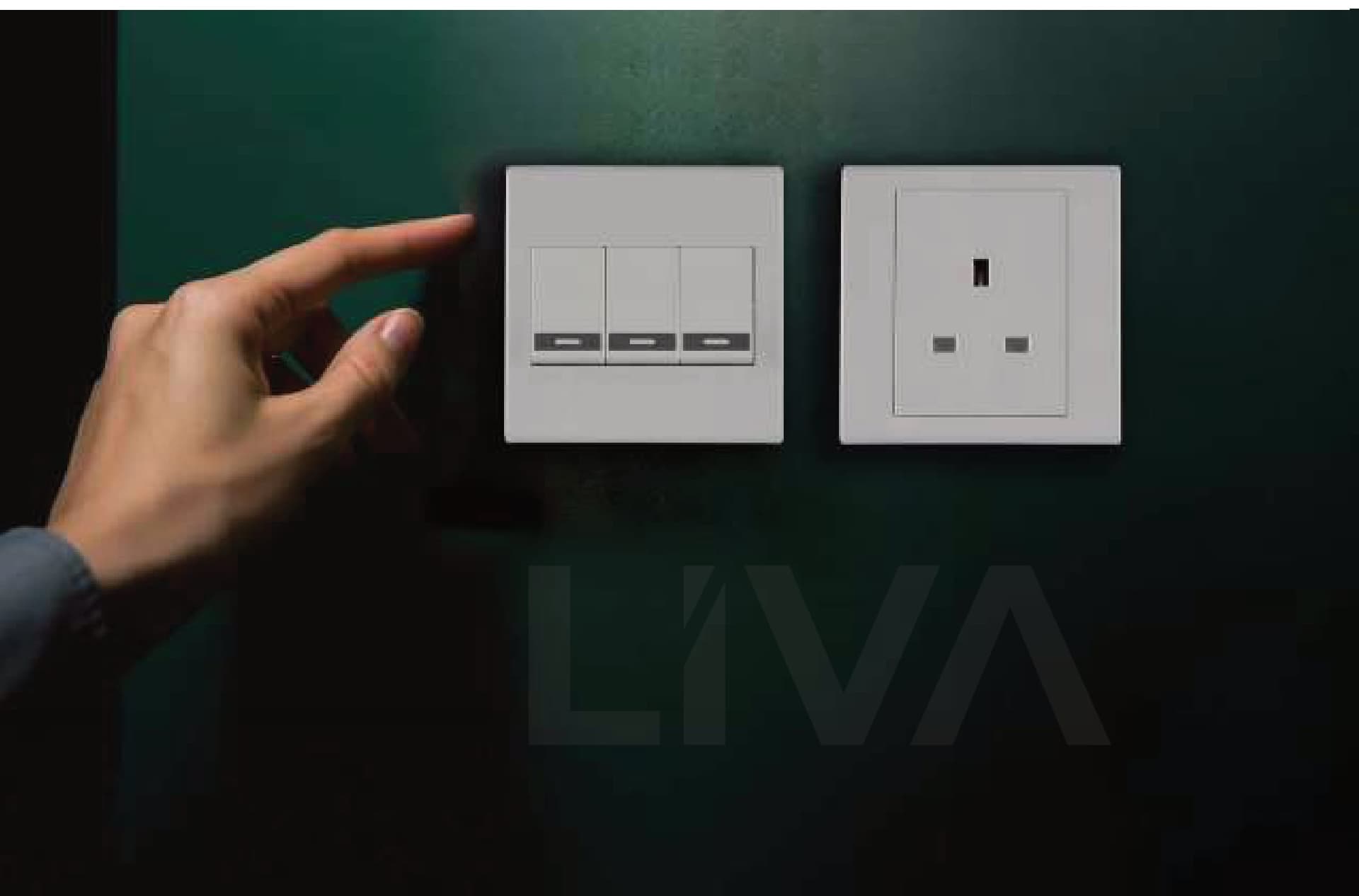

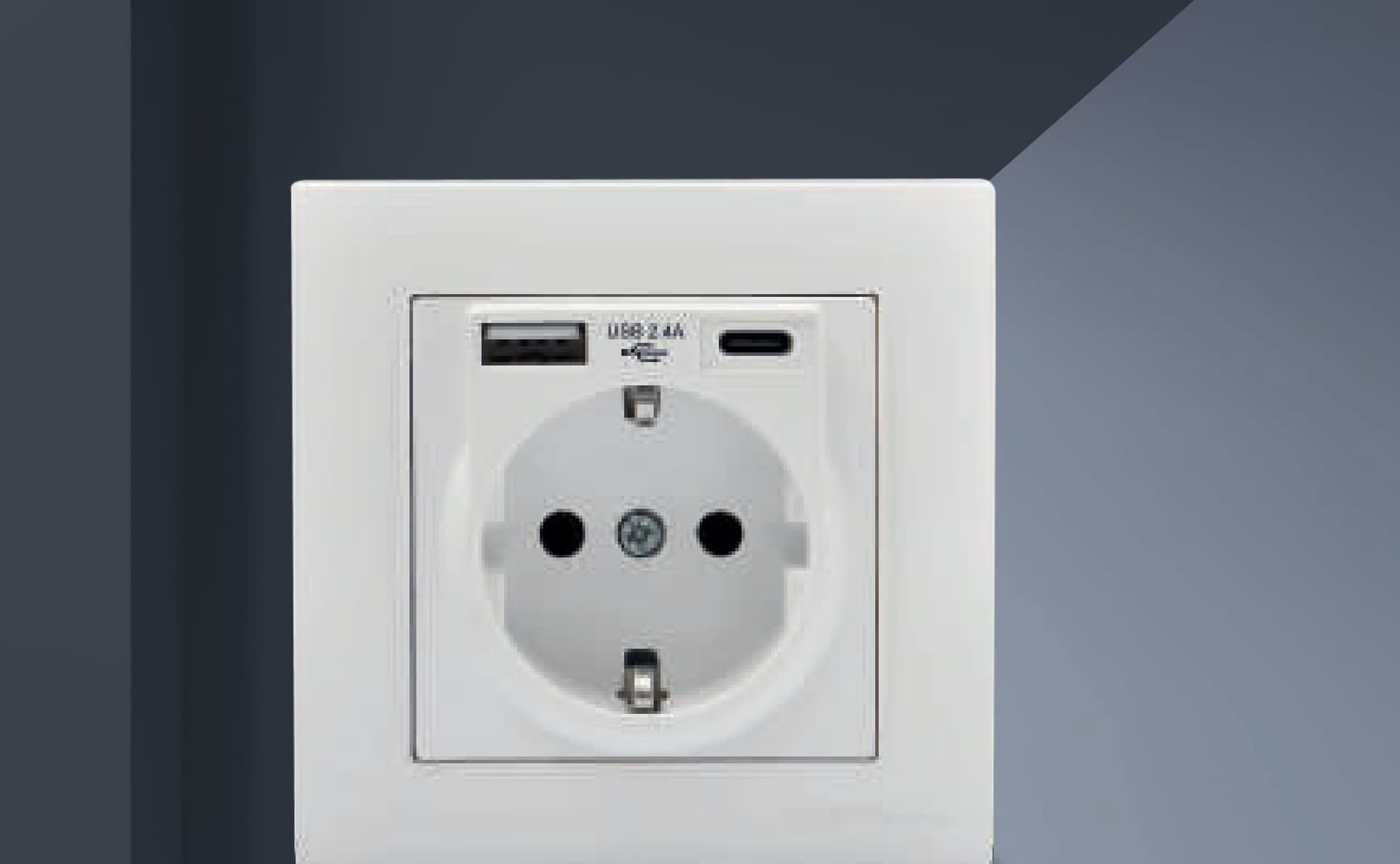

01 — OverviewShiprade supplies a complete wiring-accessory programme for residential, hospitality and commercial projects. Five flush-mounted collections, Rita, Elitra Plus, Candela, Daria and the British-type Liva, cover everyday switching, sockets, dimmers, data, TV and satellite outlets, each in its own family of frames and finishes.

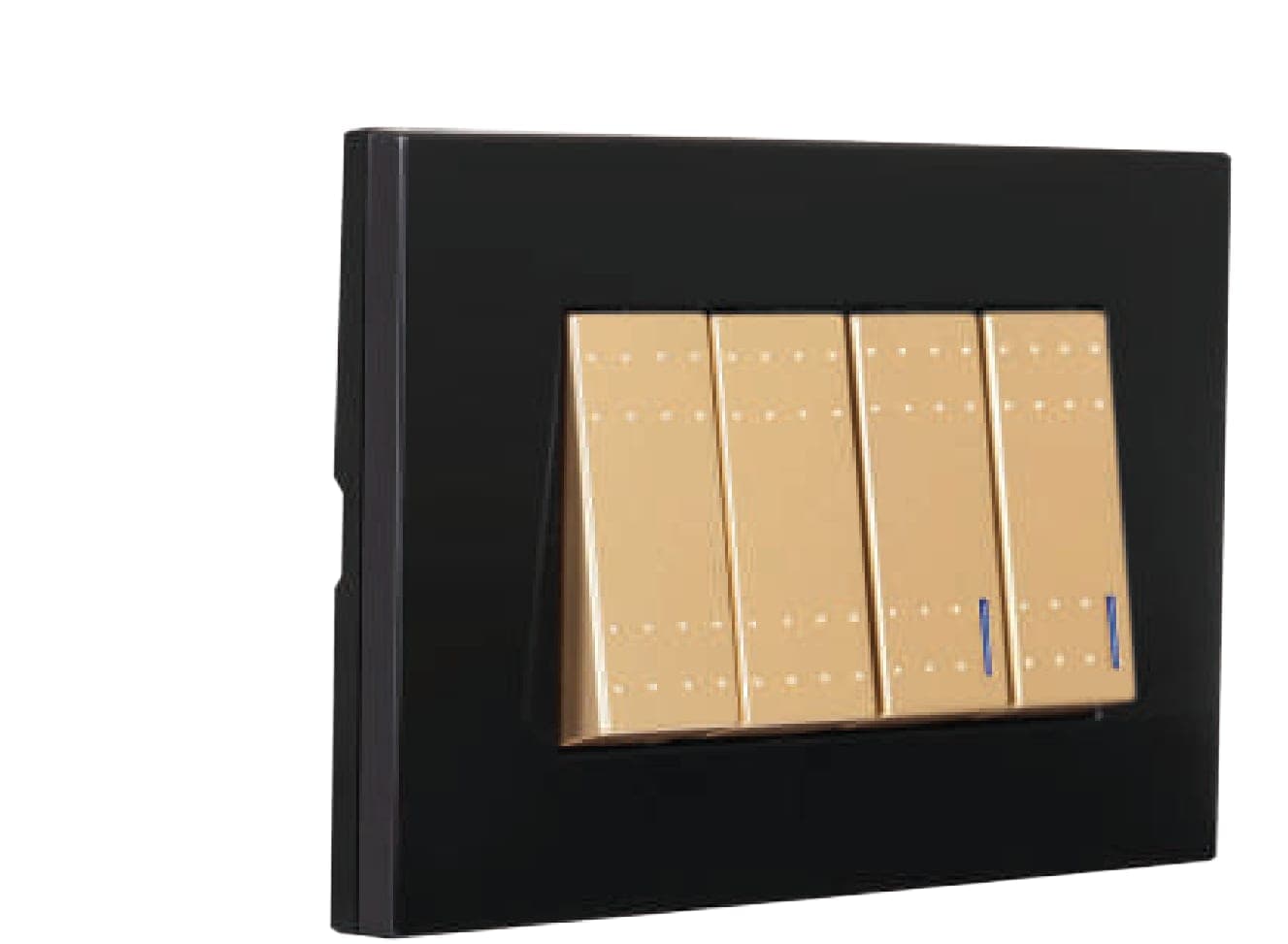

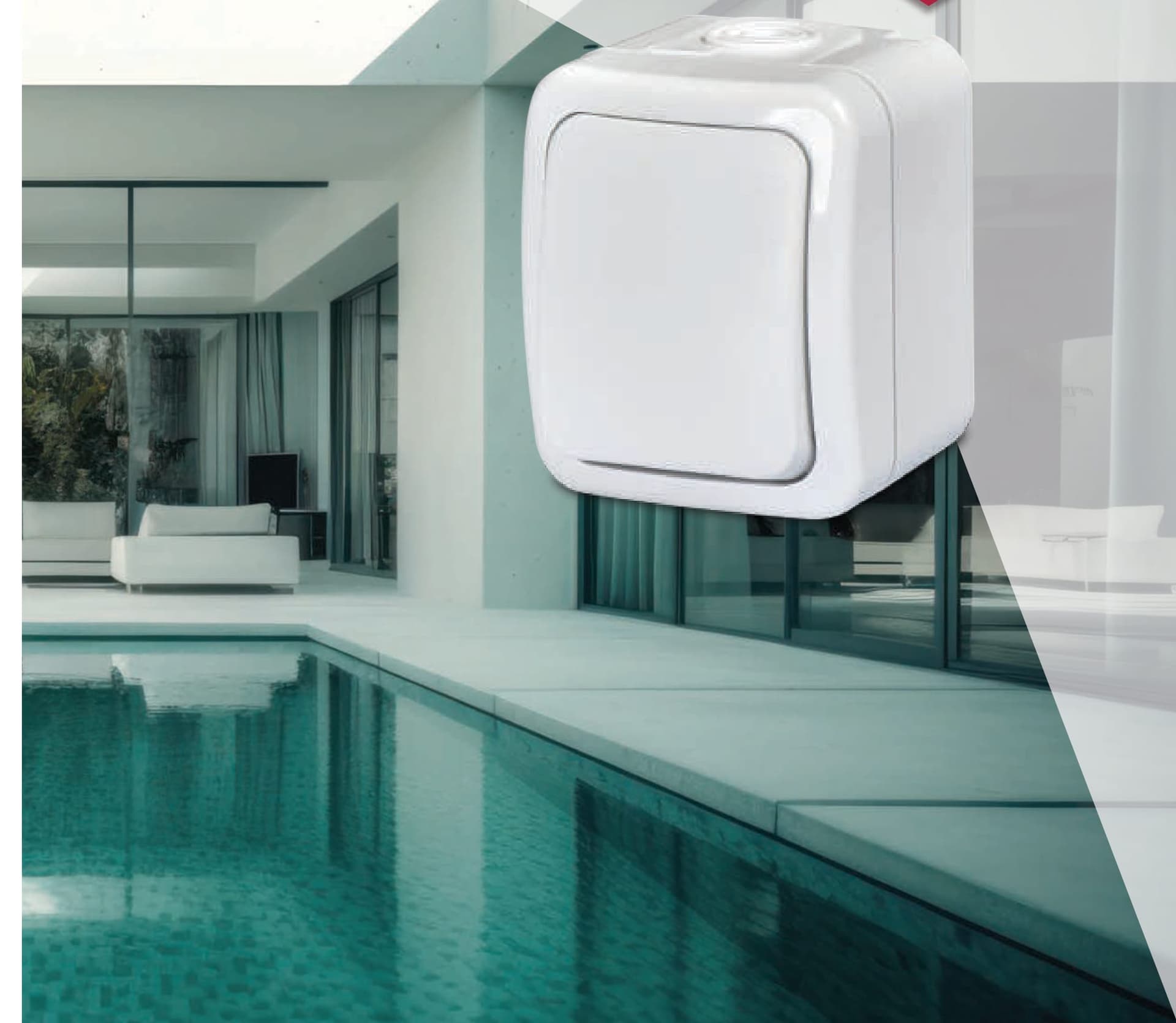

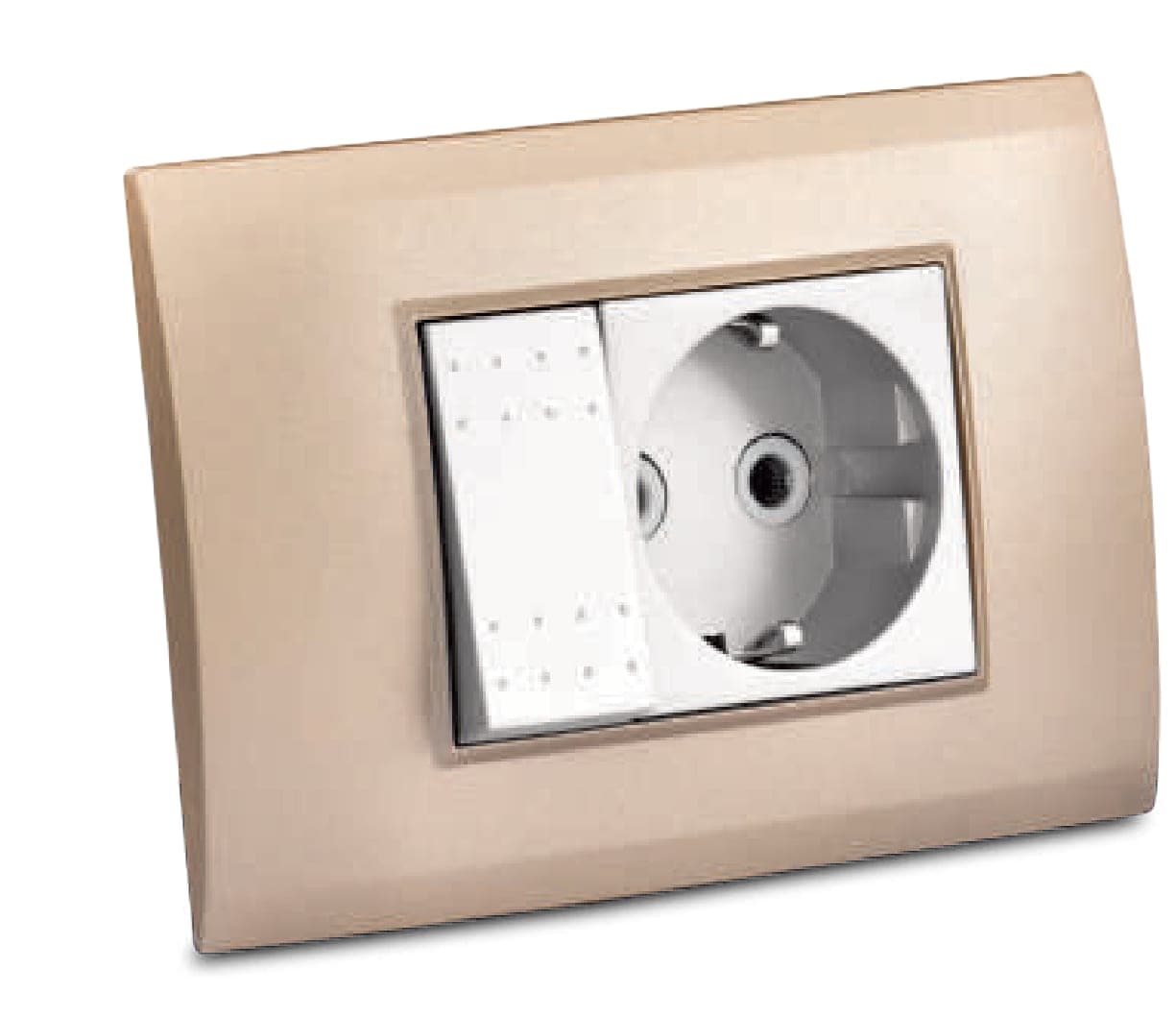

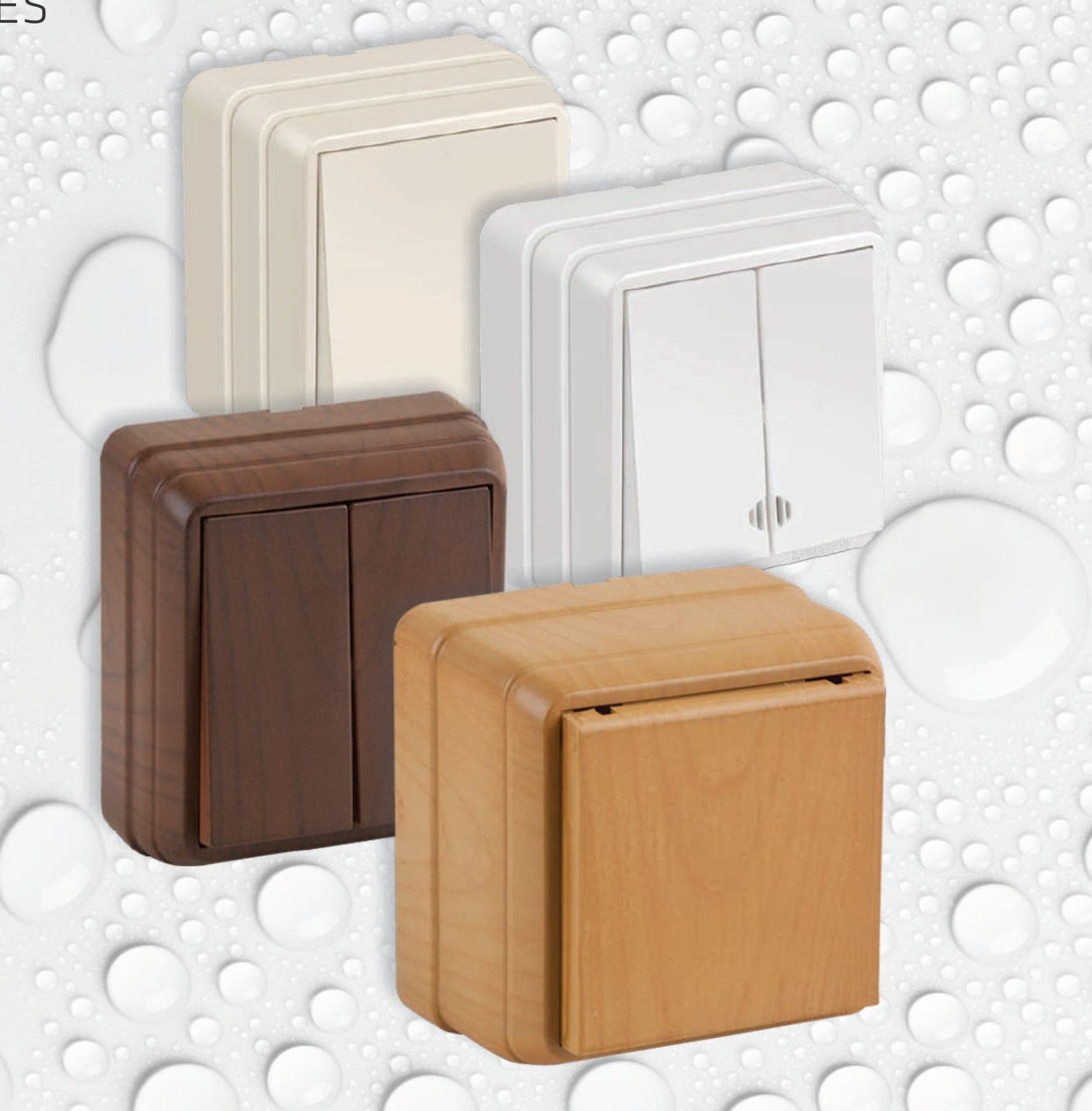

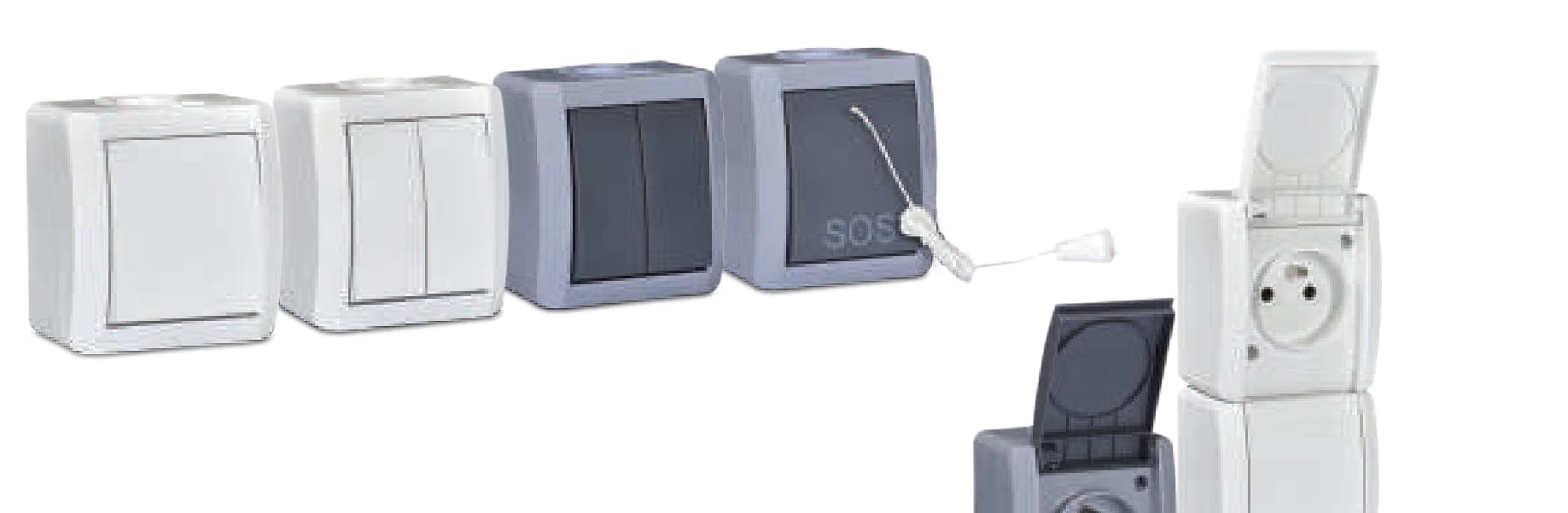

Two modular systems, Stella and Alessa, combine 1M and 2M modules under a single frame of 2 to 7 modules, with flush and drywall boxes and mounting frames to suit. Where walls are wet, dusty or exposed, the Nora and Bella series offer IP54 protection, and the Bron series provides surface-mounted switches and sockets in white, ivory, walnut and oak.

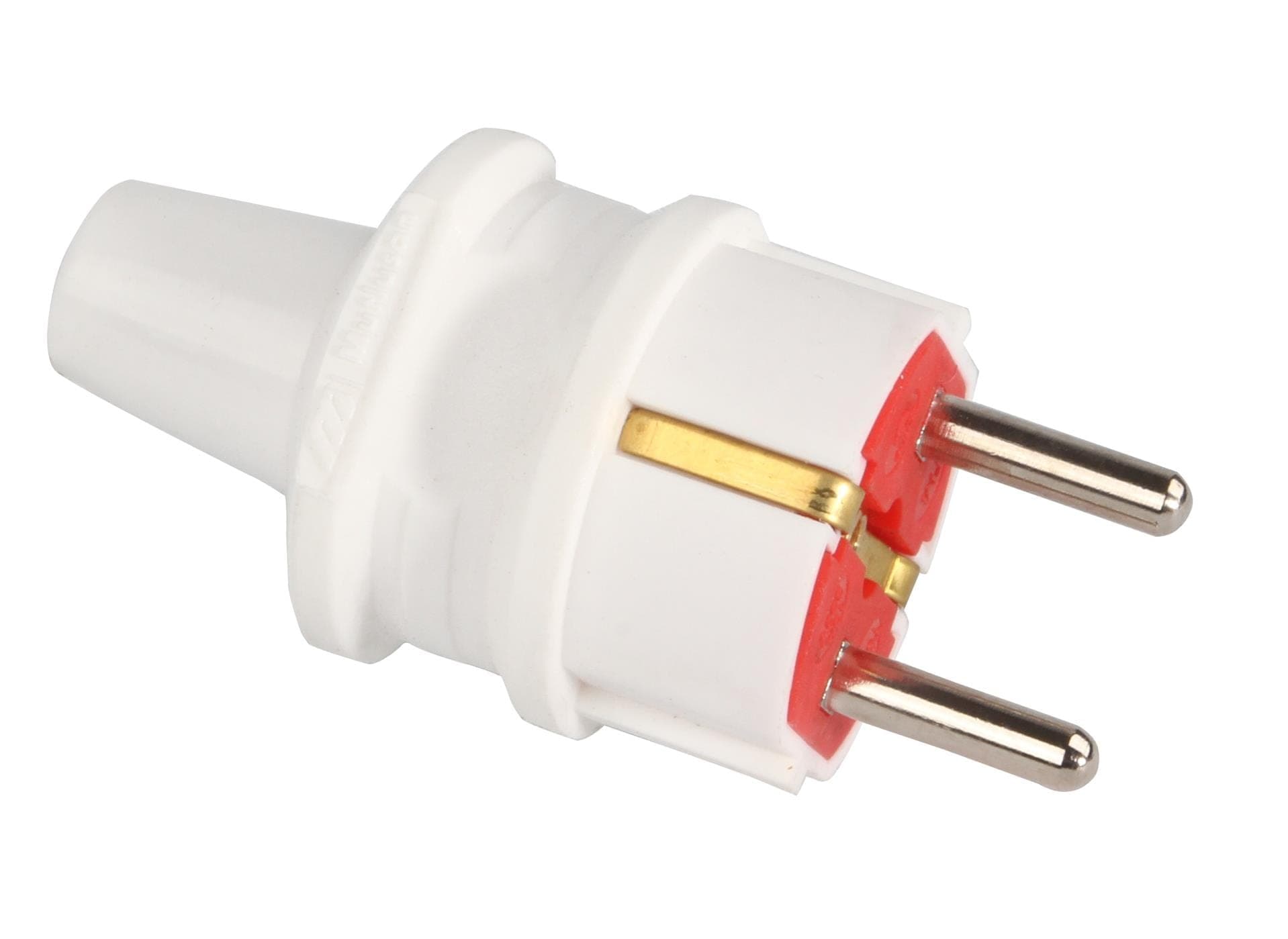

The range is completed by Ri-tech and Olimpia group sockets with earthed, non-earthed and UPS outlets, child protection, switches, surge protection and USB charging, along with plugs, multi-plug adapters and accessories. We help you put together the right collections, colours and quantities for each project and deliver them alongside the rest of your building materials.
Collections
Each collection combines a set of function modules with its own frames and colours. Choose by mounting type and finish, then select the functions room by room.
Flush-mounted switches & sockets
5 lines
Modular systems
2 lines
Surface-mounted & weatherproof
3 lines
Group sockets
2 lines
Plugs & adapters
1 lines
Performance
- 01
One coordinated range
Switches, sockets, dimmers, data and TV outlets share each collection's frames and finishes.
- 02
Screw or clip-in mechanisms
Screw-fixed mechanisms for a firm hold, or clip-in easy-connection mechanisms that need no screwdriver.
- 03
Wide choice of finishes
Natural, pastel, metallic and wood-pattern colours, plus glass, chrome, marble and wood frames.
- 04
Child protection
Shuttered socket versions across the flush ranges and the group sockets.
- 05
USB and Type-C charging
USB and USB + Type-C charging sockets in the flush collections and group sockets.
- 06
Modular design
Stella and Alessa frames hold 2 to 7 modules for custom combinations.
- 07
IP54 for damp areas
Nora and Bella resist dust and moisture for exterior walls and wet rooms.
- 08
Halogen-free series
The Nora, Bella and Bron series are marked halogen free (HF).
- 09
Surge-protected group sockets
Group sockets with surge protection up to 1425 J and USB charging.
Applications
- A1Homes and apartments
- A2Hotels and serviced residences
- A3Offices and retail
- A4Kitchens, bathrooms and utility rooms
- A5Terraces, gardens and exterior walls
- A6Renovation and fit-out projects
Specifications
Range
IN-07.01- Flush-mounted collections
- Rita, Elitra Plus, Candela, Daria, Liva
- Modular systems
- Stella, Alessa (2M–7M frames, IP20)
- Surface-mounted & weatherproof
- Nora (IP54), Bella (IP54), Bron
- Group sockets

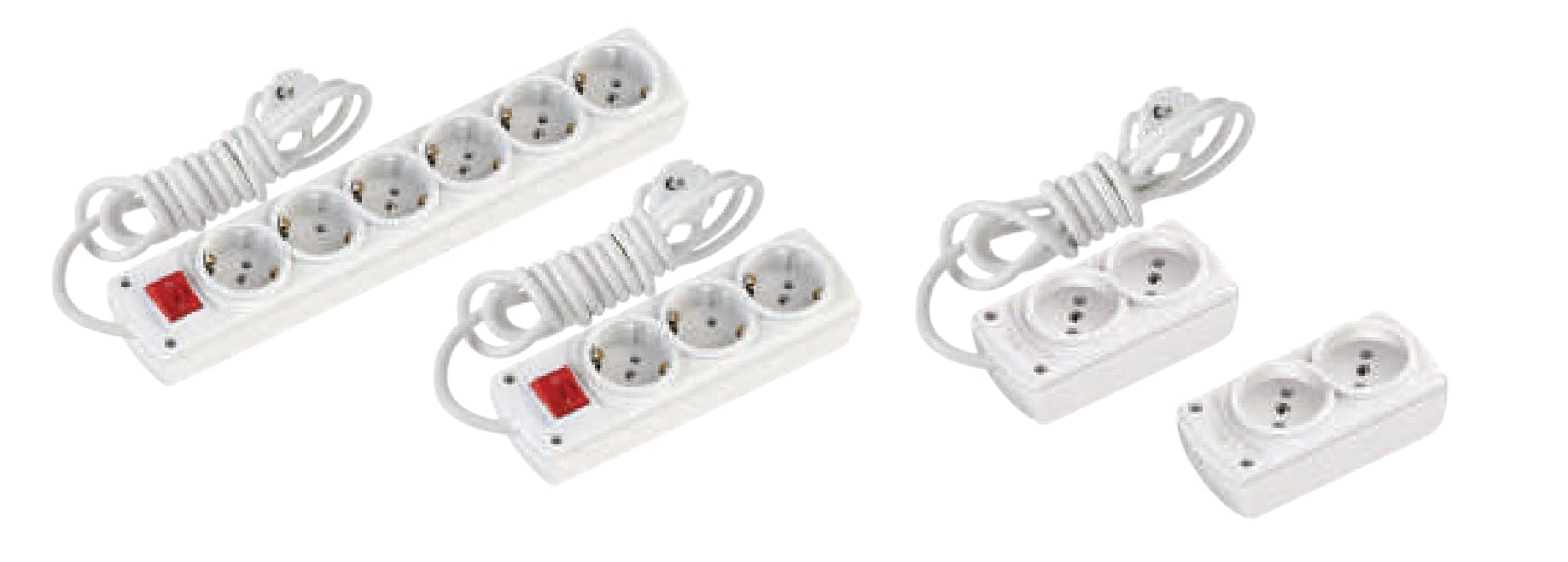

- Ri-tech, Olimpia (2, 3, 4 and 6 gang)
- Plugs & adapters
- Male and female plugs, multi-plug adapters, surge protection sockets
Functions
IN-07.02- Switches
- One-way, two-gang, two-way, intermediate, double-pole, blind, push, bell, door, heater, illuminated
- Sockets
- Earthed, non-earthed, child protection, with cover, UPS (French), double, USB, USB + Type-C
- Dimmers
- RL rotary 600 W and 1000 W, RC 325 W (flush ranges)
- Data & communication
- RJ12 Cat3, RJ45 Cat5e / Cat6, USB, HDMI, VGA
- TV / SAT
- TV through 11 dB, SAT through 4 dB / F connector, dead-end, F female
- Electronic
- Energy saver, motion sensor, audio switch, speaker socket, warning bell
Installation
IN-07.03- Mechanisms
- Screw-fixed or clip-in (easy connection)
- Frames
- 1 to 6 gang, horizontal and vertical (flush ranges)
- Mounting
- Flush, drywall (modular) or surface-mounted (Nora, Bella, Bron)
Documents
Gallery
01 / 09
02 / 09
03 / 09
04 / 09
05 / 09
06 / 09
07 / 09
08 / 09
09 / 09
