IN-07 — Modular systems

Stella

Design it yourself

01 — Overview

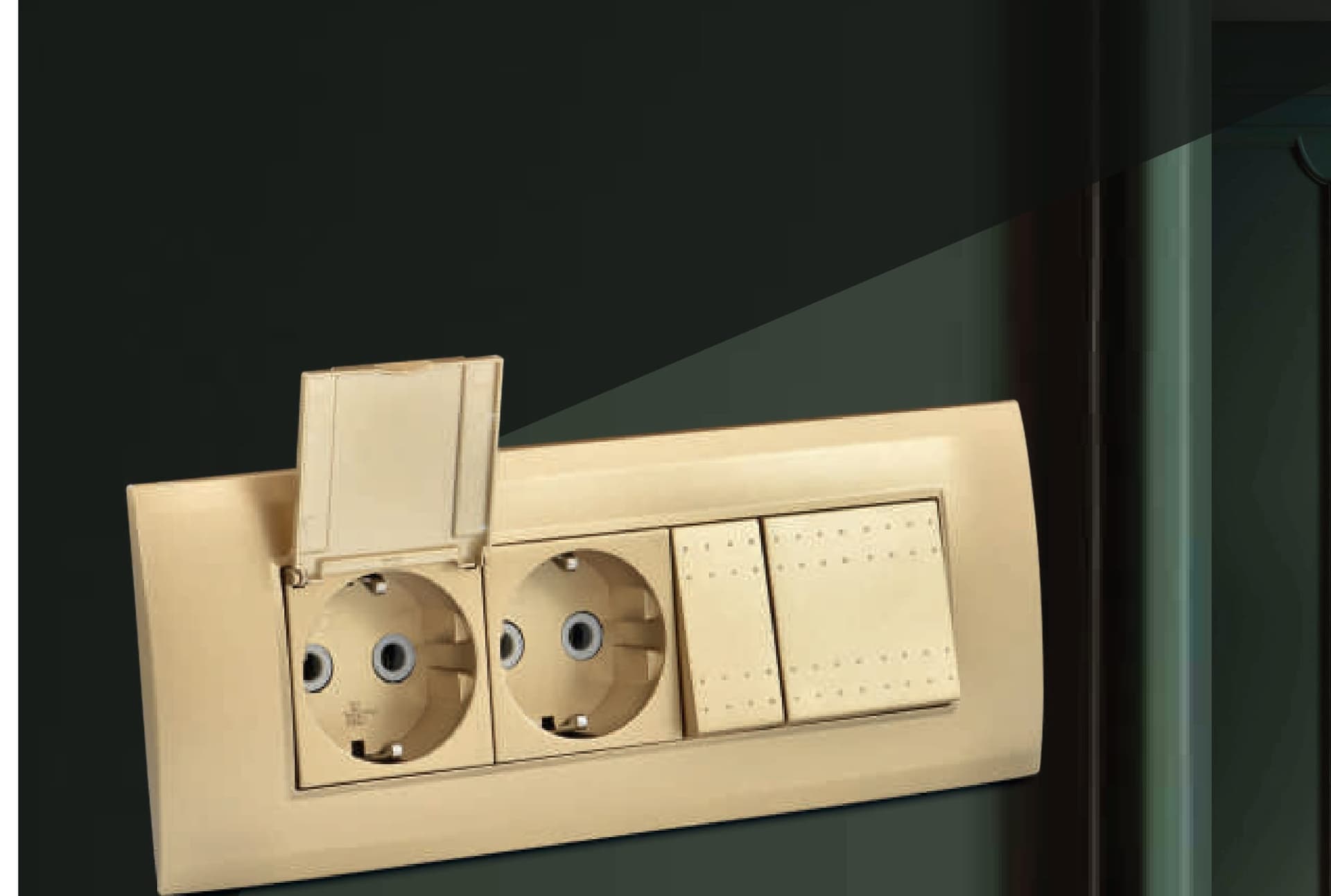

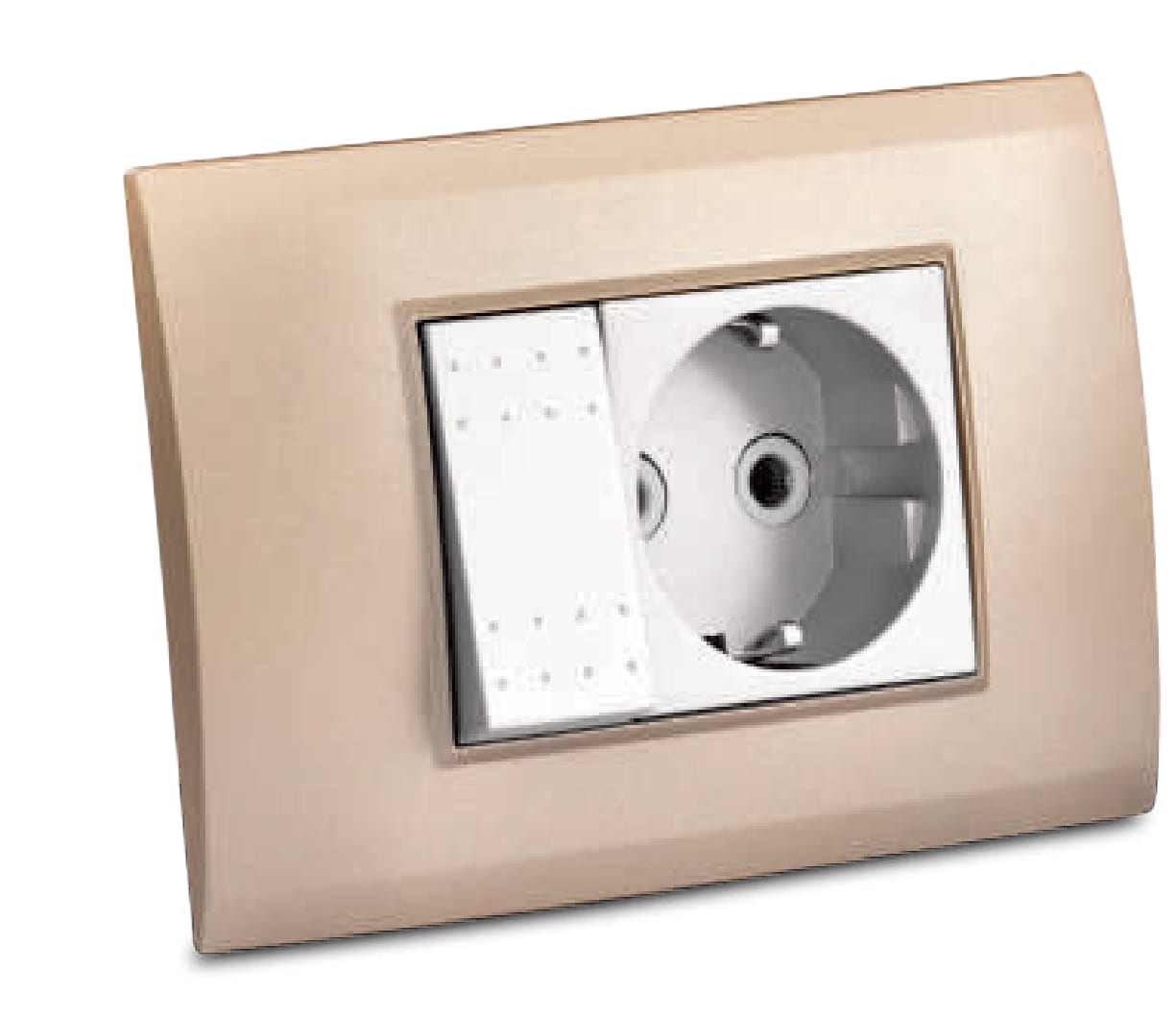

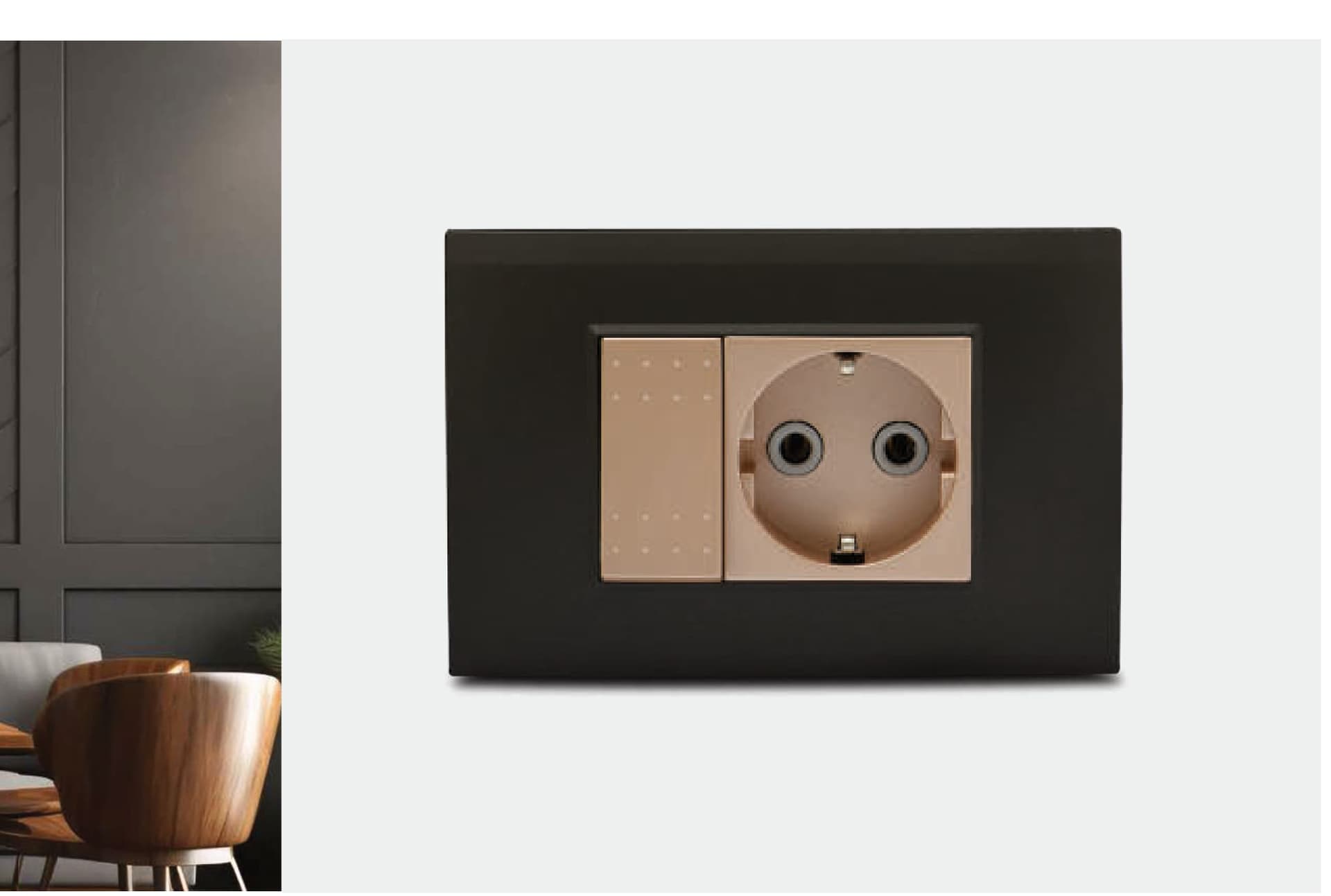

Stella lets you build each wall point as you need it: switches, sockets, dimmers, data, TV and charging modules are combined under one frame, from 2 to 7 modules wide, or in multi-frame 2×2M and 3×2M versions.

The system is produced in line with European standards with protection level IP20. Flush boxes, drywall boxes, mounting frames and a distance element complete the installation.

Performance

01
2 to 7 modules
One frame for any combination of 1M and 2M modules.
02
10 frame colours
From White and Cream to Aqua Green and Antique Gold.
03
International sockets
German, Italian, British and universal socket modules.
04
USB + Type-C
2M charging module.

Applications

Kitchens and work surfaces
Offices and meeting rooms
Hotel bedside panels
Living areas

Specifications

System

IN-07.01

Protection level: IP20
Frames: 2M, 3M, 4M, 7M, 2×2M, 3×2M
Mounting: Flush boxes 2M / 3M / 4M / 7M, drywall boxes 3M / 4M / 7M, mounting frames, distance element
Frame colours: White, Cream, Metallic Black, Antique Gold, Black, Anthracite, Aqua Green, Silver, Smoked, Satin Beige

Modules

IN-07.02

1M switches: Switch, two-way, double-pole, blind control, push button, bell, key push button, intermediate
Sockets: 2M earthed (with/without shutter, with cover), 2M UPS, 1M Italian, 1M / 2M universal, 2M British, 2M USB + Type-C
Dimmers: 100–500 W RC and RL, 1M and 2M
TV & data: TV end-line, feed-through, F female; RJ12 Cat3; RJ45 Cat6; RCA
Other: Energy savers 220 V / 12 V / 12 V 13.56 RF, blank cover, blue lamp
