IN-07 — Flush-mounted switches & sockets

Liva

British-type square plates

01 — Overview

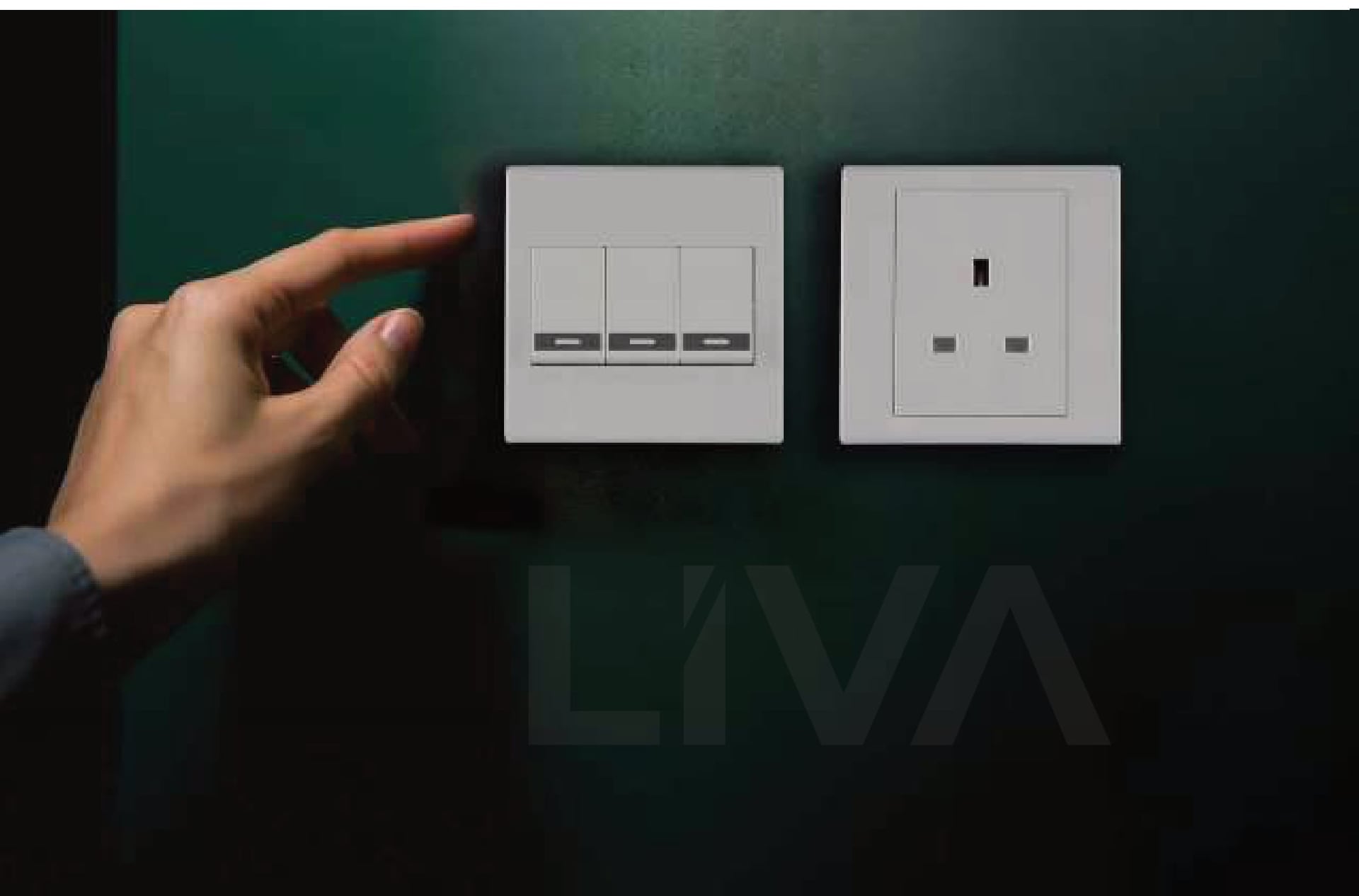

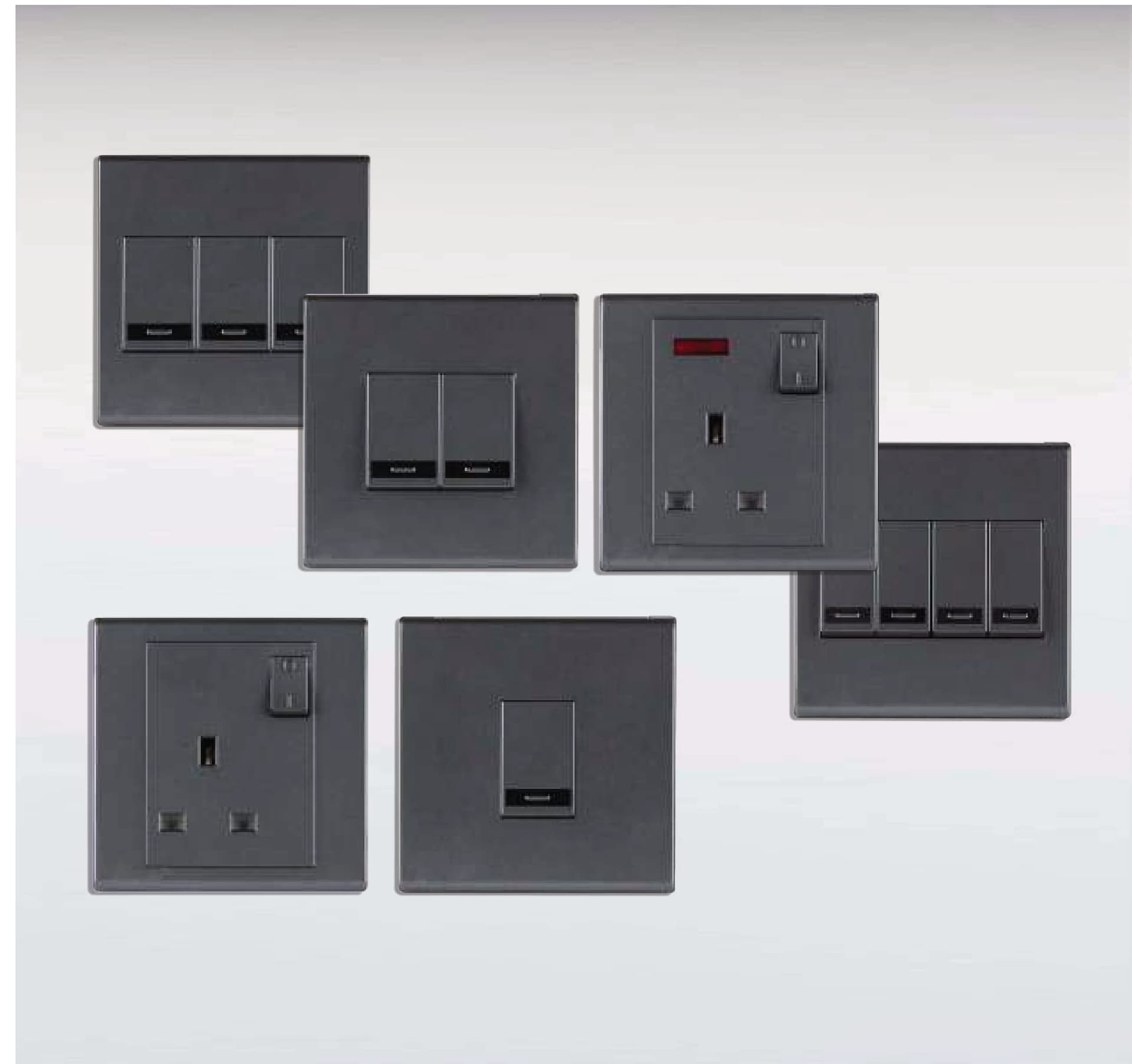

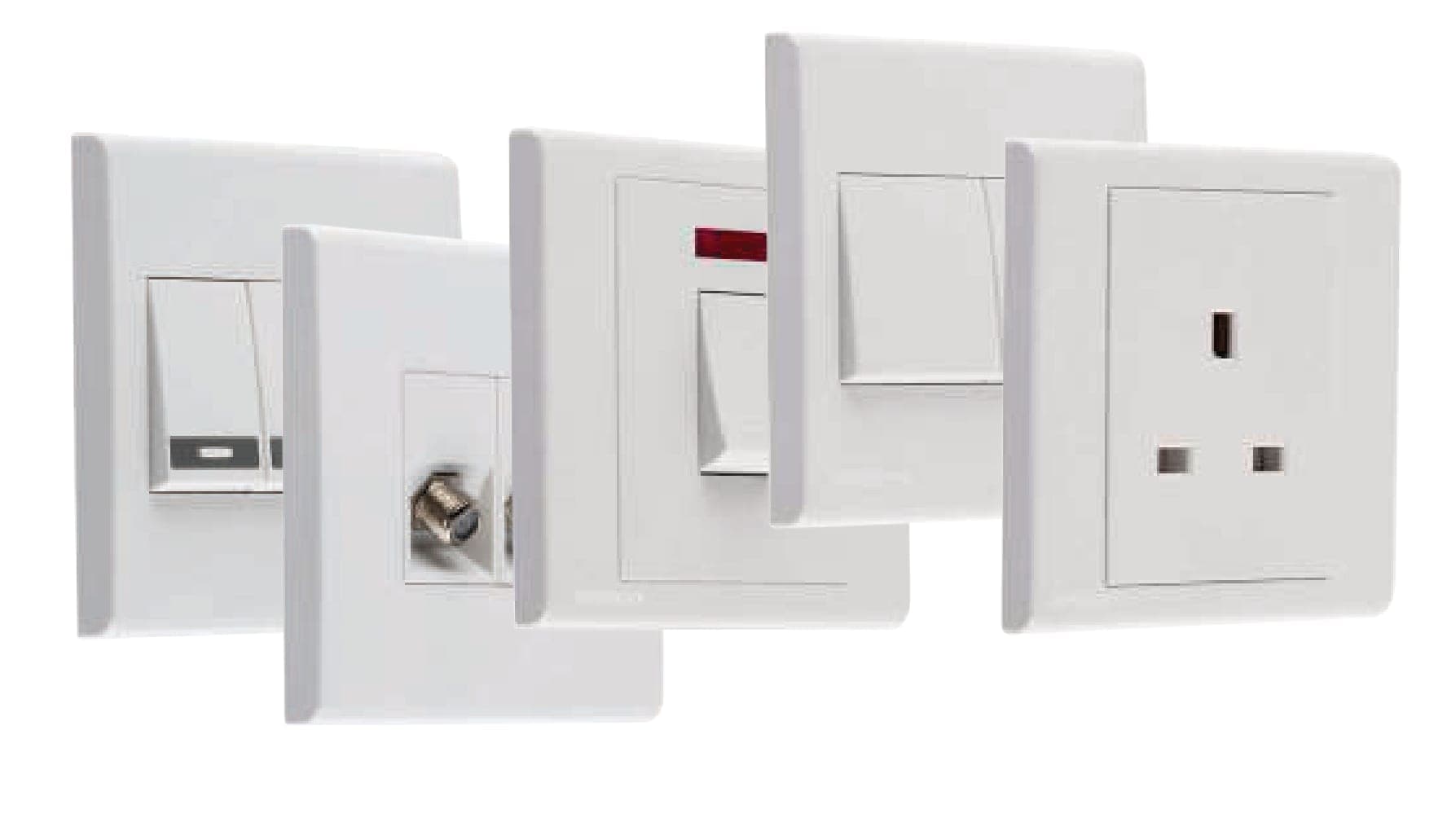

Liva is designed for projects that follow British-type wiring, with square plates in undecorated and decorated versions, 13 A sockets, switched sockets with or without lamp and universal 16 A outlets. Larger 7×14 versions cover four- and six-gang switches and double sockets.

Its boxes offer more switch-installation options, a built-in bridge for 2, 3 and 4 gang switches and large openings for thick cables. They are made from polycarbonate Lexan, a very strong material that supports UV protection.

Performance

01
British-type sockets
13 A single and double sockets, switched, with lamp.
02
High-current switches
20 A switch and 45 A A/C switch and interface unit.
03
Polycarbonate Lexan
Strong, UV-protected plastic.
04
Built-in bridge
For 2, 3 and 4 gang switches.

Applications

Projects using British-type sockets
Residential towers
Hotels
Air-conditioned buildings

Specifications

Modules

IN-07.01

Switches (15 A): Single, dual, triple, quadruple, sextette (7×14), two-way, commutator two-way, intermediate, blind, bell; small or large button; undecorated or decorated
High-current: Switch 20 A, A/C switch 45 A, 45 A interface unit
Sockets: Single 13 A, double 13 A (7×14), switched 13 A (single/dual pole, with lamp), universal switched 16 A, modular German 16 A, modular universal 16 A, modular 13 A
Dimmers & fans: Single dimmer 300 W, dual dimmer 300 W + 300 W, fan 300 W
Data & media: Telephone Cat-3, data Cat-5, satellite F, USB, HDMI, audio jack, combined outlets
