IN-07 — Plugs & adapters
01 — Overview
Overview
The accessory range completes the installation at the point of use: rewireable male and female plugs, multi-way adapters and clover-type sockets for surface or recessed mounting, a British-to-Schuko adapter and an in-line hand switch.
Single surge protection sockets (625 J), with or without USB + Type-C charging, and 2.4 A USB charger adapters protect and power everyday devices.
02
Performance
- 01

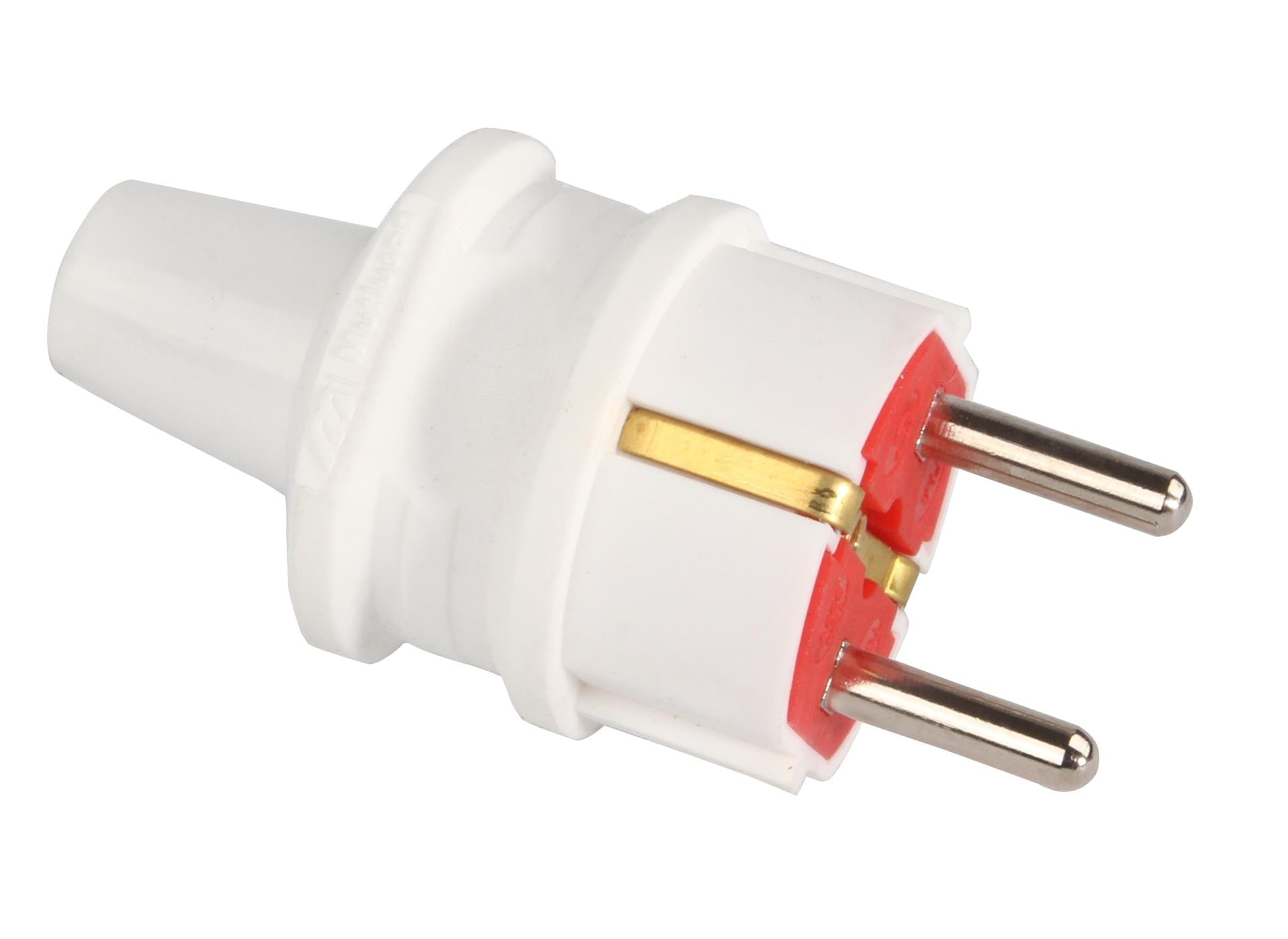

Rewireable plugs
Earthed, tailed, UPS and handle versions.
- 02

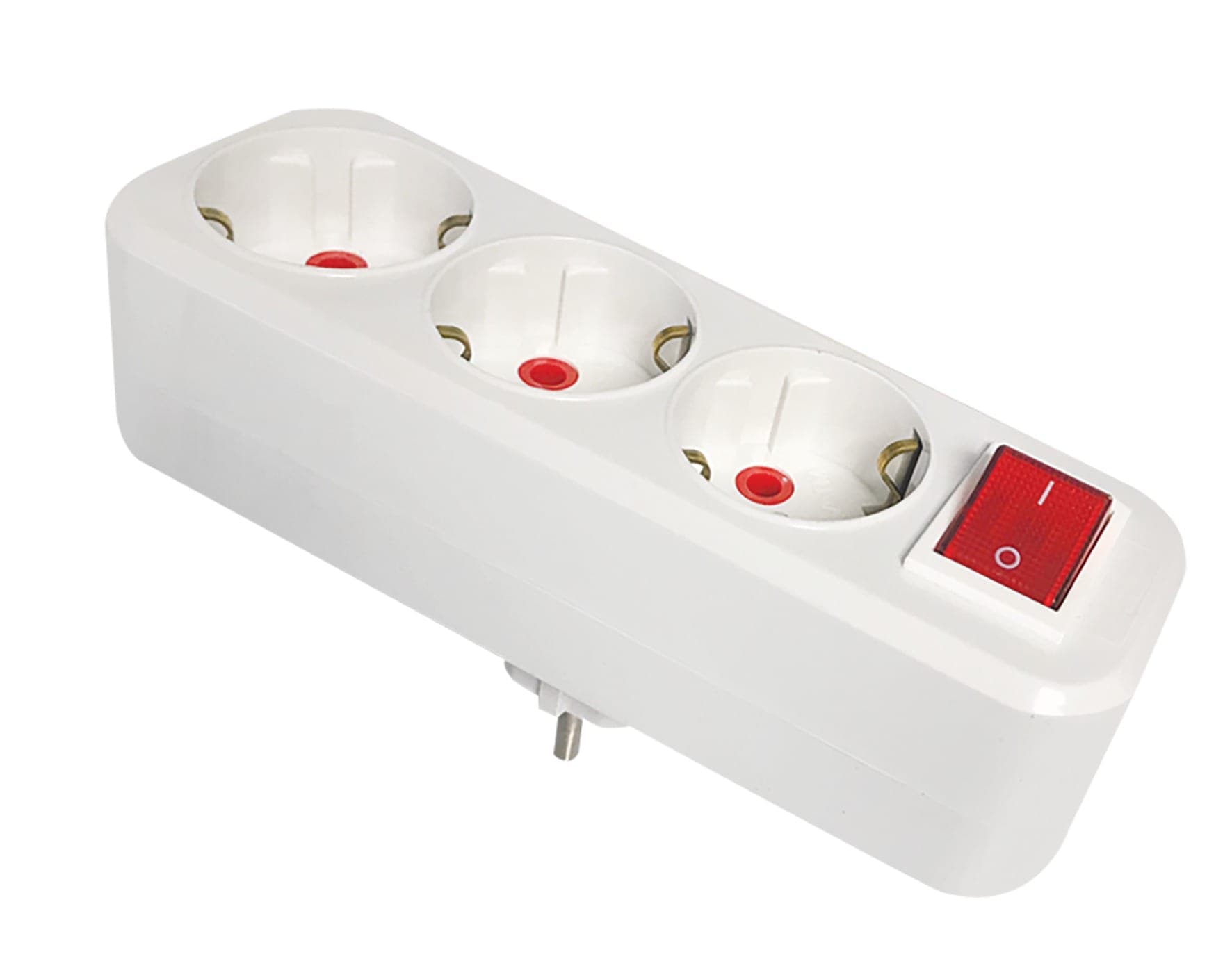

Multi-plug adapters
2 and 3 gang, flat type, switched option.
- 03
Surge protection
Single sockets rated 625 J.
- 04
Child protection cover
Socket cover for homes with children.
03
Applications
- Appliance connection
- Homes with children
- Offices
- Travel and mixed-standard sites
04
Specifications
Range
IN-07.01- Plugs

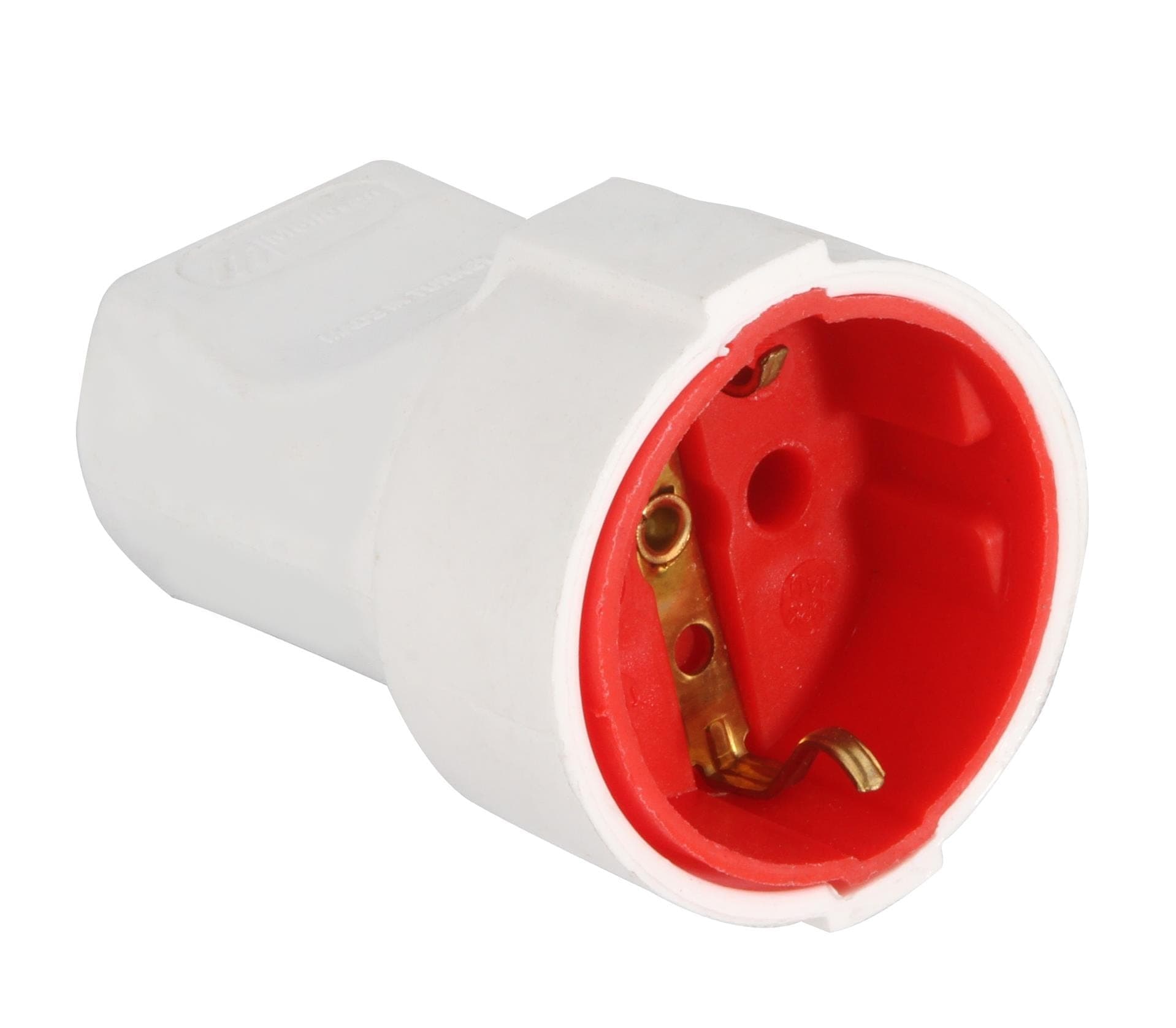

- Male plug, earthed male plug (straight, tailed, with handle), UPS earthed male plug, female plug, earthed female plug
- Adapters
- 2 and 3 gang earthed adapters (flat type, switched), clover-type 3 gang (surface / recessed mounted), British (BS 546) to Schuko (CEE 7/4) adapter
- Protection
- Single surge protection socket 625 J; with USB + Type-C 625 J
- Chargers
- Double USB charger adapter 2.4 A; USB + Type-C charger adapter 2.4 A
- Other
- Bakelite hand switch, socket child protection cover
Gallery
01 / 03
02 / 03
03 / 03
Sheet 09 — Enquiry
Specify Plugs and Sockets.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
