IN-07 — Surface-mounted & weatherproof

Bron

Surface-mounted, every surface

01 — Overview

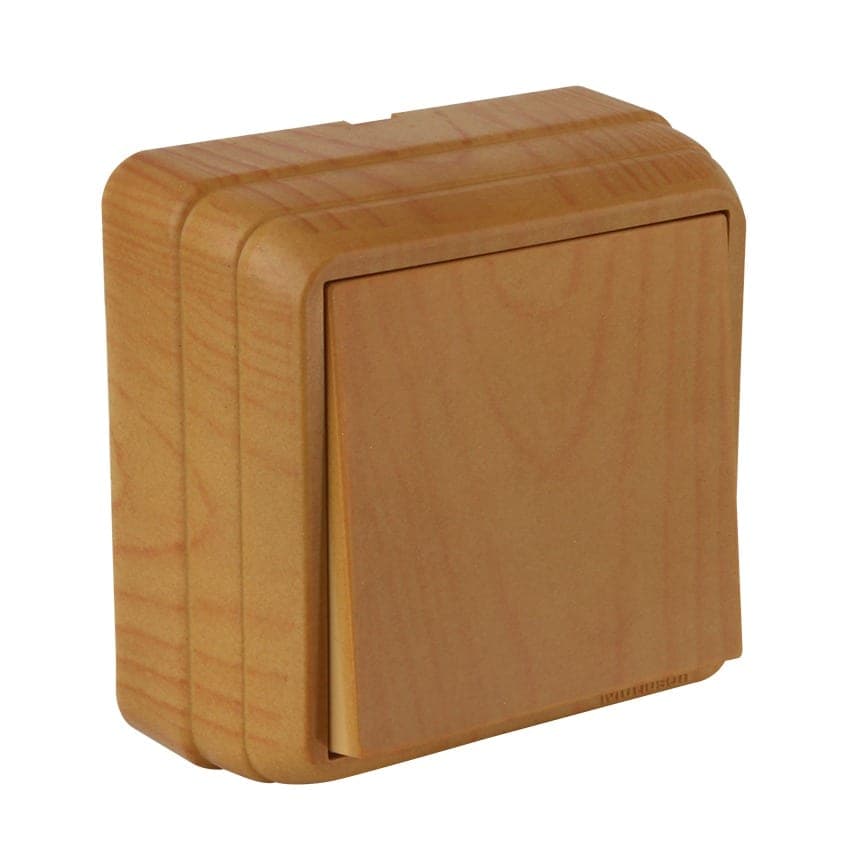

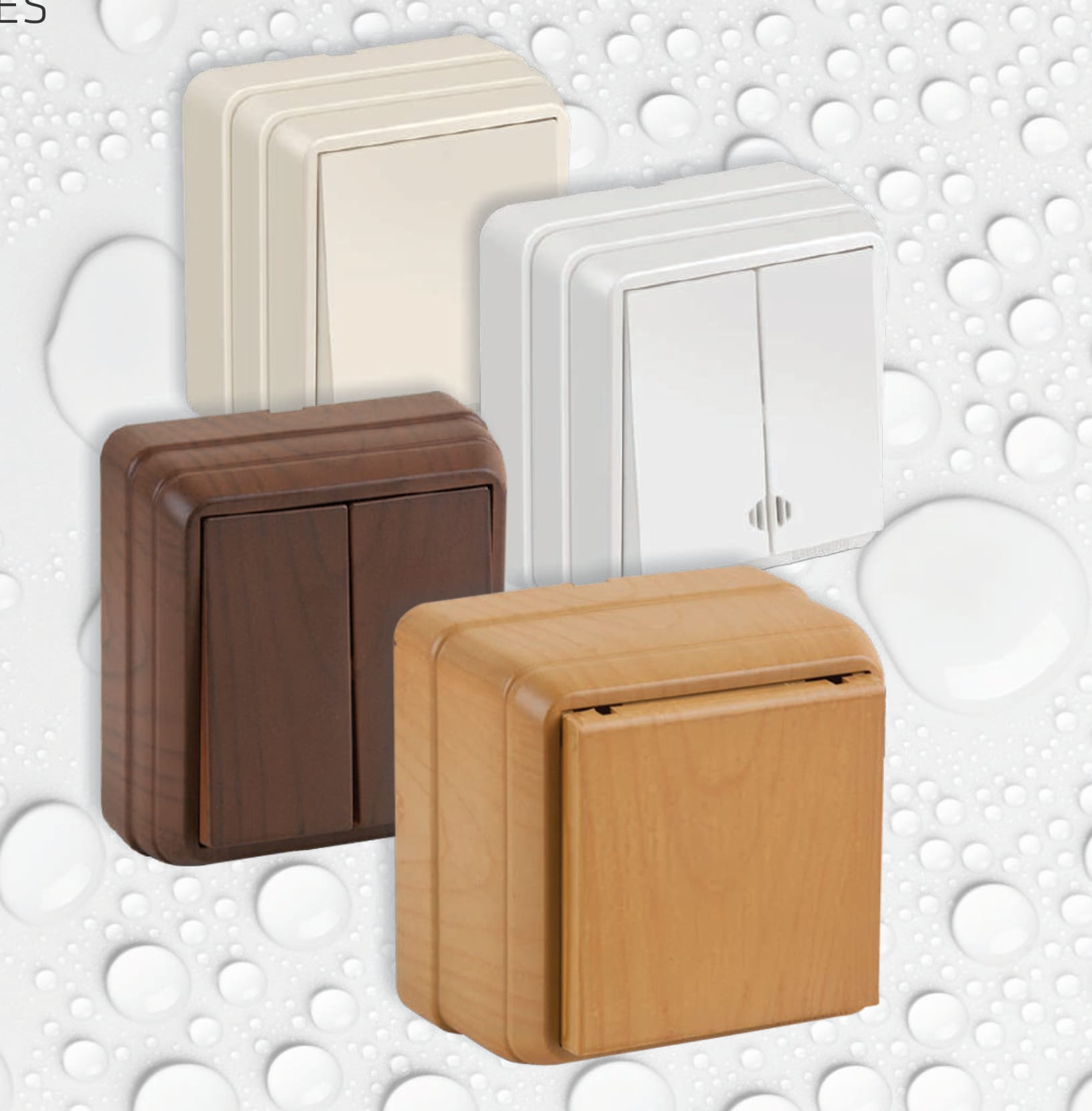

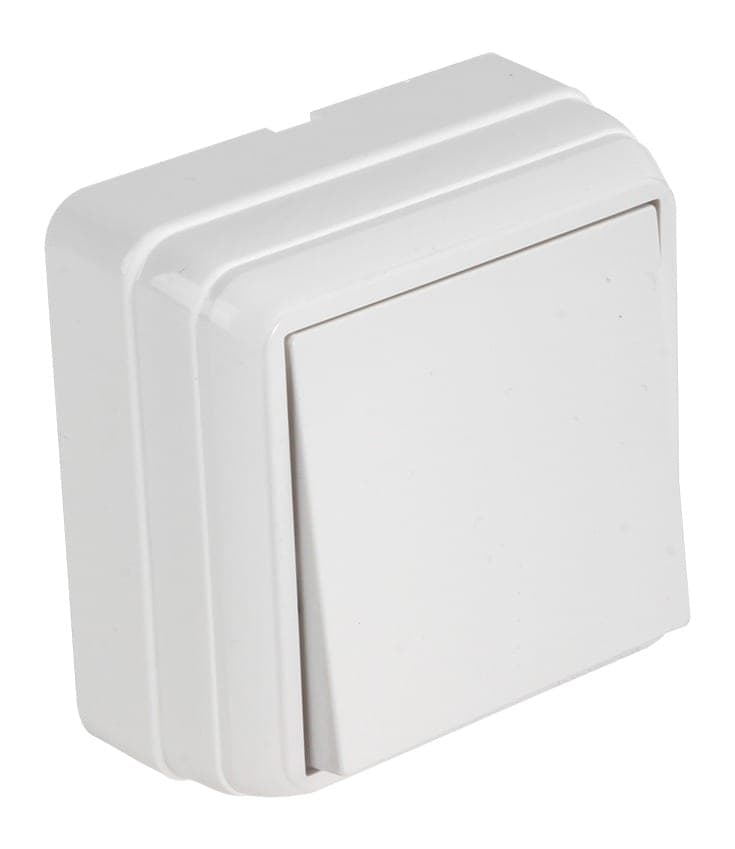

Bron allows easy installation on any surface, which makes it a practical choice for renovation, timber construction and walls without flush boxes. Its compact square housings come in white and ivory or in walnut and oak wood finishes.

The series includes switches, illuminated switches, single and double sockets (also in porcelain), covered and UPS sockets, telephone, data, TV and satellite outlets. It is halogen free.

Performance

01
Surface-mounted
No flush box needed.
02
Wood finishes
Walnut and Oak alongside White and Ivory.
03
Porcelain sockets
Single and double porcelain versions.
04
Halogen free
HF-marked series.

Applications

Renovation
Timber and log houses
Storage and technical rooms
Rental properties

Specifications

Series

IN-07.01

Mounting: Surface-mounted
Housing: 66 × 66 mm (31 / 36 mm deep)
Colours: White, Ivory, Walnut, Oak
Switches: One-way, two-gang, two-way, push; illuminated one-way, two-way, push (220 V) and two-gang
Sockets: Earthed, non-earthed, porcelain, covered earthed (incl. porcelain), UPS (French), double earthed / non-earthed (incl. porcelain), double UPS
Data & TV: Telephone RJ12, data RJ45 Cat5 / Cat6, SAT through 4 dB / F connector, SAT dead-end, TV through, TV dead-end
