IN-07 — Group sockets
01 — Overview
Overview
Ri-tech group sockets are designed around safety and ease of use. Child-proof outlets protect against electric shock, the easy-connection design speeds up assembly and a hanger allows the unit to be fixed to any surface.
Versions cover earthed, non-earthed and UPS outlets, with or without switch, supplied with terminals or with cords of 1 to 10 m. Surge-protected six-gang units absorb up to 1425 J and include USB or USB + Type-C charging.
02
Performance
- 01
Child protection
Shuttered outlets throughout.
- 02
Surge protection
Up to 1425 J on six-gang units; 525 J on three-gang units.
- 03
USB + Type-C
Charging ports, USB 12 W / 2.4 A.
- 04
Hanger mounting
Fix to desks, walls or furniture.
03
Applications
- Home offices and desks
- Media and TV units
- Kitchens and laundry rooms
- Offices
04
Specifications
Group sockets
IN-07.01- Outlets
- 2, 3, 4 or 6 gang; earthed, non-earthed or UPS
- Switch
- With or without switch
- Cord
- Terminal (no cable), 1, 2, 3, 5, 7 or 10 m depending on version
- Charging
- USB + Type-C (3 gang); 2× USB or USB + Type-C (6 gang surge-protected); USB 12 W / 2.4 A
Surge-protected versions
IN-07.02- 6 gang
- 1425 J, 3 × 1.5 mm² cord, 1.5 m
- 3 gang
- 525 J, 3 × 1.5 mm² cord, 1.5 m or 3 m
- Warranty
- 2 years (surge-protected six-gang unit)

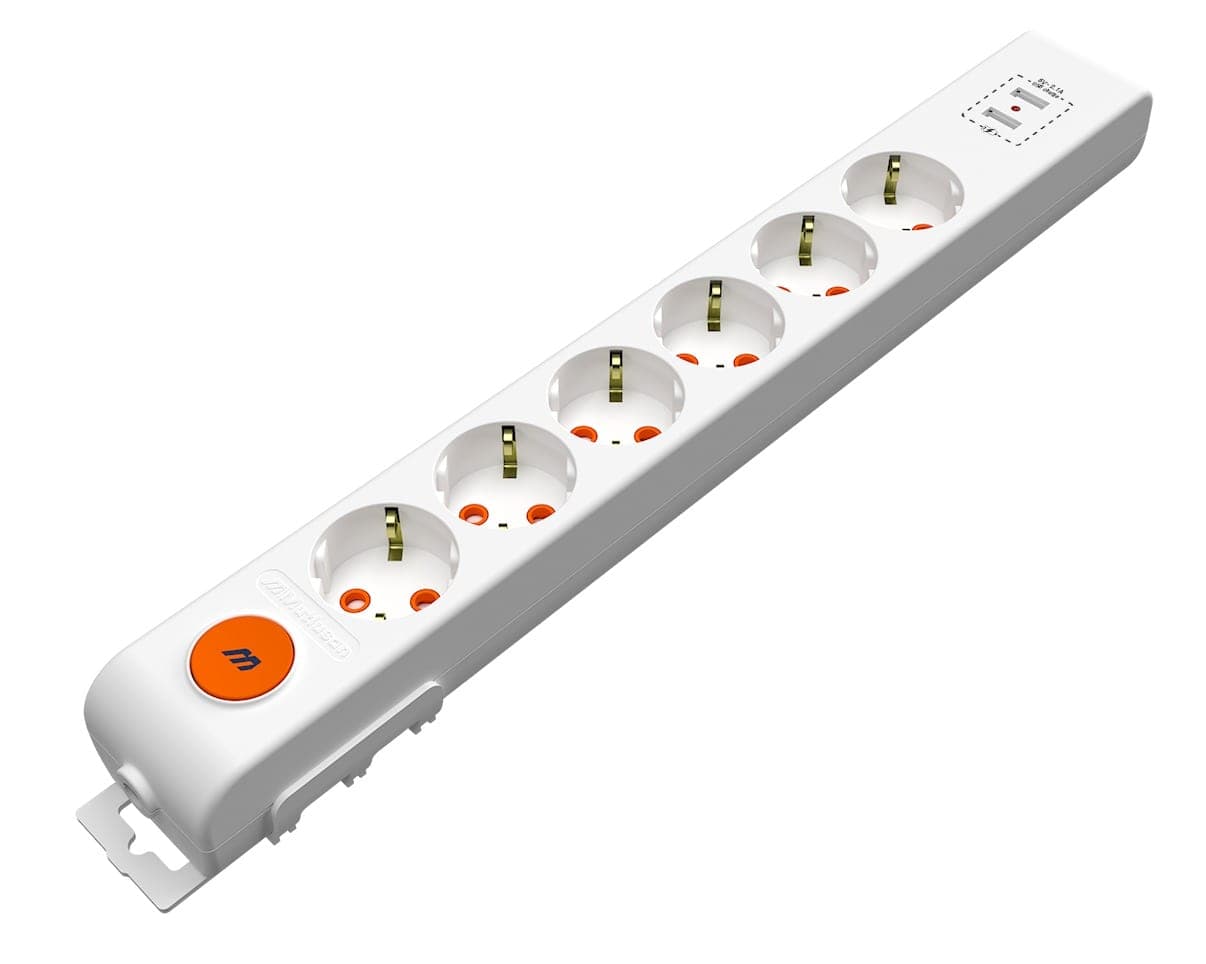

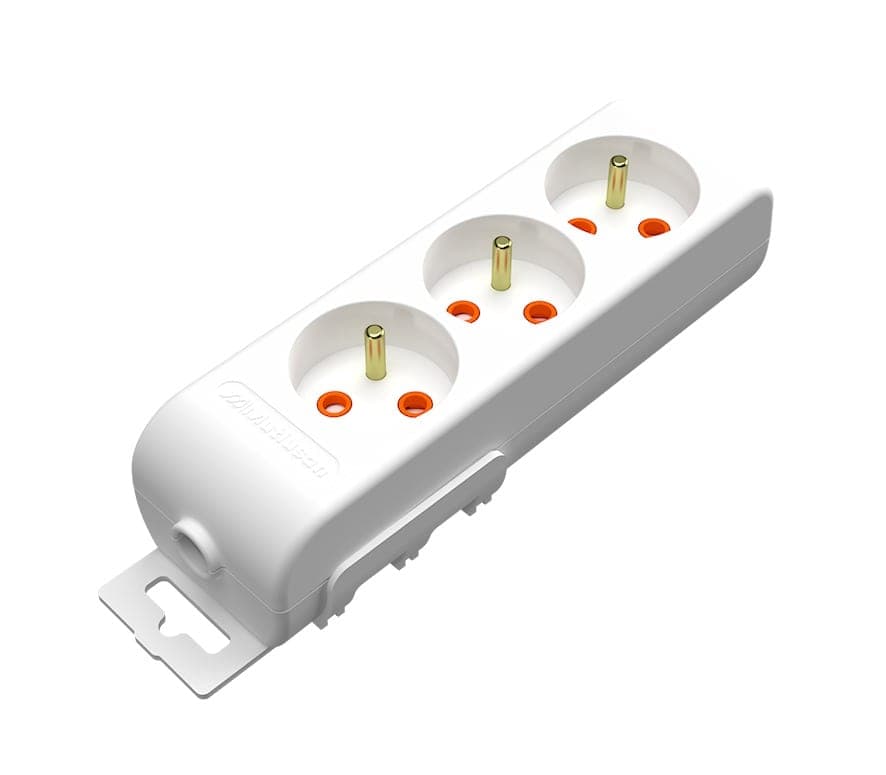

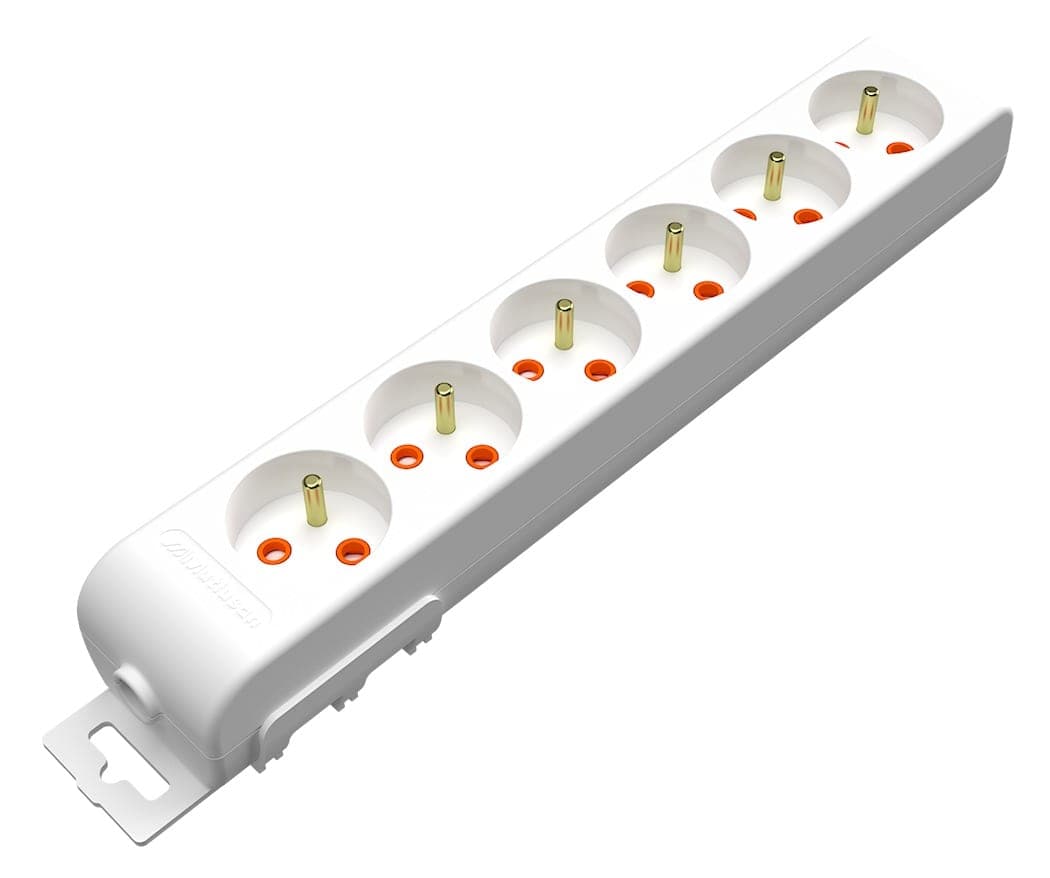

Gallery
01 / 03
02 / 03
03 / 03
Sheet 09 — Enquiry
Specify Ri-tech.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
