EX-02 — Exterior & Facade

Fiber Cement Board

Cement and fibre pressed into a flat, A1-rated board that works everywhere from foundation to roof.

Reaction to fire — EN 13501-1: A1
Density ± 75: 1150kg/m³
Thickness range: 6–20mm

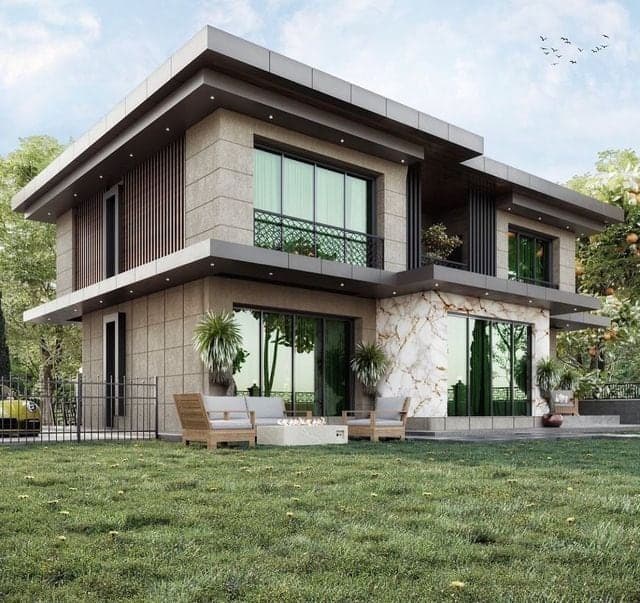

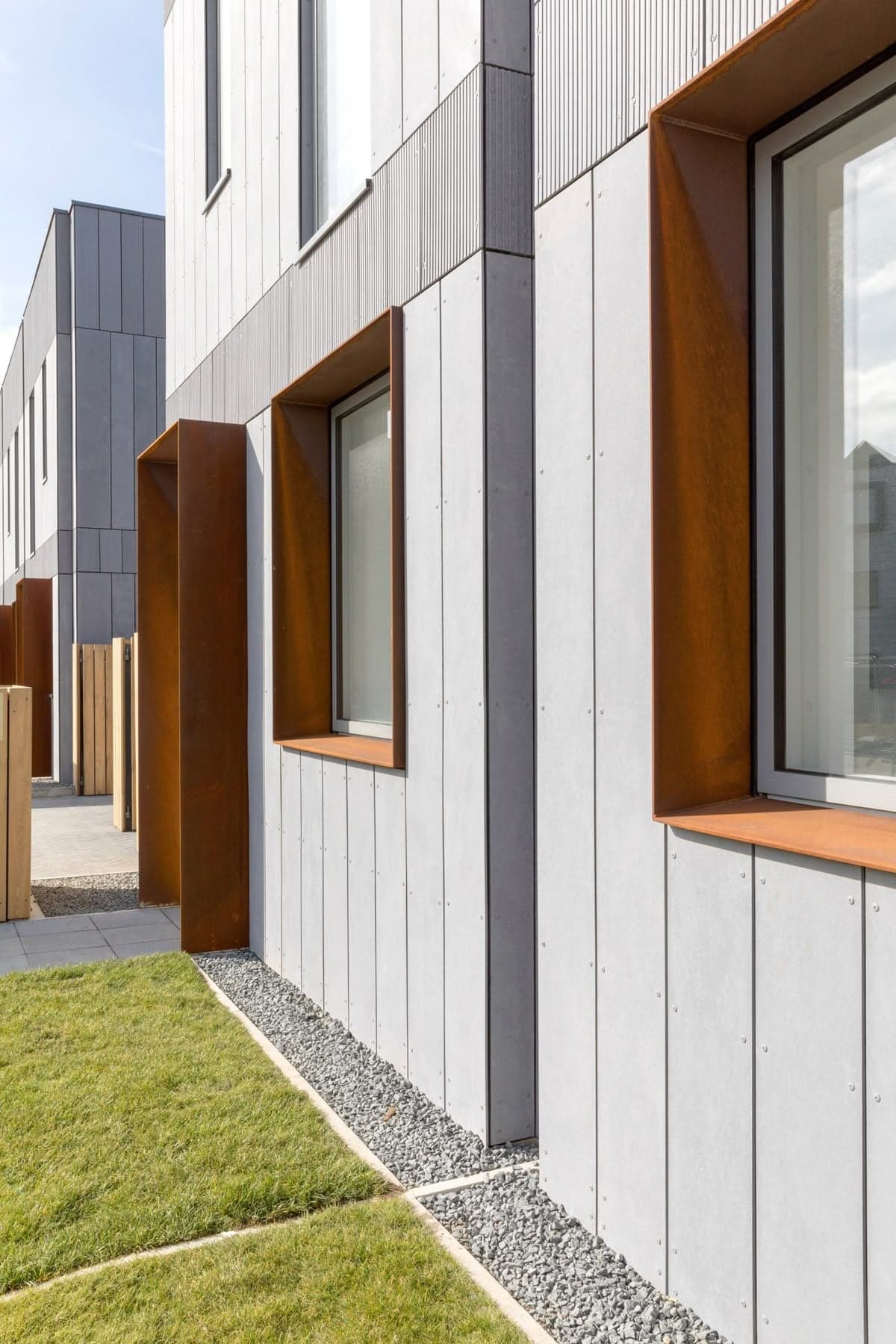

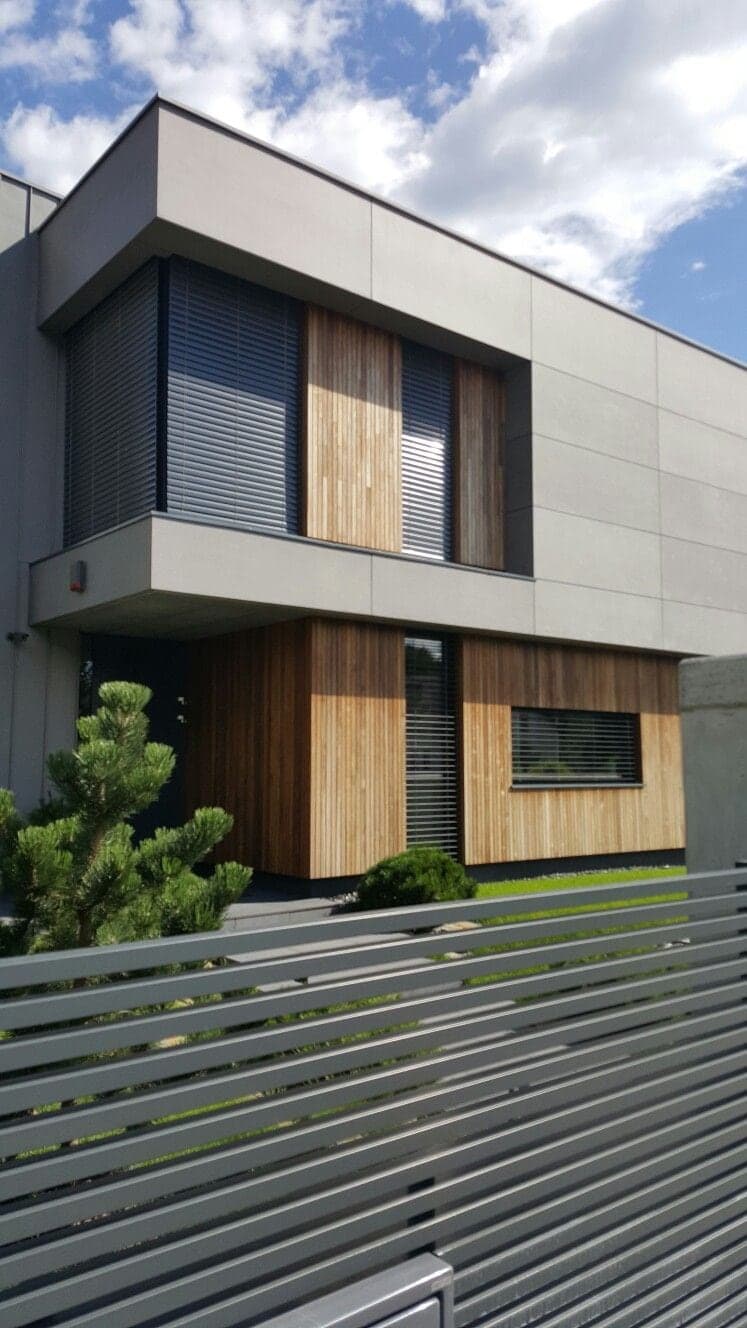

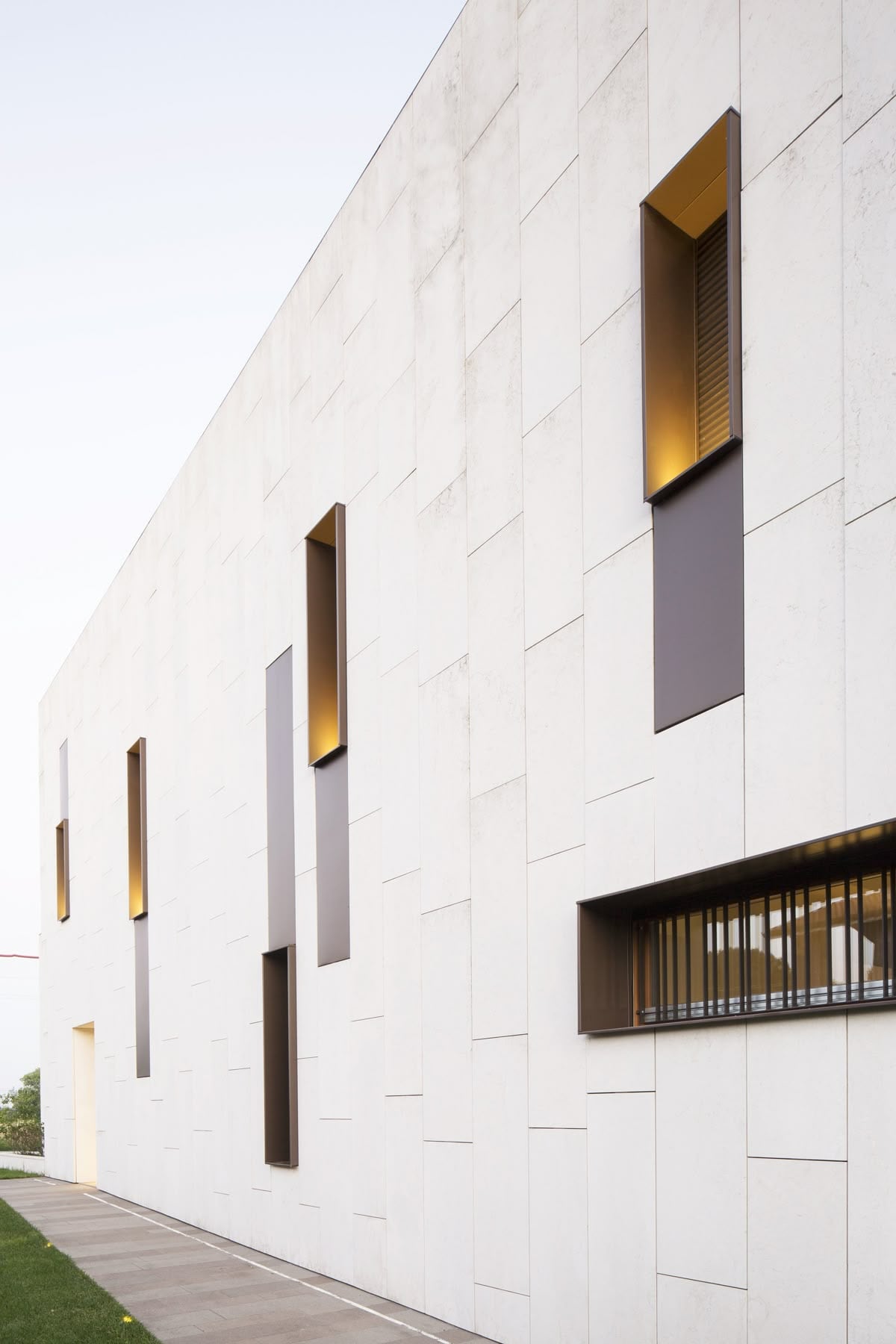

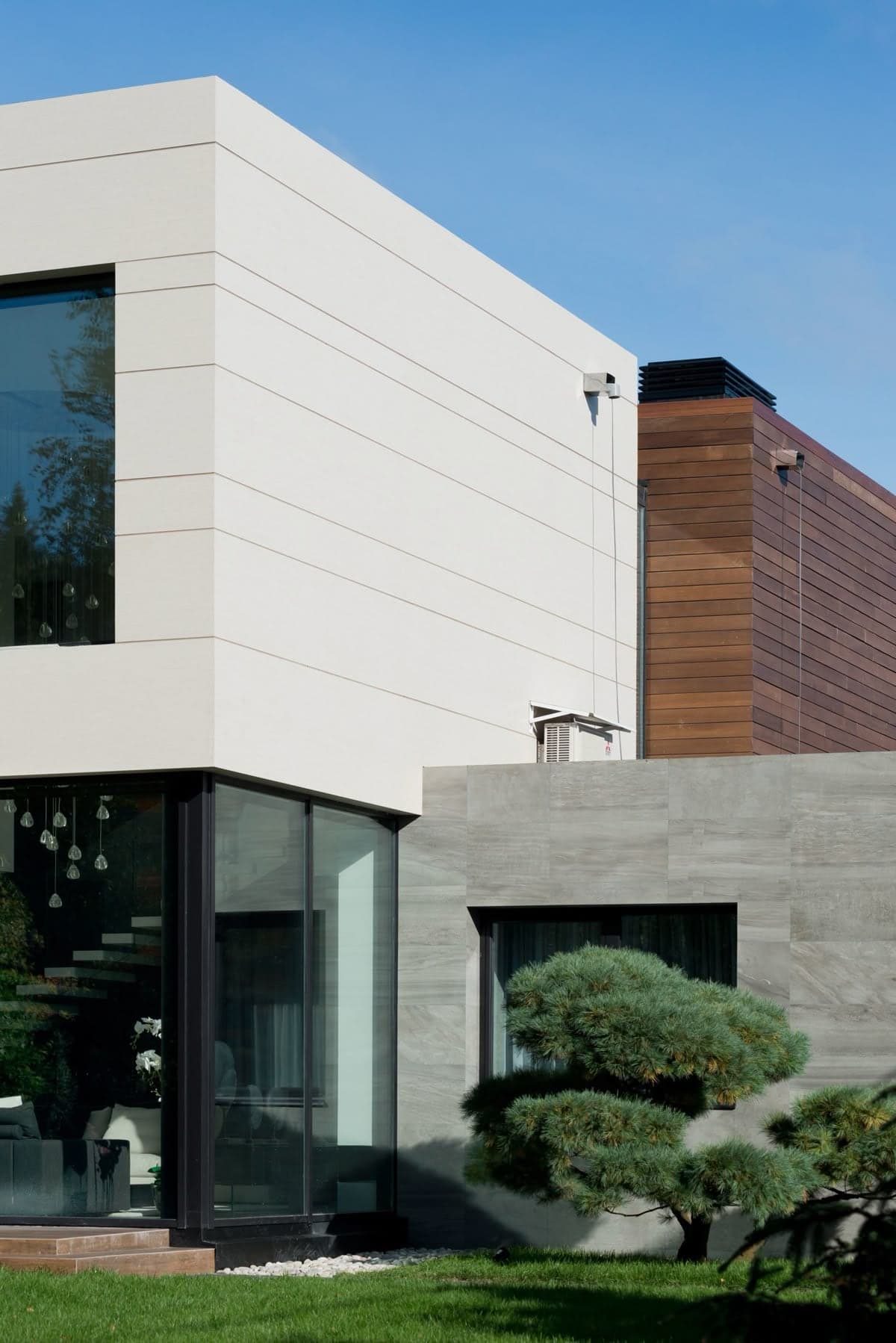

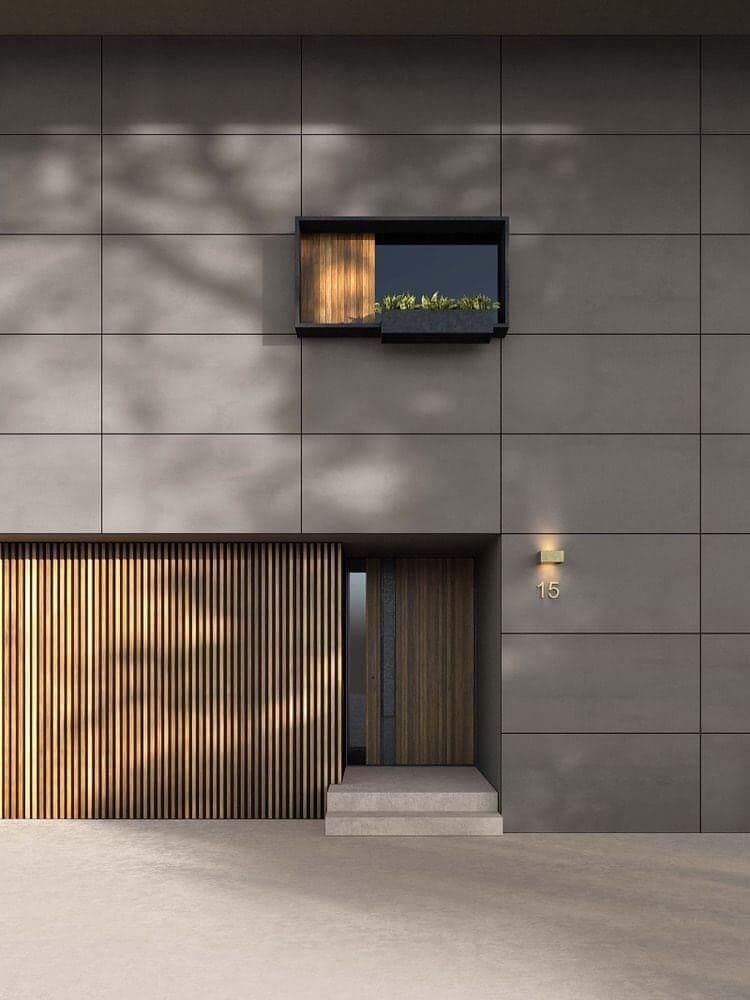

Fiber Cement Board — project view — Exterior & Facade — Fiber Cement Board

01 — Overview

Fiber cement board is a multipurpose building board made from a blend of cement and cellulose fibre, with A1 reaction to fire to EN 13501-1. Its natural colour is a soft cream that comes from its raw materials. It is offered with a smooth face, calibrated Flat and fine Line sanded surfaces, and a range of decorative textures.

On the exterior it is installed with mechanical fixings on ventilated-facade principles. It protects buildings from adverse weather, contributes to thermal and sound insulation, and improves energy efficiency. It is lightweight and long-lasting, which makes it ideal for renovation work, and a reinforced Pro grade and a dedicated roof sheathing board extend the range.

Inside, it serves as partition, shaft and fire walls, as a floor and mezzanine board, as a ceiling, and as a substrate under ceramic tiles in wet areas. It can be finished with paint, surface coatings or wallpaper, and it is more impact-resistant than gypsum-based boards.

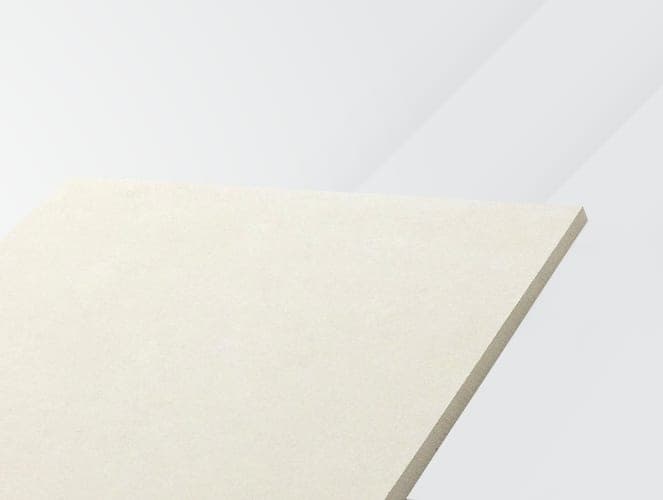

tepePAN® range

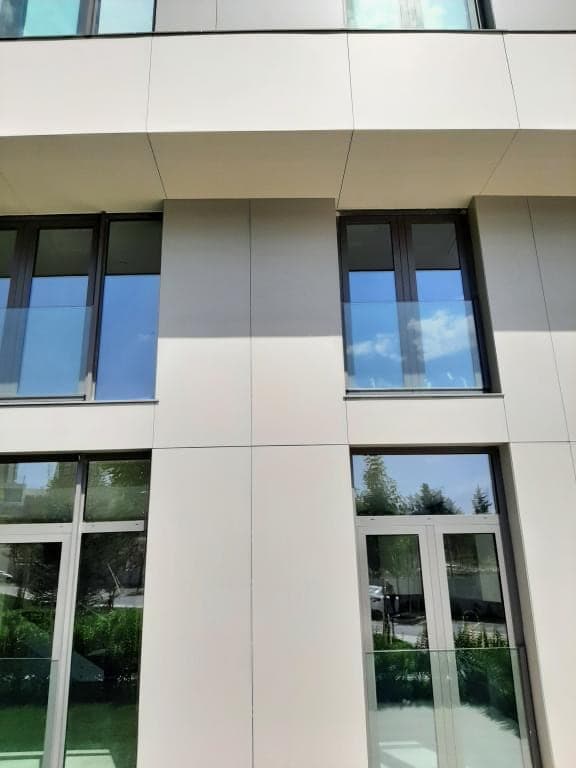

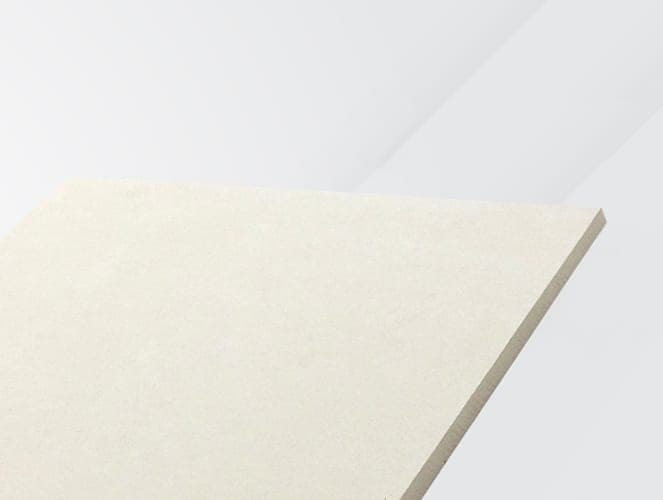

Smooth and sanded boards, a reinforced Pro grade, six decorative textures and a roof sheathing board — all A1 non-combustible.

Performance

01
Decorative textures

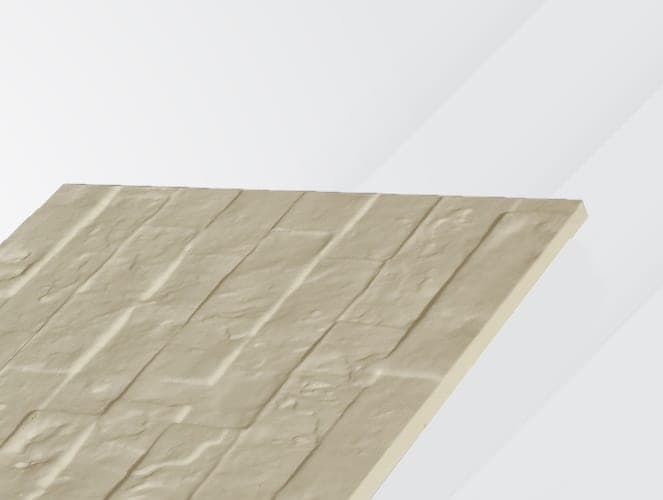

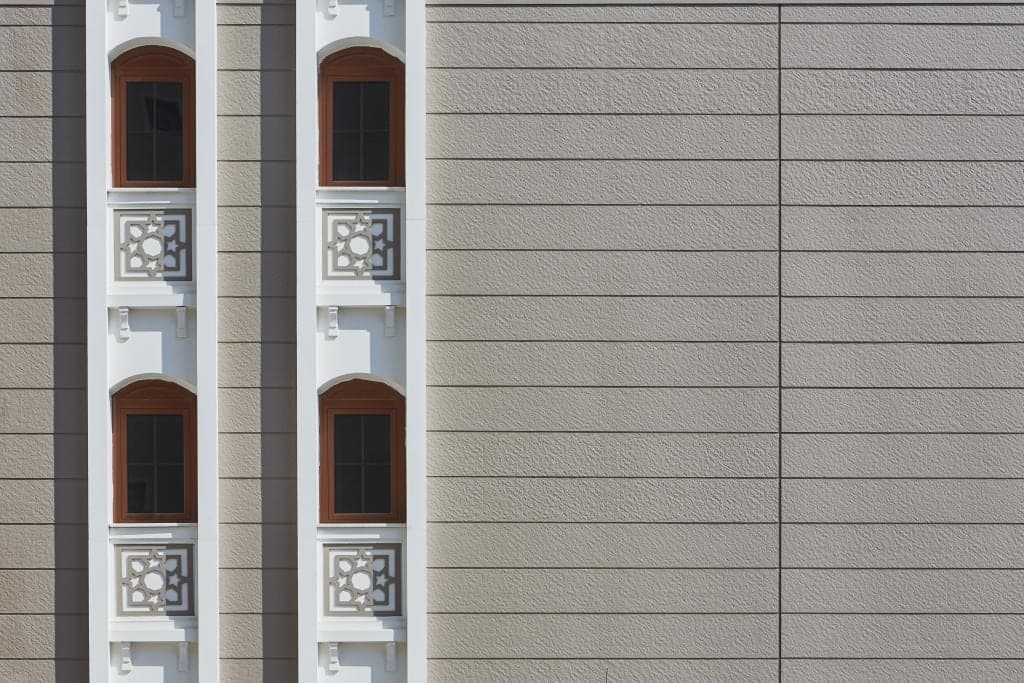

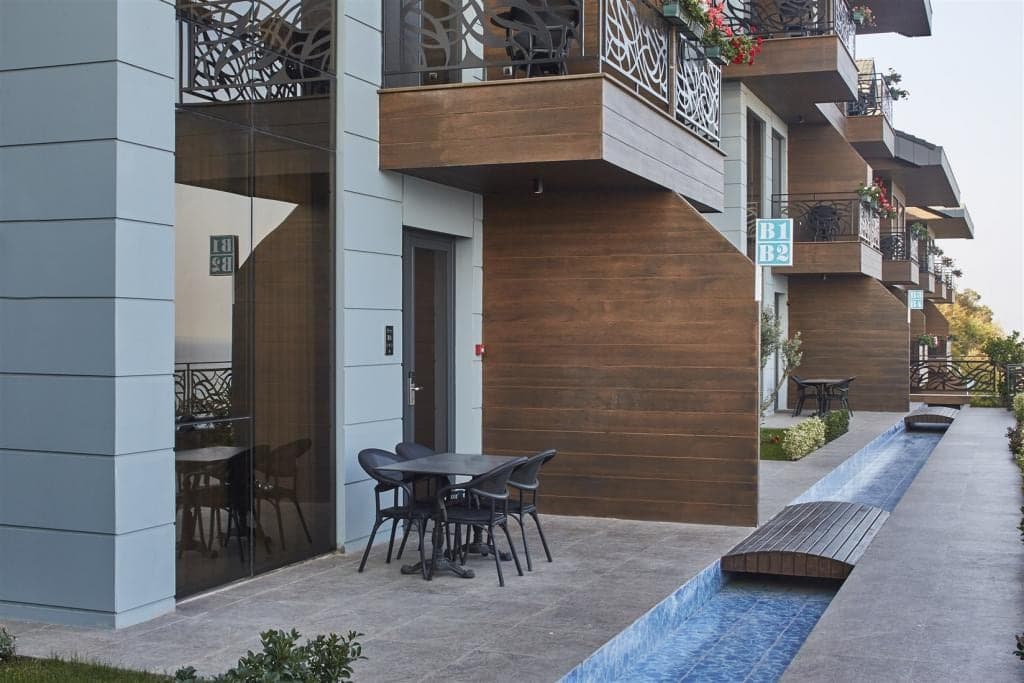

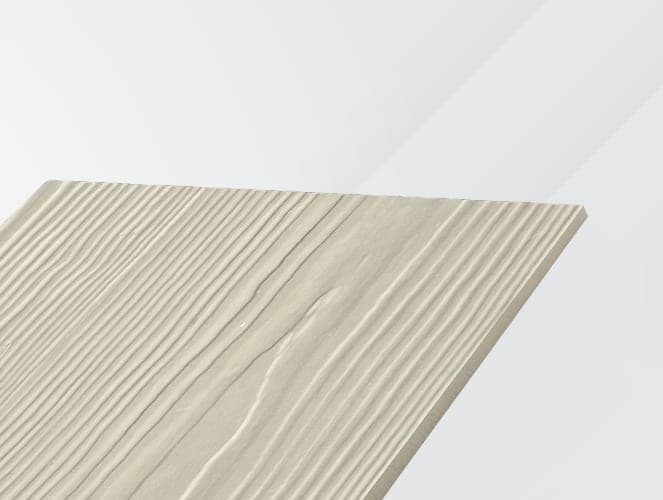

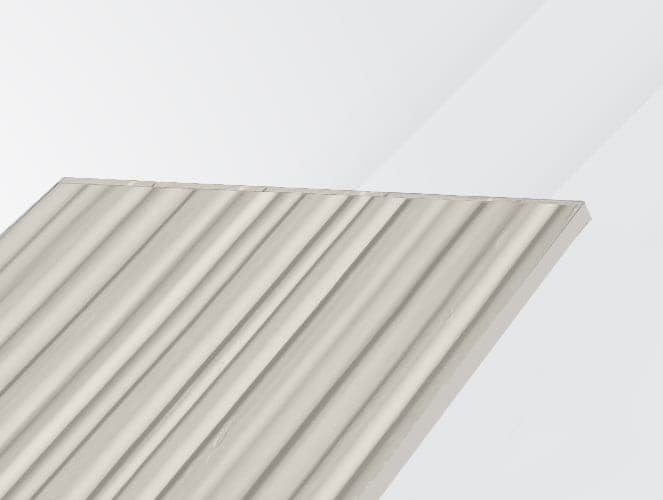

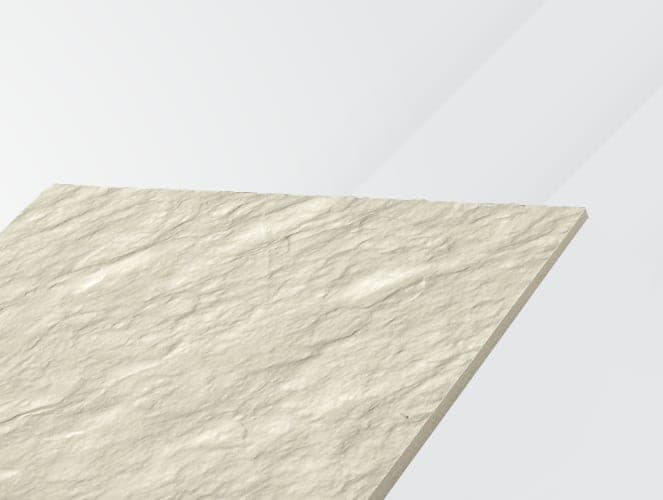

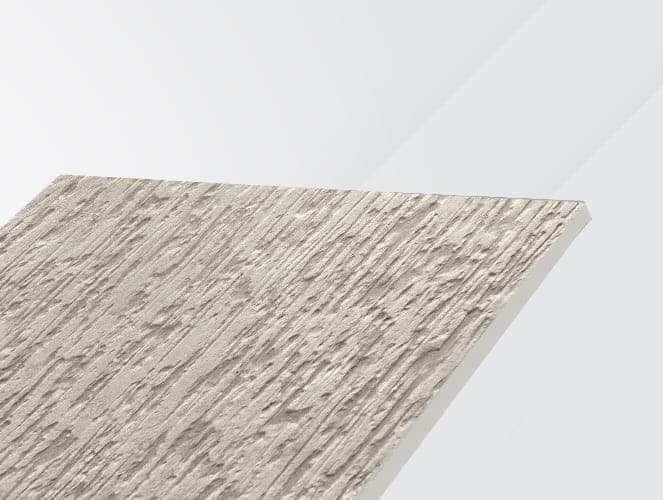

Wood, stone, brick, brick-stone, plaster and linear textures, plus Flat and Line sanded faces.
02
Foundation to roof
Architectural and structural solutions across the whole building, including roof sheathing.
03
Ventilated facade
Mechanical fixing based on ventilated-facade principles.
04
Weather resistant
Resists seasonal change, UV, water and moisture.
05
Insulation
Contributes to thermal and sound insulation and energy efficiency.
06
Healthy material
Asbestos-free and odourless, with no harmful gas emissions. Will not rot, mould or attract insects.
07
Impact resistant
Higher impact resistance than gypsum-based boards.
08
Paintable
Takes paint in any colour, as well as coatings and wallpaper.
09
Easy to work
Easy to install, cut, drill and replace.

Applications

A1Exterior walls & facade systems
A2Roof & wall sheathing
A3Soffits, fascias & outdoor ceilings
A4Balconies, parapets & boundary walls
A5Partition, shaft & fire walls
A6Floors, mezzanines & wet-area tile backing

Specifications

Technical

EX-02.01

Density (dry): 1150 ± 75 kg/m³
Shipping density: 1400 ± 100 kg/m³
Thermal conductivity: 0.2166 W/mK (10 °C dry)
Bending strength: ≥ 7 N/mm²
Modulus of elasticity: ≥ 4000 N/mm²
Reaction to fire: A1 (EN 13501-1)
Type & durability: Category A, Class 2

Standard dimensions

EX-02.02

Smooth, 6 – 16 mm: 6, 8, 10, 12, 14, 16 mm · 1250 × 2500 / 2800 / 3000 mm
Smooth, 18 – 20 mm: 1250 × 2500 mm
Textured boards: 10, 12 mm · 1250 × 3000 mm
Pro: 10, 12, 14, 16 mm · 1250 × 3000 mm

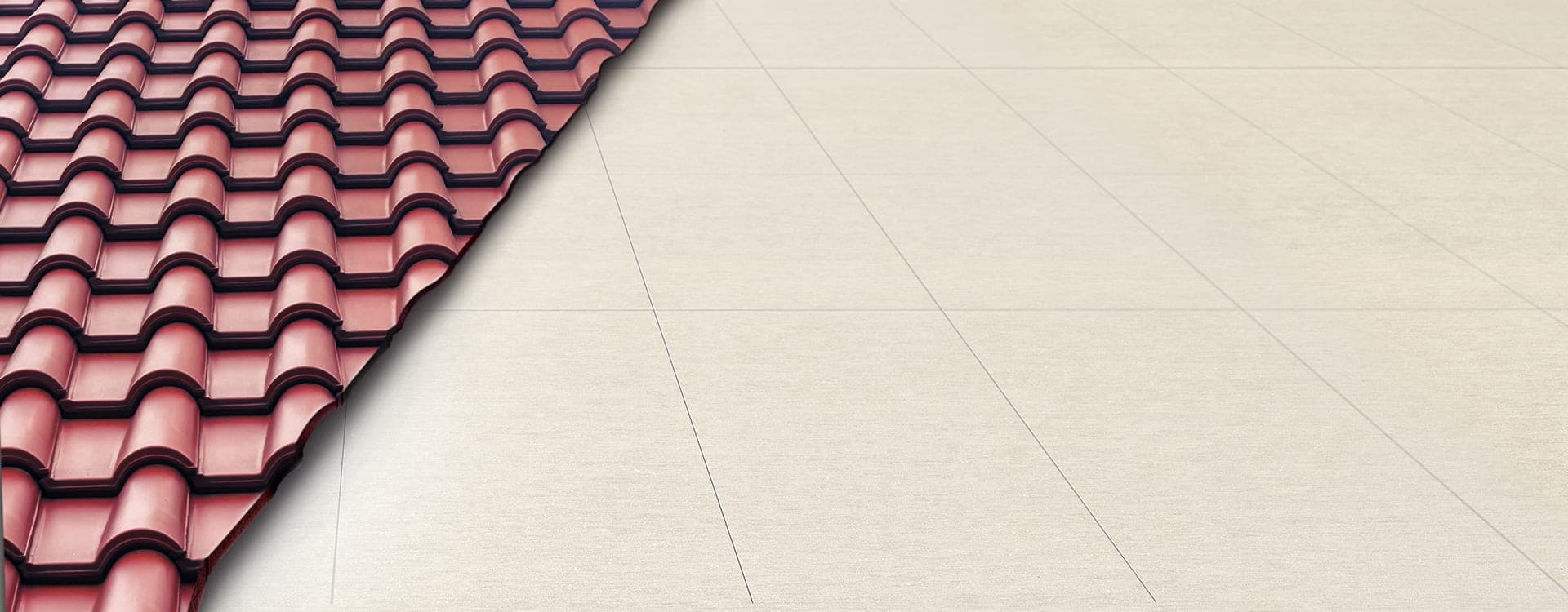

Roof: 13 mm · 610 × 2440 / 1220 × 2440 / 1250 × 2500 mm

Use

EX-02.03

Facade thickness: Min. 10 mm (except prefabricated buildings)
Full-size boards on facades: Prefabricated buildings only
Cutting: Dry cutting method only
Special sizes: Cut from standard boards in width and length

Shipping & storage

Boards are supplied on wooden pallets, wrapped in plastic with strapping and corner protectors; cover with tarpaulin in transport.
Store indoors on level ground, flat and never leaning against a wall; keep the plastic cover and steel straps on until use.
Stack no more than 5 pallets, with feet aligned and a total height of 3.5 m at most.
Colour differences and minor marks on the surface are natural to the raw materials.
