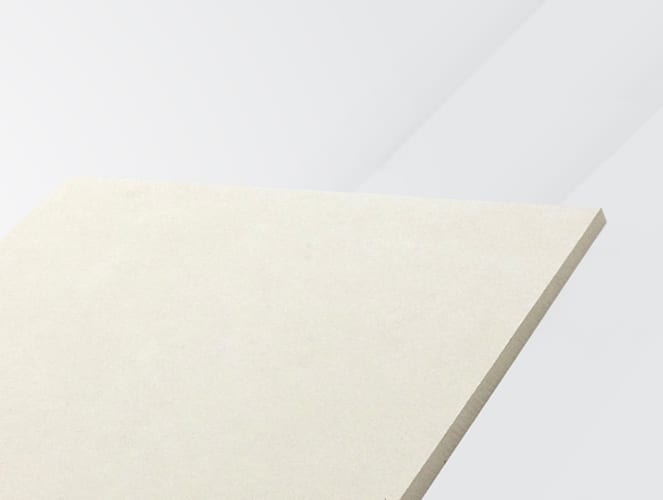

tepePAN Pro®
Reinforced high-strength board
- Bending strength
- ≥ 13N/mm²
- Modulus of elasticity
- ≥ 7000N/mm²
- Reaction to fire — EN 13501-1
- A1
Overview
tepePAN Pro® is a multipurpose flat board with a reinforced surface, pressed for superior strength. With a bending strength of at least 13 N/mm² and a modulus of elasticity of at least 7000 N/mm², it is built for demanding facades and structural uses.
Its natural cream tone comes from its raw materials, and it is available in Flat and Line sanded versions. It can be painted or finished with other surface products, and serves the same uses as tepePAN® from base to roof.
Performance
- 01
Pressed & reinforced
Superior strength from pressing and a reinforced surface.
- 02
Durability Class 3
Category A, Class 3 type and durability classification.
- 03
Flat & Line sanded
Two sanded surface options to suit the finish.
- 04
Foundation to roof
Facade, wall, floor, ceiling and fire-wall applications.
- 05
Impact resistant
Higher impact resistance than gypsum-based boards.
- 06
Healthy material
Asbestos-free and odourless. Will not rot, mould or attract insects.
Applications
- External walls & facades
- Outdoor ceilings, soffits & fascias
- Balconies, parapets, fences & boundary walls
- Internal, shaft & fire walls
- Floors, raised floors & mezzanines
- Indoor ceilings & wet spaces
Specifications
Standard dimensions
EX-02.01- Thickness
- 10, 12, 14, 16 mm
- Board size
- 1250 × 3000 mm
- Surfaces
- Flat or Line sanded
- Special sizes
- Cut from standard boards in width and length
Technical
EX-02.02- Density
- 1250 ± 100 kg/m³
- Shipping density
- 1400 ± 100 kg/m³
- Thermal conductivity
- 0.2166 W/mK (10 °C, dry)
- Bending strength
- ≥ 13 N/mm²
- Modulus of elasticity
- ≥ 7000 N/mm²
- Reaction to fire
- A1 (EN 13501-1)
- Type & durability
- Category A, Class 3

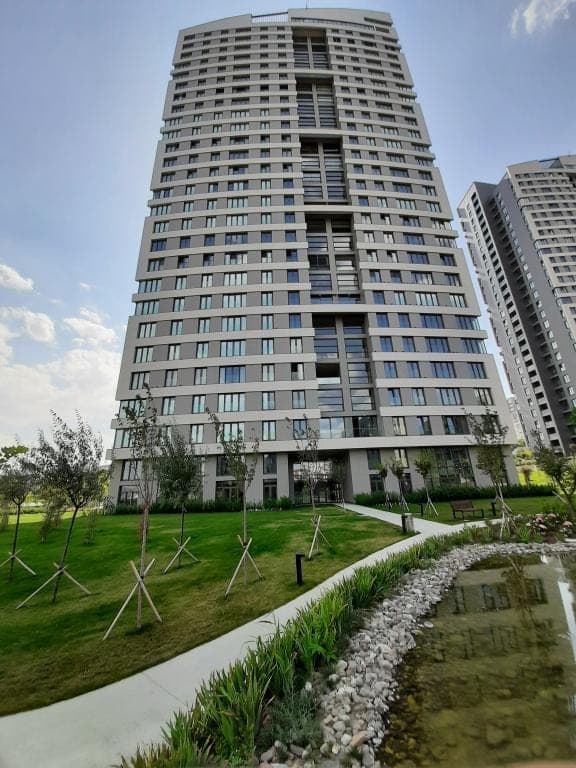

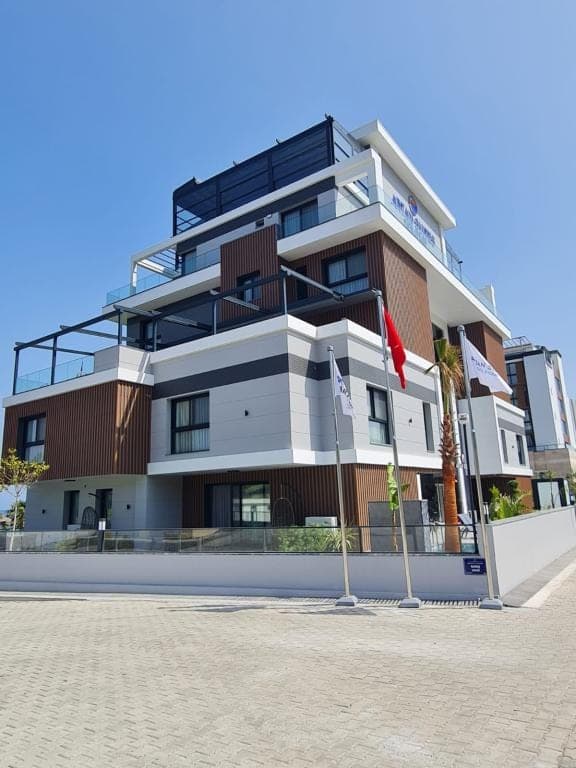

Gallery
01 / 02
02 / 02
Specify tepePAN Pro®.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
