EX-05 — Exterior & Facade

Aluminium Composite Panel (ACP)

Two aluminium skins and a polyethylene core make a light, flat cladding panel that is fast to install.

Panel thickness: 2–6mm
Maximum panel length: 6000mm
Fire-rated types: A2· B1-FR

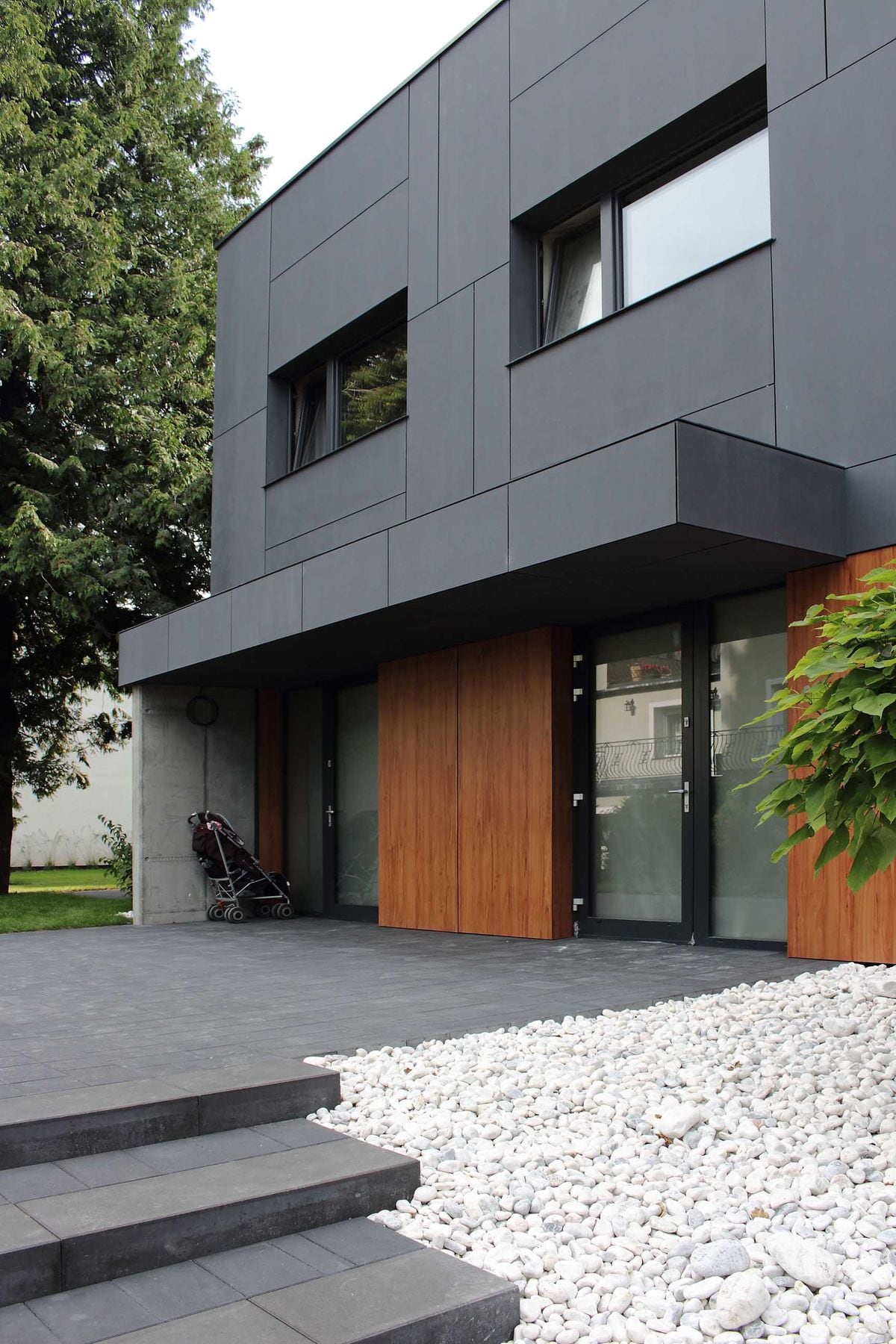

Aluminium Composite Panel (ACP) — project view — Exterior & Facade — Aluminium Composite Panel

01 — Overview

An aluminium composite panel is two aluminium sheets bonded to a low-density polyethylene core with adhesive granules or film. The painted surface of the top sheet gives superior surface durability.

The panels are lightweight, attractive and fast to install. They offer high sound and heat insulation, a wide range of colours and flexible application options, and their cost-effectiveness has made them indispensable for building cladding.

Alongside the standard type, production includes A2 non-combustible and B1-FR (fire retardant) panels, documented with Exova and Warrington Fire test reports.

Performance

01
Lightweight
Light, rigid and easy to handle.
02
Fast installation
Fast, easy installation keeps cladding cost-effective.
03
Insulation
High sound and heat insulation.
04
Colour range
A wide range of colours and flexible applications.
05
Fire-rated options
A2 non-combustible and B1-FR, tested by Exova and Warrington Fire.
06
Durable surface
The painted top sheet gives superior surface durability.

Applications

A1Exterior architecture
A2All facades
A3Curtain walls
A4Interior design
A5Office partitions

Specifications

Panel dimensions

EX-05.01

Standard panel: 4 × 1250 × 3200 mm
Thickness: 2 mm – 6 mm
Length: 2000 mm – 6000 mm
Width: 1000 mm – 2000 mm

Tolerances

EX-05.02

Panel thickness: ± 0.2 mm
Panel length: −0 mm / +4 mm
Panel width: −0 mm / +2 mm
Diagonal difference: max. 3 mm
Edge shift: max. 2 mm
Yield strength: 42 N/mm²
Tensile strength: 48 N/mm²

Certification

EX-05.03

Fire tests: Exova and Warrington Fire test reports
Types: Standard · A2 non-combustible · B1-FR
Management systems: ISO 9001 · ISO 14001 · ISO 45001 · ISO 5001 · ISO/IEC 27001
Conformity: TSE · G Conformity Certificate · ITB Poland
