EX-03 — Exterior & Facade

Cement-Bonded Particle Boards

Wood particles bound in cement, pressed into boards that serve a building from floor to facade.

Reaction to fire, PLUS boards: A2-s1, d0
Thickness range: 8–30mm
Bending strength: ≥ 9N/mm²

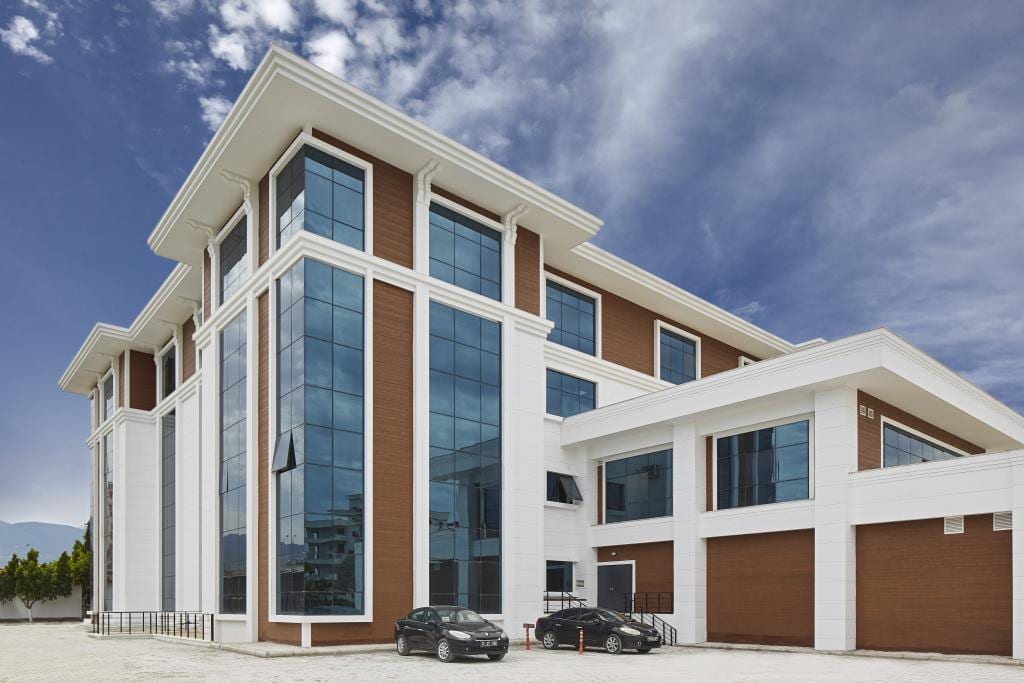

Cement-Bonded Particle Boards — project view — Exterior & Facade — Cement-Bonded Particle Boards

01 — Overview

Cement-bonded particle boards combine the strength and durability of cement with the workability of wood. Wood particles and cement are pressed into a dense, dimensionally stable board that resists water, moisture, frost, insects and fungal decay, and contains no asbestos or harmful emissions.

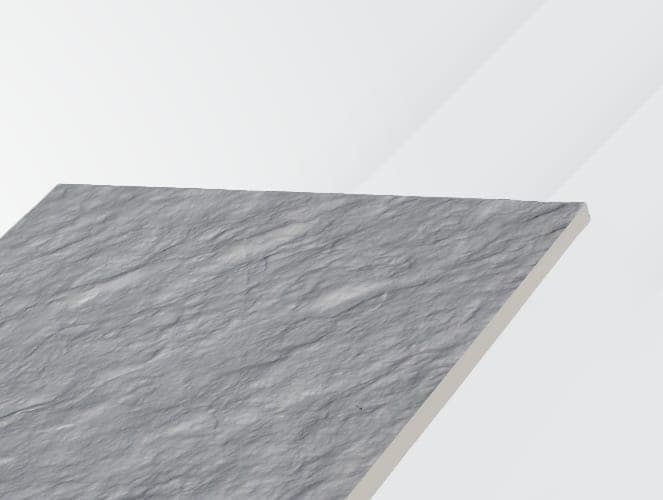

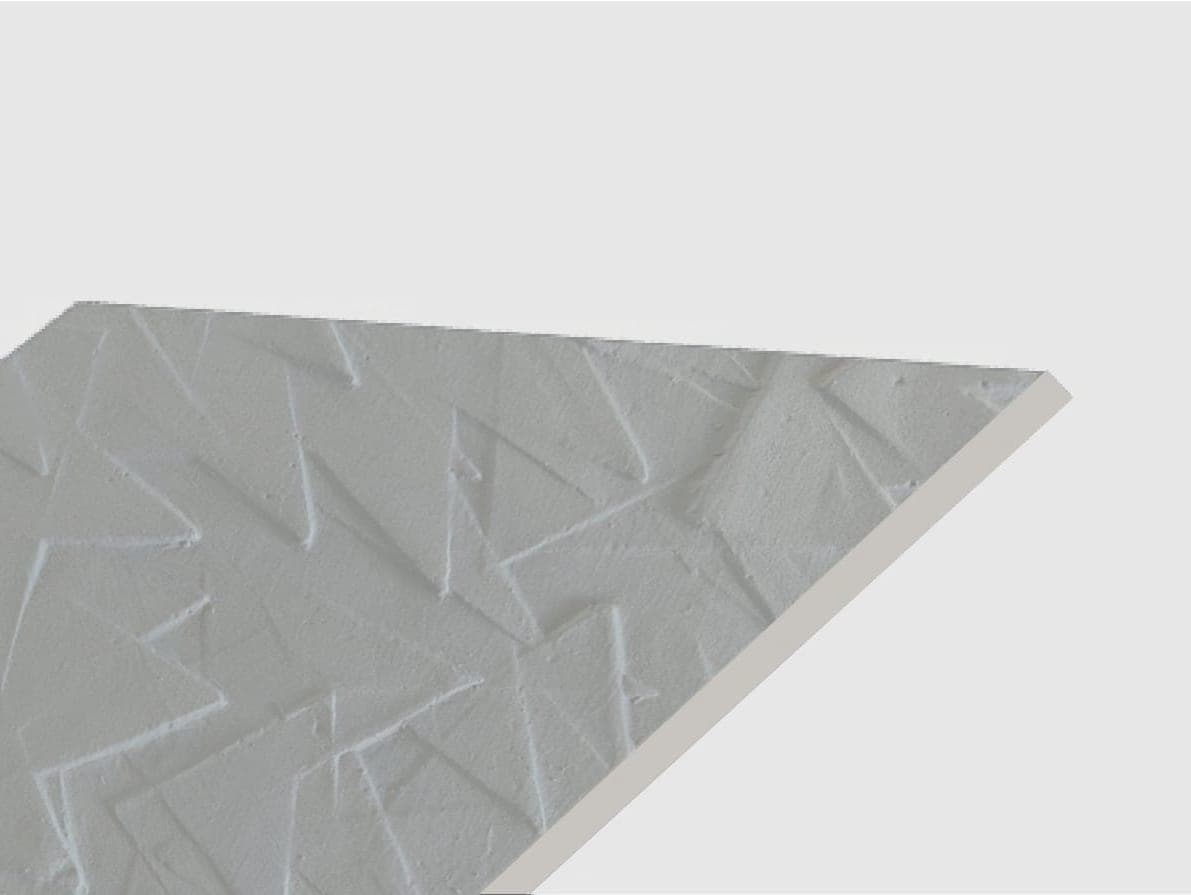

The range has two families. Flat Cement-Bonded Board is the flat, natural grey building board used from floor to roof: as subfloor and raised-floor panels, partition and shaft walls, roof sheathing and tile backer in wet spaces. The PLUS family adds a layer of natural minerals to both faces, which raises fire performance to A2-s1, d0, improves weather resistance and gives paint a better key. It includes the flat Mineral-Layer Board and the textured Line-Pattern Board, Geometric-Pattern Board, Stone-Pattern Board, Wood-Texture Board and Stone-Texture Board facade boards.

Facade boards are fixed mechanically on ventilated-facade principles and are supported by matching jambs, corners and banding profiles. All boards can be painted, coated or papered, and special sizes are cut from standard boards. Boards must be cut using a dry cutting method.

Board lines

One flat building board and six mineral-reinforced PLUS boards, flat or textured, for facades and interiors.

Performance

01
Cement and wood
A dense composite with the durability of cement and the workability of wood.
02
Floor to roof
Subfloors, walls, ceilings, roof sheathing and facades from one material family.
03
Mineral-reinforced faces
PLUS boards carry natural mineral layers on both faces for A2-s1, d0 and better paint adhesion.
04
Decorative textures
Wood, stone, cut-stone, geometric and line patterns for exterior and interior walls.
05
Ventilated facade
Mechanical fixing with matching jambs, corners and banding profiles.
06
Weather resistant
Resists seasonal change, sunlight, water, moisture and impact.
07
Insulation
Contributes to thermal and acoustic insulation and to energy efficiency.
08
Healthy material
Asbestos-free and odourless, with no harmful gas emissions. Will not rot, mould or attract insects.
09
Easy to work
Light to carry, easy to cut, drill, install and modify.

Applications

A1Ventilated facades & external walls
A2Prefabricated & light steel buildings
A3Floors, raised floors & mezzanines
A4Partition, shaft & internal walls
A5Roof sheathing, soffits & outdoor ceilings
A6Wet spaces (tile backing)

Specifications

Flat Cement-Bonded Board (flat)

EX-03.01

Density: 1300 ± 50 kg/m³
Bending strength: ≥ 9 N/mm²
Modulus of elasticity: ≥ 4500 N/mm² (Class 1)
Thermal conductivity: 0.15 W/mK (10 °C, dry)
Reaction to fire: B-s1, d0 (EN 13501-1)

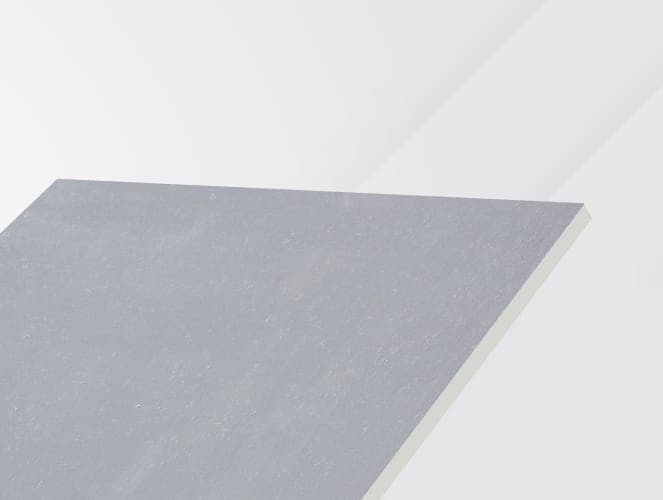

Mineral-Layer Board (flat, mineral layer)

EX-03.02

Density: 1450 ± 50 kg/m³
Bending strength: ≥ 9 N/mm²
Modulus of elasticity: ≥ 4500 N/mm² (Class 1)
Thermal conductivity: 0.19 W/mK (10 °C, dry)
Reaction to fire: A2-s1, d0 (EN 13501-1)

Standard dimensions

EX-03.03

Flat Cement-Bonded Board: 8–30 mm · 1250 × 2500 / 2800 / 3000 mm
Mineral-Layer Board: 10–30 mm · 1250 × 2500 / 2800 / 3000 mm

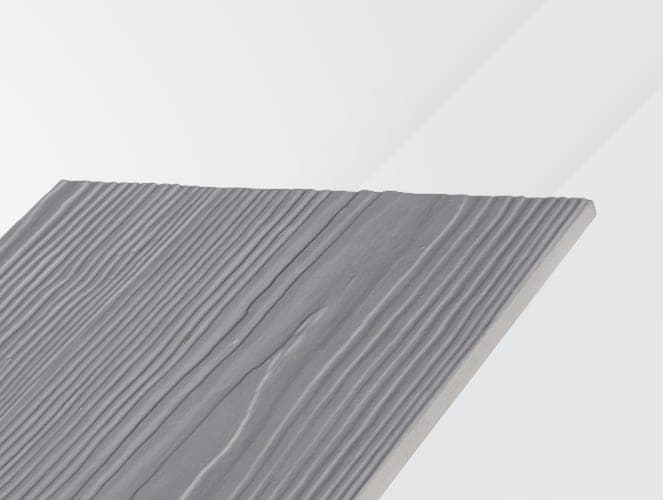

Wood-Texture Board: 10, 12 mm · 1250 × 3000 mm

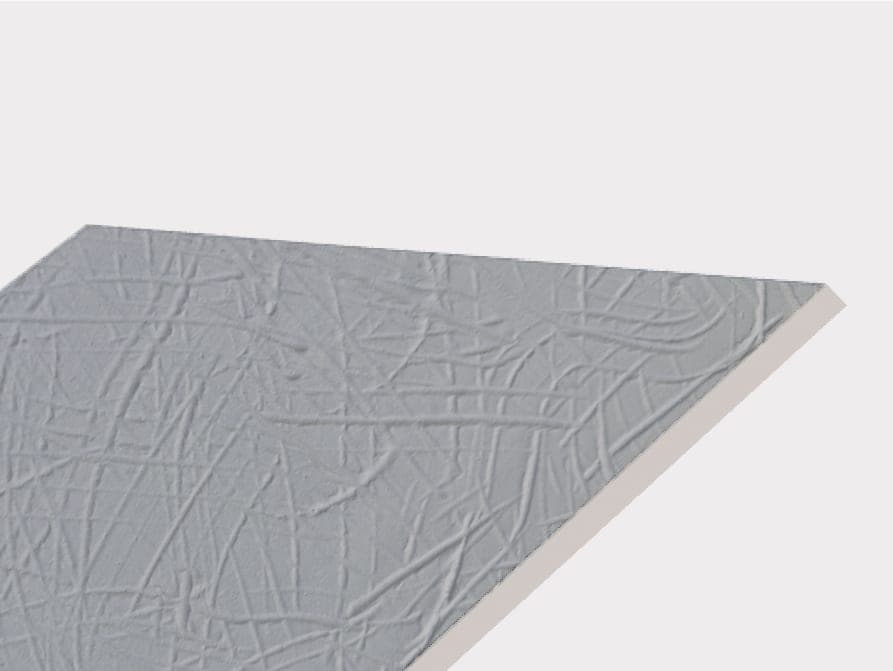

Line-Pattern Board, Geometric-Pattern Board, Stone-Texture Board: 12 mm · 1250 × 3000 mm

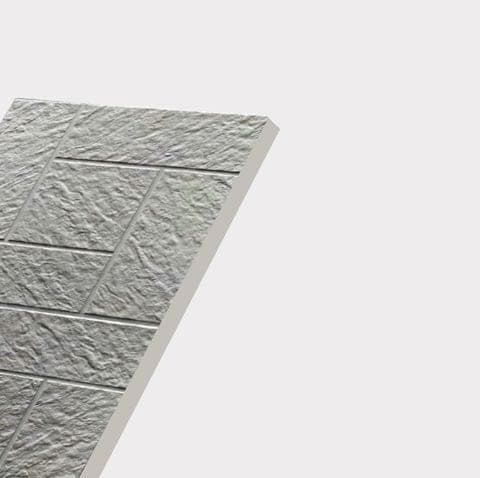

Stone-Pattern Board: 12 mm · 1205 × 3020 mm
Special sizes: Cut from standard boards in width and length

Shipping & storage

Boards are supplied on wooden pallets, wrapped in plastic with strapping and corner protectors; cover with tarpaulin in transport.
Store indoors on level ground, flat and never leaning against a wall; keep the plastic cover and steel straps on until use.
Stack no more than 5 pallets, with feet aligned and a total height of 3.5 m at most.
Carry single boards upright, or as close to vertical as possible, so they do not bend.
Cut boards with a dry cutting method only.
