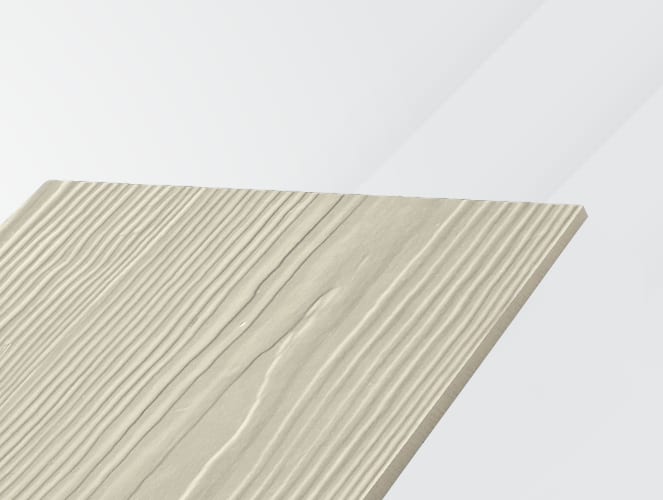

tepePAN Wood®
Wood texture
- Reaction to fire — EN 13501-1
- A1
- Thickness
- 10–12mm
- Board size
- 1250 × 3000mm
Overview
tepePAN Wood® pairs the warmth of a wood-grain surface with the durability of cement and fibre. It gives facades and interiors the character of timber, with A1 reaction to fire.
It is applied as rebated or recessed-joint siding on ventilated facades and as a decorative interior finish, and it can be painted in any colour.
Performance
- 01
Wood texture
A decorative, timeless wood-grain surface.
- 02
A1 non-combustible
Reaction to fire class A1 to EN 13501-1.
- 03
Ventilated facade
Fixed mechanically on ventilated-facade principles.
- 04
Paintable
Can be painted for interior and exterior finishes.
- 05
Weather resistant
Resists seasonal change, sunlight, water, moisture and impact.
- 06
Insulation
Contributes to thermal and acoustic insulation and energy efficiency.
- 07
Healthy material
Asbestos-free and odourless, with no toxic gas emissions. Will not rot, mould or attract insects.
- 08
Easy to work
Light to carry, easy to cut, drill, install and modify.
Applications
- External walls & facades
- Outdoor ceilings
- Soffits & fascias
- Balconies & parapets
- Boundary walls
- Internal walls & indoor ceilings
Specifications
Standard dimensions
EX-02.01- Thickness
- 10, 12 mm
- Board size
- 1250 × 3000 mm
- Special sizes
- Cut from standard boards in width and length
- Facade use
- Min. 10 mm; full-size boards only on prefabricated buildings
Technical
EX-02.02- Density (dry)
- 1150 ± 75 kg/m³
- Shipping density
- 1400 ± 100 kg/m³
- Thermal conductivity
- 0.2166 W/mK (10 °C, dry)
- Bending strength
- ≥ 7 N/mm²
- Modulus of elasticity
- ≥ 4000 N/mm²
- Reaction to fire
- A1 (EN 13501-1)
- Type & durability
- Category A, Class 2
Documents

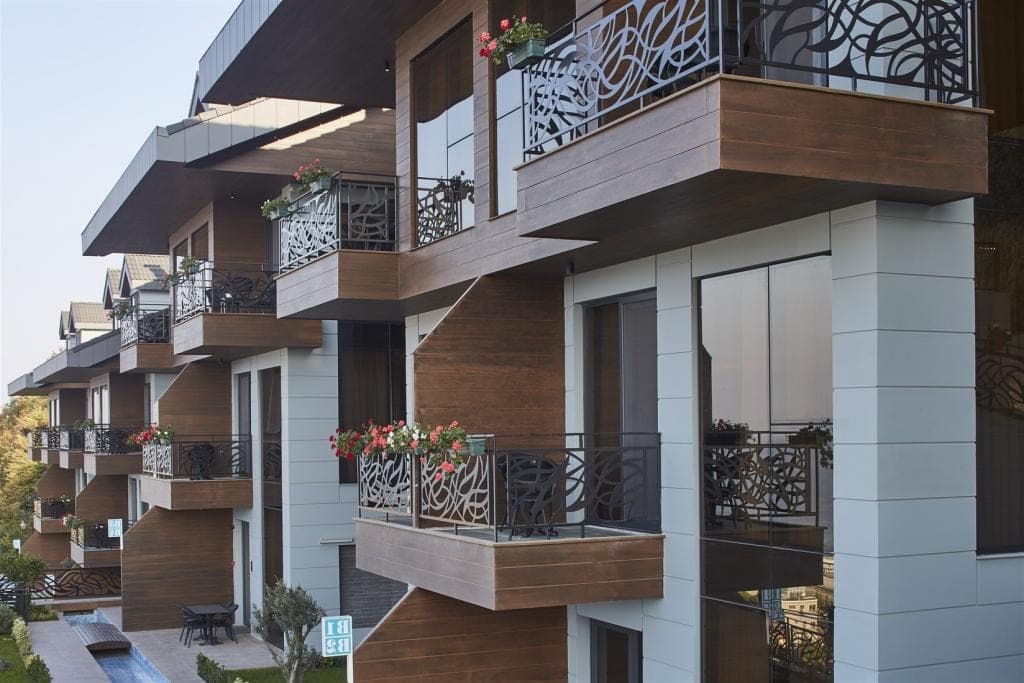

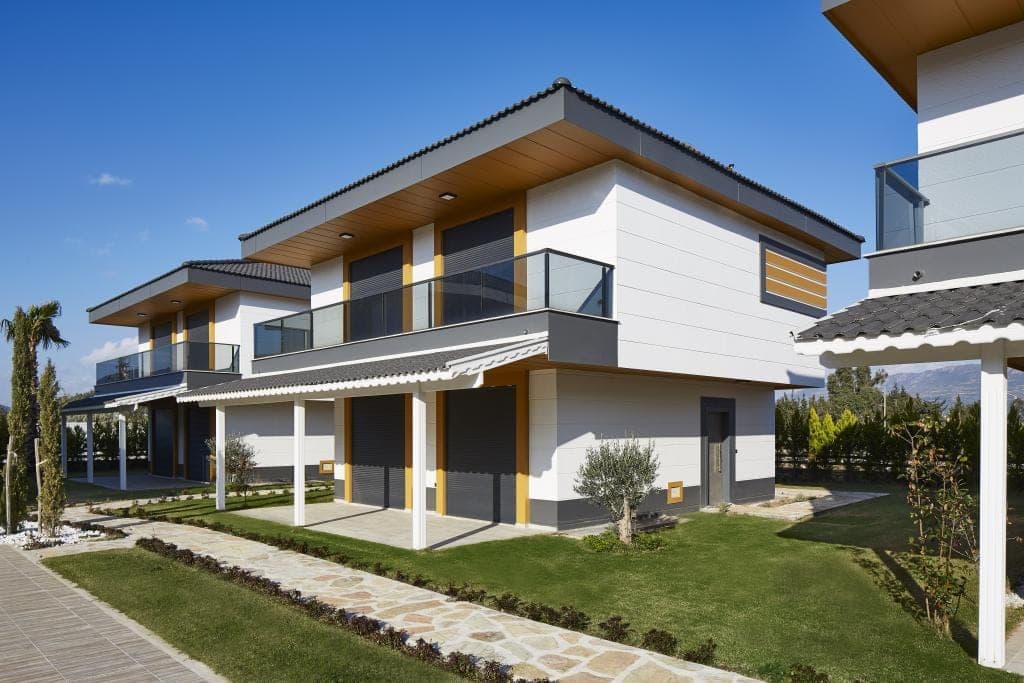

Gallery
01 / 02
02 / 02
Specify tepePAN Wood®.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
