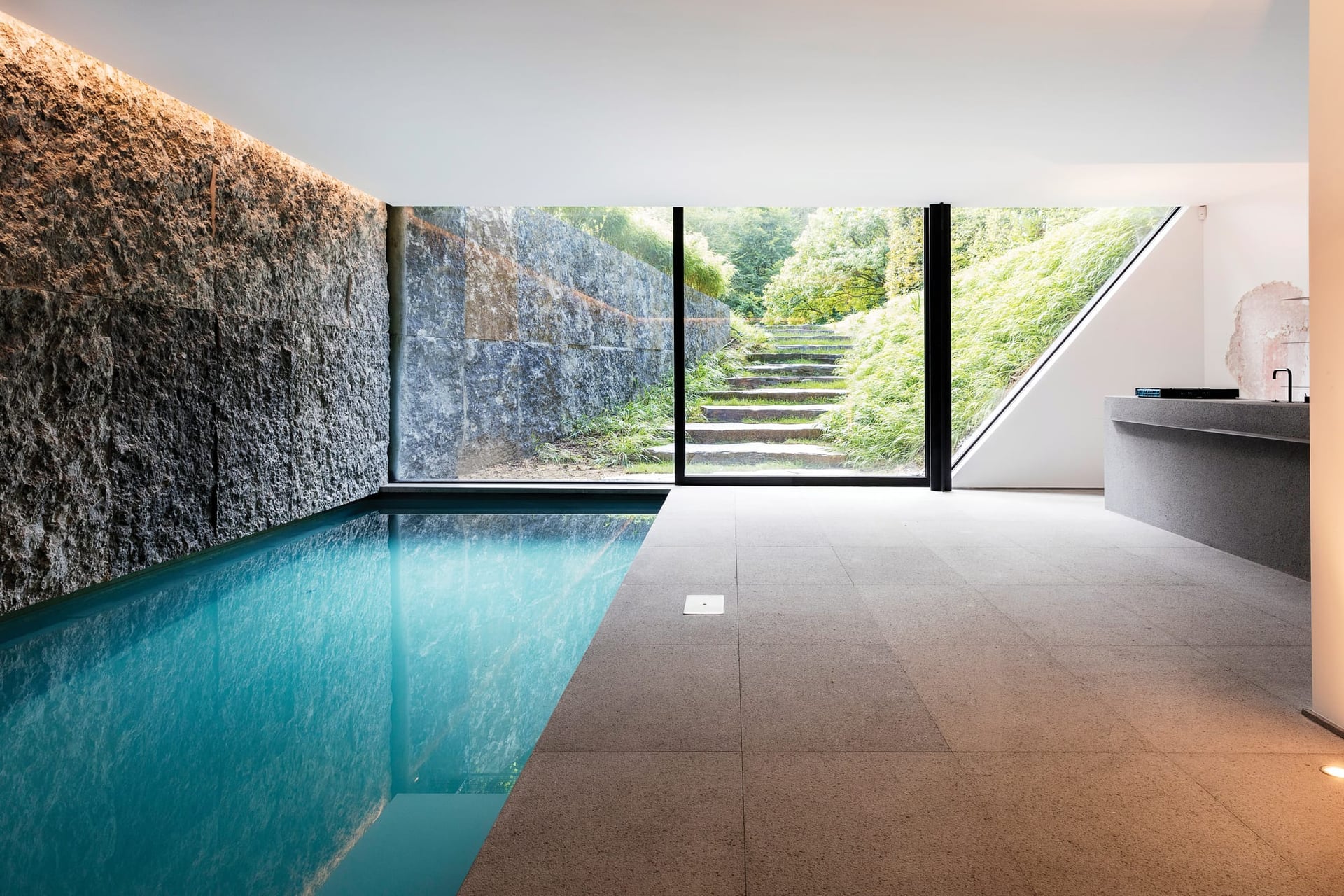

ConceptPatio 130
Aesthetic functionality
- Uw
- 1.4W/m²K
- Max. vent weight
- 300kg
- Max. vent width
- 2700mm
01 — Overview
Overview
ConceptPatio 130 is a quality sliding solution, with lift-and-slide options, that balances price, performance and aesthetics. The versatile aluminium system lets architects and homeowners create open, borderless spaces.
It is a complete solution with many opening types — 2- and 3-rail, monorail inside or outside glazed, multirail, open corner and pocket — and its unique low threshold makes it renovation-friendly. High Insulation and burglar-resistant versions are available.
02
Specifications
Performance
EX-06.01- Uw
- 1.4 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class E750 (750 Pa)
- Wind resistance
- Class B5 (2000 Pa)
- Acoustics Rw (C;Ctr)
- 39 (-1;-3) dB
- Opening and closing durability
- Class 4
- Burglar resistance
- RC2, PAS 24
Dimensions
EX-06.02- Vent height
- 500–2700 mm
- Vent width
- 700–2700 mm
- Max. vent weight
- 300 kg (fixed: 300 kg)
- Frame depth
- 139 mm (2-rail) / 210 mm (3-rail)
- Glazing thickness (vent)
- 4–45 mm
03
Documents
Gallery

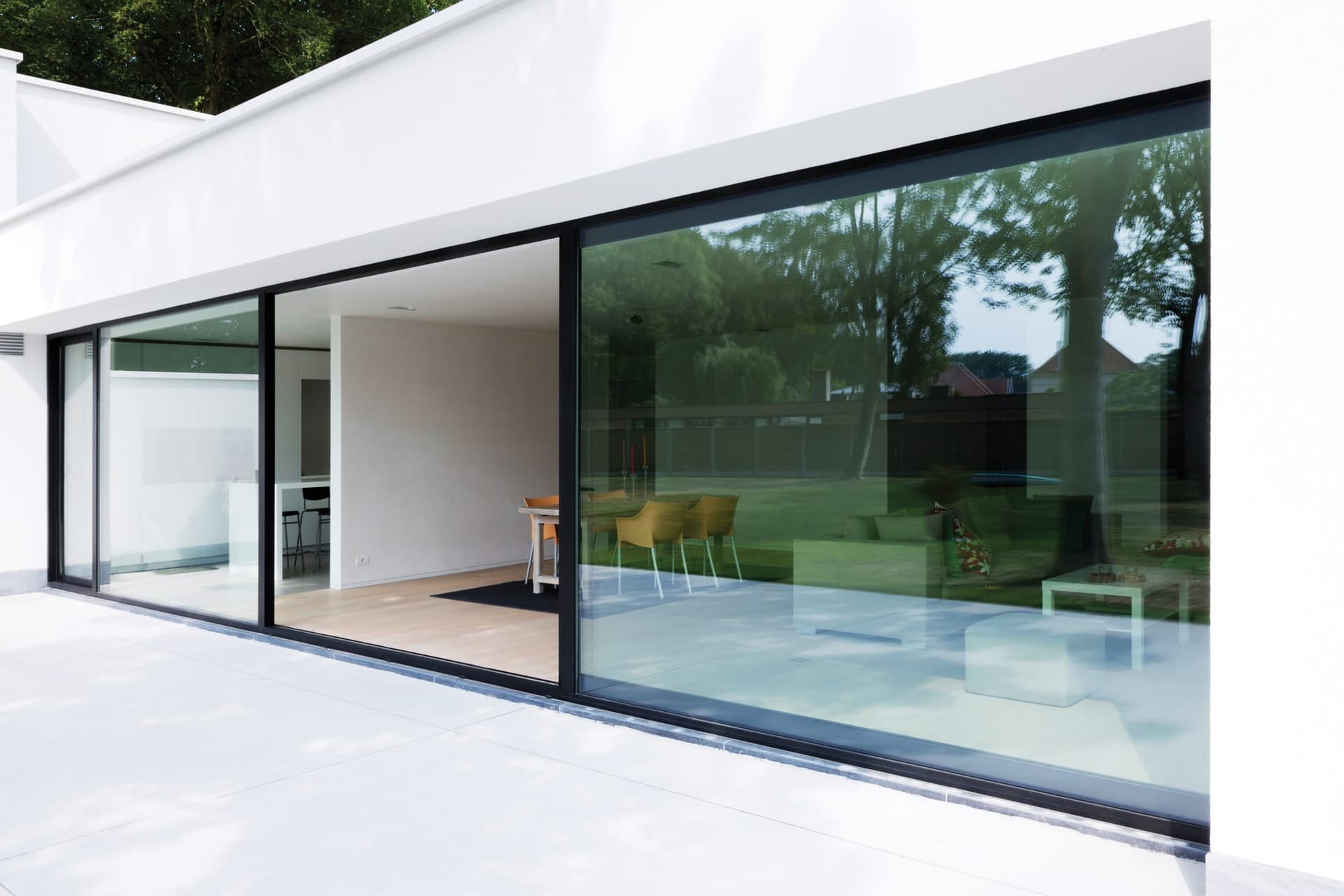

01 / 04

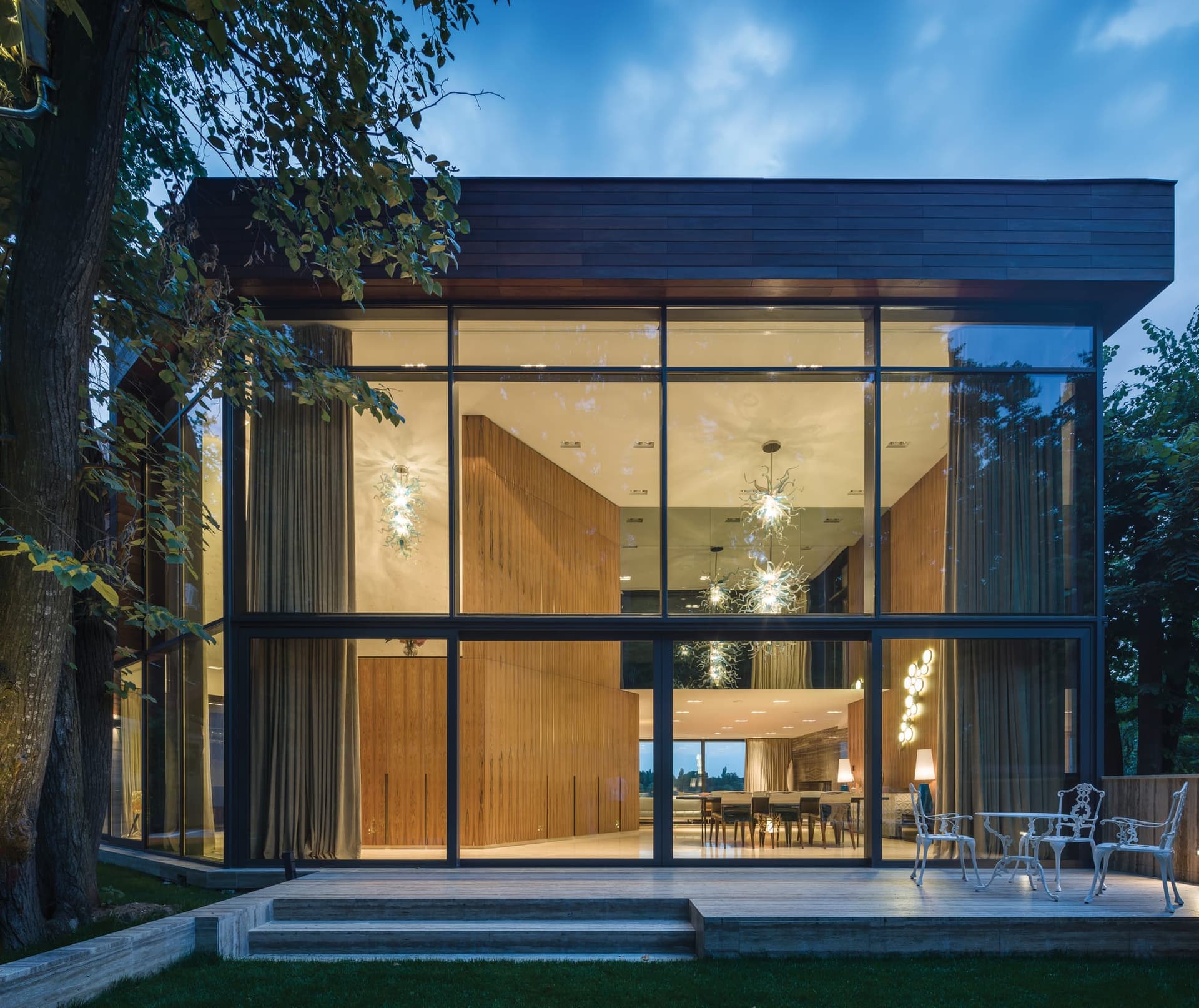

02 / 04

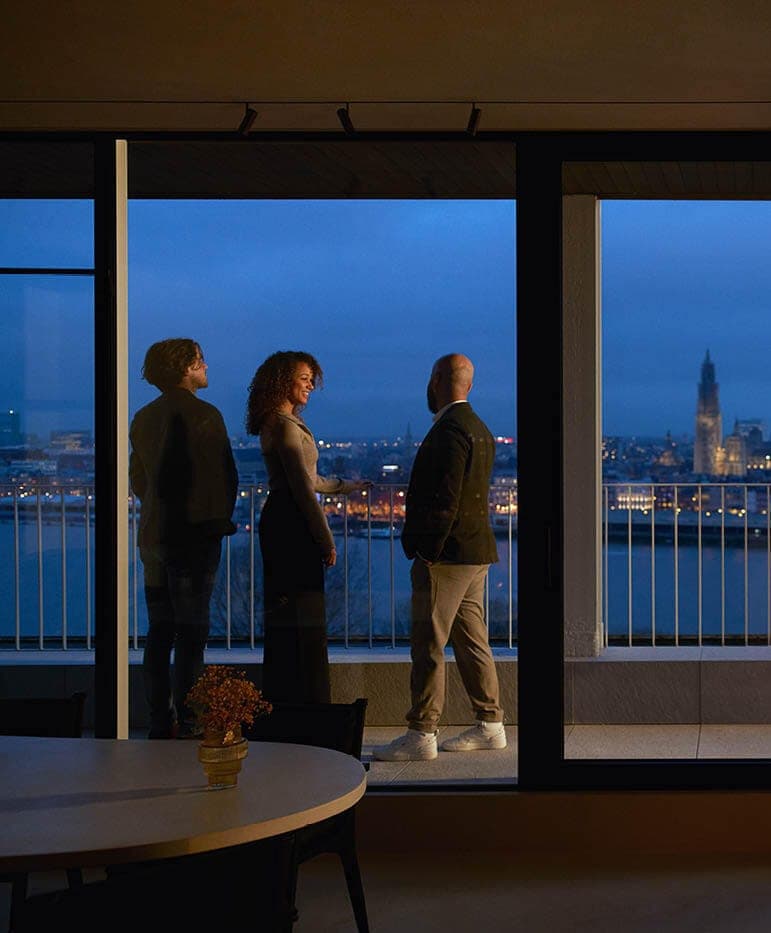

03 / 04

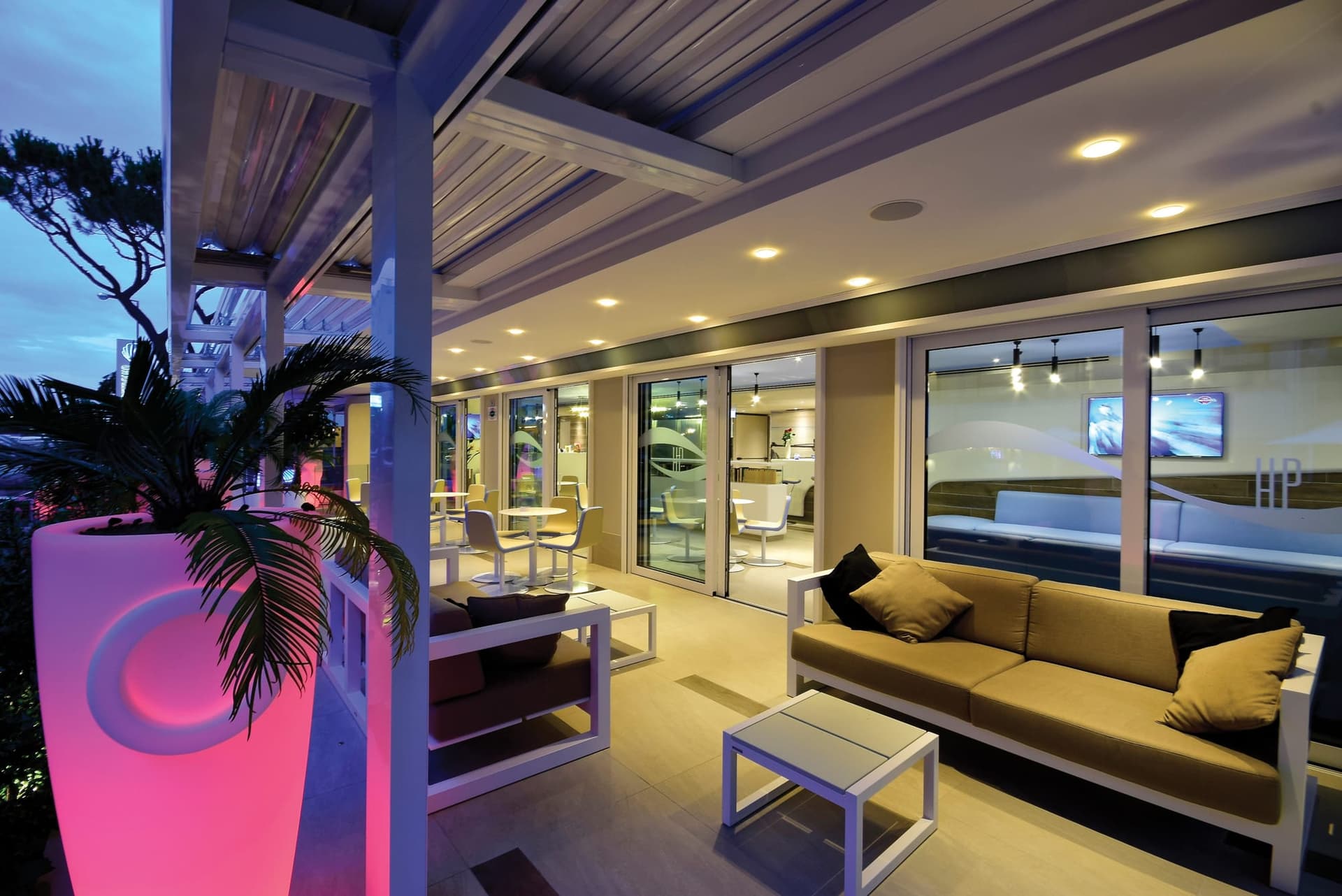

04 / 04
Sheet 09 — Enquiry
Specify ConceptPatio 130.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
