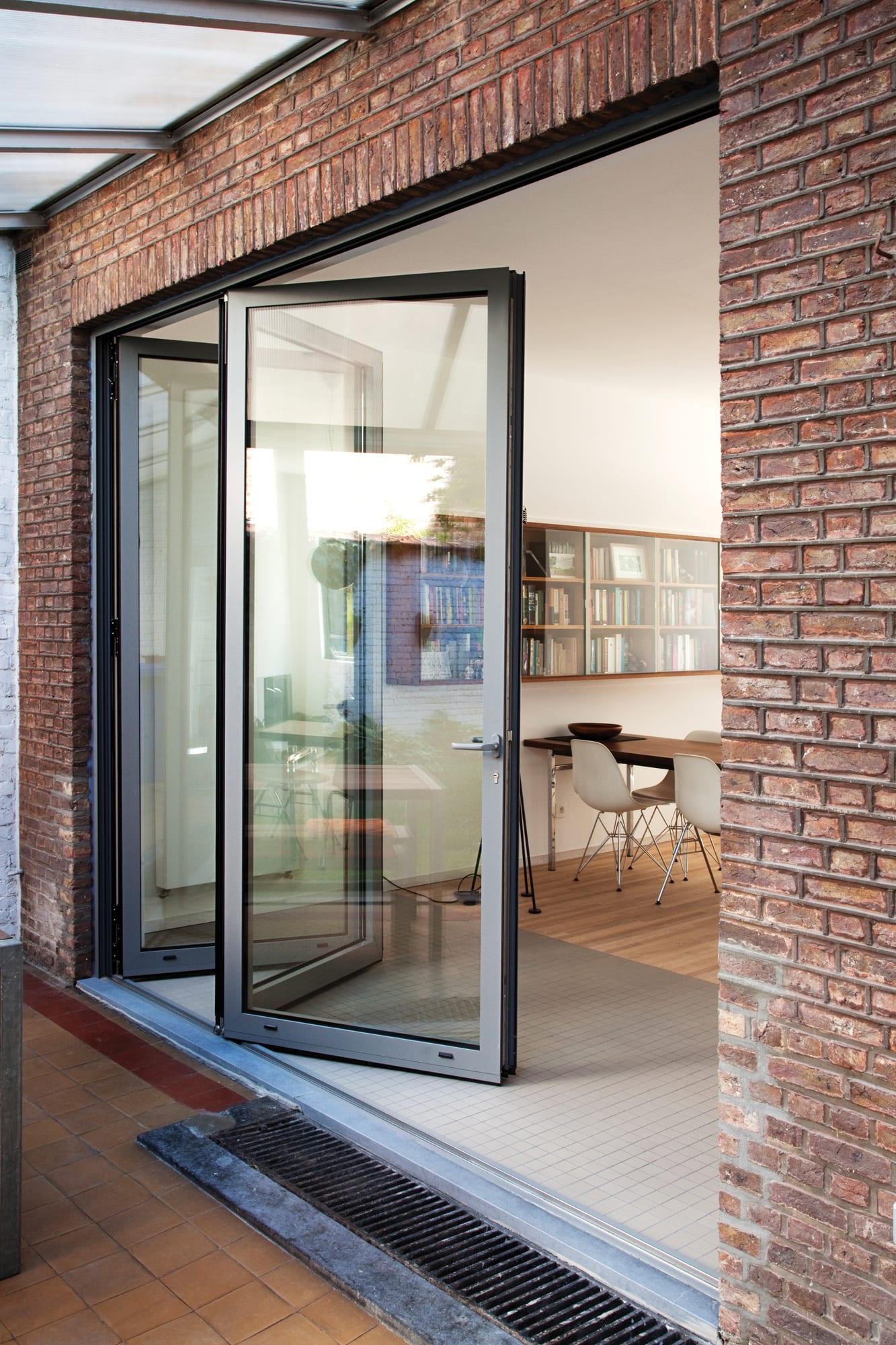

ConceptFolding 77
Invite nature into your building
- Leaves
- 2–8
- Max. vent height
- 3000mm
- Uw
- 1.3W/m²K
01 — Overview
Overview
ConceptFolding 77 offers exceptional module sizes for maximum transparency and striking aesthetics. With up to eight leaves, this aluminium folding system brings nature and architecture together.
Functional and SlimLine designs, a High Insulation version and a burglar-resistant version are available; options include hidden drainage and low or zero thresholds.
02
Specifications
Performance
EX-06.01- Uw
- 1.3 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class 9A (600 Pa)
- Wind resistance
- Class C3 (1200 Pa)
- Acoustics Rw (C;Ctr)
- 45 (-1;-5) dB
- Opening and closing durability
- Class 3
- Burglar resistance
- RC2, PAS 24
Dimensions
EX-06.02- Vent height
- 600–3000 mm
- Vent width
- 400–1200 mm
- Max. vent weight
- 120 kg
- Depth
- 77 mm
- Glazing thickness (vent)
- 6–63 mm
03
Documents
Gallery

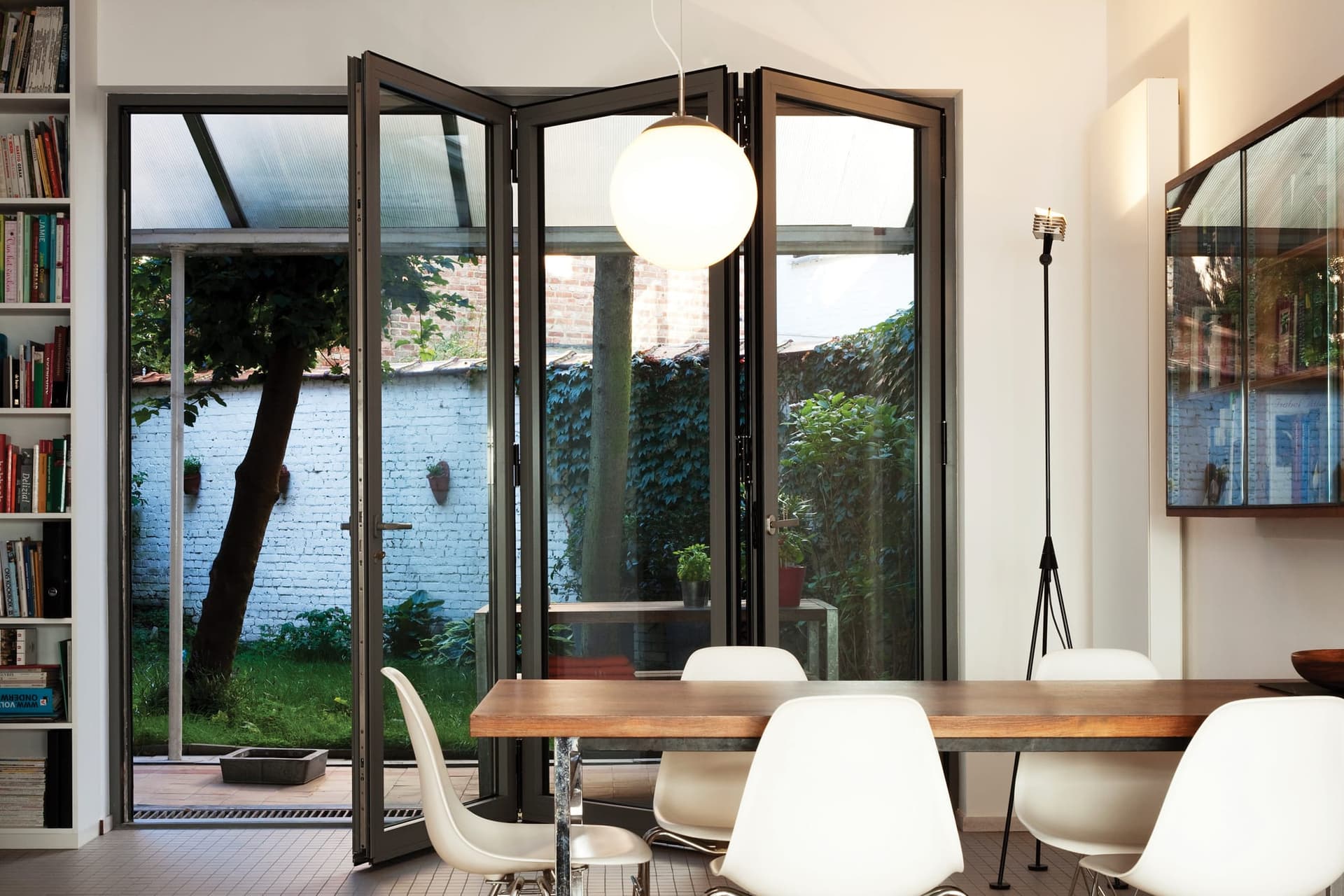

01 / 03

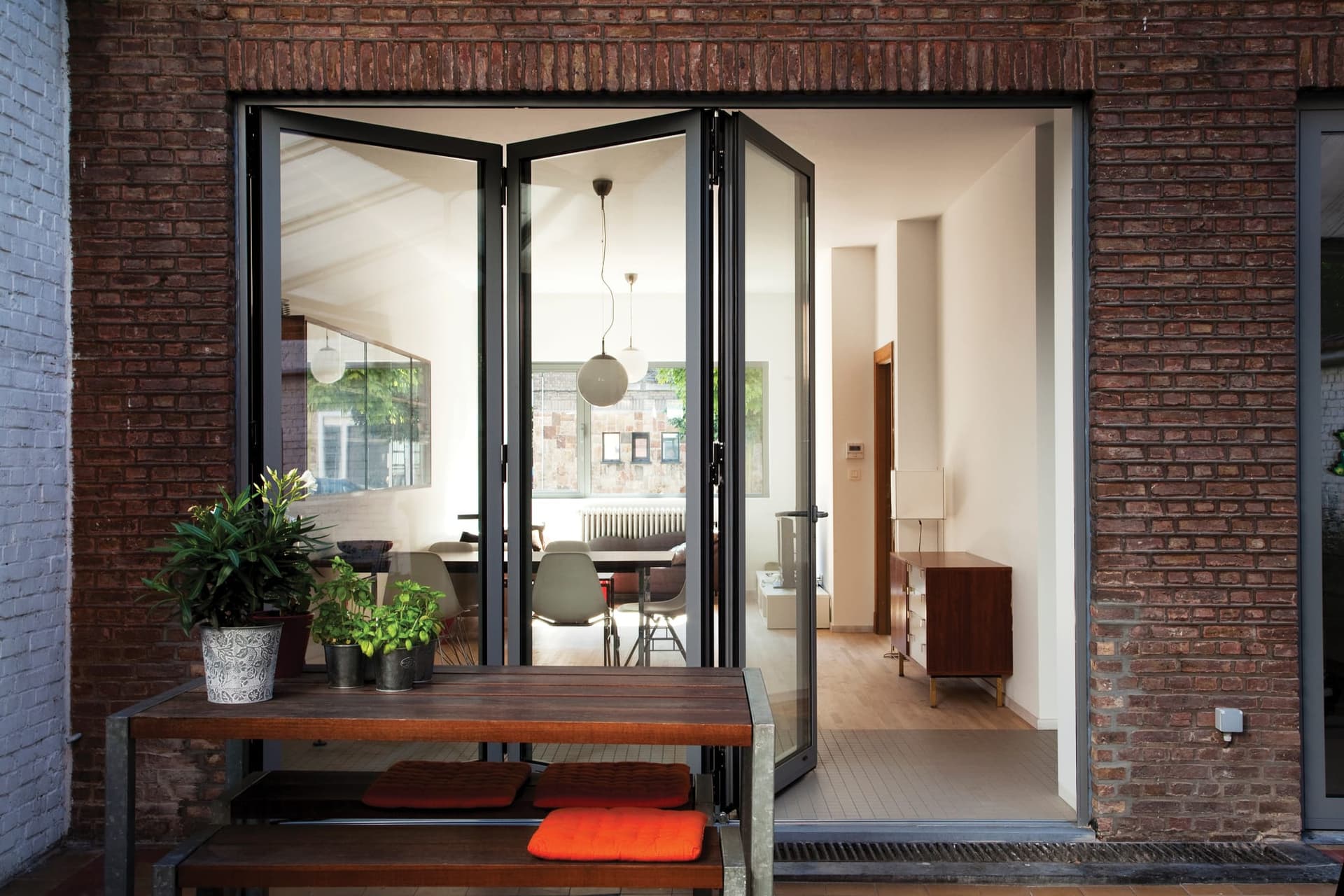

02 / 03

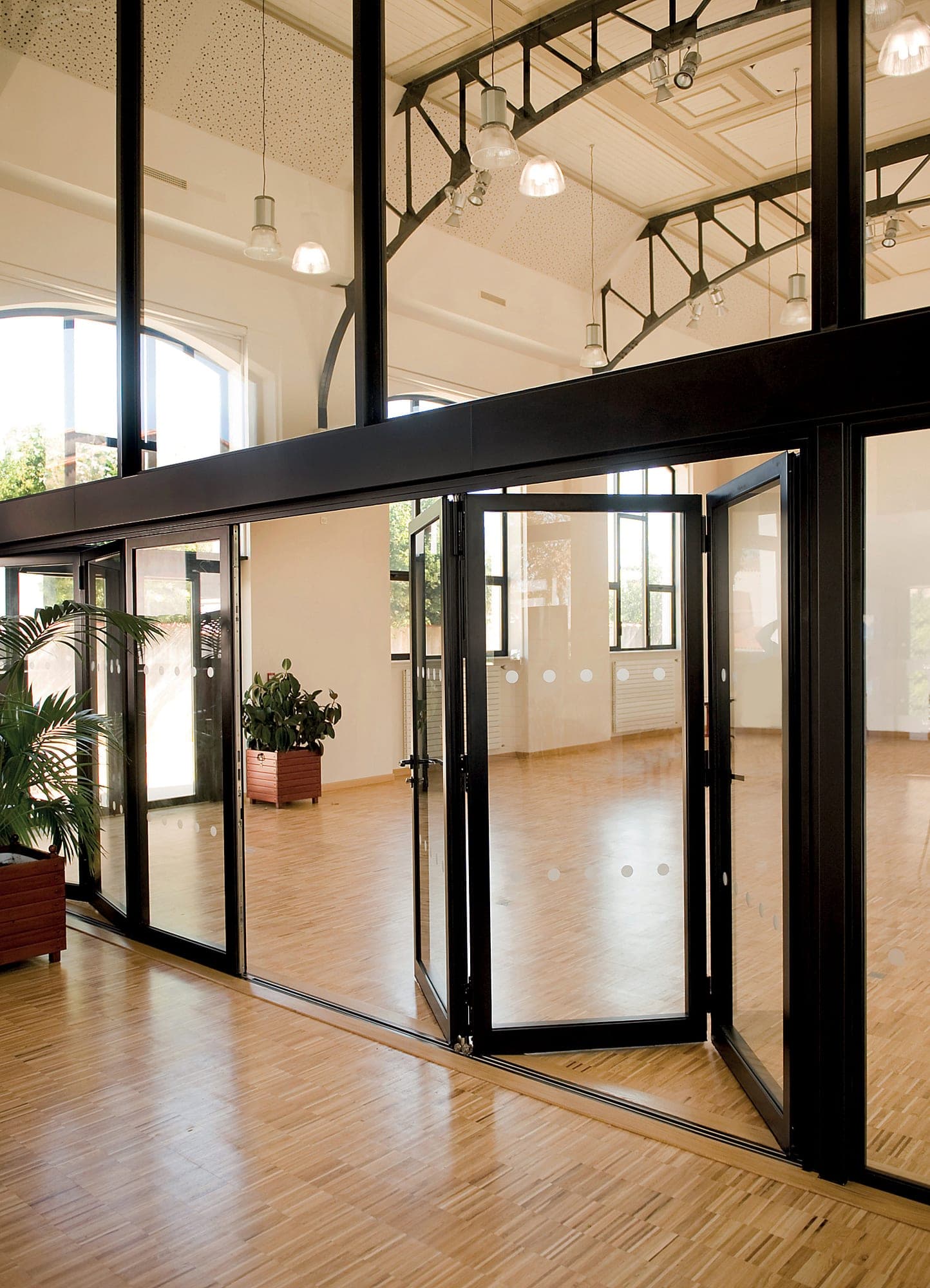

03 / 03
Sheet 09 — Enquiry
Specify ConceptFolding 77.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
