ConceptPatio 45Pa
Less is more
- Max. vent weight
- 120kg
- Glazing thickness
- 6–22mm
- Wind resistance class
- C4
01 — Overview
Overview
ConceptPatio 45Pa is a non-insulated sliding system offering a wide range of solutions for warm climates, conservatories and interior partitions in offices. It applies current techniques designed to high European quality standards, with a complete range of openings from pocket to 2-, 3- and even 4-rail solutions.
Available in Functional and Softline styles, the sliding elements integrate easily with other window types, conservatory systems and sun shading. It is an affordable, high-quality choice for warm climates and renovation projects.
02
Specifications
Performance
EX-06.01- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class 7B (300 Pa)
- Wind resistance
- Class C4 (1600 Pa)
- Acoustics Rw (C;Ctr)
- 30 (-1;-3) dB
- Opening and closing durability
- Class 2
Dimensions
EX-06.02- Vent height
- 500–2300 mm
- Vent width
- 500–1700 mm
- Max. vent weight
- 120 kg (fixed: 120 kg)
- Frame depth
- 50 mm (2-rail) / 86 mm (3-rail) / 122 mm (4-rail)
- Glazing thickness (vent)
- 6–22 mm

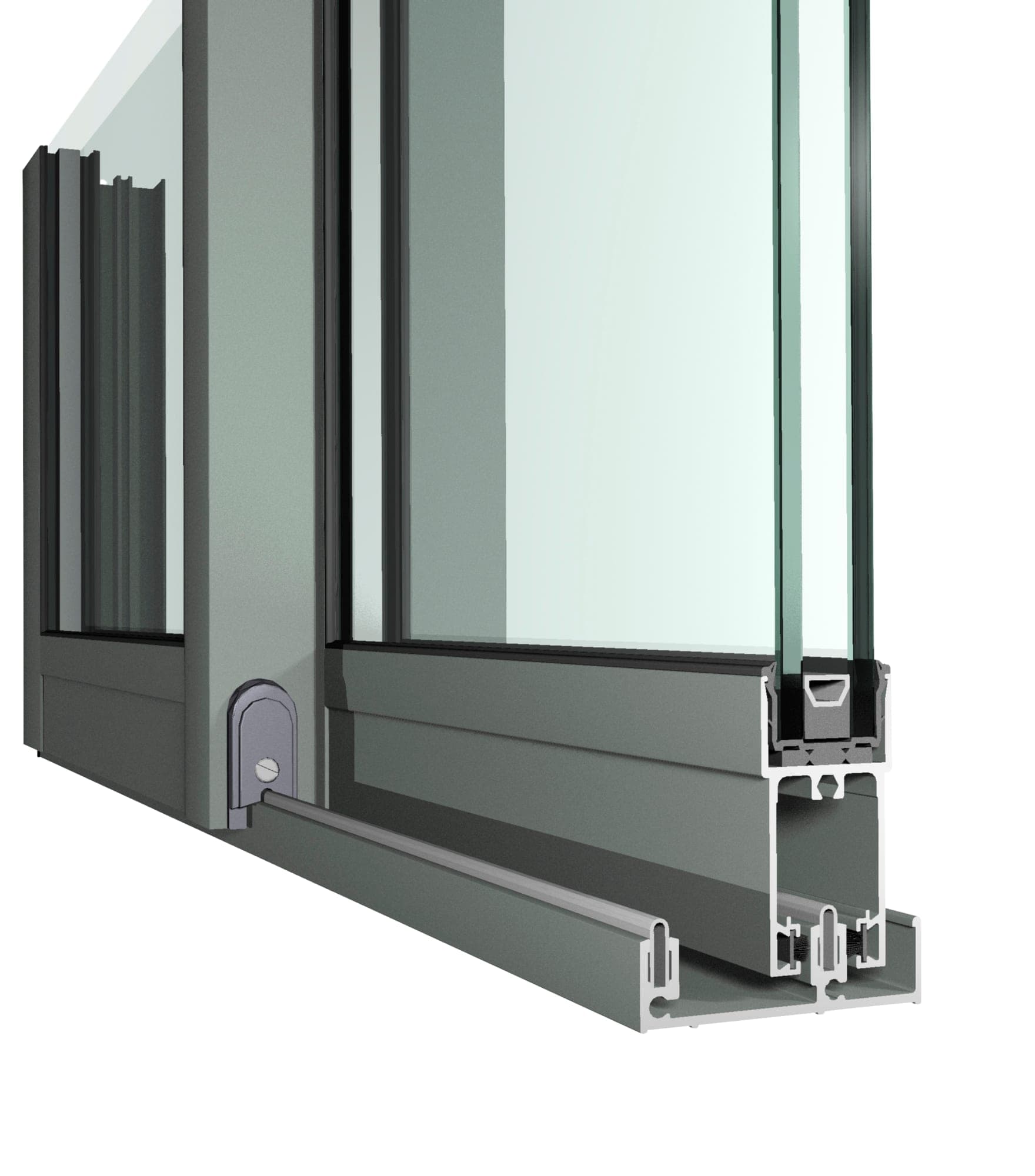

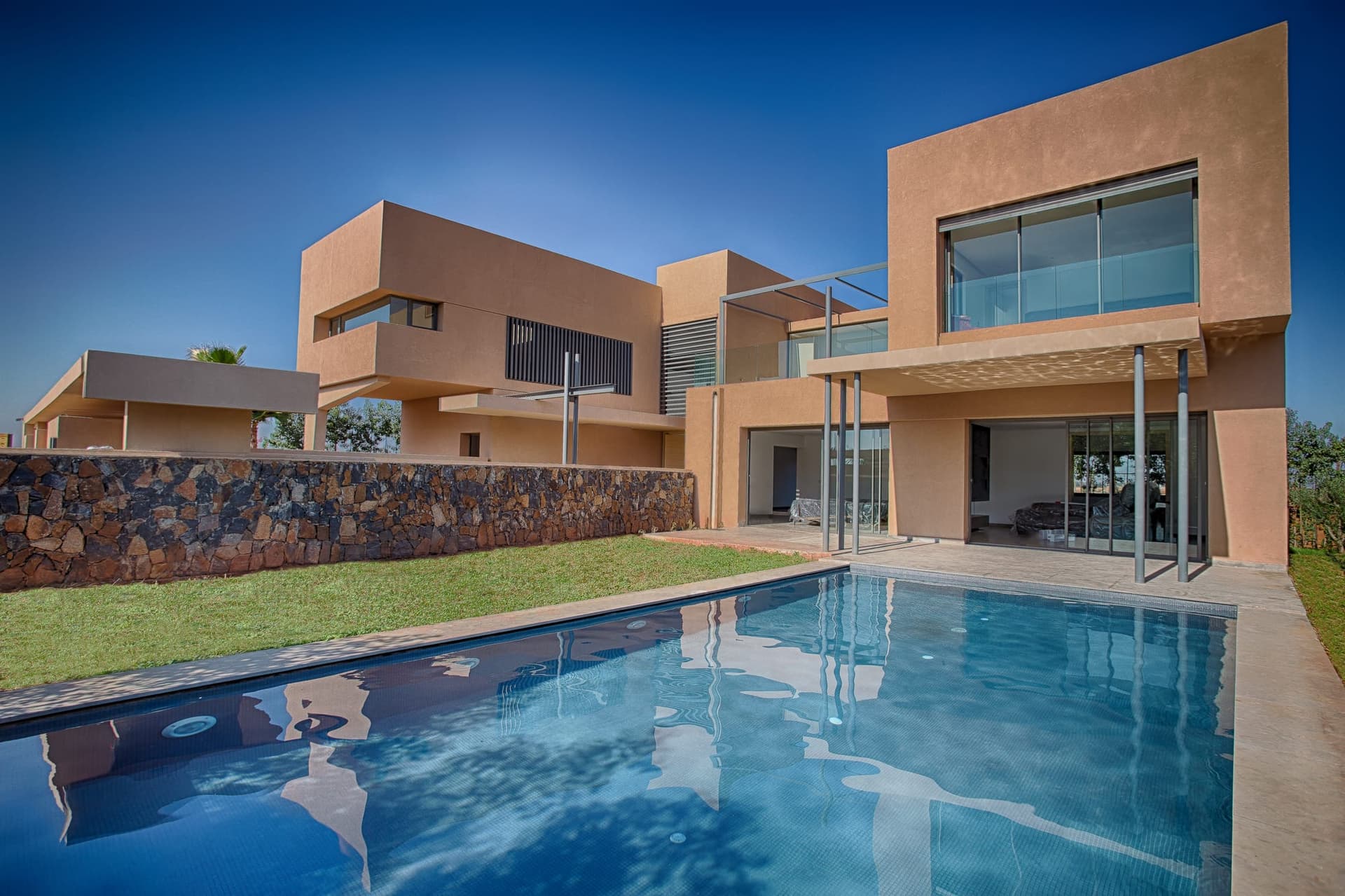

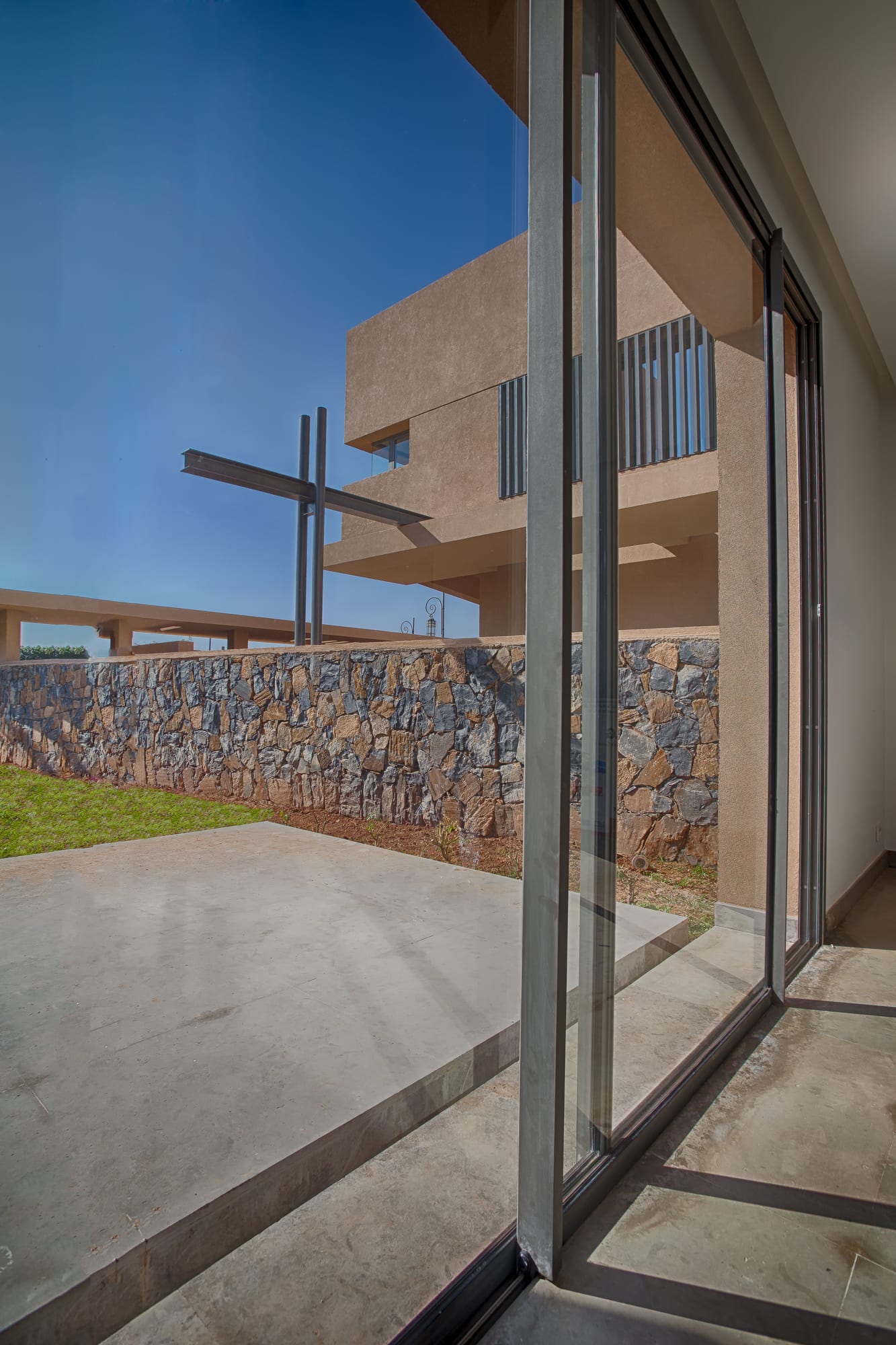

Gallery
01 / 02
02 / 02
Sheet 09 — Enquiry
Specify ConceptPatio 45Pa.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
