MasterPatio
Crafted for masters
- Uw
- 0.8W/m²K
- Max. vent weight
- 600kg
- Water tightness class
- E1200
01 — Overview
Overview
MasterPatio is a sliding system with outstanding insulation performance; recycled materials and reduced production waste make it a sustainable choice for any architectural project. It delivers high performance for high-rise projects.
It is compatible with MasterLine 8 and easy to fabricate as a floor-to-ceiling facade. Variants include 2- and 3-rail, inside- and outside-glazed monorail, open corner and pocket, and a motorised vertical sliding version for an open-balcony feeling.
02
Specifications
Performance
EX-06.01- Uw
- 0.8 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class E1200 (1200 Pa)
- Wind resistance
- Class C5 (2000 Pa)
- Acoustics Rw (C;Ctr)
- 44 (-1;-4) dB
- Opening and closing durability
- Class 4
- Burglar resistance
- RC2, PAS 24
Dimensions
EX-06.02- Vent height
- 500–3600 mm
- Vent width
- 700–3600 mm
- Max. vent weight
- 600 kg (fixed: 1200 kg)
- Frame depth
- 180 mm (2-rail) / 283 mm (3-rail)
- Glazing thickness (vent)
- 16–62 mm

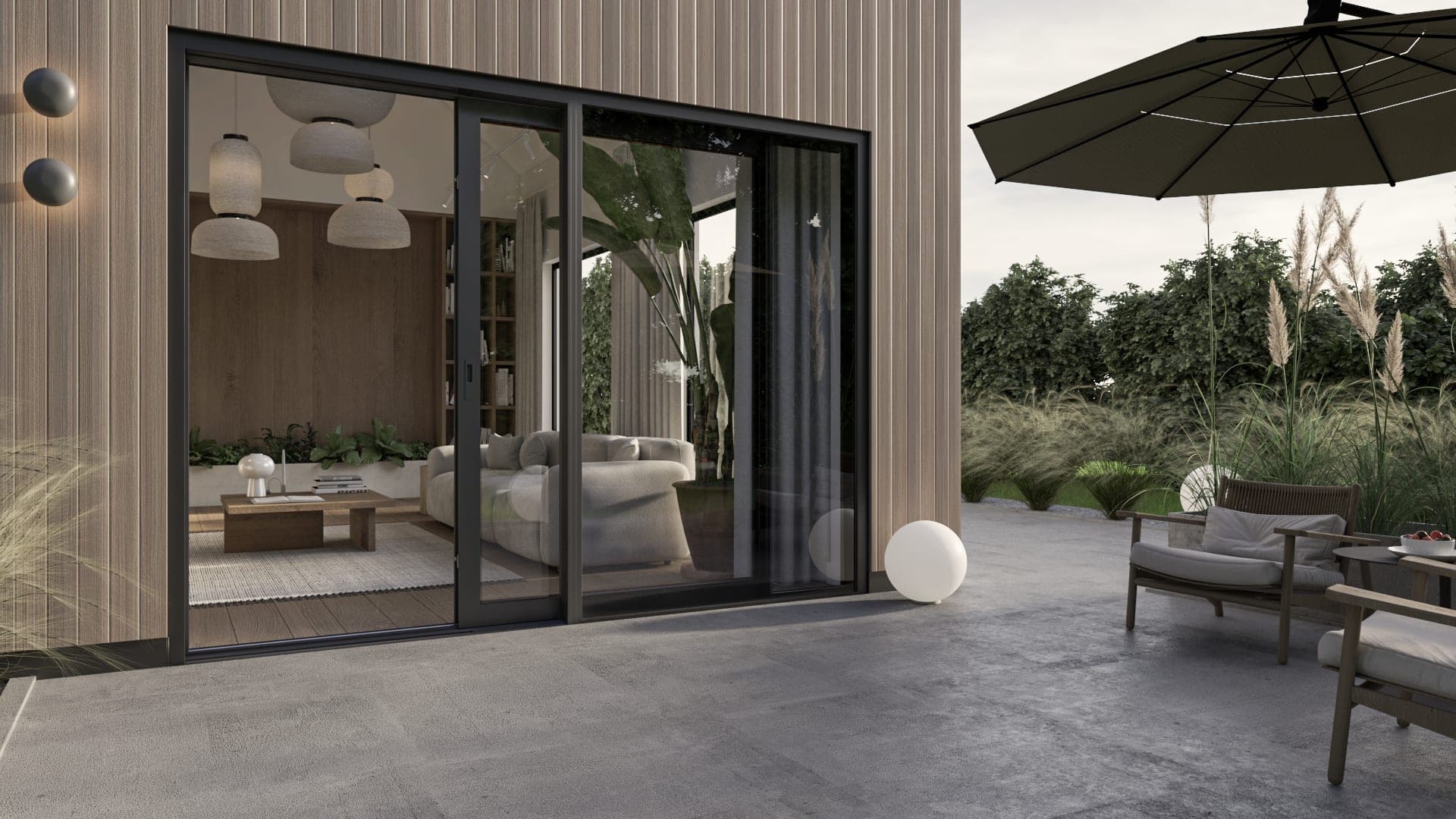

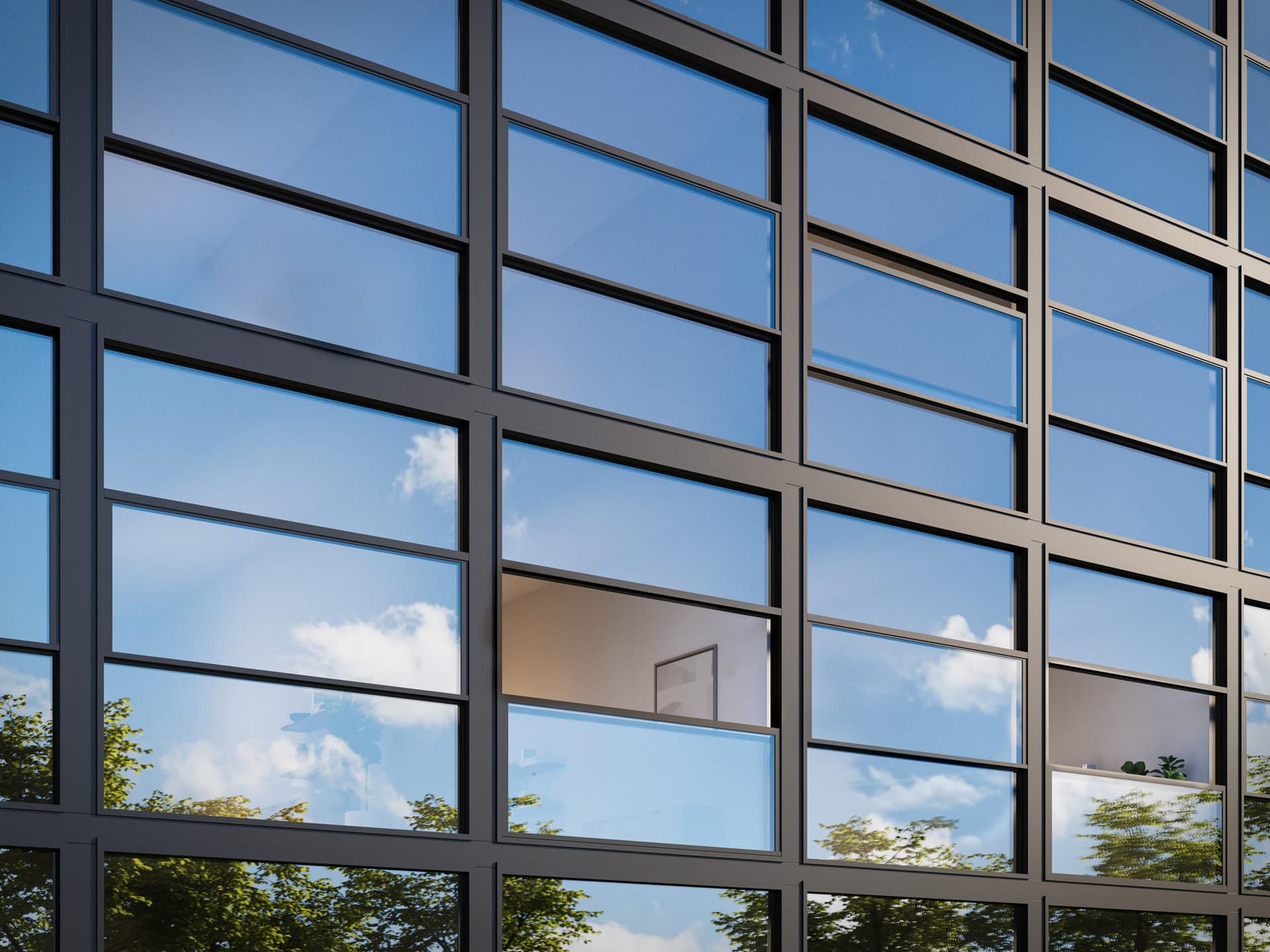

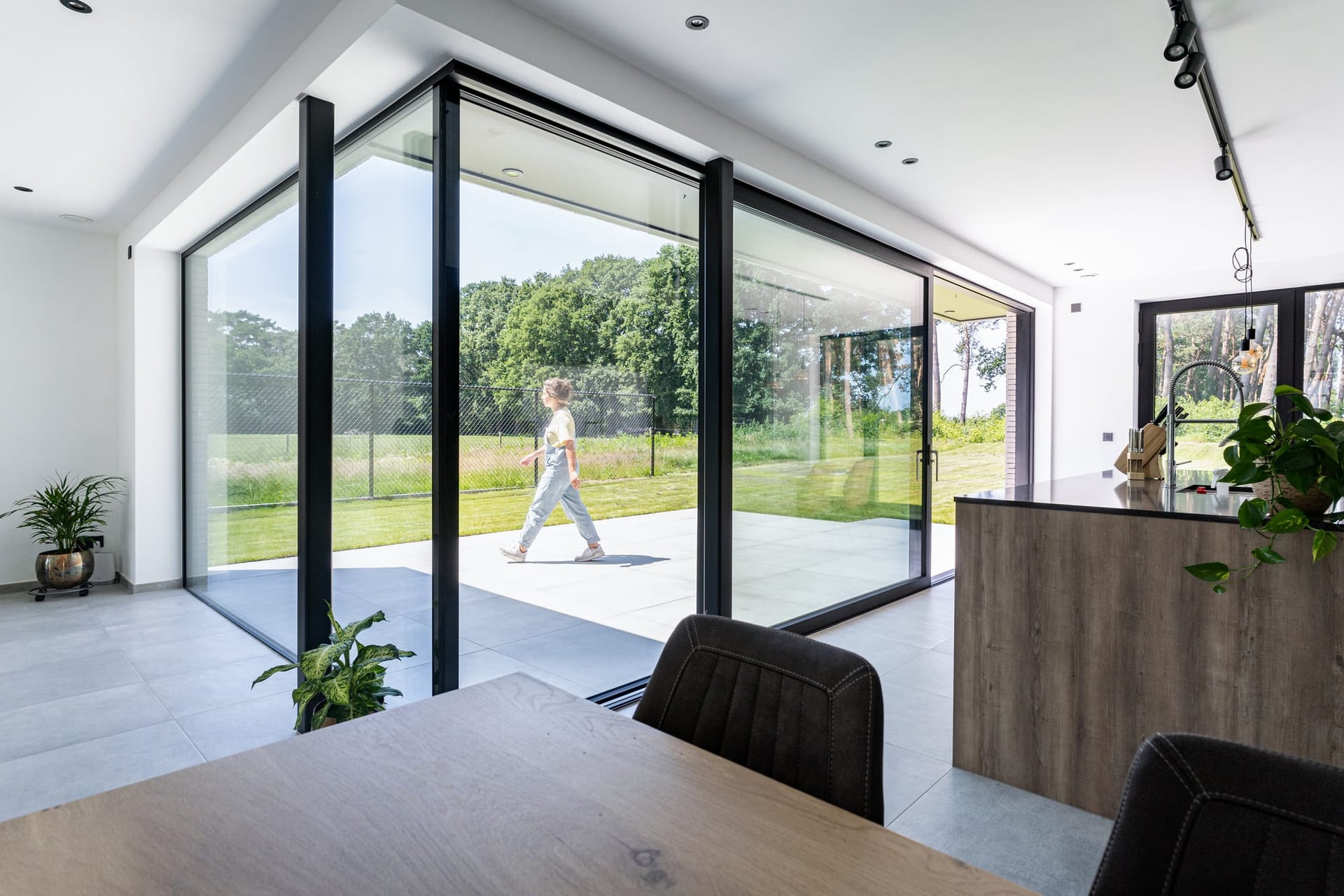

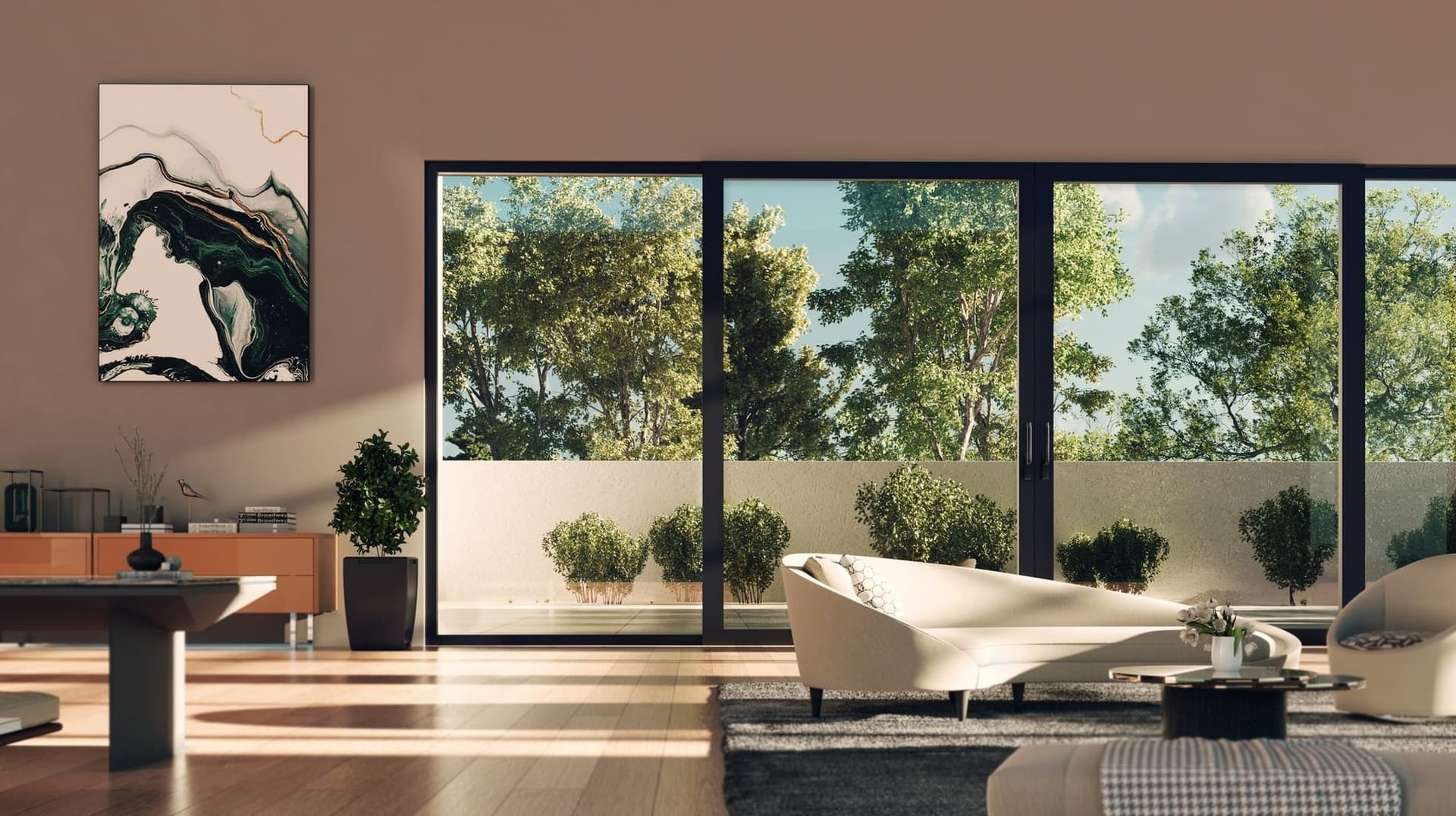

Gallery
01 / 04
02 / 04
03 / 04
04 / 04
