Overview

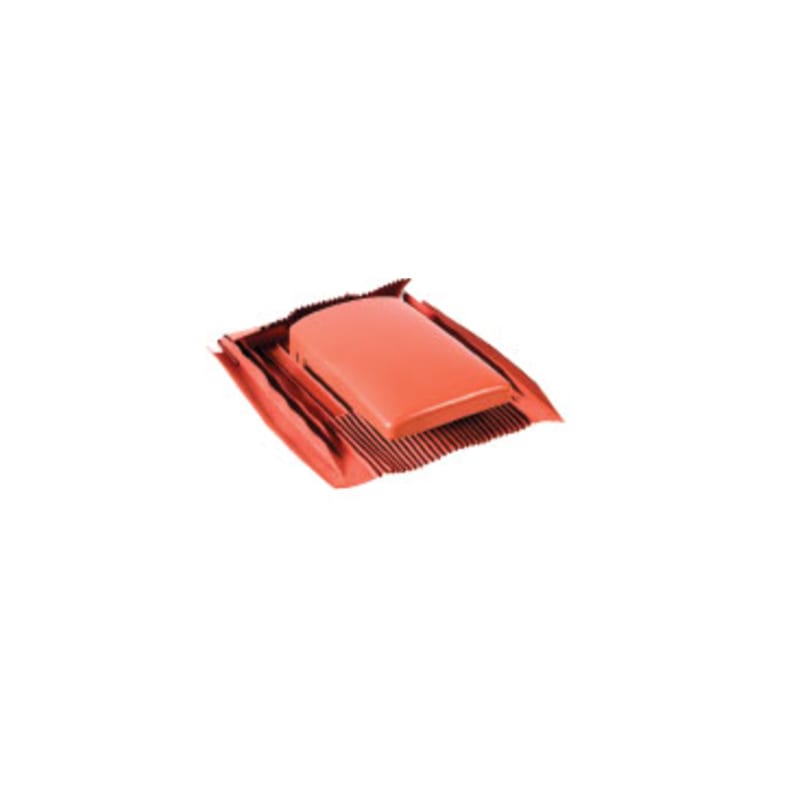

The universal ventilation element fits every tile type thanks to its corrugated aluminium skirt and, with an adaptor, vents fans from kitchens and bathrooms. The mushroom-type cowl set has a chimney-shaped body for faster air flow and stays sealed in snow, ice and storms.

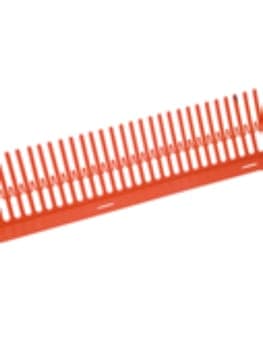

The eaves ventilation comb increases the air intake at the eaves, keeps out birds, rodents, insects and leaves, and lifts the first row of tiles into the plane of the others without an extra batten.
Specifications
Universal ventilation element
EX-09.01- Material
- uPVC
- Dimensions
- 424 × 454 × 91 mm, 1890 g
- Ventilation area
- 15,000 mm²

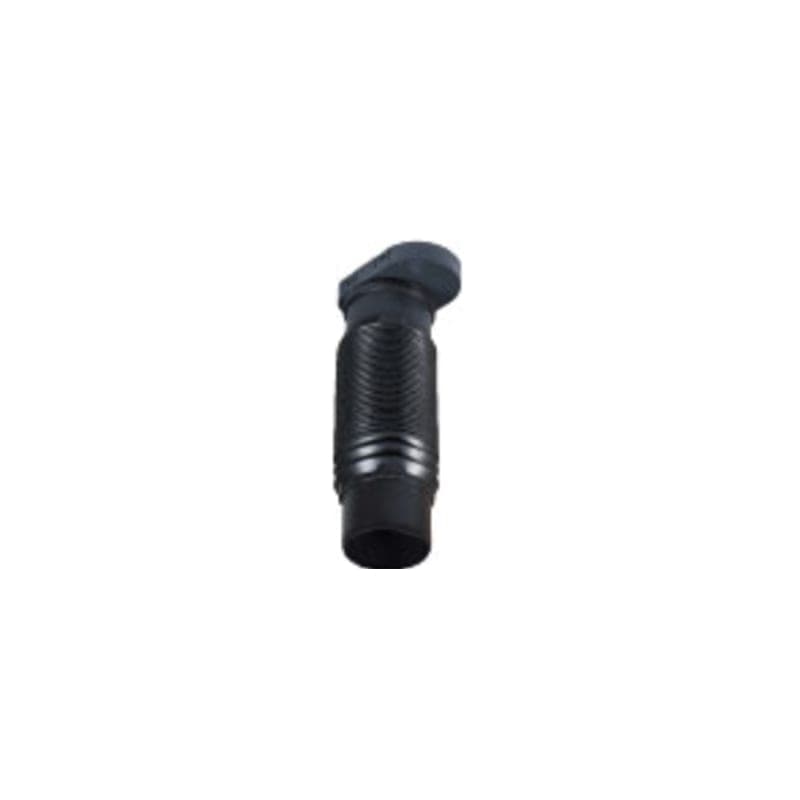

- Adaptor
- Ø 100 mm, 120 × 170 × 430 mm

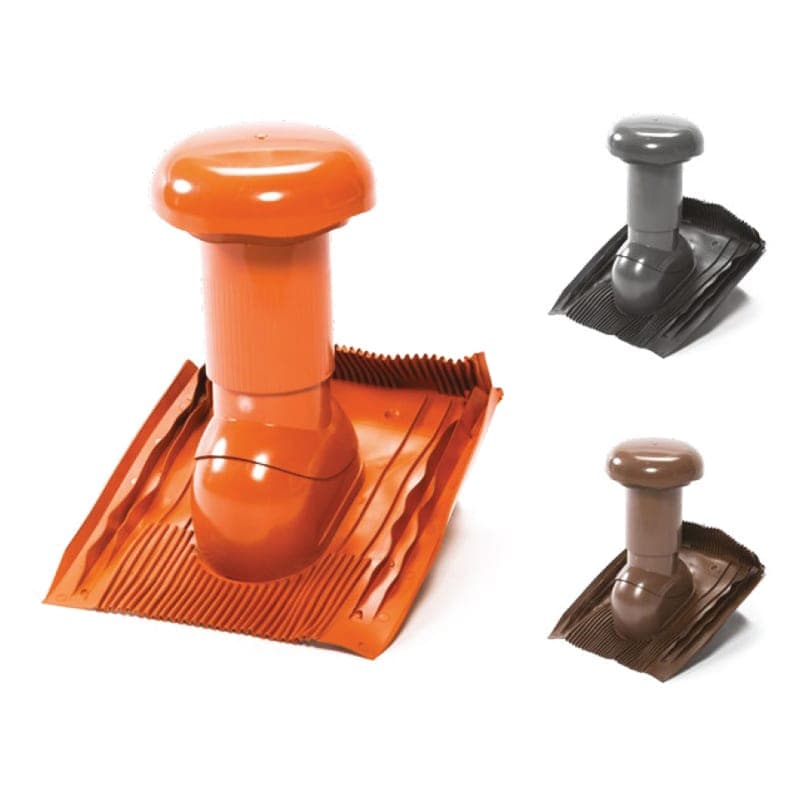

Mushroom-type vent cowl set
EX-09.02- Material
- ASA / ABS
- Weight
- 800 g
- Ventilation section
- 113 cm²
Eaves ventilation comb
EX-09.03- Material
- Polypropylene
- Ventilation area
- 200 cm²/m
- Flat comb
- 1000 × 77 mm, 90 g, 200 per box
- Comb
- 1000 × 95 mm, 180 g, 50 per box
Common data
EX-09.04- Recommended pitch
- ≥ 33 %
- Temperature resistance
- -20 / +80 °C
- Fire class
- B2
- Colours
- Red RAL 8004, anthracite RAL 7021, brown RAL 8028
Gallery
01 / 03
02 / 03
03 / 03
