İzoçatı Mineral Wool
Over-rafter thermal insulation
- Thermal conductivity
- 0.034W/mK
- Reaction to fire — EN 13501-1
- A1
- Thickness
- 50mm
Overview

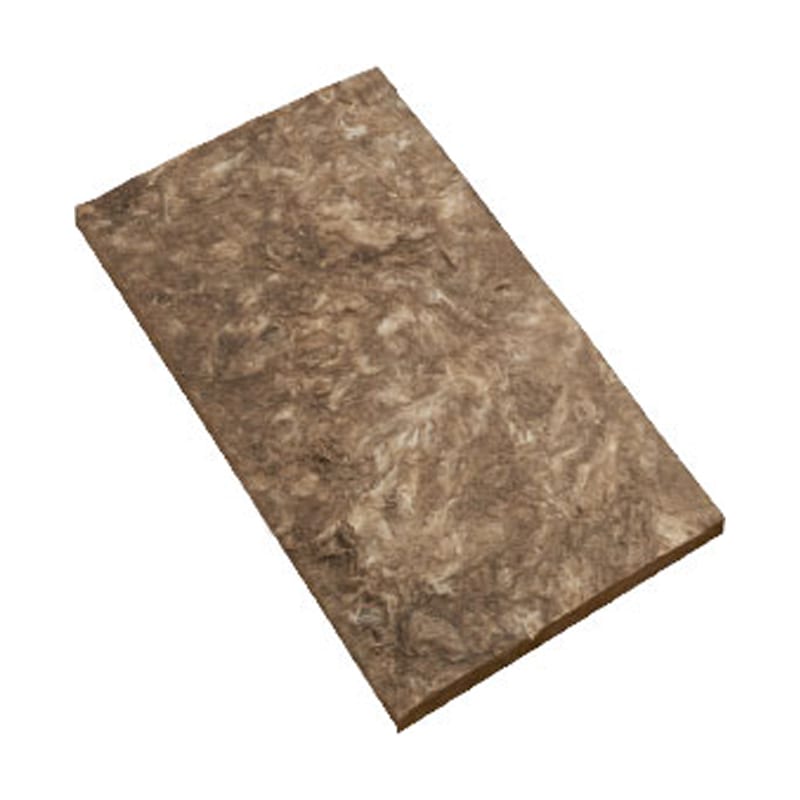

İzoçatı is a mineral wool board designed for over-rafter insulation on pitched roofs. It insulates against heat and sound, is classed A1 for reaction to fire, and its flexibility makes it quick to fit between counter-battens.
It is water-repellent and low in dust, and its vapour diffusion resistance is roughly that of air, so the roof can breathe. Its binder contains no phenol or formaldehyde derivatives.
Specifications
Board
EX-09.01- Dimensions
- 600 × 1200 mm
- Thickness
- 50 mm
- Thermal conductivity (λ)
- 0.034 W/mK — EN 13162
- Thermal resistance (R)
- 1.45 m²K/W — EN 13162
- Vapour diffusion resistance (μ)
- 1 — EN 13162
- Reaction to fire
- A1 — EN 13501-1
- Short-term water absorption
- ≤ 1 kg/m²
- Long-term water absorption
- ≤ 3 kg/m²
Packing
EX-09.02- Pack
- 16 boards (9.60 m²)
- Pallet
- 320 boards (230.40 m²)
- Coverage
- 0.72 m² per board
