EX-09 — Roof system solutions
01 — Overview
Overview

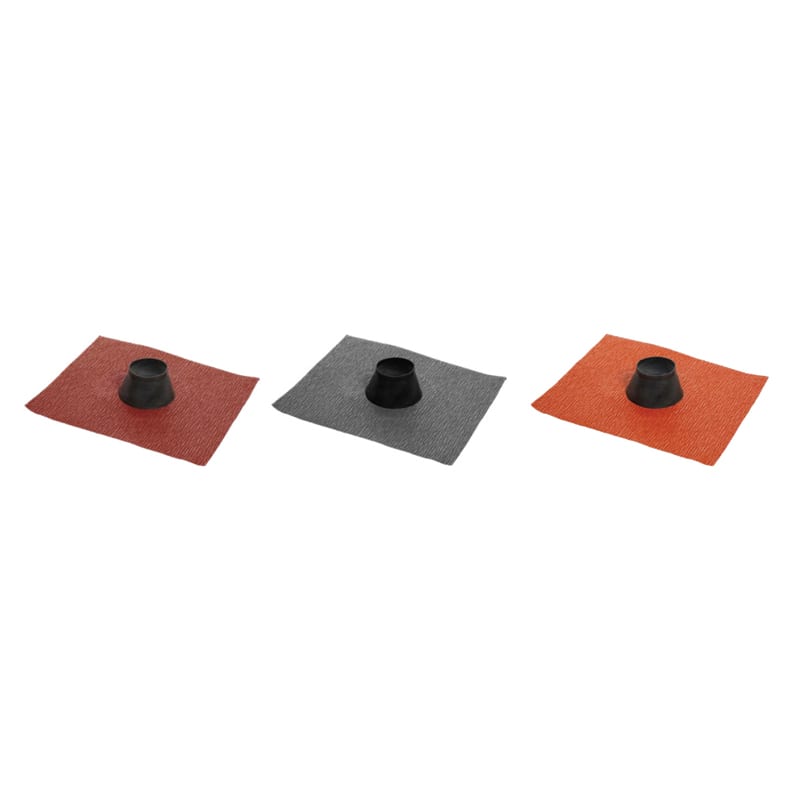

The antenna exit set takes television aerials and satellite masts through the roof. The universal pass-through seal, an EPDM collar used with a pass-through tile, seals rooftop pipes and fixings without loading or modifying the tiles.

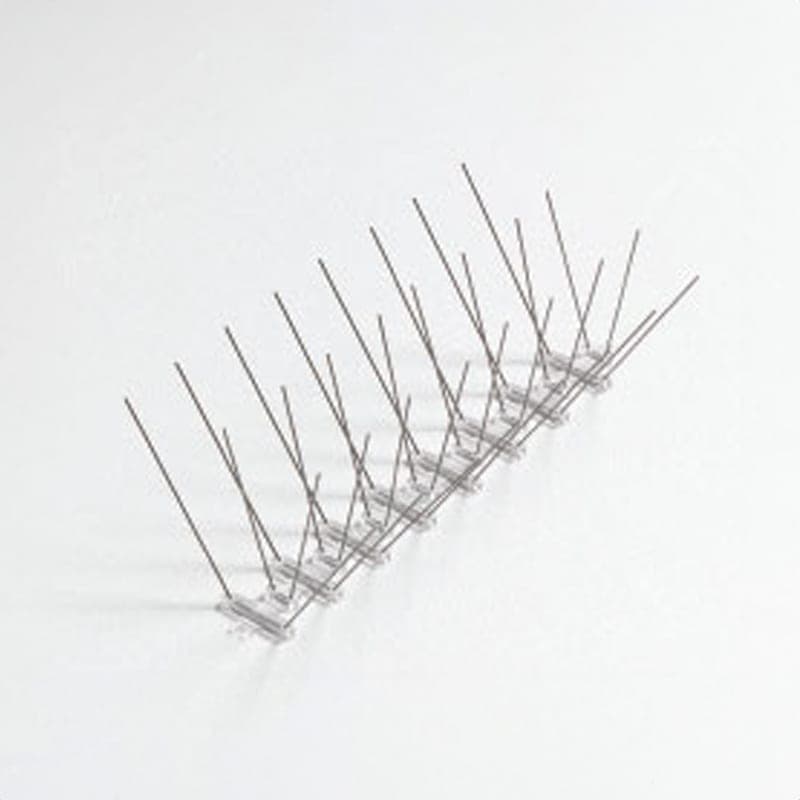

Bird spikes in stainless steel wire on a polycarbonate base bend to any surface and are screwed or bonded in place with UV-stable silicone.
02
Specifications
Antenna exit set
EX-09.01- Material
- ASA / ABS, 500 g
- Pipe diameter
- 22 / 77.5 mm
Universal pass-through seal
EX-09.02- Material
- EPDM, 100 g
- Size
- 240 × 230 mm
- Pipe diameter
- 75 / 90 mm
- Box
- 50 pcs
Bird spikes
EX-09.03- Material
- Polycarbonate base, stainless steel wire
- Size
- 330 × 170 mm
- Box
- 45 pcs
Common data
EX-09.04- Recommended pitch
- ≥ 33 %
- Temperature resistance
- -20 / +80 °C
- Fire class
- B2 (antenna set, seal)
- Colours
- Red RAL 8004, anthracite RAL 7021, brown RAL 8028
