01 — Overview
Overview

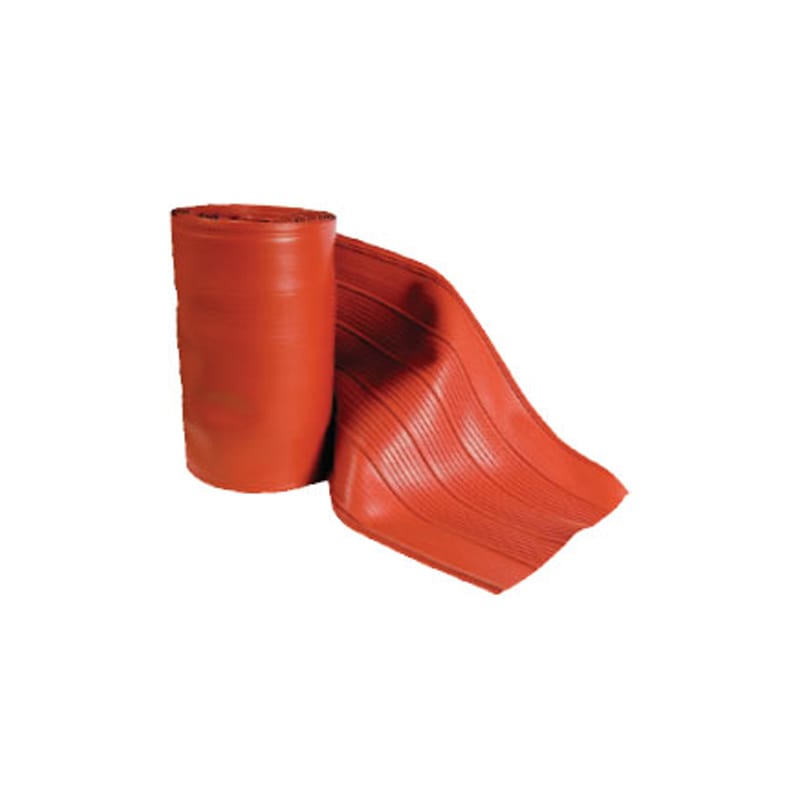

Dereser PVC is a shaped polypropylene drainage channel for roof valleys. It resists weather and UV, has a high tear strength, and its built-in overlap makes laying quick: it is fixed from the eaves upwards with stainless nails or screws every 30 cm.

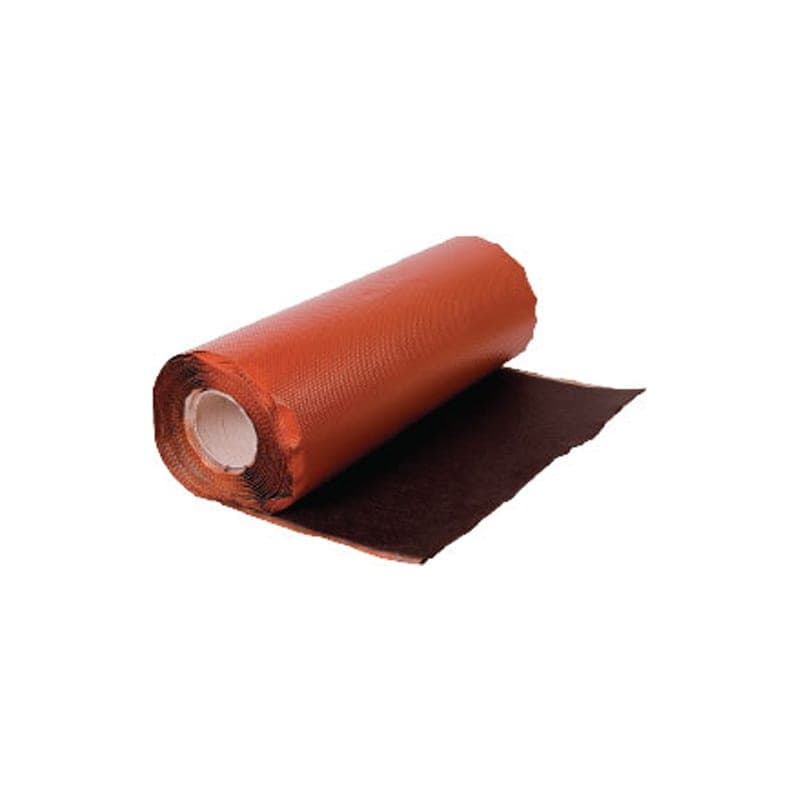

Dereser 55 / 65 is a self-adhesive, powder-coated aluminium valley and abutment strip on a bitumen base, simply peeled and pressed into place.
02
Specifications
Dereser PVC
EX-09.01- Material
- Polypropylene
- Roll
- 0.5 × 10 m, 16 kg
- Temperature resistance
- -25 / +120 °C
Dereser 55 / 65
EX-09.02- Material
- Powder-coated aluminium on bitumen adhesive
- Roll
- 0.55 / 0.65 × 10 m, 13.50 / 15.85 kg
- Application temperature
- +5 / +40 °C
- Temperature resistance
- -40 / +80 °C
Common data
EX-09.03- Recommended pitch
- ≥ 33 %
- Colours
- Red RAL 8004, anthracite RAL 7021, brown RAL 8028
Gallery
01 / 03
02 / 03
03 / 03
