ConceptSystem 59Pa
Ideal for warm climates
- Frame depth
- 50mm
- Max. vent weight
- 120kg
- Max. vent height
- 3000mm
01 — Overview
Overview

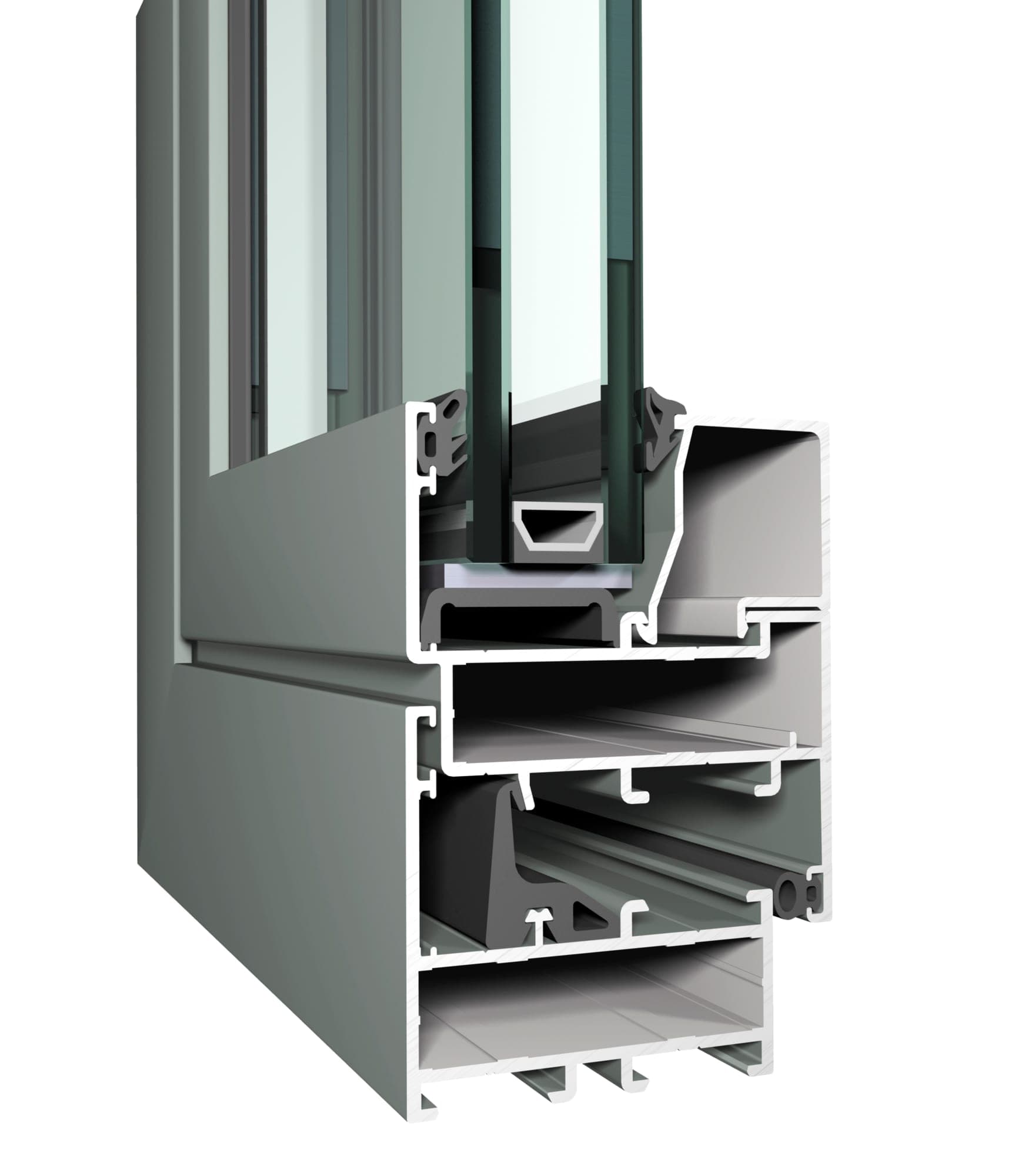

ConceptSystem 59Pa offers a range of non-insulated profiles for elegant and reasonably priced aluminium flush doors. Besides being ideal for warm climates, it can be used as an interior partition system, and special combinations with Reynaers conservatory systems are possible.
The Functional door offers minimum visible heights, with options for hidden drainage, low or zero thresholds and panic exit.
02
Specifications
Performance
EX-06.01- Air permeability
- Class 3 (600 Pa)
- Water tightness
- Class 5A (200 Pa)
- Wind resistance
- Class C2 (800 Pa)
- Impact resistance
- I5 / E5
Dimensions
EX-06.02- Depth (frame / vent)
- 50 mm
- Max. vent height
- 3000 mm
- Vent width
- 500–1350 mm
- Max. vent weight
- 120 kg
- Min. frame + vent width
- 139 mm
03
Documents
Gallery
01 / 02
02 / 02
Sheet 09 — Enquiry
Specify ConceptSystem 59Pa.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
