MasterLine 8
Crafted for masters
- Uf
- 1.3W/m²K
- Max. vent weight
- 250kg
- Burglar resistance up to
- RC3
Overview
MasterLine 8 doors offer a wide range of highly insulated and robust flush doors that meet modern requirements for safety, thermal insulation and stability, allowing large entrance doors. They are available as inward- and outward-opening glass or panel doors, and pivot doors are possible; all can take a wide range of locks and hinges.
Excellent air tightness and thermal performance are proven by the Passive House certificate included in the system. Doors can meet burglar-resistance class 3, carry vents of up to 250 kg and are proven extremely durable (class 8). Designs include Deco, Functional, Panel and Renaissance, with High Insulation, High Insulation + and Passive Door levels.
Performance
- 01

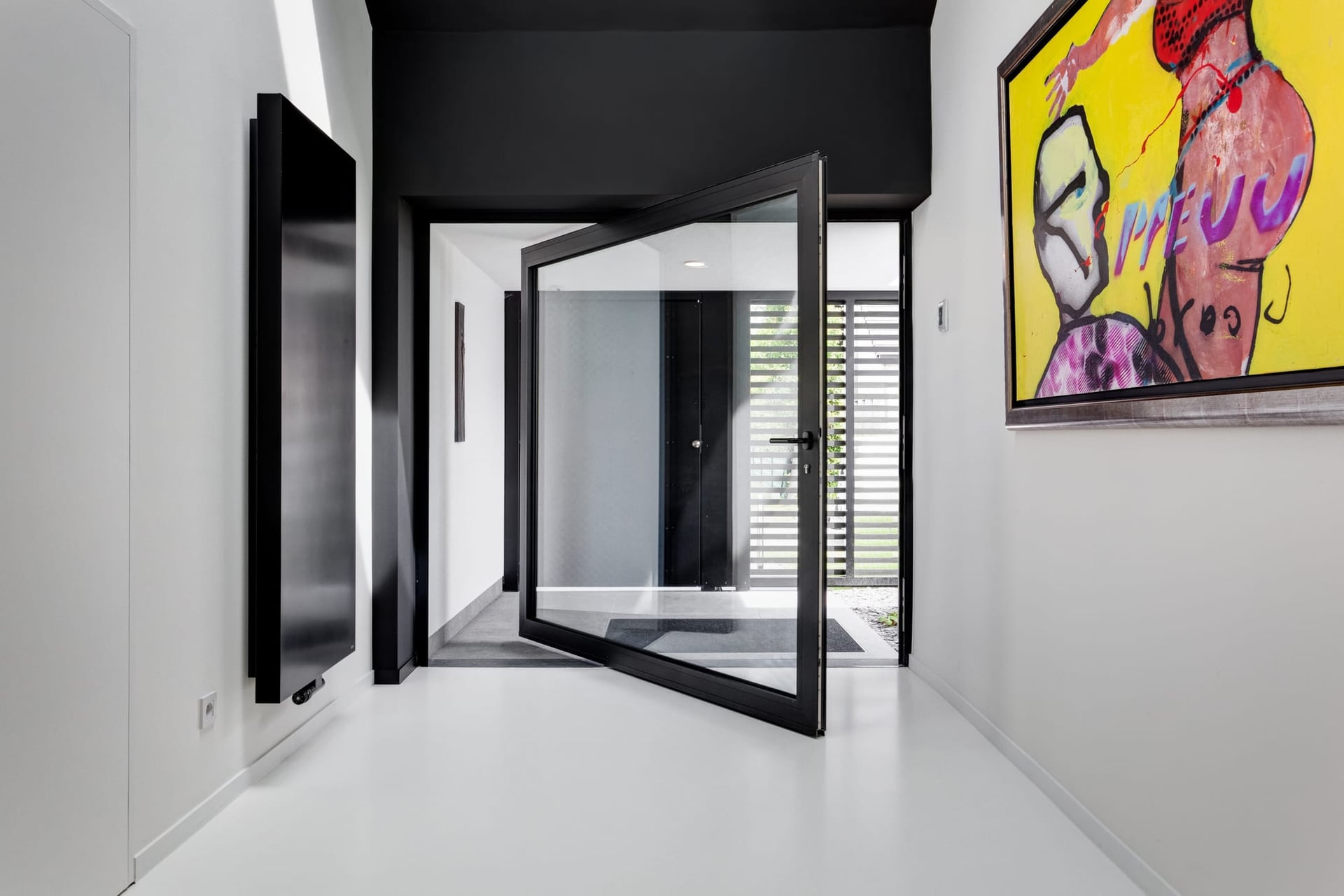

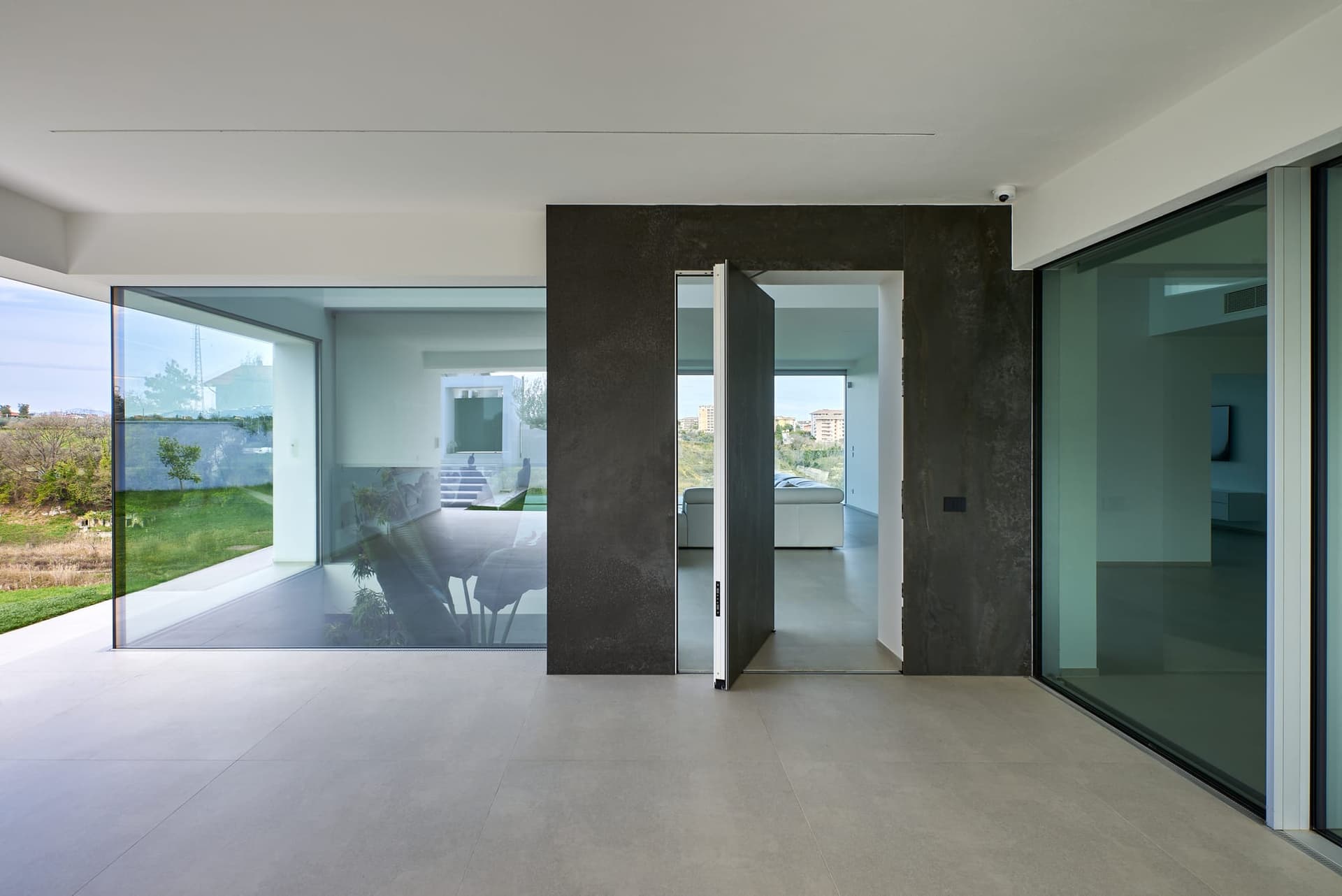

Pivot doors
Large pivoting entrance doors are possible.
- 02
Comfort options
Zero or low threshold, panic exit, access control, slow closing and anti-finger-trap.
Specifications
Performance
EX-06.01- Uf
- 1.3 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class 8A (450 Pa)
- Wind resistance
- Class C2 (800 Pa)
- Acoustics Rw (C;Ctr)
- 43 (-1;-4) dB
- Opening and closing durability
- Class 8
- Burglar resistance
- RC2, RC3, PAS 24
- Impact resistance
- I5 / E5
- Fire resistance
- EI2 57
Dimensions
EX-06.02- Depth (frame / vent)
- 77 mm
- Vent height
- 500–3000 mm
- Vent width
- 500–1400 mm
- Max. vent weight
- 250 kg
- Max. glass weight
- 1200 kg
- Min. frame + vent width
- 153 mm
Documents
Gallery
01 / 03
02 / 03
03 / 03
Specify MasterLine 8.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
