ConceptSystem 77
Optimised security and comfort
- Uf
- 1.8W/m²K
- Max. vent weight
- 250kg
- Mechanical durability
- Class 8
01 — Overview
Overview
ConceptSystem 77 is a first-class aluminium door system with a wide variety of opening possibilities and design options. The versatile solution covers the broadest range of security requirements, including fire-resistant and bullet-resistant versions.
Designs include the Functional door and an elegant panel door (single- or double-sided, with glass of any size); a High Insulation version is available. Options include concealed hinges, hidden drainage, low and zero thresholds, access control, panic exit and slow closing.
02
Specifications
Performance
EX-06.01- Uf
- 1.8 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class 7A (300 Pa)
- Wind resistance
- Class C2 (800 Pa)
- Acoustics Rw (C;Ctr)
- 42 (-1;-4) dB
- Opening and closing durability
- Class 8
- Burglar resistance
- RC2, RC3, PAS 24
- Impact resistance
- I5 / E5
- Fire resistance
- EI1 30, EI2 30, EI2 60, EW 57
Dimensions
EX-06.02- Depth (frame / vent)
- 68 mm
- Max. vent height
- 3000 mm
- Vent width
- 500–1400 mm
- Max. vent weight
- 250 kg
- Min. frame + vent width
- 150 mm
03
Documents
Gallery

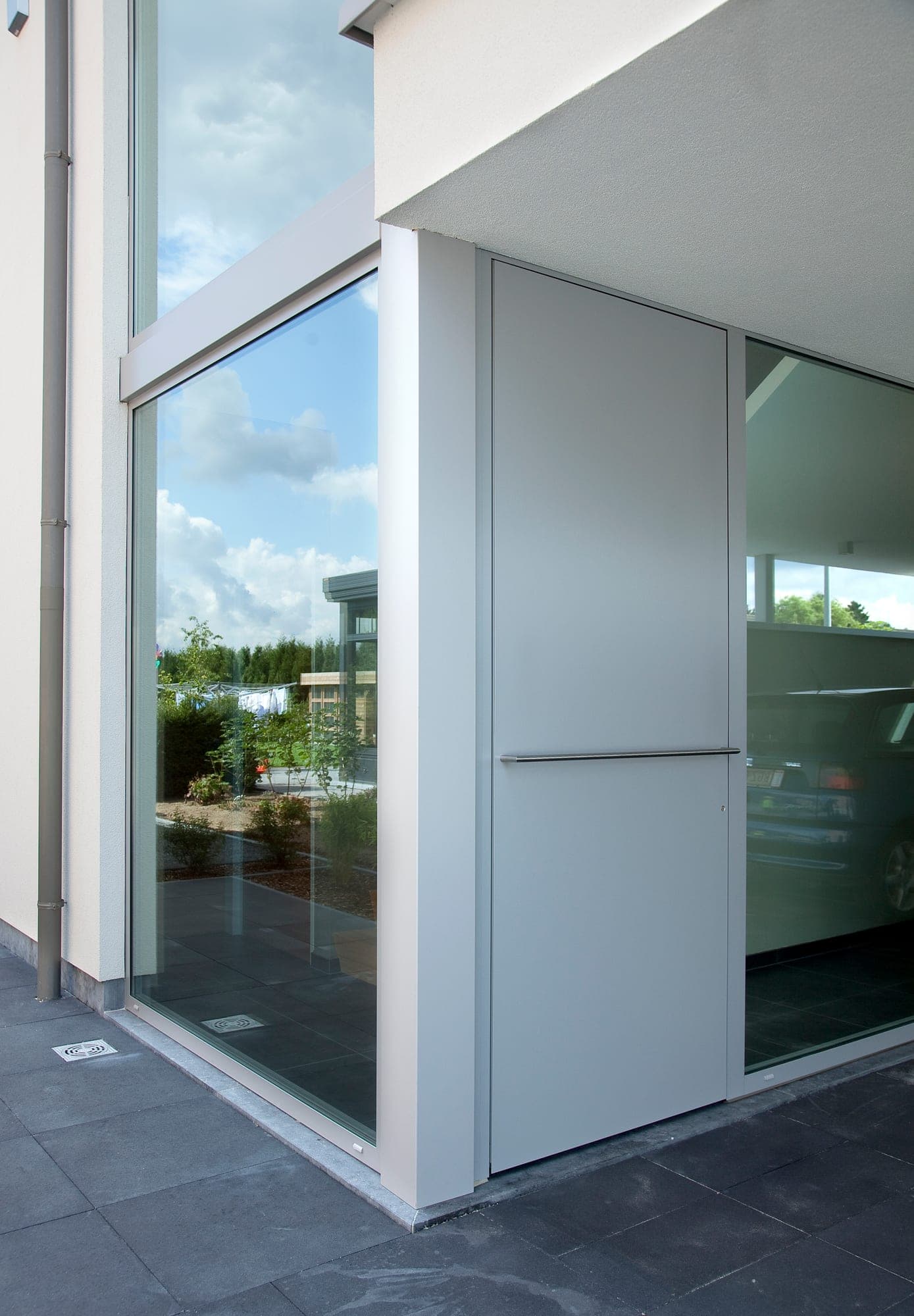

01 / 04

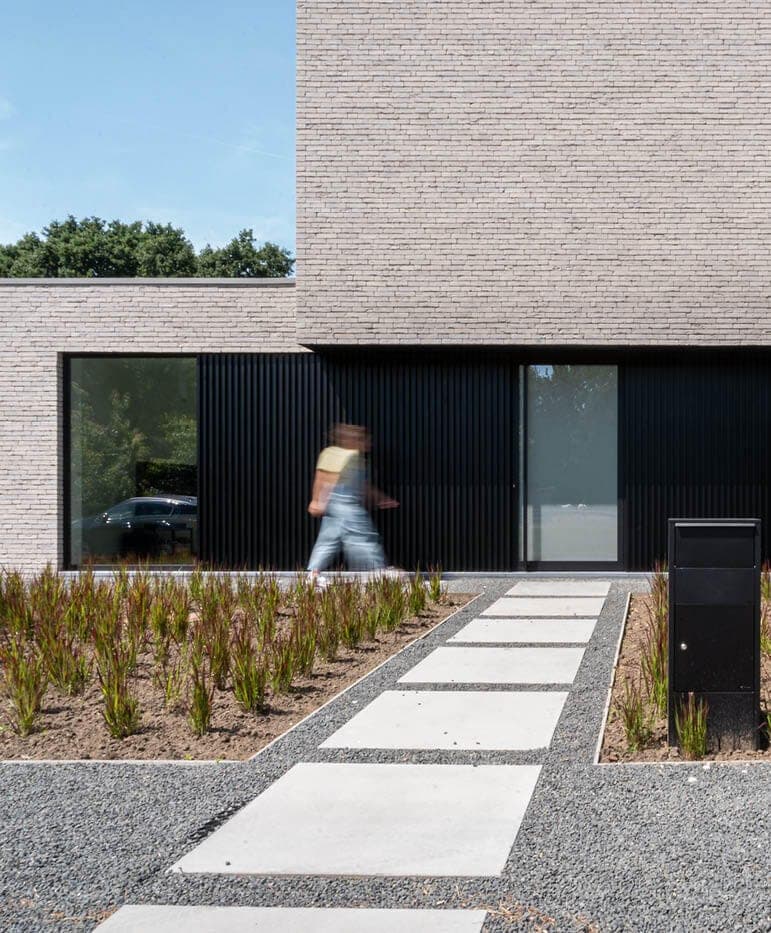

02 / 04

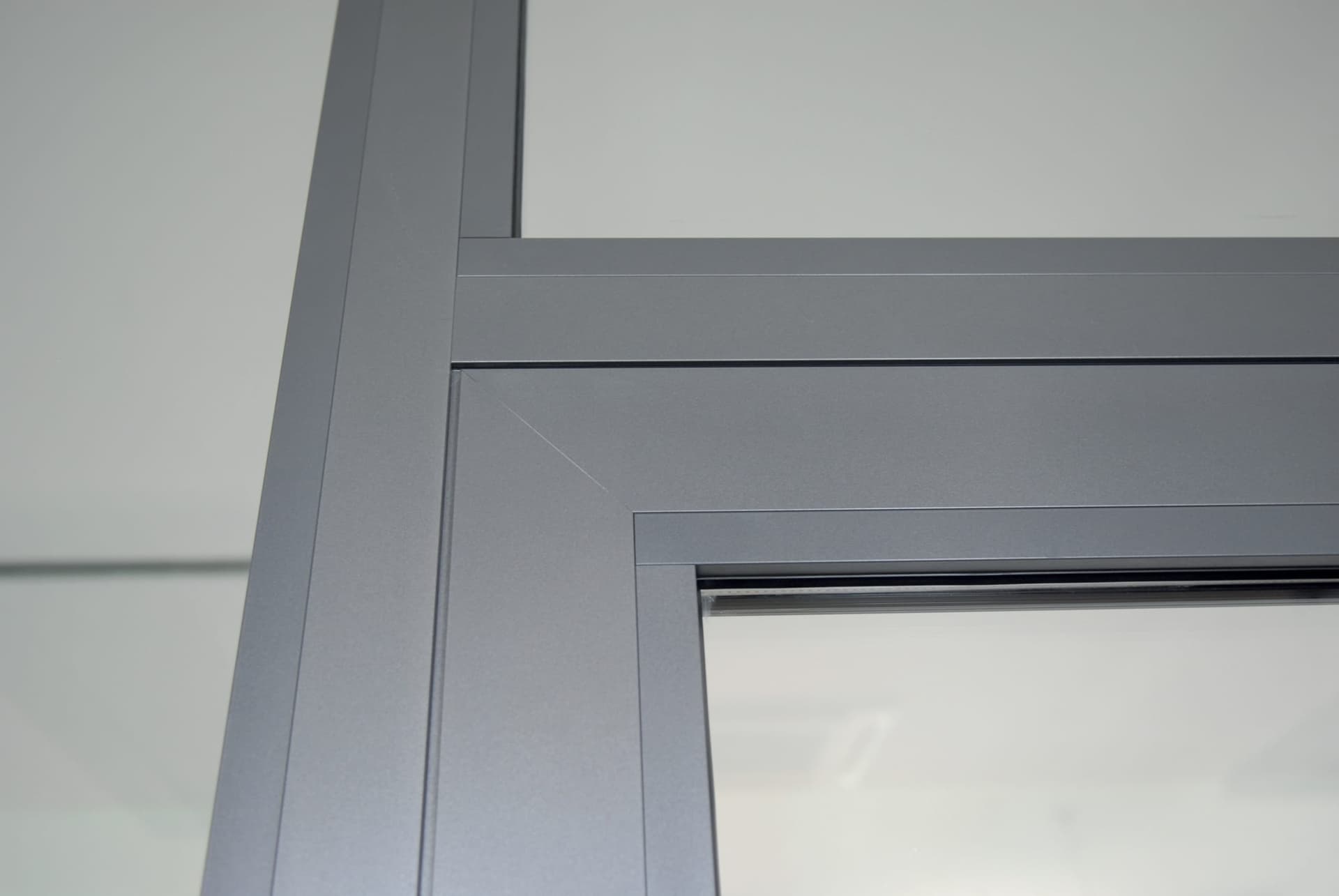

03 / 04

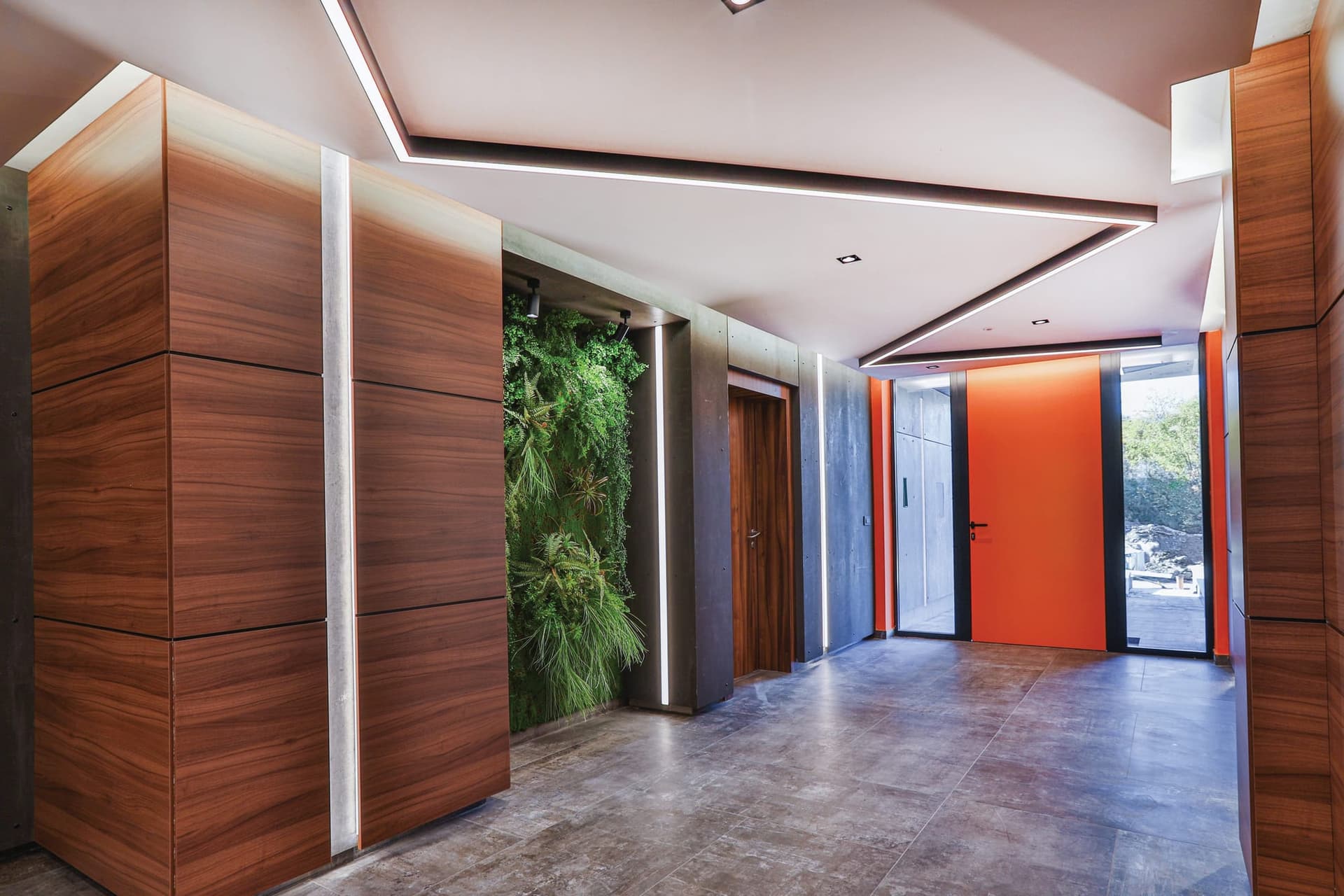

04 / 04
