EX-09 — Tile fittings
01 — Overview
Overview
Each tile family has its own ridge range: the standard ridge tile for ridges and hips, the starter (first) ridge for the eaves end, and three- and four-way pieces for hip junctions — supplied in the matching clay or kiln colour.
The Classic ridge range also serves the Alaturka, Valensiya and Granada roofs; the İnova range is shared with the Ultra.
02
Specifications
Classic range (Classic 1, Alaturka, Valensiya, Granada)

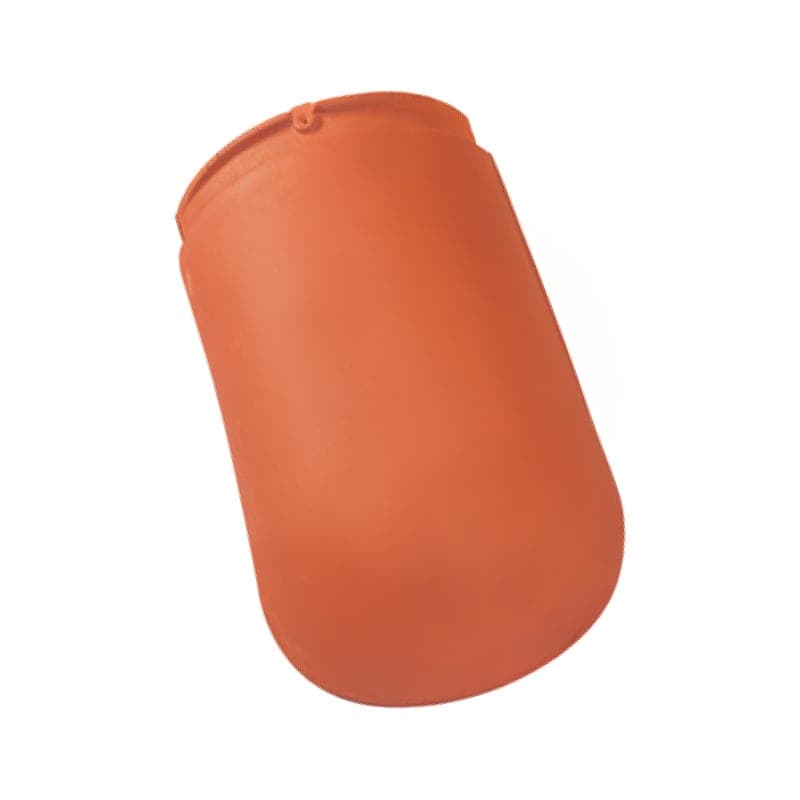

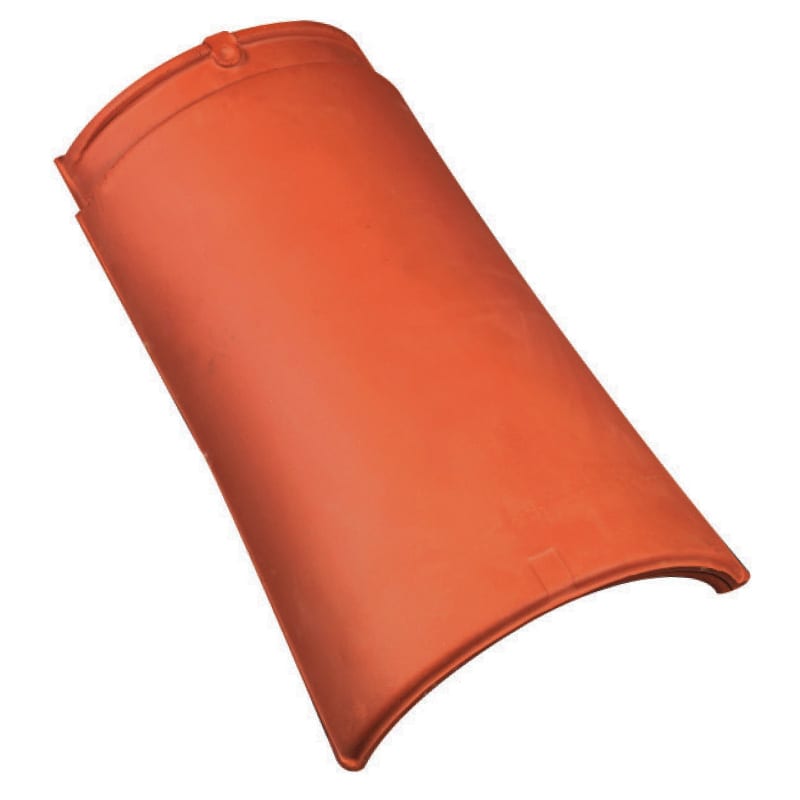

EX-09.01- Ridge
- 225 × 260 × 430 mm, 3800 g, 3 pcs/m

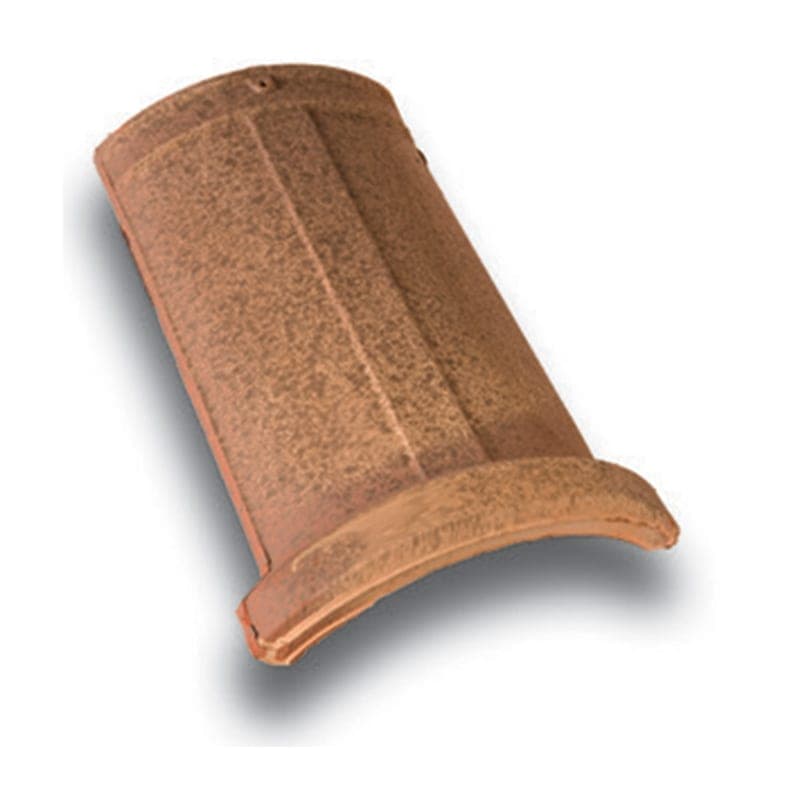

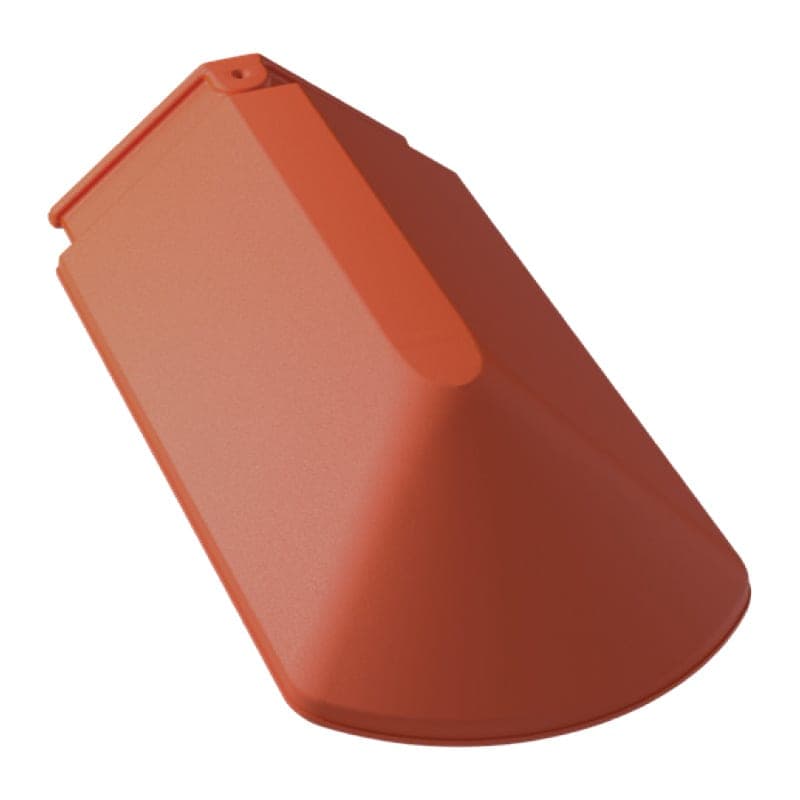

- Starter ridge
- 228 × 440 mm, 3850 g

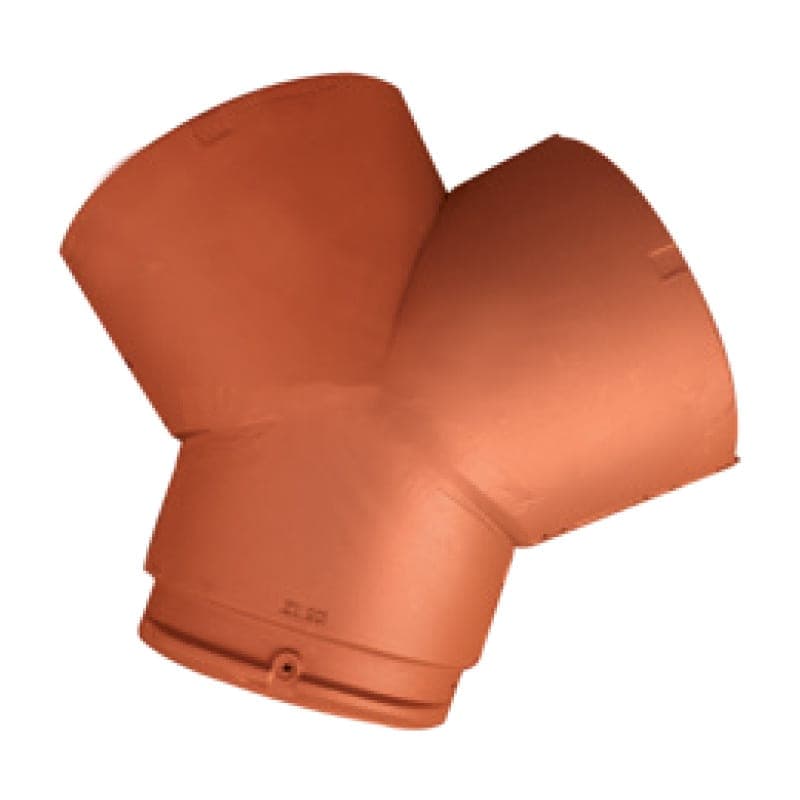

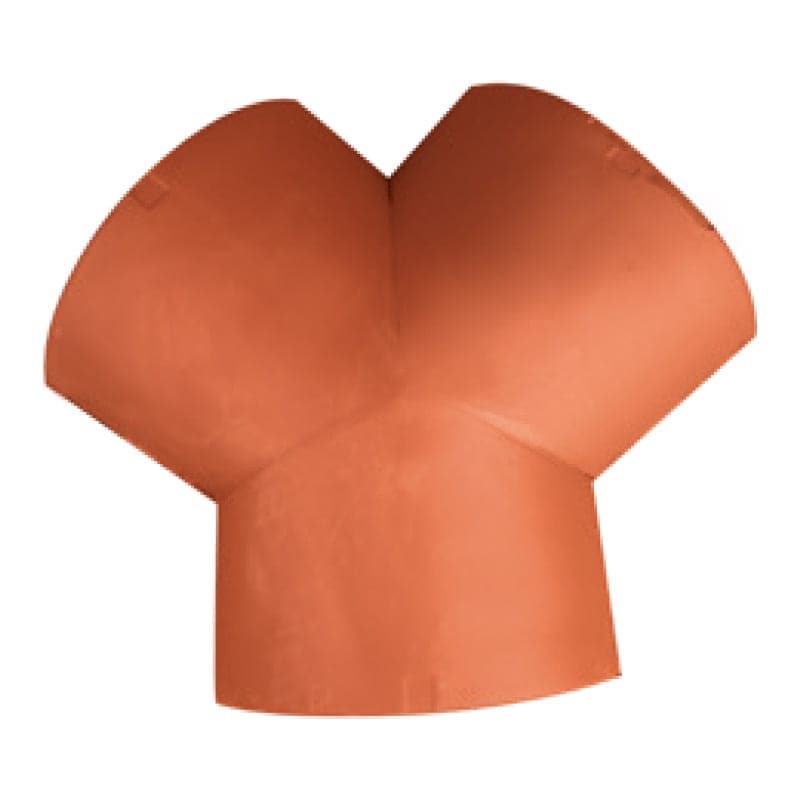

- Three-way (2G)
- 225 × 261 × 437 mm, 4990 g
- Three-way (3G)
- 263 × 263 × 447 mm, 5048 g

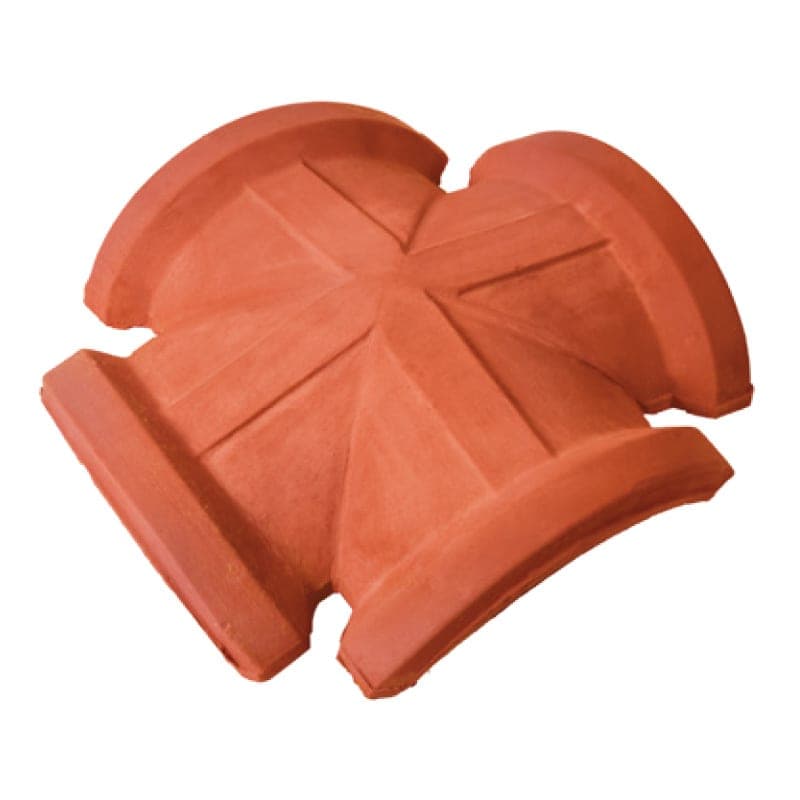

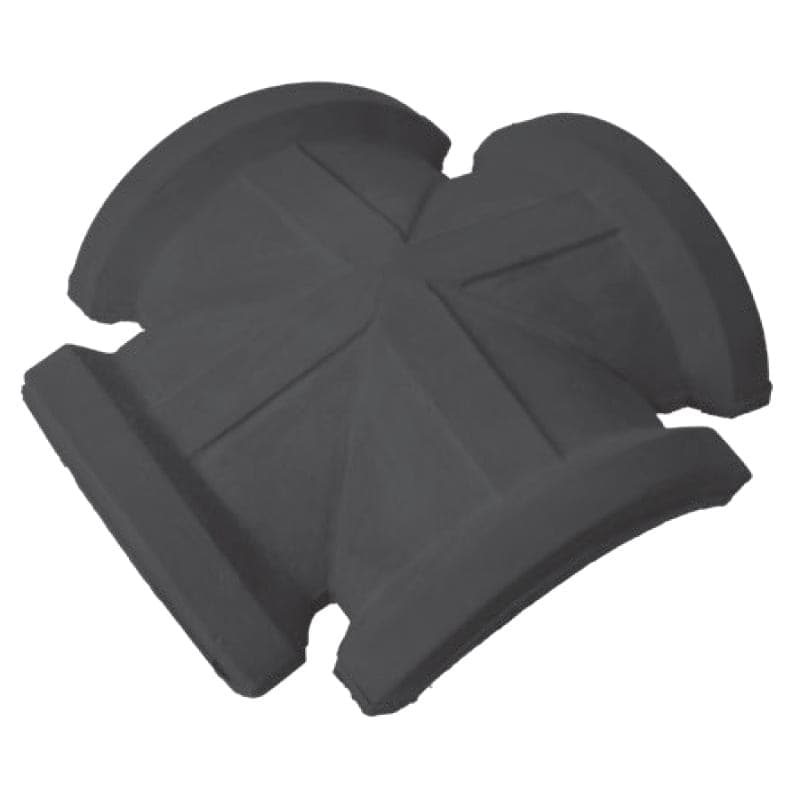

- Four-way
- 262 × 266 × 400 mm, 4356 g
Akdeniz range
EX-09.02- Ridge
- 224 × 425 mm, 3550 g, 3 pcs/m
- Starter ridge
- 190 × 380 mm, 3850 g
- Three-way (2G)
- 233 × 231 × 434 mm, 4526 g
- Three-way (3G)
- 233 × 232 × 438 mm, 4470 g
- Four-way
- 410 × 230 × 230 mm, 5083 g
İnova range (İnova, Ultra)

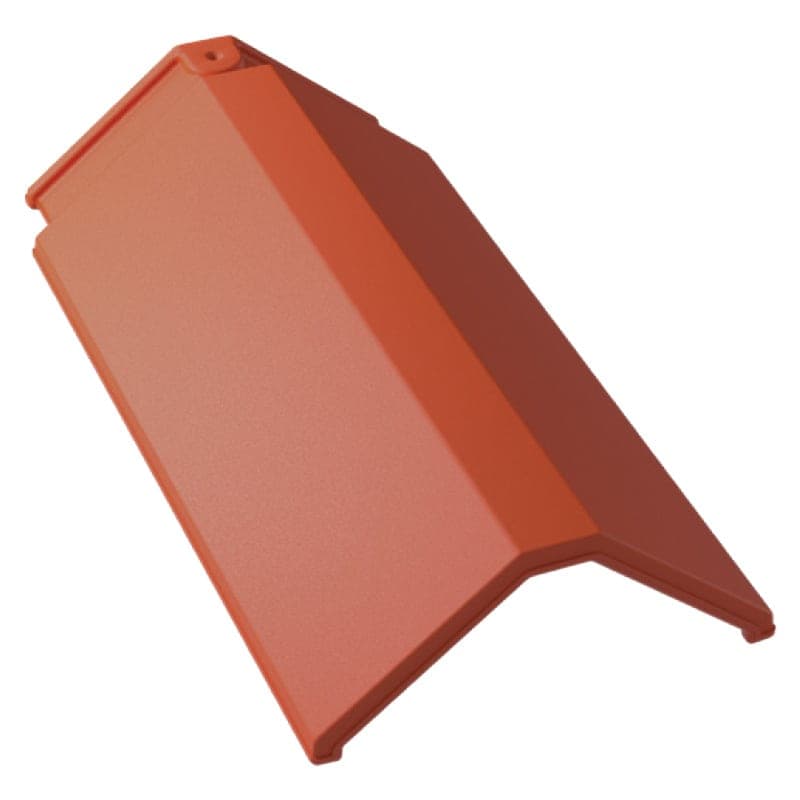

EX-09.03- Ridge
- 230 × 430 mm, 3300 g, 2.5 pcs/m
- Starter ridge
- 215 × 428 mm, 3100 g
- Three-way (2G)
- 230 × 238 × 438 mm, 3998 g
- Three-way (3G)
- 236 × 234 × 434 mm, 3976 g

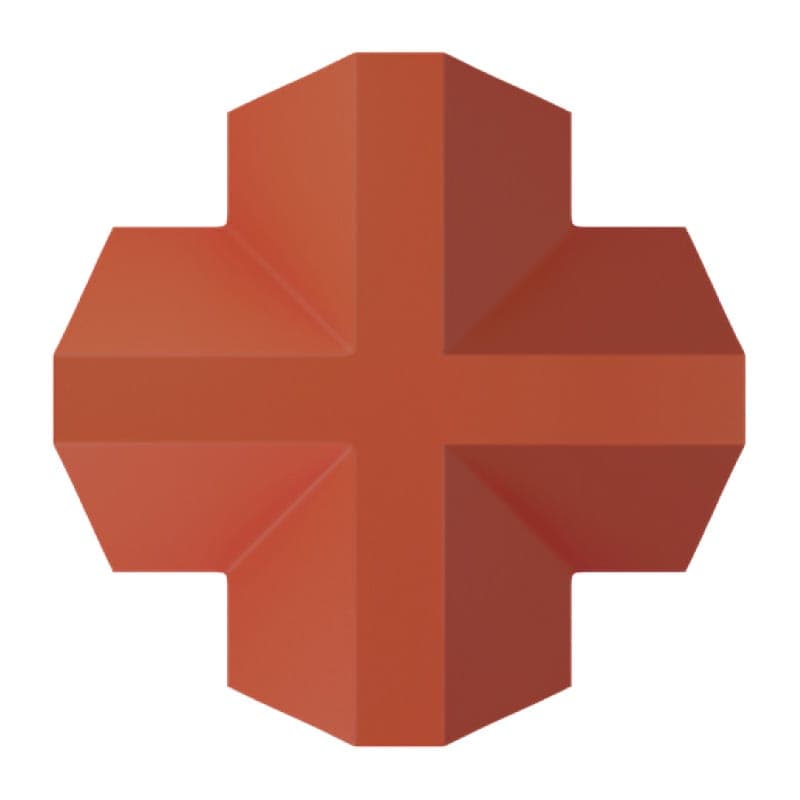

- Four-way
- 236 × 236 × 399 mm, 4165 g
Gallery
01 / 09
02 / 09
03 / 09
04 / 09
05 / 09
06 / 09
07 / 09
08 / 09
09 / 09
Sheet 09 — Enquiry
Specify Ridge & hip tiles.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
