Classic 1
The classic interlocking clay tile
- Coverage
- 15pcs/m²
- Breaking load ± 20
- 300kgf
- Weight ± 100
- 2950g
Overview
Classic 1 is the profile most people picture when they think of a clay tile. Its easy laying and dependable cover have made it the most widely used model for decades, and it has proven itself under harsh cold-climate conditions.
Micronised clay gives it high strength and a smooth surface. Laid staggered, the tile protects roofs of any length against leaks; the renewed profile remains compatible with existing tiles when roofs are partly replaced.
Performance
- 01

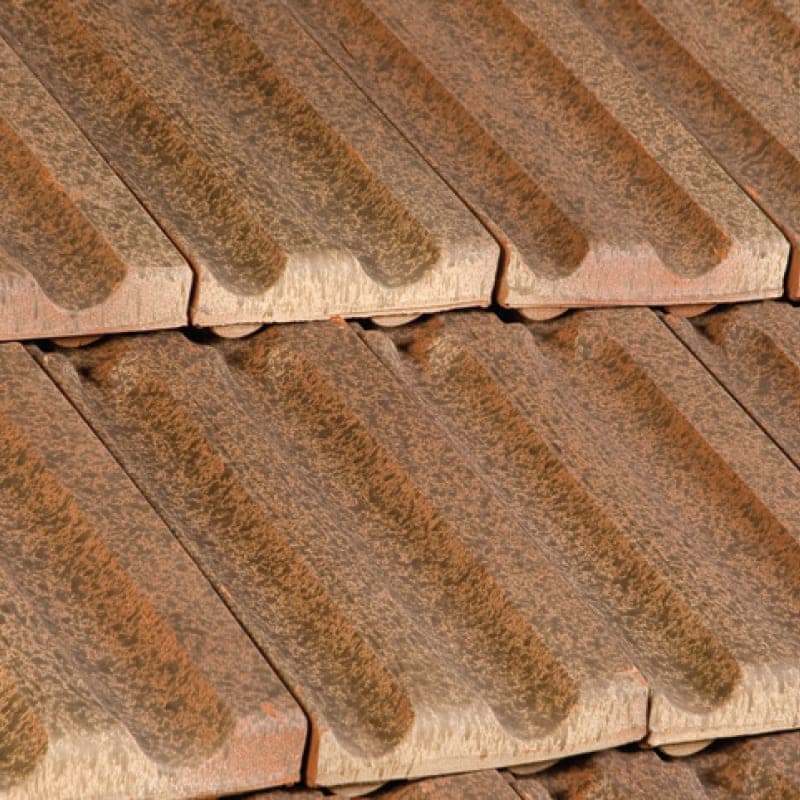

Wide channels
Easy drainage, with interlocks that keep the joints watertight.
- 02
Raised nail hole
In staggered laying the top-left hole is used, away from the water path; in straight laying the centre hole.
- 03
Fitting tolerance
2 cm vertical and 2.5 cm horizontal play in the locks eases installation.
- 04
Smooth surface
Dust and dirt find it hard to settle.
- 05
Re-roofing
Compatible with existing old tiles when roofs are renewed.
Applications

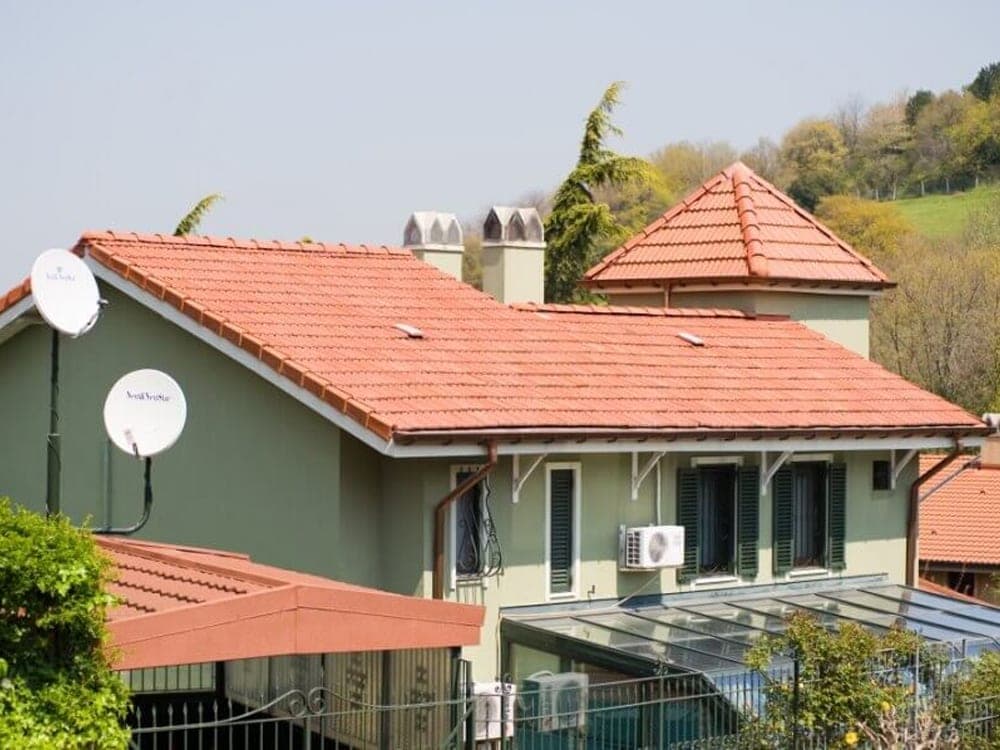

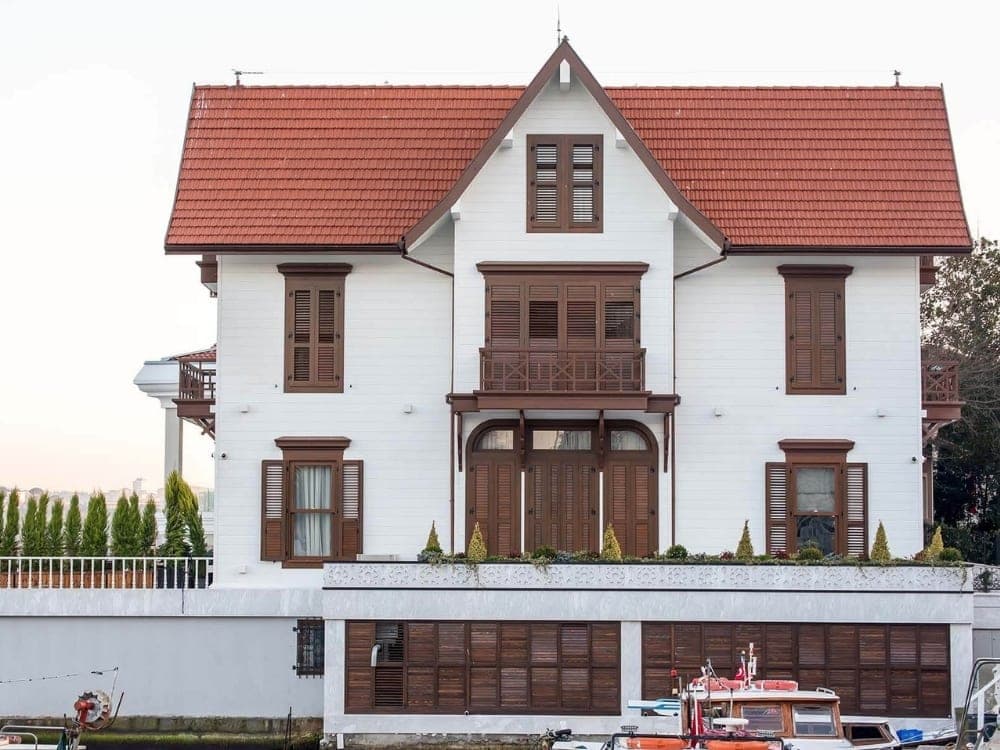

- Houses and villas
- Housing developments

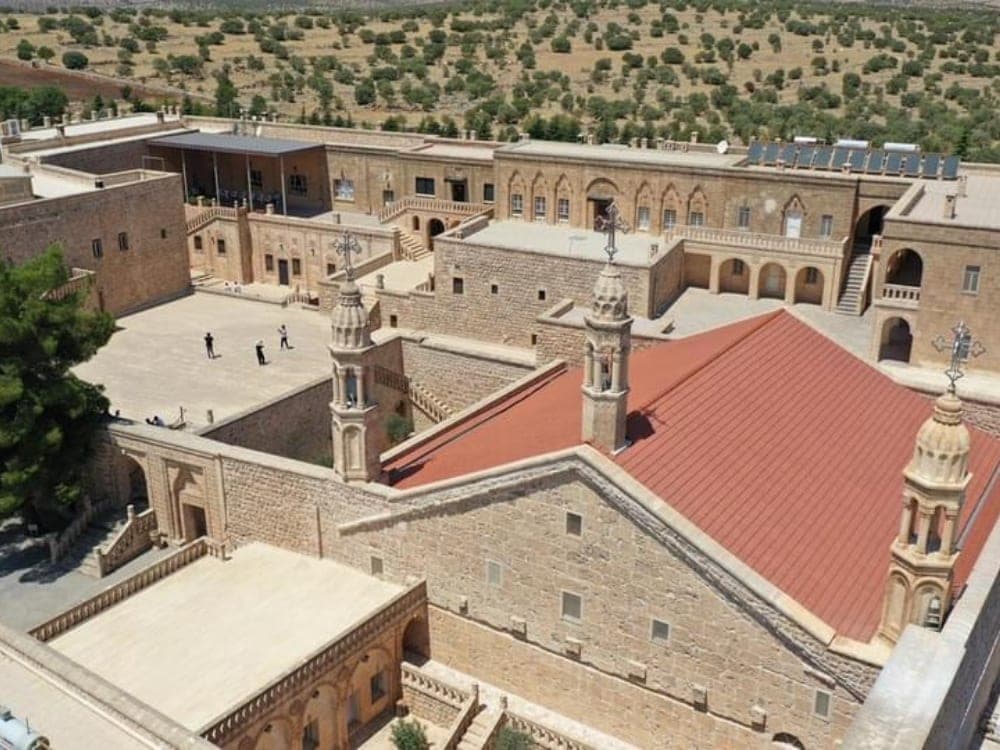

- Historic buildings
- Re-roofing
Specifications
Tile
EX-09.01- Dimensions
- 233 × 412 mm
- Weight
- 2950 g (± 100 g)
- Laying
- Staggered
- Breaking load
- 300 kgf (± 20 kgf)
- Flexural strength
- > 3000 N — TS EN 538
- Coverage
- 15 pcs/m²
- Nail hole
- 6 mm
- Batten gauge
- 336–338 mm (eaves to second batten 30 cm)
- Recommended pitch
- ≥ 33 %
Packing
EX-09.02- Pack
- 6 pcs
- Pallet
- 300 pcs, approx. 910 kg
Colours
EX-09.03- Available in
- Natural clay red, Dorlion Ateşi, Hitit Ateşi, Frigya Ateşi, Truva Ateşi, Antrasit Gri
Gallery
01 / 09
02 / 09
03 / 09
04 / 09
05 / 09
06 / 09
07 / 09
08 / 09
09 / 09
Specify Classic 1.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
