EX-09 — Traditional tiles
← Back to Roofing Tiles

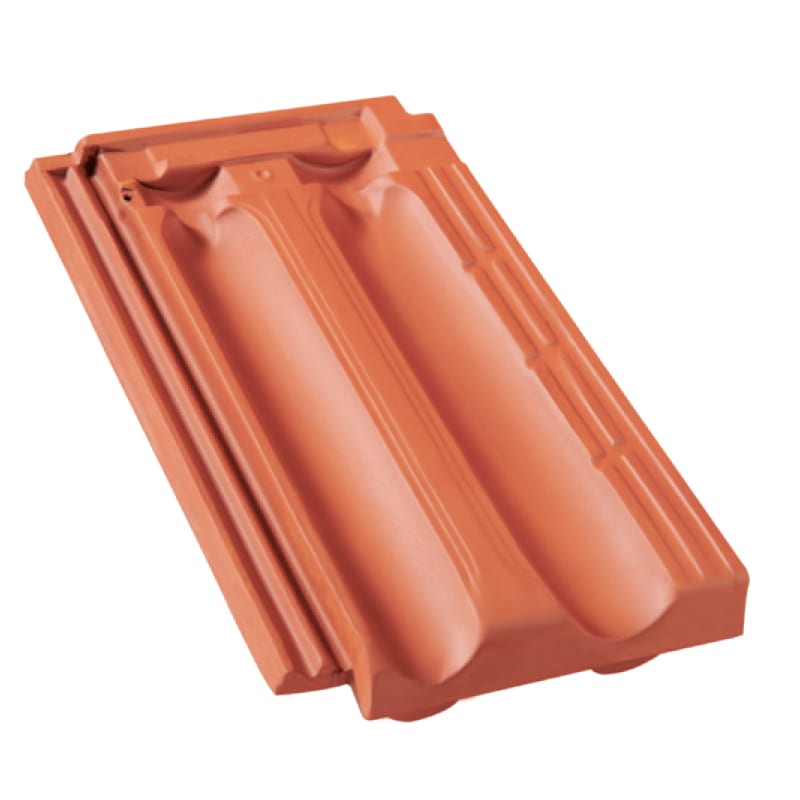

Akdeniz
For extra strength
- Average breaking load
- 300kgf
- Coverage
- 15pcs/m²
- Tile size
- 240 × 410mm
01 — Overview
Overview
Micronised clay and a high firing temperature give the Akdeniz a particularly strong body, with strength far above the standard's minimum.
Its double-channel interlocking system makes water run-off safer still; laid staggered, it protects roofs of any length against leaks.
02
Performance
- 01
Double-channel interlock
Extra watertightness at the side joints.
- 02
Protected fixing
The top-left nail hole sits away from the water path in staggered laying.
- 03
Smooth surface
Hard for dust and dirt to cling to.
- 04
Glass tile
A matching glass tile brings daylight into the roof space.
03
Applications
- Houses and villas
- Housing developments
- Exposed and windy sites
04
Specifications
Tile

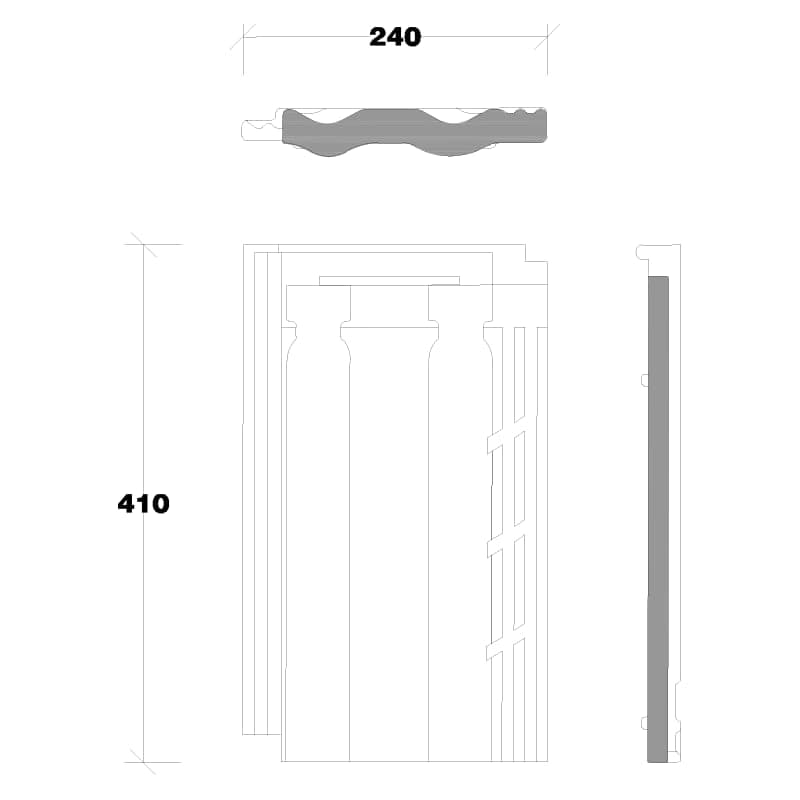

EX-09.01- Dimensions
- 240 × 410 mm
- Weight
- 2950 g (± 100 g)
- Laying
- Staggered
- Breaking load
- 300 kgf (± 20 kgf)
- Flexural strength
- > 3000 N — TS EN 538
- Coverage
- 15 pcs/m²
- Nail hole
- 6 mm
- Batten gauge
- 336–338 mm (eaves to second batten 30 cm)
- Recommended pitch
- ≥ 33 %
Packing
EX-09.02- Pack
- 6 pcs
- Pallet
- 300 pcs, approx. 925 kg
Colours
EX-09.03- Available in
- Natural clay red, Dorlion Ateşi, Hitit Ateşi, Frigya Ateşi, Truva Ateşi, Antrasit Gri
Gallery
01 / 09

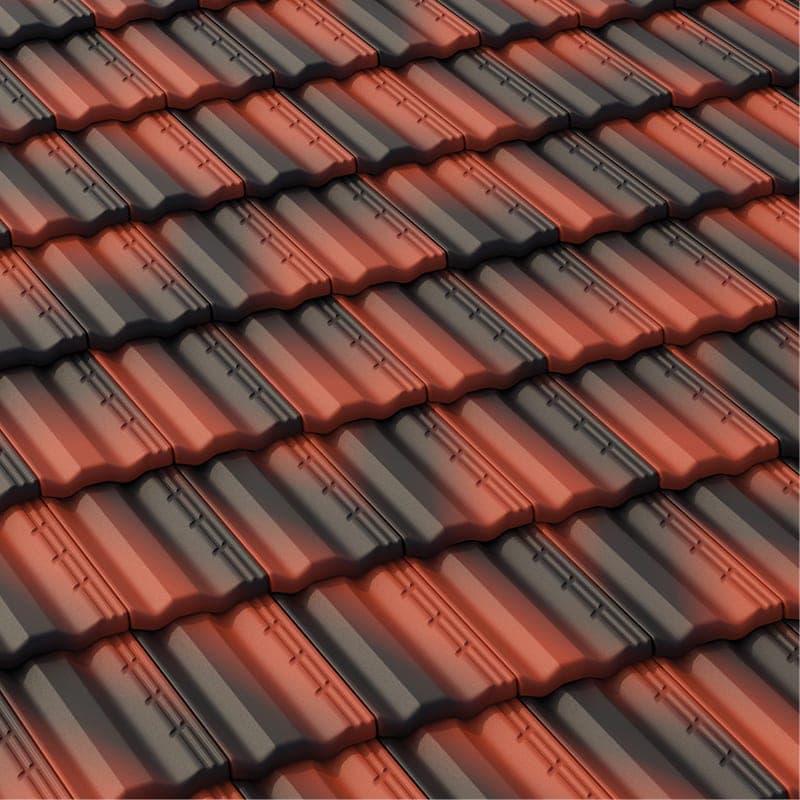

02 / 09

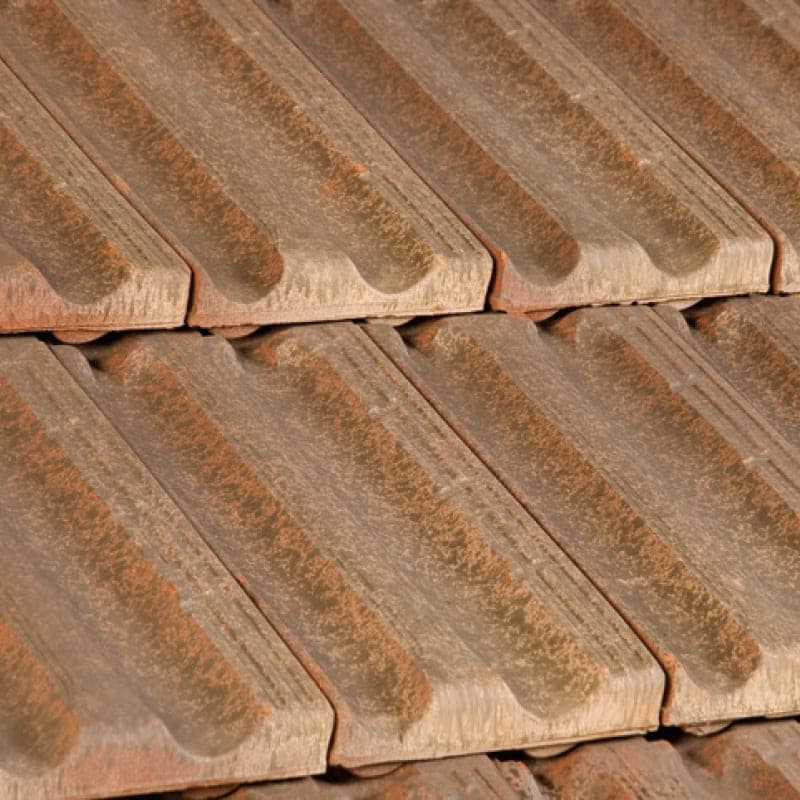

03 / 09

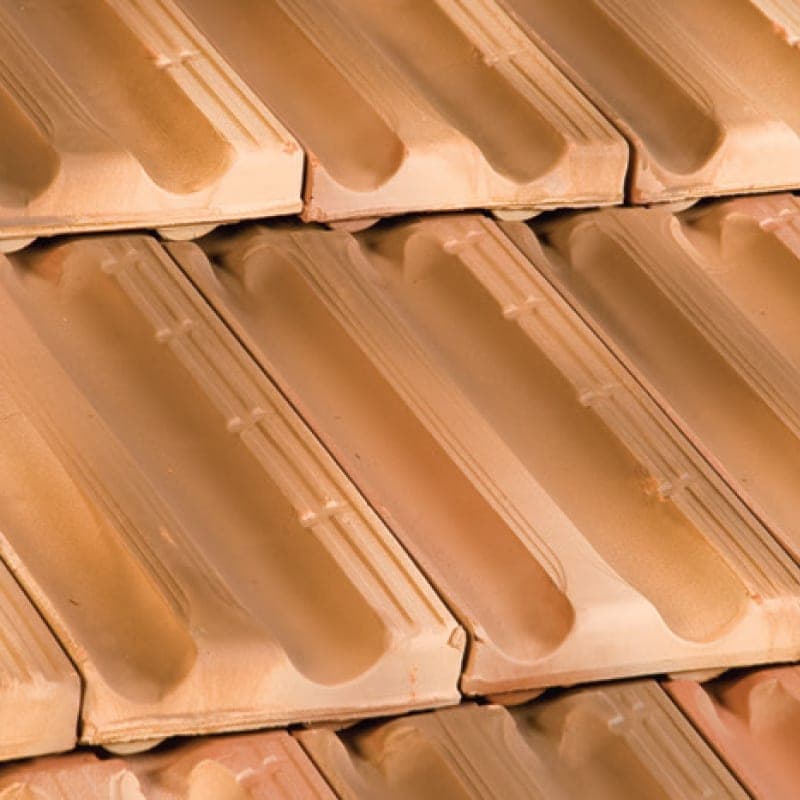

04 / 09

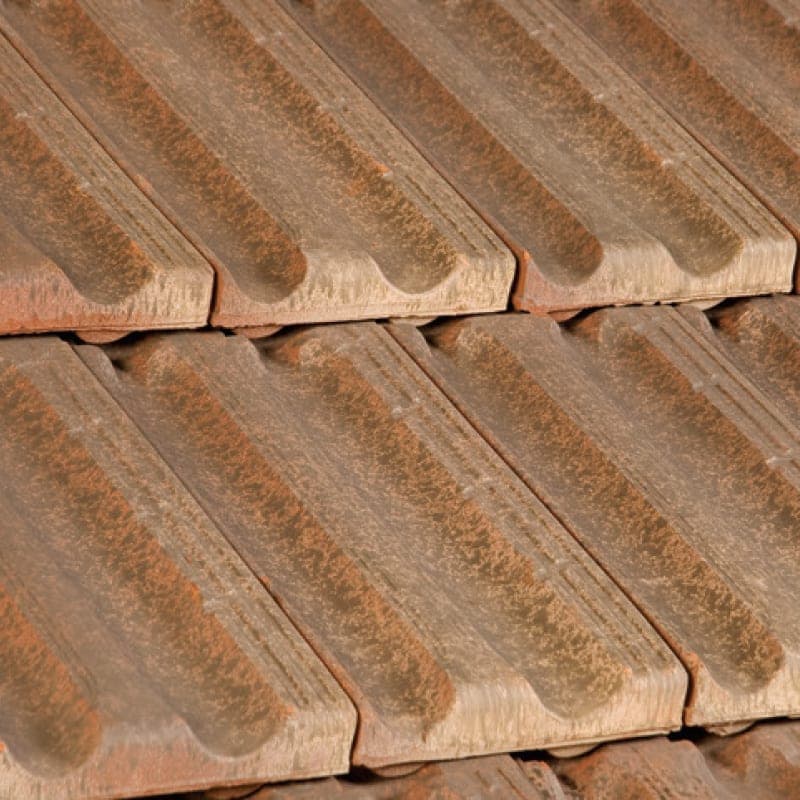

05 / 09

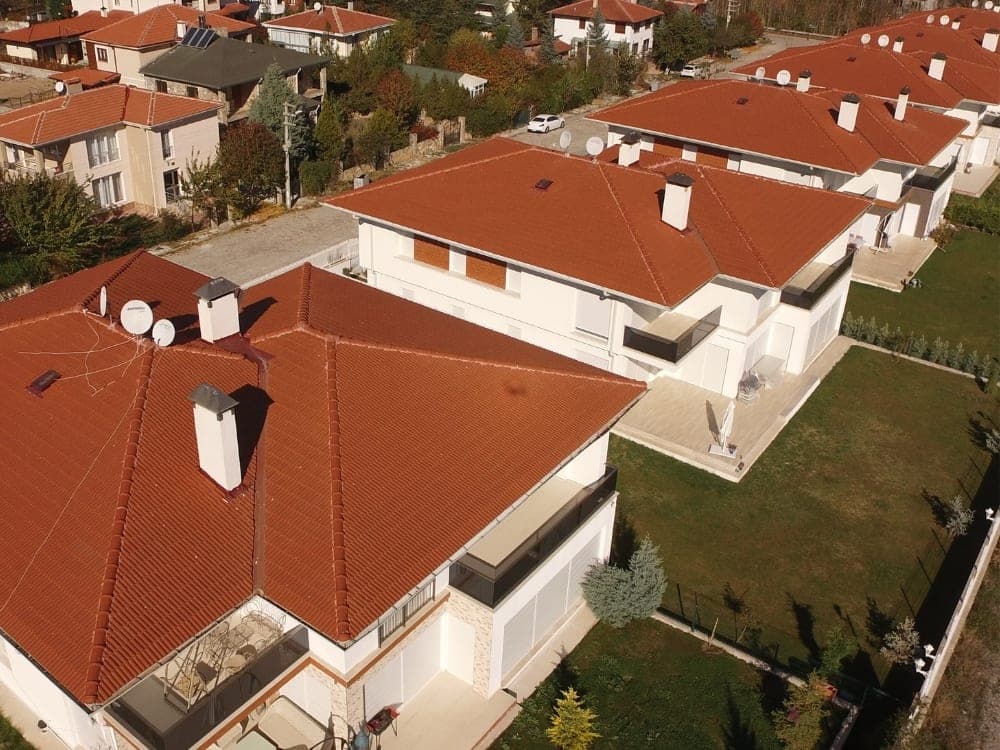

06 / 09

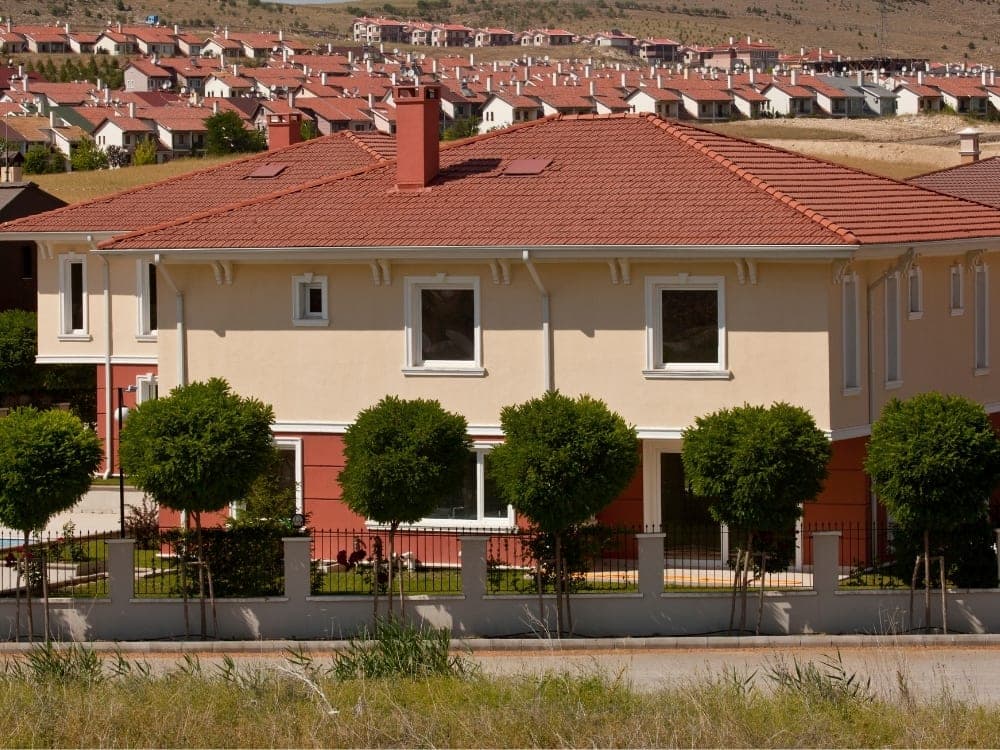

07 / 09

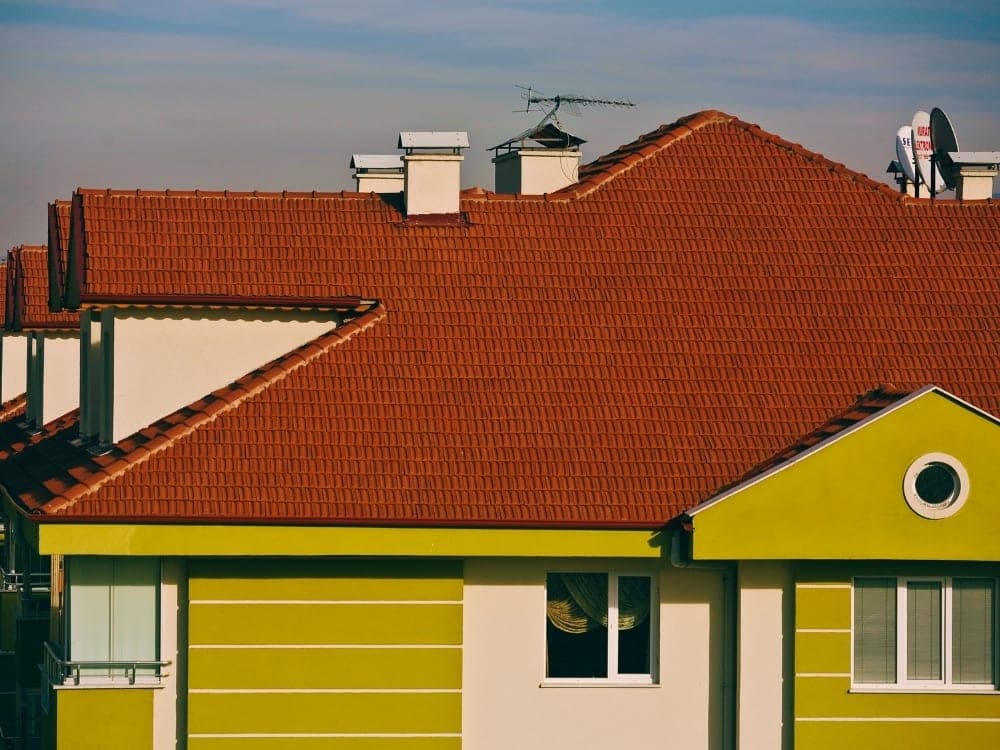

08 / 09

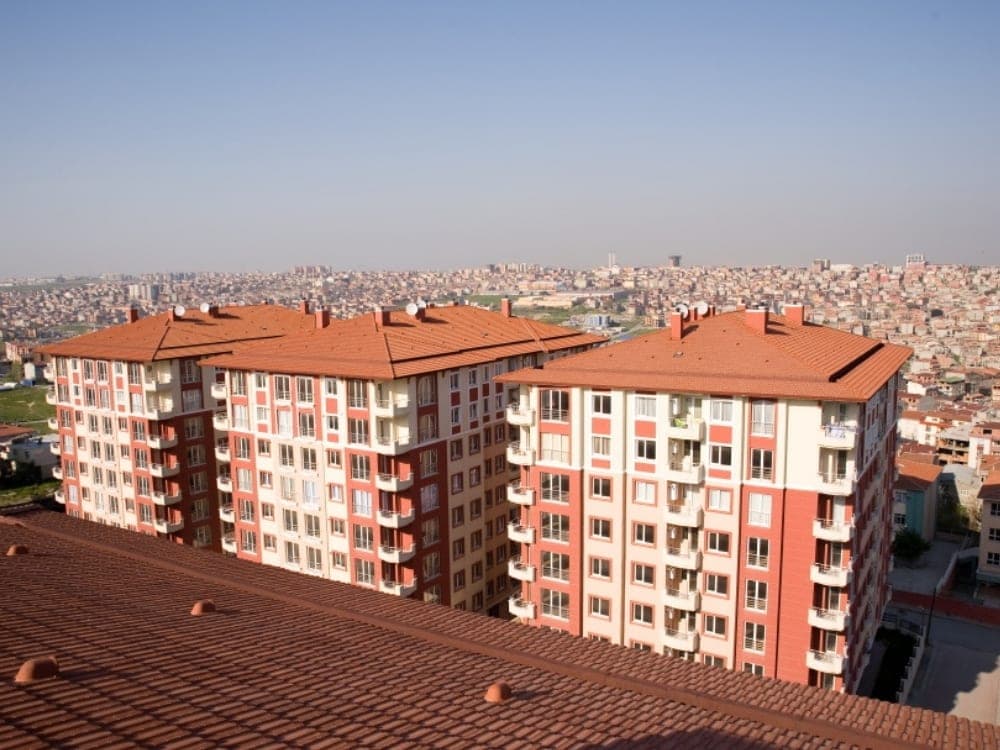

09 / 09
Sheet 09 — Enquiry
Specify Akdeniz.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
