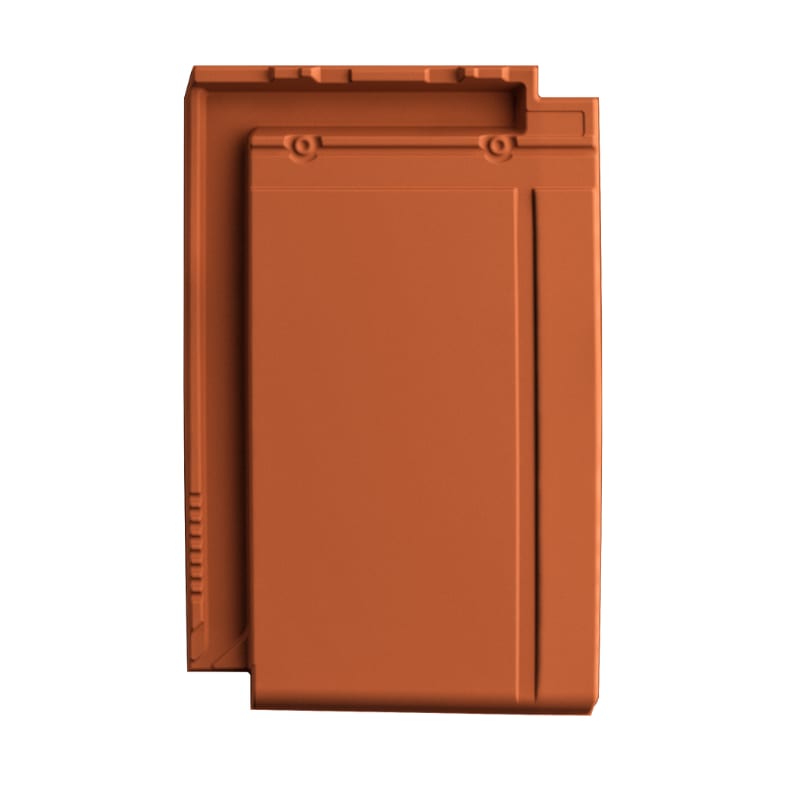

EX-09 — Premium tiles

Ultra

Large format in clay

Coverage: 11.6pcs/m²
Tile size: 265 × 425mm
Reaction to fire: A1

01 — Overview

Ultra answers the search for a plain, striking roof. Sharp lines and a refined profile give a clean, contemporary appearance, while the natural colour of the clay sits comfortably with any facade.

Its larger format means fewer tiles per square metre and a 35 cm batten gauge. It interlocks at the side and head, and valley tiles can be detailed without welding.

Performance

01
Modern design
Crisp lines bring a contemporary look to a clay roof.
02
Easy-clean surface
Surface technology that resists dust and dirt.
03
Controlled drainage
Carries water off the tiles reliably.
04
Weld-free valleys
Allows valley details without welding, for a longer life.
05
Quick to lay
Fewer tiles per square metre and a simple installation.

Applications

Contemporary houses
Minimalist architecture
Residential developments

Specifications

Tile

EX-09.01

Dimensions: 265 × 425 mm
Weight: 3550 g (± 100 g)

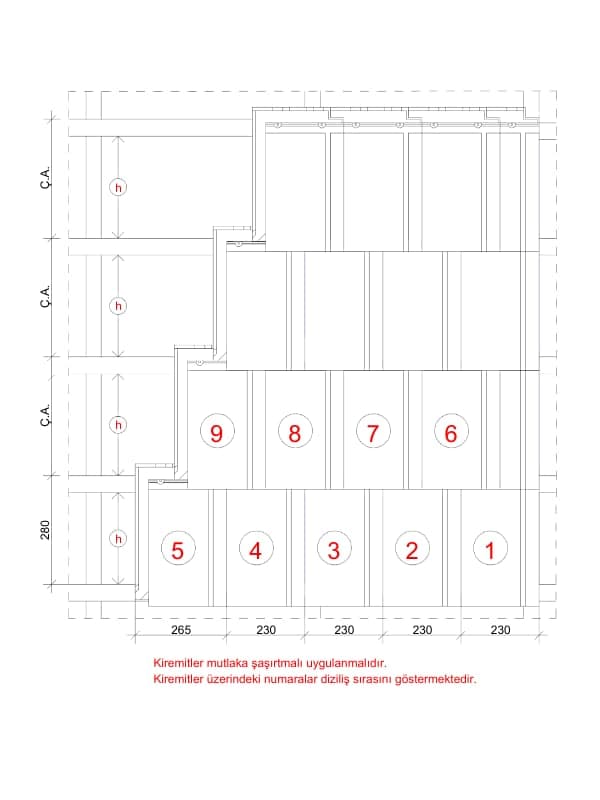

Laying: Staggered
Breaking load: > 210 kgf (± 20 kgf)
Coverage: 11.6 pcs/m²
Nail hole: 6 mm
Batten gauge: 350 mm (eaves to second batten 28 cm)
Recommended pitch: 33 %
Wind resistance: 110 km/h at 20–30° with the first three rows fully nailed and every third row after
