Granada
When aesthetics come first
- Breaking load ± 20
- 400kgf
- Coverage
- 15pcs/m²
- Flexural strength
- > 4000N
01 — Overview
Overview

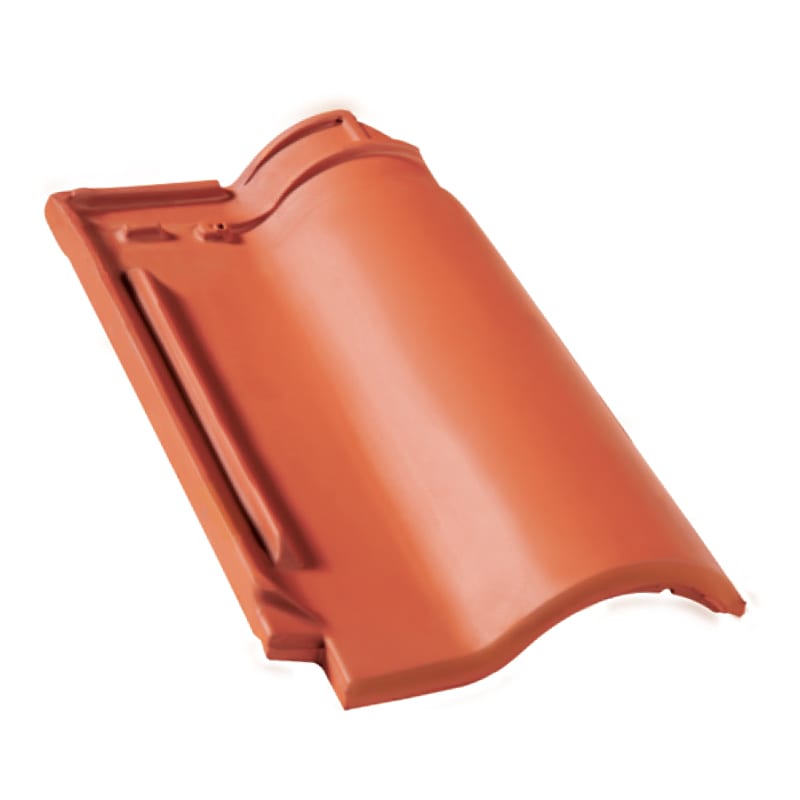

Granada is the choice for roofs where appearance matters most. Its wide curve and top-and-side interlocking design give the roof a rich, rolling texture that recalls the roofs of the Mediterranean.
Made from micronised clay with a smooth body and strength above the standard, it brings a distinctive, long-lasting finish to villa architecture in particular.
02
Performance
- 01
Closed channels
When laid, the channels close fully for extra watertightness.
- 02
Curved profile
A shape that sets the roof apart from other roofing materials.
- 03
No leaks at fixings
Water cannot enter through the nail hole.
- 04
Smooth surface
Dust and dirt find it hard to settle.
03
Applications

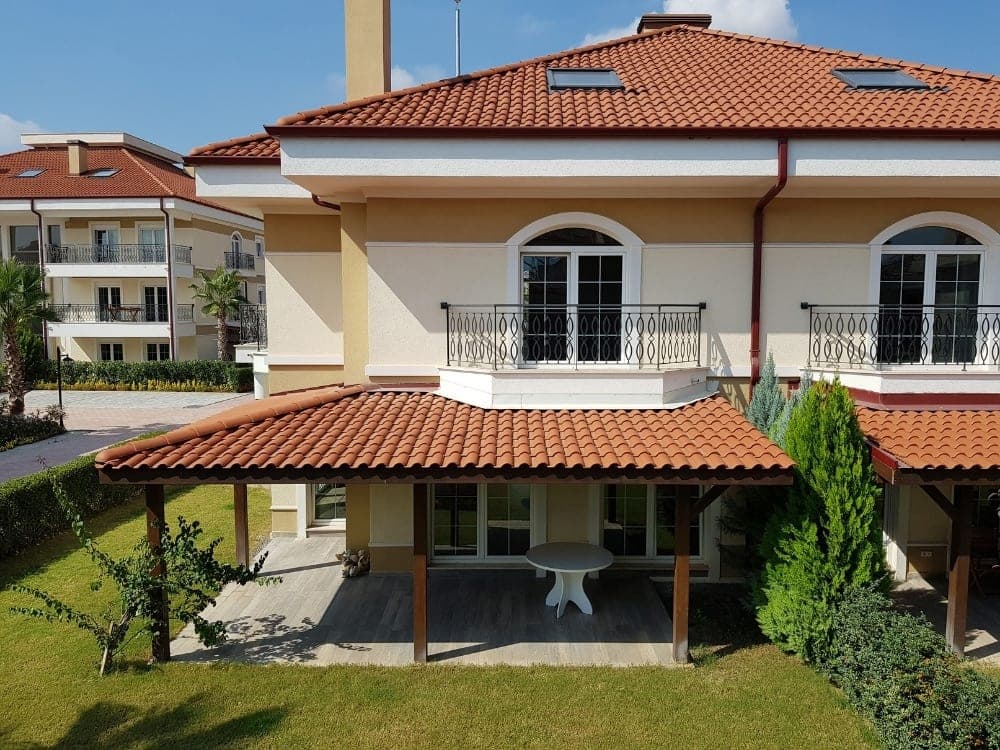

- Villas
- Hotels and resorts
- Residential developments
- Cultural buildings
04
Specifications
Tile

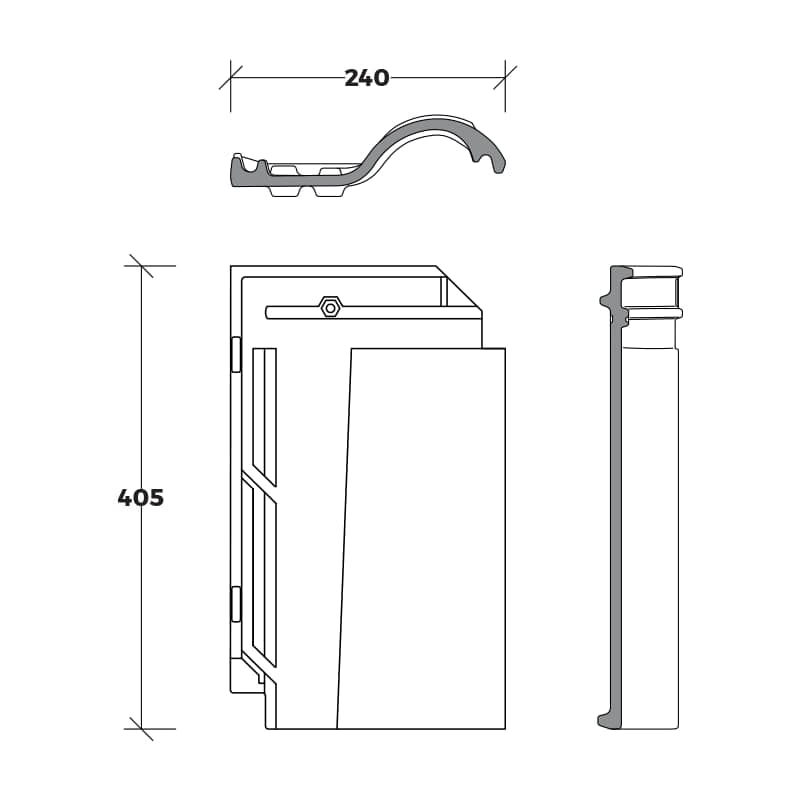

EX-09.01- Dimensions
- 240 × 405 mm
- Weight
- 3000 g (± 100 g)
- Laying
- Straight
- Breaking load
- 400 kgf (± 20 kgf)
- Flexural strength
- > 4000 N — TS EN 538
- Coverage
- 15 pcs/m²
- Nail hole
- 6 mm
- Batten gauge
- 336–338 mm (eaves to second batten 30 cm)
- Recommended pitch
- ≥ 33 %
Packing
EX-09.02- Pack
- 6 pcs
- Pallet
- 240 pcs, approx. 735 kg
Colours
EX-09.03- Available in
- Natural clay red, Dorlion Ateşi, Hitit Ateşi, Frigya Ateşi, Truva Ateşi

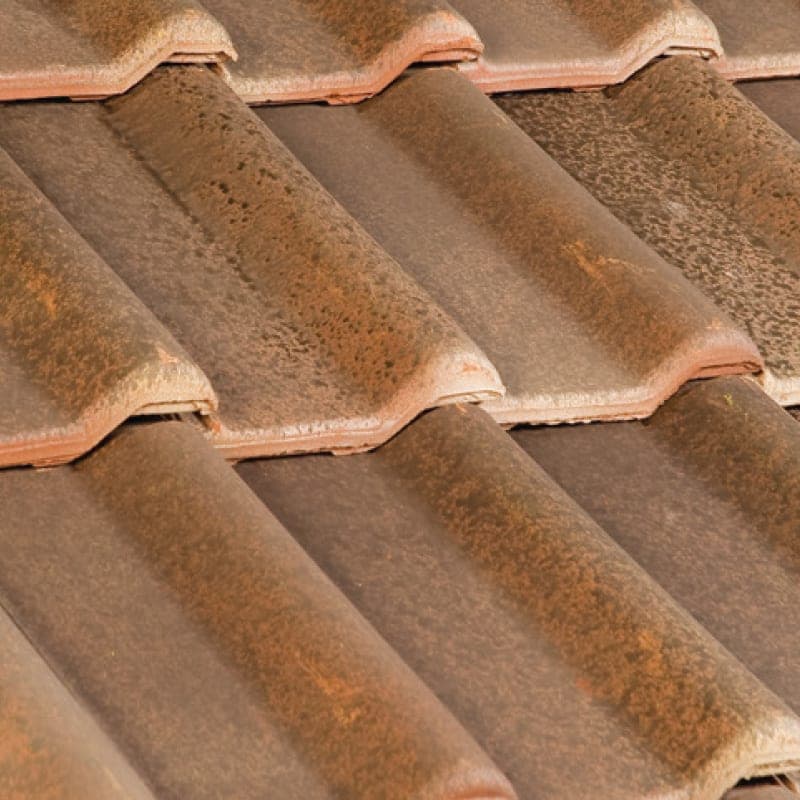

Gallery
01 / 10
02 / 10
03 / 10
04 / 10
05 / 10
06 / 10
07 / 10
08 / 10
09 / 10
10 / 10
Sheet 09 — Enquiry
Specify Granada.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
