Wood-Texture Board
Wood texture
- Reaction to fire
- A2-s1, d0
- Thickness
- 10–12mm
- Board size
- 1250 × 3000mm
Overview

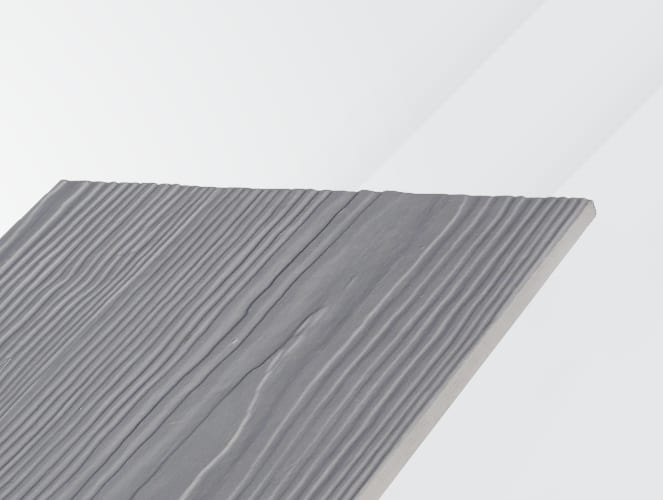

Wood-Texture Board brings the warmth of timber to the facade with a wood-textured surface, while its core of cement and wood and its mineral-reinforced faces keep the durability of a cement board.
It is widely used as rebated or open-joint siding on houses, villas and residential blocks, and inside as a decorative wall finish. Boards can be painted in any colour.
Performance
- 01
Mineral-reinforced faces
Natural mineral layers on both faces over a cement and wood core.
- 02
Ventilated facade
Fixed mechanically on ventilated-facade principles.
- 03
Matching accessories
Jambs, head jambs, inner and outer corners and string banding.
- 04
Paintable
Takes paint, coatings or wallpaper; natural grey when left as is.
- 05
Weather resistant
Resists seasonal change, sunlight, water, moisture and impact.
- 06
Healthy material
Asbestos-free and odourless. Will not rot, mould or attract insects.
- 07
Easy to work
Light to carry, easy to cut, drill, install and modify.
Applications
- Facades & external walls
- Outdoor ceilings, soffits & fascias
- Balconies & parapets
- Fences, boundary walls & noise barriers
- Internal walls & indoor ceilings
- Wet spaces
Specifications
Standard dimensions
EX-03.01- Thickness
- 10, 12 mm
- Board size
- 1250 × 3000 mm
- Special sizes
- Cut from standard boards in width and length
Technical
EX-03.02- Density
- 1300 ± 50 kg/m³
- Shipping density
- 1450 ± 100 kg/m³
- Thermal conductivity
- 0.15 W/mK (10 °C, dry)
- Bending strength
- ≥ 9 N/mm²
- Modulus of elasticity
- ≥ 4500 N/mm²
- Reaction to fire
- A2-s1, d0 (EN 13501-1)
Documents

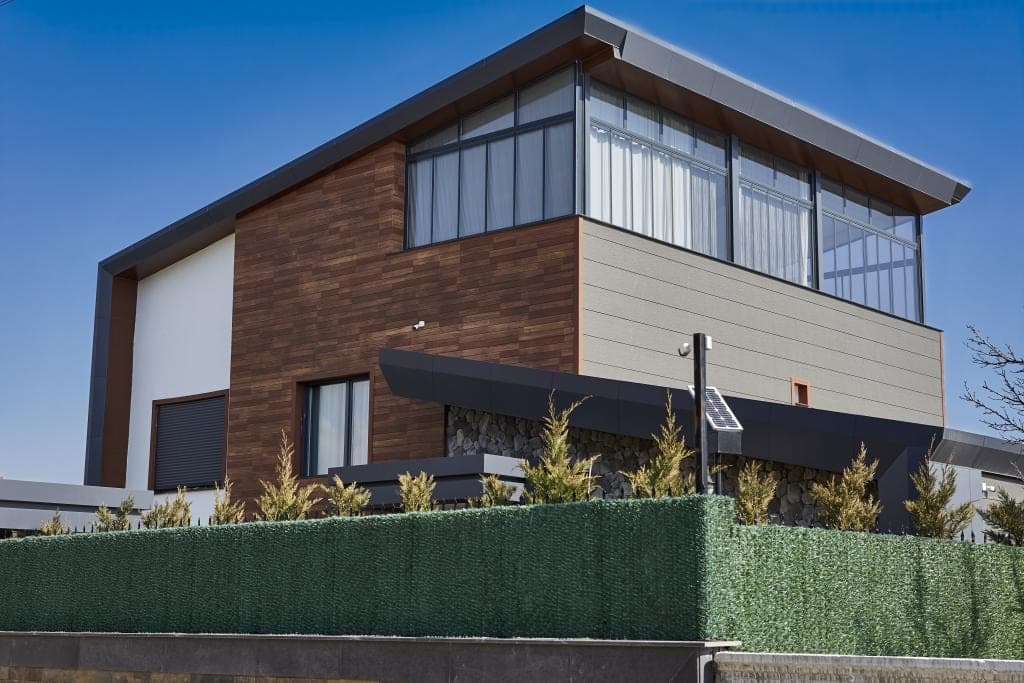

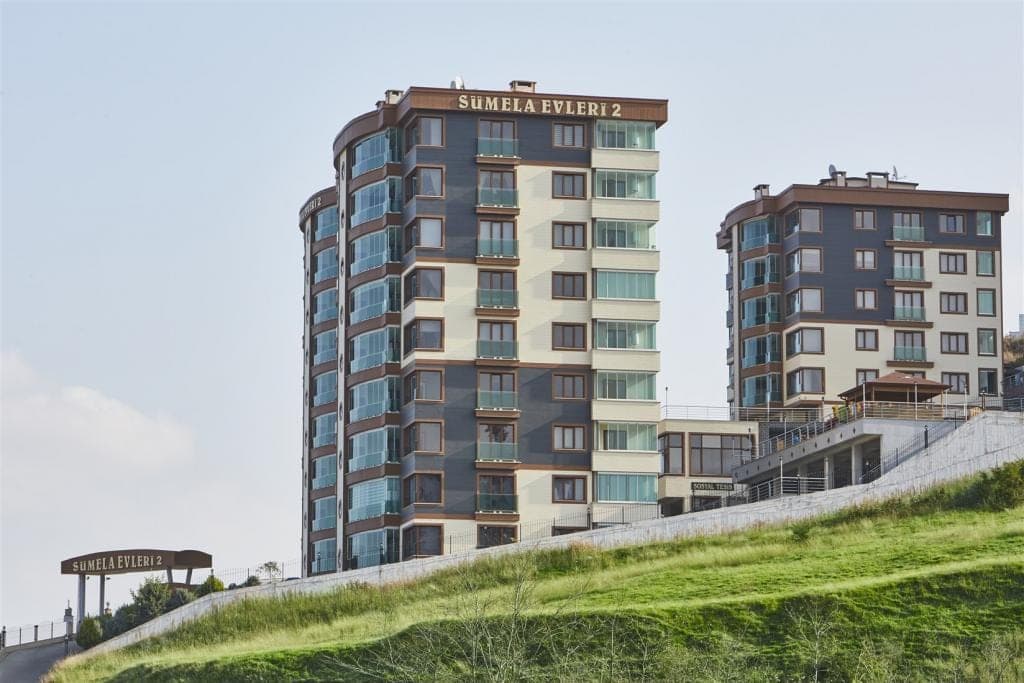

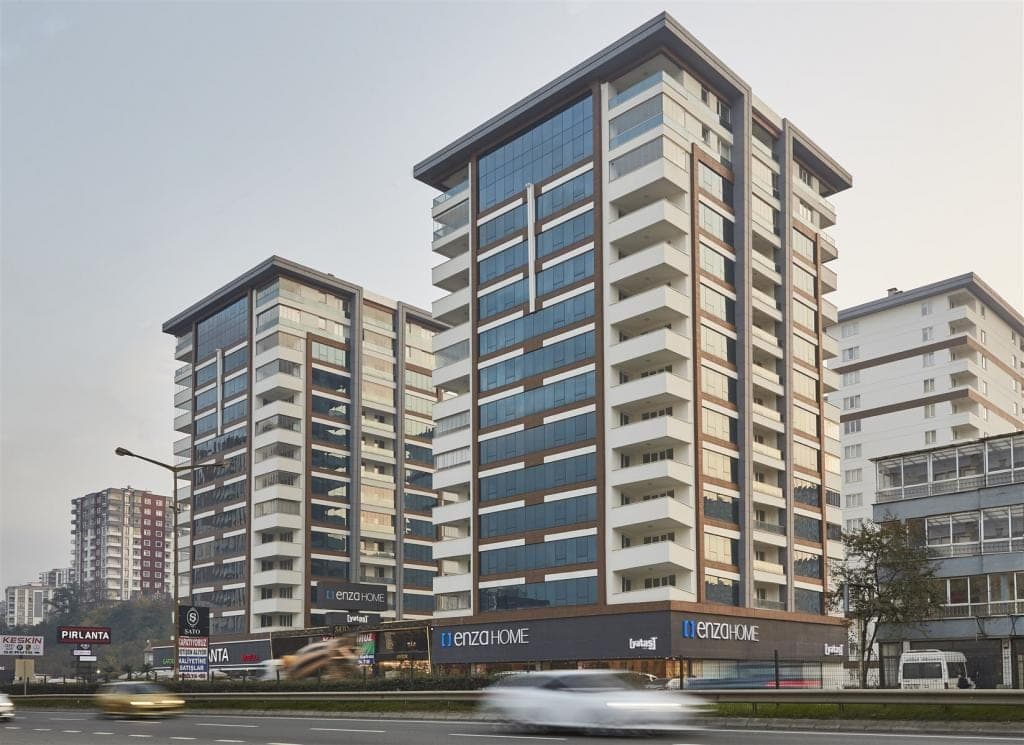

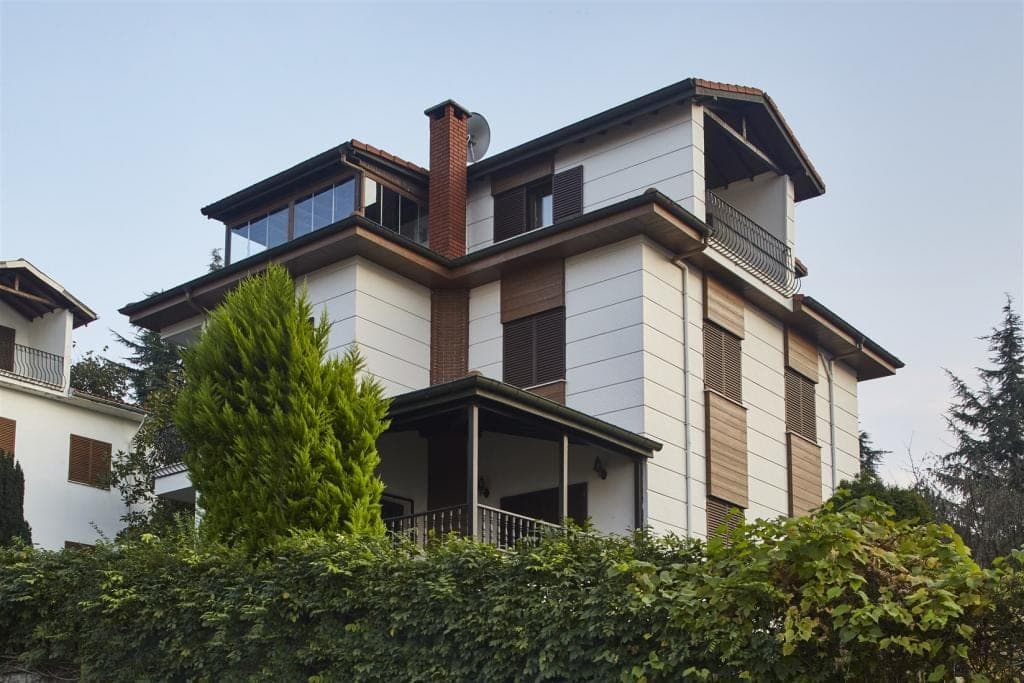

Gallery
01 / 04
02 / 04
03 / 04
04 / 04
Other lines
Cement-Bonded Particle Boards range
Specify Wood-Texture Board.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
