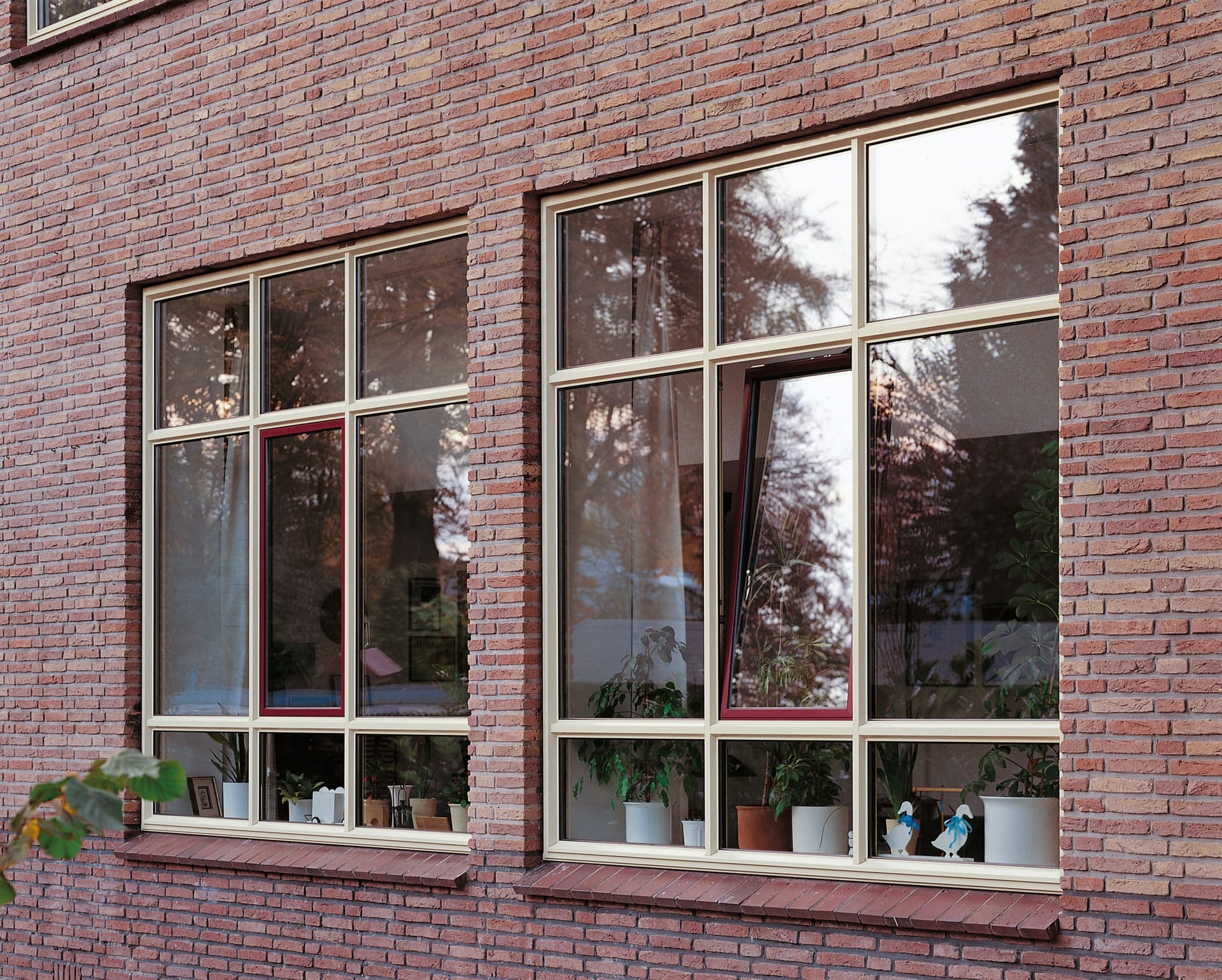

SlimLine 38
Light, elegance and comfort
- Uw
- 0.96W/m²K
- Min. frame + vent width
- 67mm
- Water tightness class
- 9A
01 — Overview
Overview
Thanks to its slim, user-friendly design, the highly insulated SlimLine 38 fits every modern project. Durable aluminium windows and doors with several minimalist variants give complete design freedom, in new build as well as renovation.

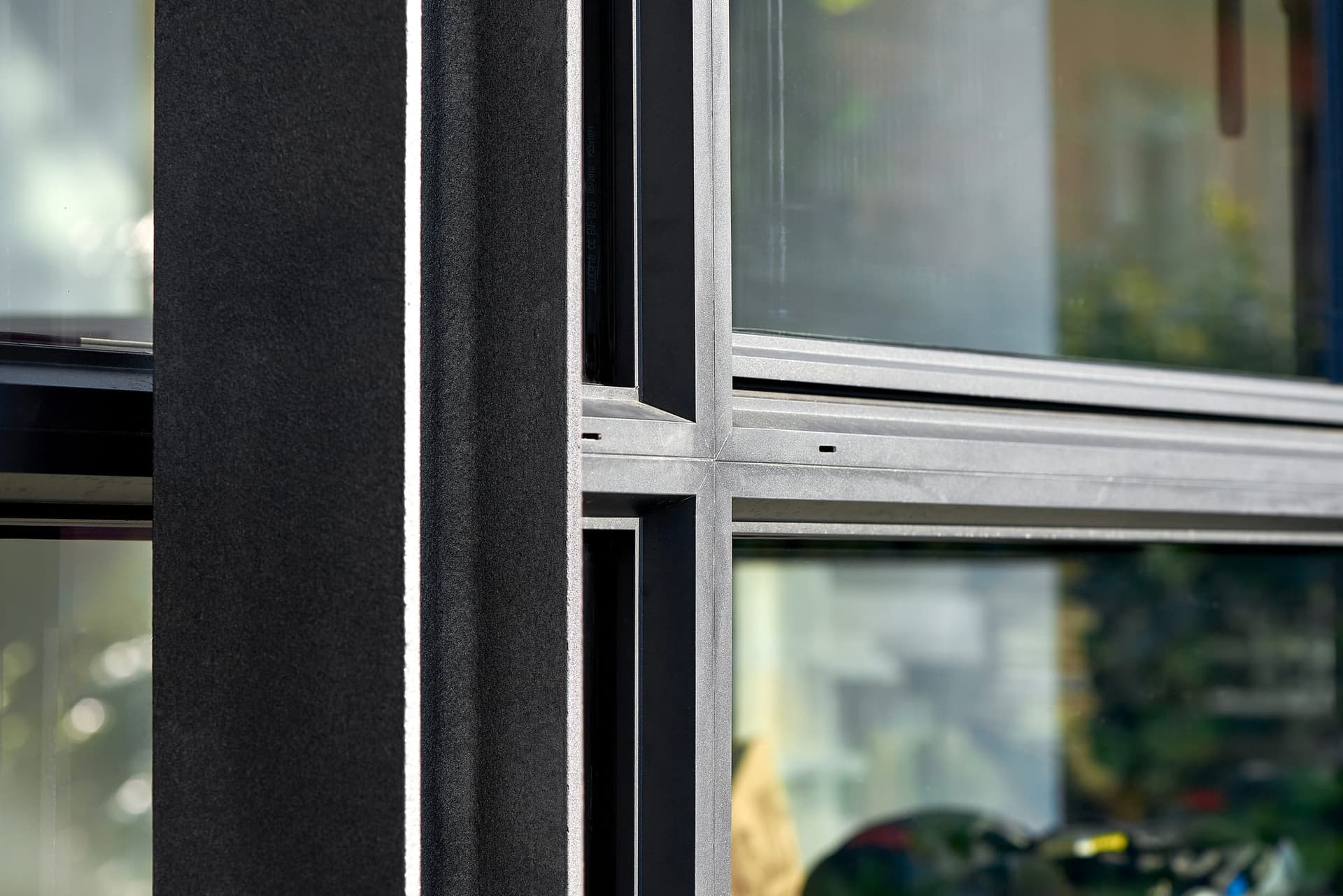

Three designs recreate the slim look of steel windows: Classic with a bevelled face, Cubic with a stepped face and Ferro with sharp straight lines. High Insulation and burglar-resistant versions are available.
02
Performance
- 01
Steel-look designs
Classic, Cubic and Ferro.
- 02
New build and renovation
Suits listed and contemporary buildings alike.
- 03
Fire resistance
EI1 30, EI2 30 and EW 30 versions.
03
Specifications
Performance
EX-06.01- Uf
- 1.9 W/m²K
- Uw
- 0.96 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class 9A (600 Pa)
- Wind resistance
- Class C4 (1600 Pa)
- Acoustics Rw (C;Ctr)
- 45 (-1;-5) dB
- Opening and closing durability
- Class 3
- Burglar resistance
- RC2, PAS 24
- Fire resistance
- EI1 30, EI2 30, EW 30
Dimensions
EX-06.02- Frame depth
- 99 mm
- Vent depth
- 86 mm
- Min. frame + vent width
- 67 mm inward / 80 mm outward opening
- Glazing rebate height
- 13.5 mm
- Element height
- 600–2800 mm
04
Documents

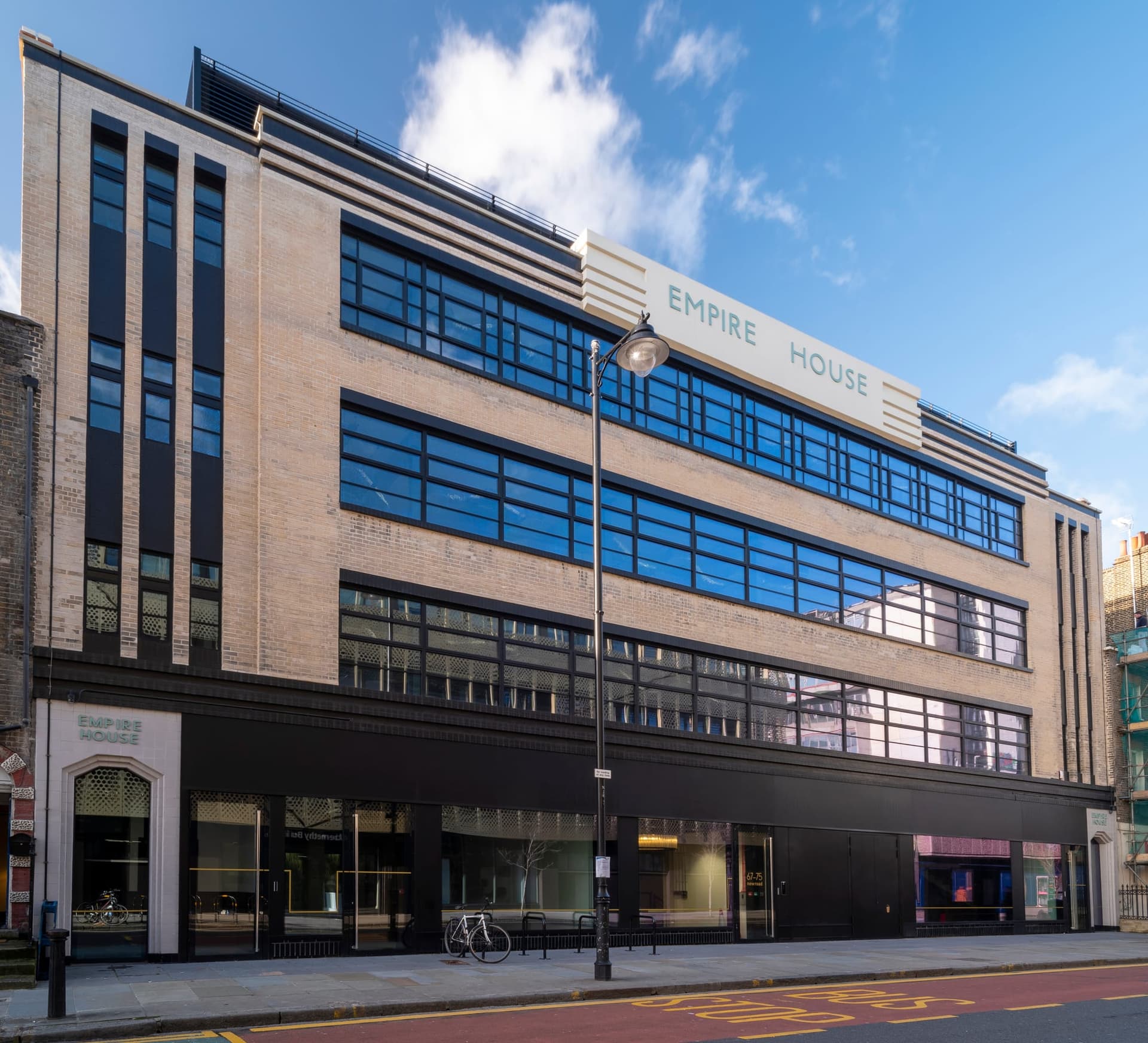

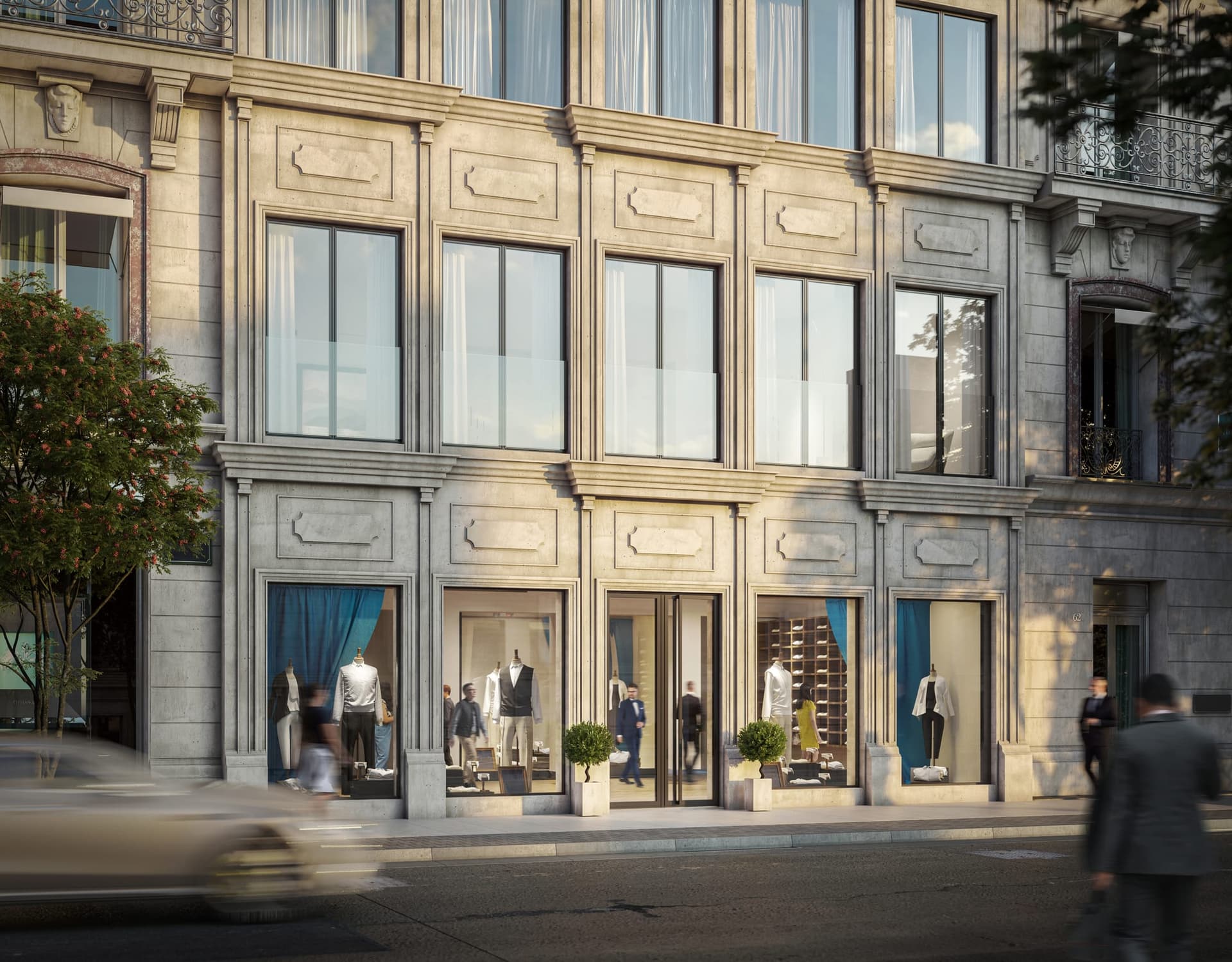

Gallery
01 / 03
02 / 03
03 / 03
