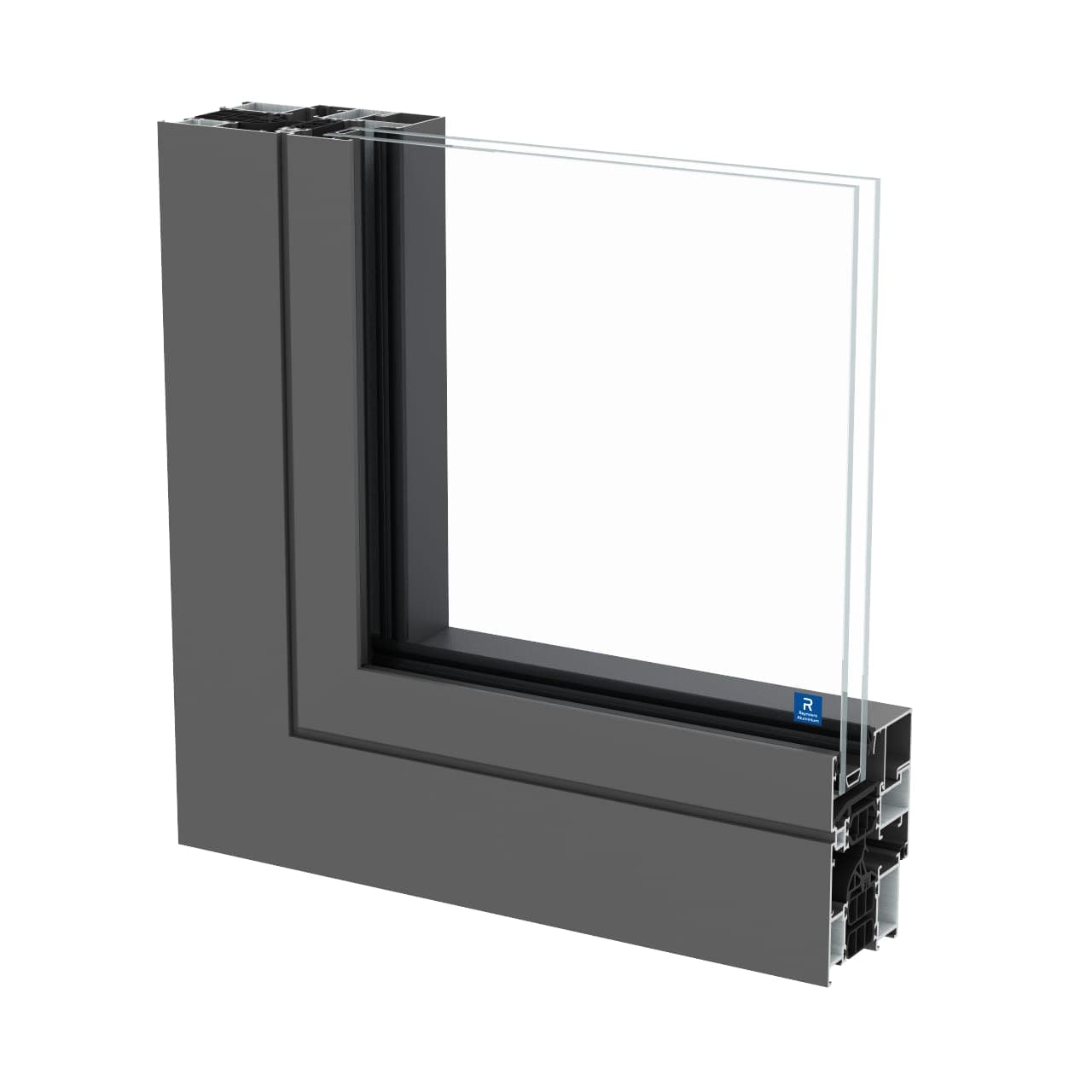

ConceptSystem 77
Optimised security and comfort
- Uw
- 1.3W/m²K
- Frame depth
- 68mm
- Glazing thickness (vent)
- 4–63mm
01 — Overview
Overview
ConceptSystem 77 is a versatile window system that completes almost every building project. Compatible with different burglar-resistance levels, these aluminium windows are both secure and elegant.
Variants include Functional and Hidden Vent designs, High Insulation +, and bullet-resistant, burglar-resistant, fire-resistant and SHEV (smoke and heat exhaust) versions.
02
Performance
- 01
Security variants
Bullet-resistant, burglar-resistant and fire-resistant versions.
- 02
SHEV compatible
Works with the building's smoke and heat exhaust ventilation system.
- 03
Hidden Vent
Opening element that looks fixed from outside.
03
Specifications
Performance
EX-06.01- Uf
- 1.8 W/m²K
- Uw
- 1.3 W/m²K
- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class E900 (900 Pa)
- Wind resistance
- Class C5 (2000 Pa)
- Acoustics Rw (C;Ctr)
- 42 (-2;-4) dB
- Opening and closing durability
- Class 3
- Burglar resistance
- RC2, PAS 24
- Fire resistance
- EI1 30, EI2 30, EI2 60, EW 57
Dimensions
EX-06.02- Frame depth
- 68 mm
- Vent depth
- 77 mm
- Min. frame + vent width
- 89 mm inward / 93.5 mm outward opening
- Glazing rebate height
- 25 mm
- Glazing thickness (vent)
- 4–63 mm
- Element height
- 600–2800 mm
04
Documents
Gallery
01 / 04
02 / 04
03 / 04
04 / 04
Sheet 09 — Enquiry
Specify ConceptSystem 77.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
